DLN-166

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

SIDE OIL SEAL

SIDE OIL SEAL

2WD

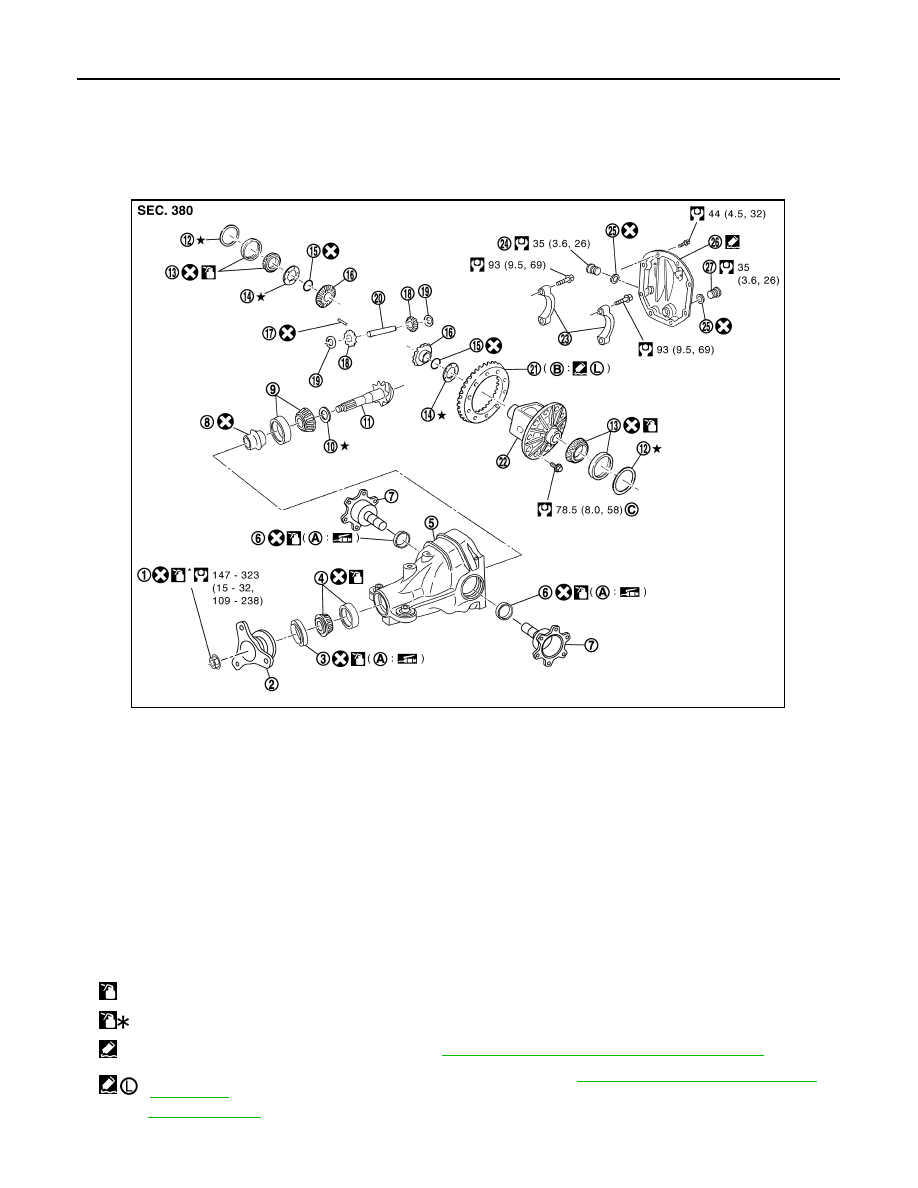

2WD : Exploded View

INFOID:0000000000957387

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Pinion front bearing

5.

Gear carrier

6.

Side oil seal

7.

Side flange

8.

Collapsible spacer

9.

Pinion rear bearing

10. Pinion height adjusting washer

11.

Drive pinion

12. Side bearing adjusting washer

13. Side bearing

14. Side gear thrust washer

15. Circular clip

16. Side gear

17. Lock pin

18. Pinion mate gear

19. Pinion mate thrust washer

20. Pinion mate shaft

21. Drive gear

22. Differential case

23. Bearing cap

24. Filler plug

25. Gasket

26. Rear cover

27. Drain plug

A: Oil seal lip

B: Screw hole

C: After tightening the bolts to the specified torque, tighten the bolts additionally by turning the bolts 31 to 36 degrees.

:

Apply gear oil.

:

Apply anti-corrosion oil.

:

Apply Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.



:

Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSDIA0028GB

SIDE OIL SEAL

DLN-167

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

2WD : Removal and Installation

INFOID:0000000000957388

REMOVAL

1.

Remove center muffler with a power tool. Refer to

EX-5, "Removal and Installation"

.

2.

Remove rear wheel sensor. Refer to

BRC-100, "Removal and Installation"

.

3.

Remove drive shaft from final drive with a power tool. Then suspend it by wire etc. Refer to

RAX-9,

"Removal and Installation"

.

4.

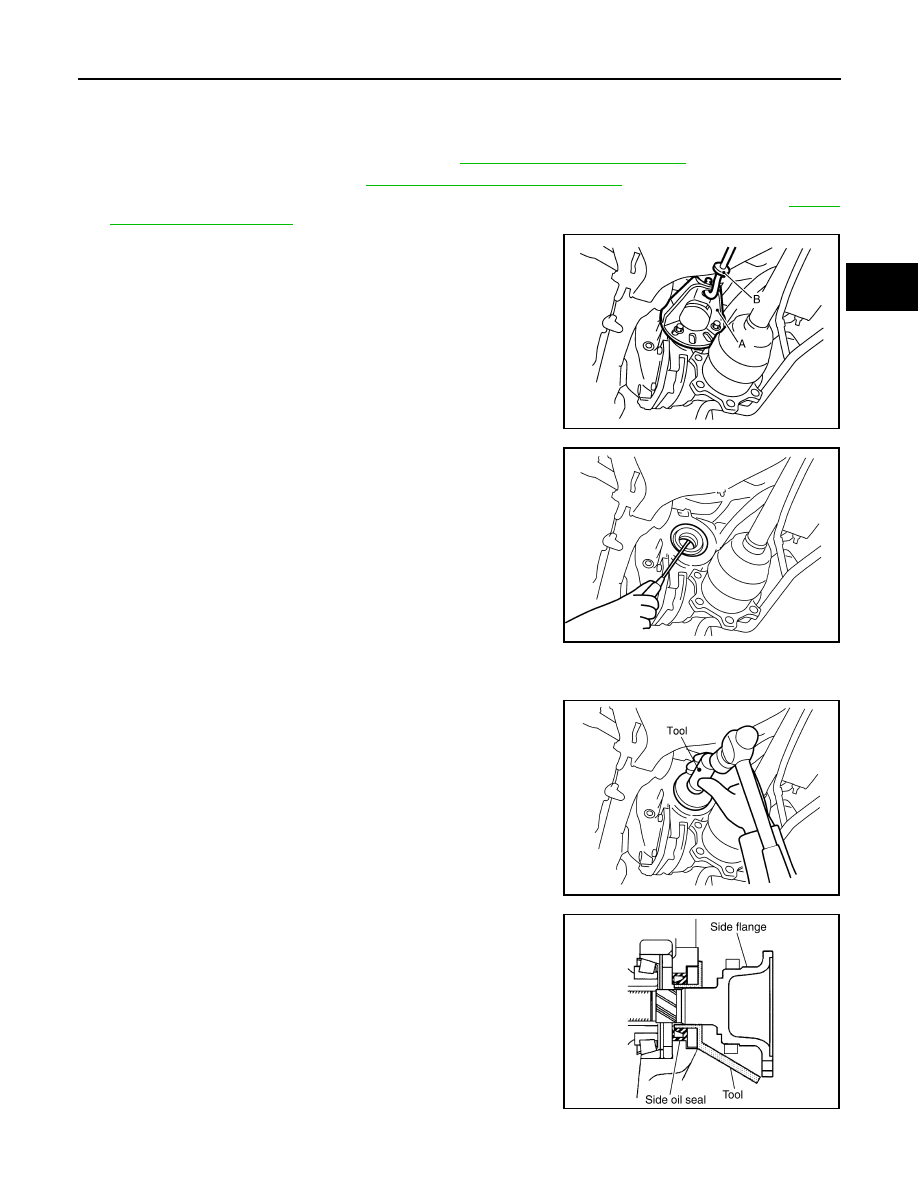

Install attachment (A) [SST: KV40104100 (

)] to side

flange, and then pull out the side flange with the sliding hammer
(B) [SST: ST36230000 (J-25840-A)].
NOTE:
Circular clip installation position: Final drive side

5.

Remove side oil seal, using a flat-bladed screwdriver.

CAUTION:

Never damage gear carrier.

INSTALLATION

1.

Apply multi-purpose grease to side oil seal lips.

2.

Install side oil seal until it becomes flush with the case end,
using the drift [SST: KV38100200 (J-26233)].

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.

3.

Install side flange with the following procedure.

a.

Attach the protector [SST: KV38107900 (J-39352)] to side oil
seal.

b.

After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.

c.

Put a suitable drift on the center of side flange, then drive it until sound changes.

JSDIA0105ZZ

SDIA1584E

SDIA1585E

SDIA0822E

DLN-168

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

SIDE OIL SEAL

NOTE:
When installation is completed, driving sound of the side flange turns into a sound which seems to affect
the whole final drive.

d.

Confirm that the dimension of the side flange (1) installation
(Measurement A) in the figure comes into the following.

4.

Install drive shaft. Refer to

RAX-9, "Removal and Installation"

.

5.

Install rear wheel sensor. Refer to

BRC-100, "Removal and

Installation"

.

6.

Install center muffler. Refer to

EX-5, "Removal and Installation"

.

7.

When oil leaks while removing, check oil level after the installa-
tion. Refer to

DLN-154, "Inspection"

.

AWD

AWD : Exploded View

INFOID:0000000000957389

Measurement “A”

: 326 – 328 mm (12.83 –
12.91 in)

JSDIA0106ZZ

1.

Drive pinion lock nut

2.

Companion flange

3.

Front oil seal

4.

Pinion front bearing

5.

Gear carrier

6.

Side oil seal

7.

Side flange

8.

Collapsible spacer

9.

Pinion rear bearing

10. Pinion height adjusting washer

11.

Drive pinion

12. Side bearing adjusting washer

13. Side bearing

14. Side gear thrust washer

15. Circular clip

16. Side gear

17. Lock pin

18. Pinion mate gear

19. Pinion mate thrust washer

20. Pinion mate shaft

21. Drive gear

22. Differential case

23. Bearing cap

24. Filler plug

JSDIA0027GB

SIDE OIL SEAL

DLN-169

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

AWD : Removal and Installation

INFOID:0000000000957390

REMOVAL

1.

Remove center muffler with a power tool. Refer to

EX-5, "Removal and Installation"

.

2.

Remove rear wheel sensor. Refer to

BRC-100, "Removal and Installation"

.

3.

Remove drive shaft from final drive with a power tool. Then suspend it by wire etc. Refer to

RAX-9,

"Removal and Installation"

.

4.

Install attachment (A) [SST: KV40104100 (

)] to side

flange, and then pull out the side flange with the sliding hammer
(B) [SST: ST36230000 (J-25840-A)].
NOTE:
Circular clip installation position: Final drive side

5.

Remove side oil seal, using a flat-bladed screwdriver.

CAUTION:

Never damage gear carrier.

INSTALLATION

1.

Apply multi-purpose grease to side oil seal lips.

2.

Install side oil seal until it becomes flush with the case end,
using the drift [SST: KV38100200 (J-26233)].

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.

25. Gasket

26. Rear cover

27. Drain plug

A: Oil seal lip

B: Screw hole

C: After tightening the bolts to the specified torque, tighten the bolts additionally by turning the bolts 31 to 36 degrees.

:

Apply gear oil.

:

Apply anti-corrosion oil.

:

Apply Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.



:

Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JSDIA0105ZZ

SDIA1584E

SDIA1585E
