Infiniti G35 (V35) Sedan. Manual - part 431

DLN-158

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

FRONT OIL SEAL

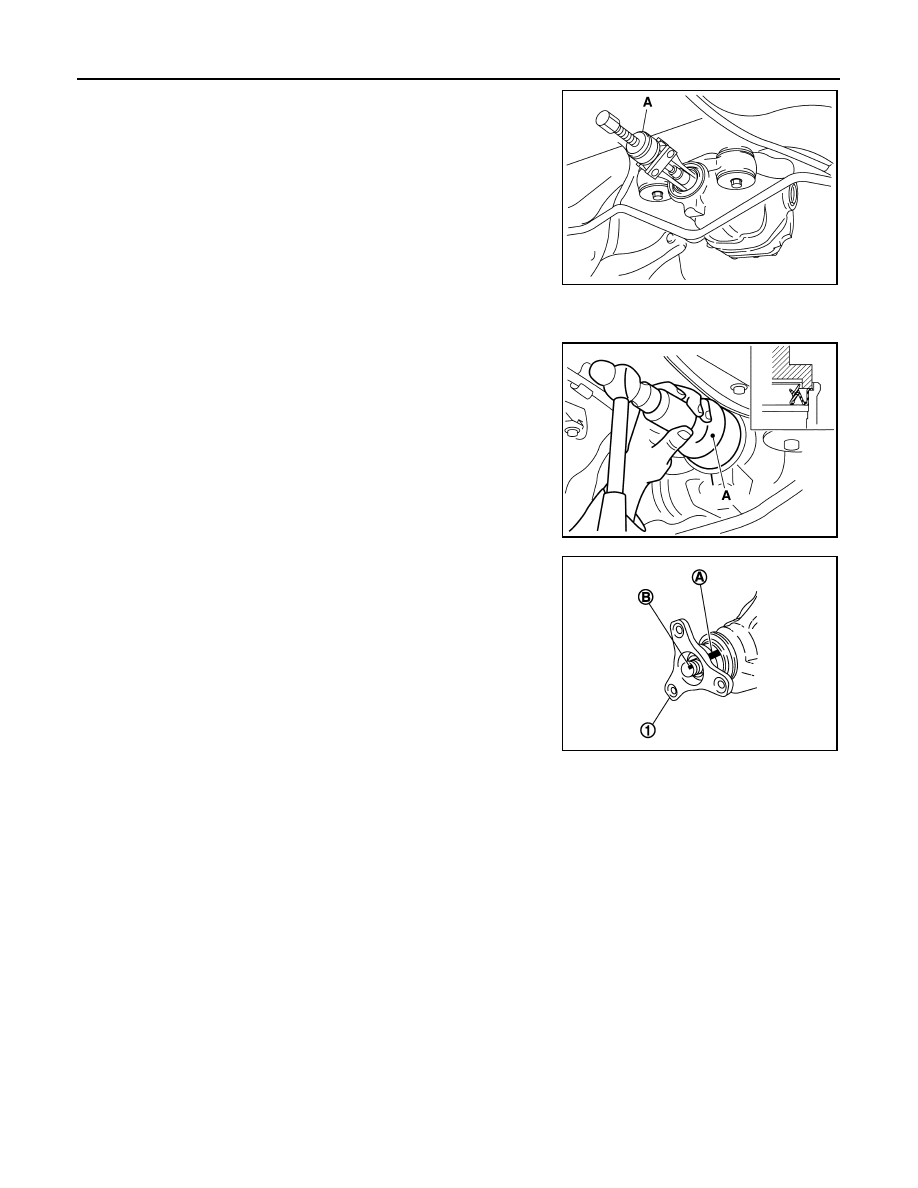

12. Remove front oil seal using the puller (A) [SST: KV381054S0 (J-

34286)].

INSTALLATION

Apply multi-purpose grease to front oil seal lips.

Install front oil seal using the drift (A) [SST: ST30720000 (J-
25405)] as shown in figure.

CAUTION:

• Never reuse oil seal.
• Never incline oil seal when installing.

Align the matching mark (B) of drive pinion with the matching
mark (A) of companion flange (1), and then install the compan-
ion flange (1).

PDIA0980E

PDIA0752J

JSDIA0016ZZ

FRONT OIL SEAL

DLN-159

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

DLN

Apply anti-corrosion oil to the thread and seat of new drive pin-
ion lock nut, and temporarily tighten drive pinion lock nut to drive
pinion.

CAUTION:

Never reuse drive pinion lock nut.

Tighten to drive pinion lock nut, while adjust total preload torque.

CAUTION:

• Adjust to the lower limit of the drive pinion lock nut tight-

ening torque first.

• If the preload torque exceeds the specified value, replace

collapsible spacer and tighten it again to adjust. Never
loosen drive pinion lock nut to adjust the preload torque.

Set a dial indicator (A) vertically to the tip of the drive pinion.

Rotate drive pinion to check for runout.

• If the runout value is still outside of the limit after the phase

has been changed, possible cause will be an assembly mal-
function of drive pinion and pinion bearing and malfunction of
pinion bearing. Check for these items and repair if necessary.

Make a stamping for identification of front oil seal replacement frequency. Refer to “Identification stamp of
replacement frequency of front oil seal”.

CAUTION:

Never make a stamping after replacing front oil seal.

Install propeller shaft. Refer to

DLN-93, "Removal and Installation"

10. Install side flange with the following procedure.

Attach the protector [SST: KV38107900 (J-39352)] to side oil
seal.

After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.

Put a suitable drift on the center of side flange, then drive it until
sound changes.
NOTE:
When installation is completed, driving sound of the side flange
turns into a sound which seems to affect the whole final drive.

A: Preload gauge [SST: ST3127S000 (J-25765-A)]

Total preload torque

: Total preload torque
should equal the measure-
ment taken during removal
plus an additional 0.1 – 0.4
N·m (0.01 – 0.04 kg-m, 1 – 3
in-lb).

JSDIA0023ZZ

Limit

Drive pinion runout

: Refer to

DLN-216, "Drive

Pinion Runout (2WD Mod-
els)"

JSDIA0043ZZ

SDIA0822E

DLN-160

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

FRONT OIL SEAL

Confirm that the dimension of the side flange (1) installation
(Measurement A) in the figure comes into the following.

11. Install drive shaft. Refer to

RAX-9, "Removal and Installation"

12. Install rear wheel sensor. Refer to

BRC-100, "Removal and

Installation"

13. Install center muffler. Refer to

EX-5, "Removal and Installation"

14. Refill gear oil to the final drive and check oil level. Refer to

DLN-

154, "Refilling"

15. Check the final drive for oil leakage. Refer to

DLN-154, "Inspection"

AWD

AWD : Exploded View

INFOID:0000000000957385

Measurement “A”

: 326 – 328 mm (12.83 –
12.91 in)

JSDIA0106ZZ

Drive pinion lock nut

Companion flange

Front oil seal

Pinion front bearing

Gear carrier

Side oil seal

Side flange

Collapsible spacer

Pinion rear bearing

10. Pinion height adjusting washer

11.

Drive pinion

12. Side bearing adjusting washer

13. Side bearing

14. Side gear thrust washer

15. Circular clip

16. Side gear

17. Lock pin

18. Pinion mate gear

19. Pinion mate thrust washer

20. Pinion mate shaft

21. Drive gear

22. Differential case

23. Bearing cap

24. Filler plug

25. Gasket

26. Rear cover

27. Drain plug

A: Oil seal lip

JSDIA0027GB

FRONT OIL SEAL

DLN-161

< ON-VEHICLE REPAIR >

[REAR FINAL DRIVE: R200]

DLN

AWD : Removal and Installation

INFOID:0000000000957386

REMOVAL

CAUTION:

Verify identification stamp of replacement frequency put in the lower part of gear carrier to determine
replacement for collapsible spacer when replacing front oil seal. Refer to “Identification stamp of
replacement frequency of front oil seal”. If necessary collapsible spacer replacement, remove final
drive assembly and disassemble it to replace front oil seal and collapsible spacer. Refer to

DLN-172,

"AWD : Removal and Installation"

and

DLN-187, "AWD : Disassembly"

NOTE:
The reuse of collapsible spacer is prohibited in principle. However, it is reusable on a one-time basis
only in cases when replacing front oil seal.

Identification stamp of replacement frequency of front oil seal

• The diagonally shaded area in the figure shows stamping point for

replacement frequency of front oil seal.

• The following table shows if collapsible spacer replacement is

needed before replacing front oil seal.
When collapsible spacer replacement is required, disassemble
final drive assembly to replace collapsible spacer and front oil seal.
Refer to

DLN-187, "AWD : Disassembly"

CAUTION:

Never make a stamping after replacing front oil seal.

• After replacing front oil seal, make a stamping on the stamping point in accordance with the table below in

order to identify replacement frequency.

CAUTION:

Stamping shall be made from left to right.

Drain gear oil. Refer to

DLN-154, "Draining"

Make a judgment if a collapsible spacer replacement is required.

B: Screw hole

C: After tightening the bolts to the specified torque, tighten the bolts additionally by turning the bolts 31 to 36 degrees.

Apply gear oil.

Apply anti-corrosion oil.

Apply Genuine Silicone RTV or equivalent. Refer to

Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products

and Sealants"

Refer to

GI-4, "Components"

for symbols not described on the above.

Stamp

collapsible spacer replacement

No stamp

Not required

“0” or “0” on the far right of stamp

Required

“01” or “1” on the far right of stamp

Not required

PDIA0976E

Stamp before stamping

Stamping on the far right

Stamping

No stamp

“0”
(Front oil seal was replaced once.)

“01”
(Collapsible spacer and front oil seal were replaced last time.)

010

“0” is on the far right.
(Only front oil seal was replaced last time.)

...01

“1” is on the far right.
(Collapsible spacer and front oil seal were replaced last time.)

...010
