[REAR PROPELLER SHAFT: 3F80A-1VL107]

REAR PROPELLER SHAFT

5.

Put matching marks on propeller shaft flange yoke with transfer
companion flange.

CAUTION:

For matching marks, use paint. Never damage propeller
shaft flange yoke and transfer companion flange.

6.

Put matching marks on propeller shaft rebro joint with final drive
companion flange.

CAUTION:

For matching marks, use paint. Never damage propeller
shaft rebro joint and final drive companion flange.

7.

Loosen mounting nuts of center bearing mounting brackets.

CAUTION:

Tighten mounting nuts temporarily.

8.

Remove propeller shaft assembly fixing bolts and nuts.

9.

Remove center bearing mounting bracket fixing nuts.

10. Remove propeller shaft assembly.

CAUTION:

If constant velocity joint was bent during propeller shaft
assembly removal, installation, or transportation, its boot
may be damaged. Wrap boot interference area to metal part
with shop cloth or rubber to protect boot from breakage.

INSTALLATION

Note the following, and install in the reverse order of removal.

SDIA1822E

PDIA0470E

PDIA0402E

REAR PROPELLER SHAFT

DLN-103

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3F80A-1VL107]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

• Install center bearing mounting bracket (Upper) (1) with its arrow

mark (A) facing forward.

• Adjust position of center bearing mounting bracket (1, 2) sliding

back and forth to prevent play in thrust direction of center bearing
insulator (3). Install bracket to vehicle.

• Align matching marks to install propeller shaft flange yoke with

transfer companion flange.

• Align matching marks to install propeller shaft rebro joint with final

drive companion flange.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive. Reinstall companion flange after rotating it by 60, 120, 180,
240, 300 degrees. Then perform driving test and check propeller
shaft vibration again at each point.

JSDIA0127ZZ

SDIA1822E

PDIA0470E

DLN-104

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3F80A-1VL107]

REAR PROPELLER SHAFT

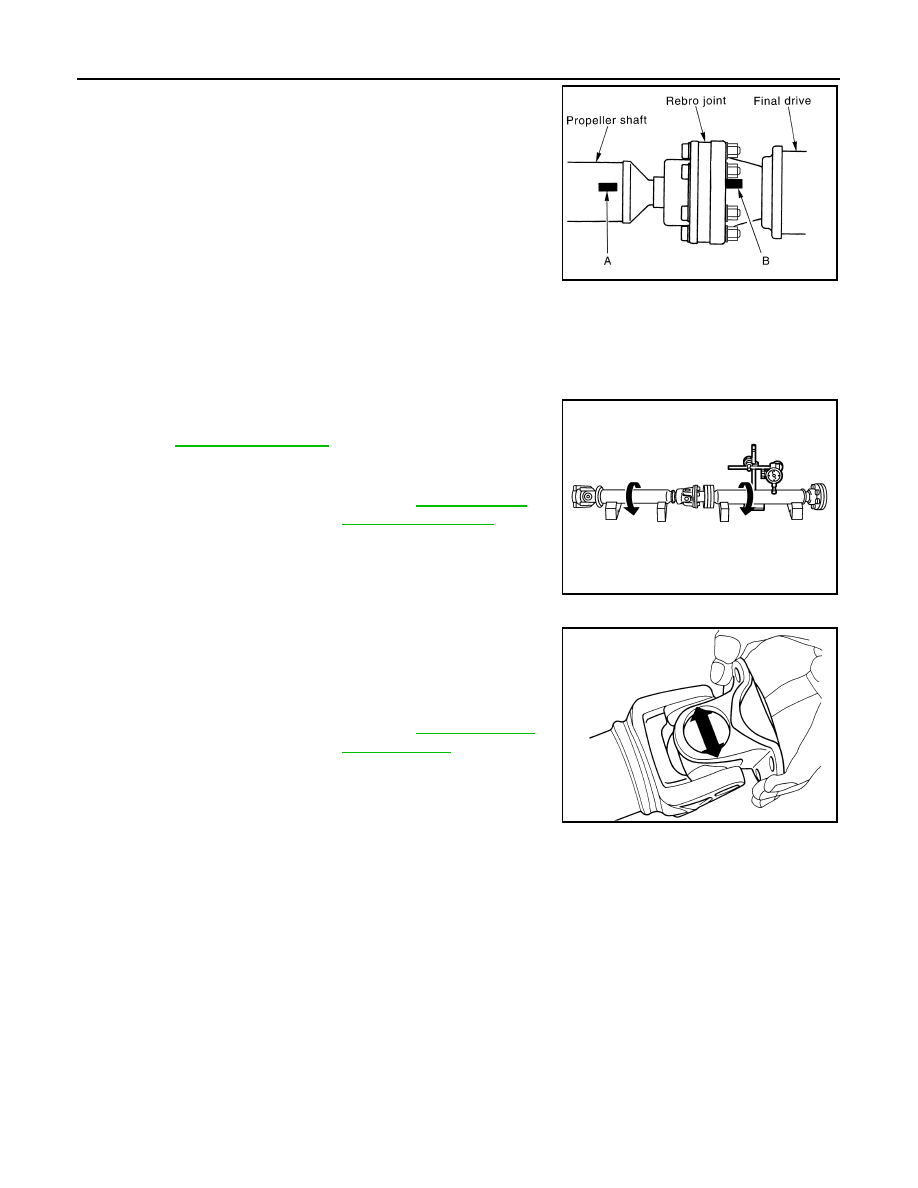

• If propeller shaft or final drive has been replaced, connect them as

follows:

- Install the propeller shaft while aligning its matching mark A with

the matching mark B on the joint as close as possible.

CAUTION:

Avoid damaging the rebro joint boot, protect it with a shop
towel or equivalent.

Inspection

INFOID:0000000000957336

APPEARANCE

Check propeller shaft for bend and damage. If damage is detected, replace propeller shaft assembly.

PROPELLER SHAFT RUNOUT

Check propeller shaft runout at measuring points. If runout exceeds
specifications, replace propeller shaft assembly. For measuring
point, refer to

DLN-100, "Inspection"

.

JOURNAL AXIAL PLAY

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If outside the standard, replace propeller shaft assem-
bly.

CAUTION:

Never disassemble joints.

CENTER BEARING

Check center bearing for noise and damage. If noise or damage is detected, replace propeller shaft assembly.

CAUTION:

Never disassemble center bearing.

SDIA2049E

Limit

Propeller shaft runout

: Refer to

DLN-105, "Pro-

peller Shaft Runout"

.

JSDIA0079ZZ

Standard

Journal axial play

: Refer to

DLN-105, "Jour-

nal Axial Play"

.

PDA0005D

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-105

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR PROPELLER SHAFT: 3F80A-1VL107]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000000957337

Propeller Shaft Runout

INFOID:0000000000957338

Unit: mm (in)

Journal Axial Play

INFOID:0000000000957339

Unit: mm (in)

Applied model

 AWD

 VQ35HR

 A/T

Propeller shaft model

3F80A-1VL107

Number of joints

3

Type of journal bearings
(Non-disassembly type)

1st joint

Shell type

2nd joint

Shell type

3rd joint

Rebro joint type

Coupling method with transfer

Flange type

Coupling method with rear final drive

Rebro joint type

Shaft length

1st (Spider to spider)

399 mm (15.71 in)

2nd (Spider to rebro joint center)

753 mm (29.65 in)

Shaft outer diameter

1st

82.6 mm (3.25 in)

2nd

75.0 mm (2.95 in)

Item

Limit

Propeller shaft runout

0.8 (0.031)

Item

Standard

Journal axial play

0 (0)
