Infiniti G35 (V35) Sedan. Manual - part 415





DLN-94

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3S80A-R]

REAR PROPELLER SHAFT

5.

Put matching marks on propeller shaft rubber coupling with final
drive companion flange.

CAUTION:

For matching marks, use paint. Never damage propeller
shaft rubber coupling and final drive companion flange.

6.

Loosen mounting nuts of center bearing mounting brackets.

CAUTION:

Tighten mounting nuts temporarily.

7.

Remove propeller shaft assembly fixing bolts and nuts.

CAUTION:

Never remove the rubber coupling from the propeller shaft
assembly.

8.

Slightly separate the rubber coupling (1) from the final drive
companion flange (2).

CAUTION:

Never damage the final drive companion flange and rubber
coupling.

9.

Remove center bearing mounting bracket fixing nuts.

CAUTION:

• The angle (A), which the third axis rubber coupling (1)

forms with the final drive companion flange (2), must be 5

°

or less.

• Never damage the grease seal (3).
• Never damage the rubber coupling.

10. Slide the propeller shaft forward the vehicle slightly. Separate

the propeller shaft from the final drive companion flange.

CAUTION:

JSDIA0009ZZ

PDIA0402E

JSDIA0010ZZ

JSDIA0128ZZ

JSDIA0137ZZ

REAR PROPELLER SHAFT

DLN-95

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3S80A-R]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

• The angle, which the third axis rubber coupling forms with the final drive companion flange,

must be 5

°

 or less.

• Never damage the grease seal.
• Never damage the rubber coupling.

11. Remove the propeller shaft assembly from the vehicle.

CAUTION:

Never damage the rear oil seal of transmission.

INSTALLATION

Note the following, and install in the reverse order of removal.

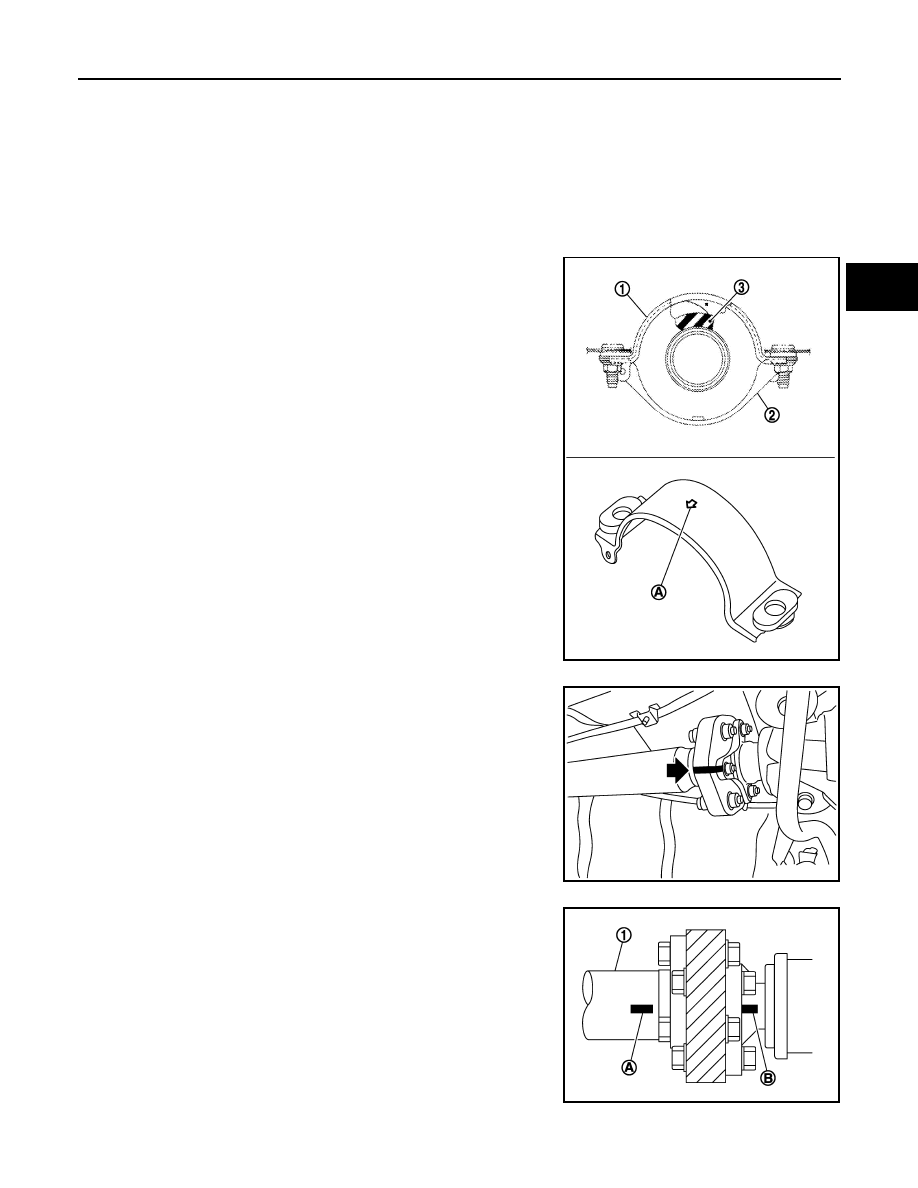

• Install center bearing mounting bracket (Upper) (1) with its arrow

mark (A) facing forward.

• Adjust position of center bearing mounting bracket (1, 2) sliding

back and forth to prevent play in thrust direction of center bearing
insulator (3). Install bracket to vehicle.

• Align matching marks to install propeller shaft rubber coupling to

final drive companion flange.

• After assembly, perform a driving test to check propeller shaft

vibration. If vibration occurred, separate propeller shaft from final
drive. Reinstall companion flange after rotating it by 120, 240
degrees. Then perform driving test and check propeller shaft vibra-
tion again at each point.

• If propeller shaft or final drive has been replaced, connect them as

follows:

- Install the propeller shaft (1) while aligning its matching mark (A)

with the matching mark (B) on the joint as close as possible.

CAUTION:

JSDIA0130ZZ

JSDIA0009ZZ

JSDIA0077ZZ

DLN-96

< ON-VEHICLE REPAIR >

[REAR PROPELLER SHAFT: 3S80A-R]

REAR PROPELLER SHAFT

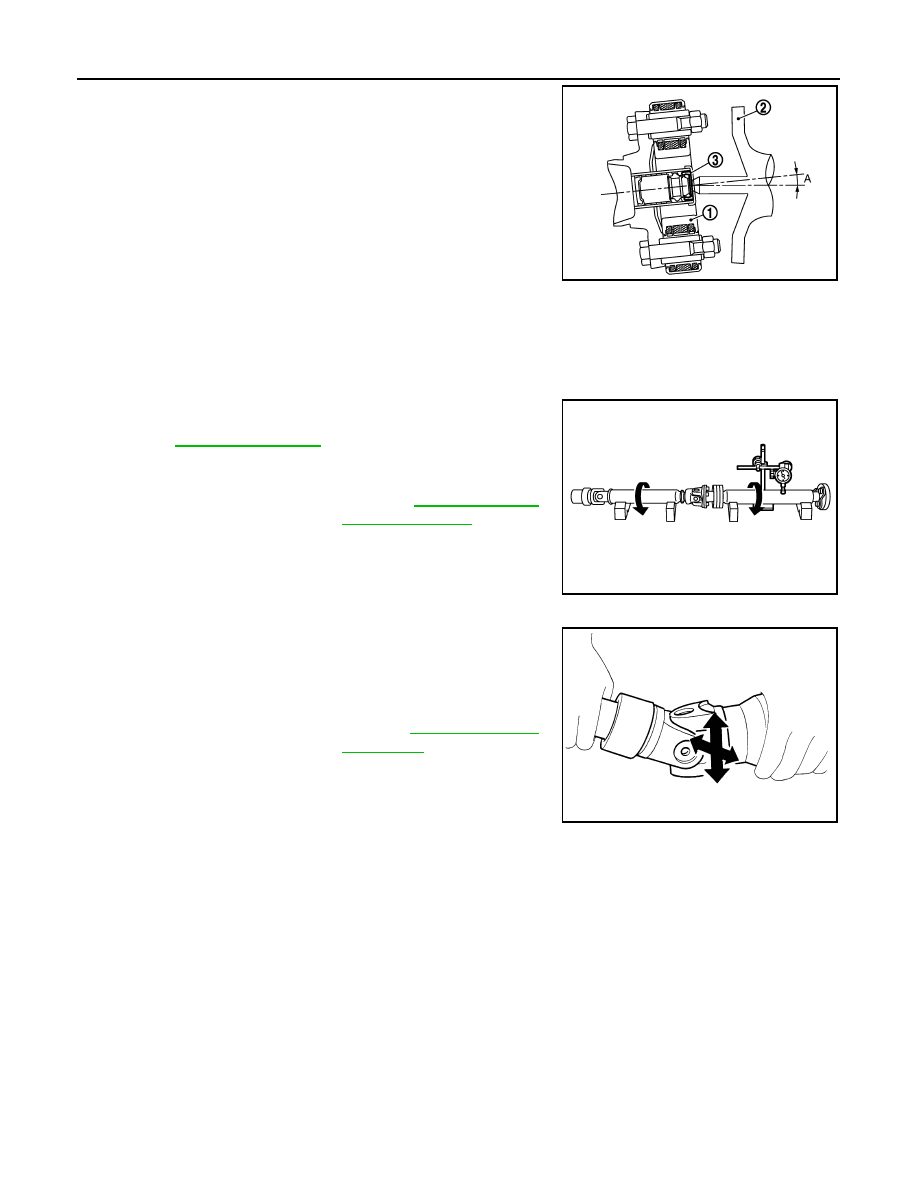

• The angle (A), which the third axis rubber coupling (1) forms

with the final drive companion flange (2), must be 5

°

 or less.

• Never damage the grease seal (3).
• Never damage the rubber coupling.
• Never damage the rear oil seal of transmission.
• Avoid damaging the rubber coupling, protect it with a shop

towel or equivalent.

Inspection

INFOID:0000000000957327

APPEARANCE

Check propeller shaft for bend and damage. If damage is detected, replace propeller shaft assembly.

PROPELLER SHAFT RUNOUT

Check propeller shaft runout at measuring points. If runout exceeds
specifications, replace propeller shaft assembly. For measuring
point, refer to

DLN-92, "Inspection"

JOURNAL AXIAL PLAY

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If outside the standard, replace propeller shaft assem-
bly.

CAUTION:

Never disassemble joints.

CENTER BEARING

Check center bearing for noise and damage. If noise or damage is detected, replace propeller shaft assembly.

CAUTION:

Never disassemble center bearing.

JSDIA0137ZZ

Limit

Propeller shaft runout

: Refer to

DLN-97, "Propel-

ler Shaft Runout"

.

JSDIA0078ZZ

Standard

Journal axial play

: Refer to

DLN-97, "Journal

Axial Play"

.

SPD874

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-97

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR PROPELLER SHAFT: 3S80A-R]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000000957328

Propeller Shaft Runout

INFOID:0000000000957329

Unit: mm (in)

Journal Axial Play

INFOID:0000000000957330

Unit: mm (in)

Applied model

 2WD

 VQ35HR

 A/T

Propeller shaft model

3S80A-R

Number of joints

3

Type of journal bearings
(Non-disassembly type)

1st joint

Shell type

2nd joint

Shell type

3rd joint

Rubber coupling type

Coupling method with transmission

Sleeve type

Coupling method with rear final drive

Rubber coupling type

Shaft length

1st (Spider to spider)

724 mm (28.50 in)

2nd (Spider to rubber coupling center)

769 mm (30.28 in)

Shaft outer diameter

1st

82.6 mm (3.25 in)

2nd

75.0 mm (2.95 in)

Item

Limit

Propeller shaft runout

0.8 (0.031)

Item

Standard

Journal axial play

0 (0)
