FRONT DRIVE SHAFT AND DRIVE CHAIN

2.

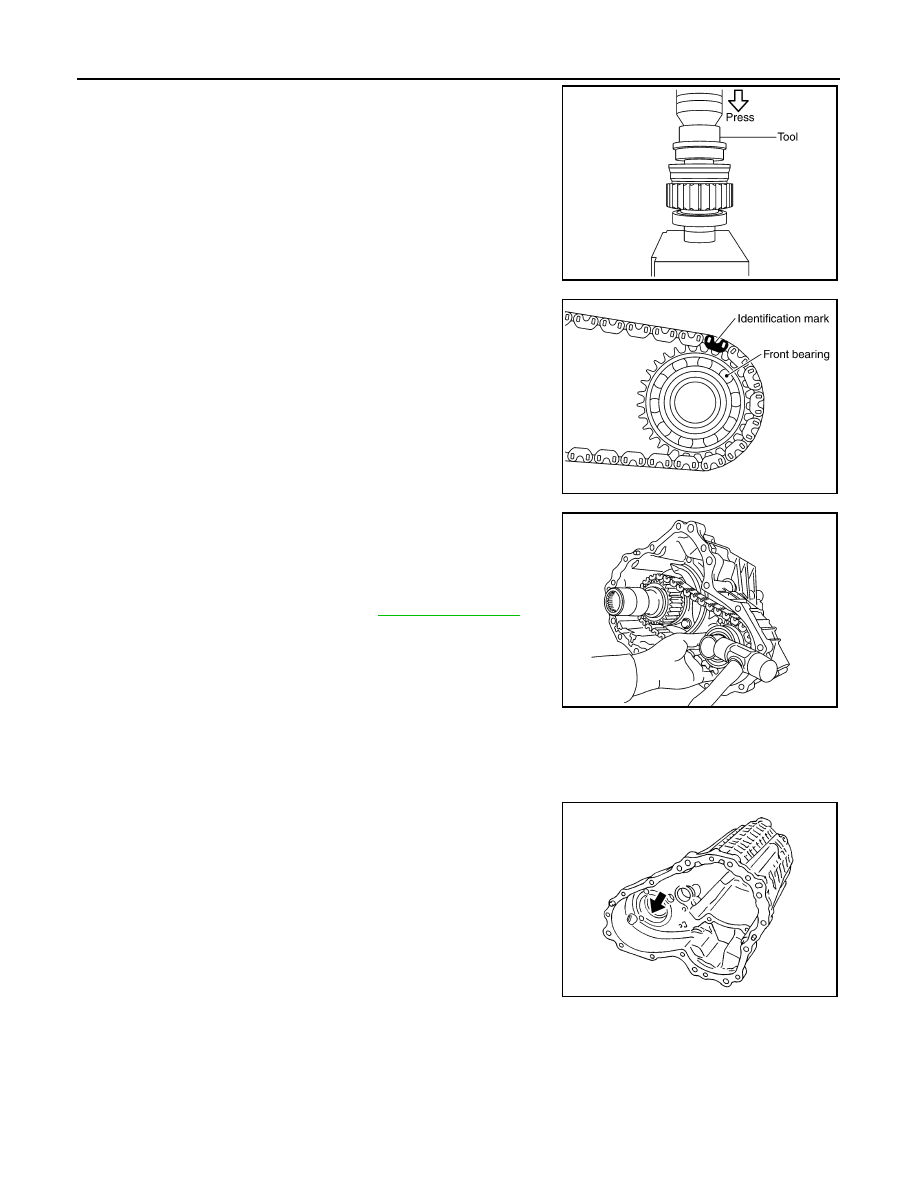

Install front drive shaft rear bearing, using the drift [SST:
KV38104010 (

—

)].

3.

Install drive chain to front drive shaft.

CAUTION:

Identification mark of drive chain should be in the side of
front bearing of front drive shaft.

4.

Install drive chain to mainshaft, and then install tap front drive
shaft with plastic hammer. Press-fit rear bearing of front drive
shaft to rear case.

CAUTION:

Never tap drive chain.

5.

Install front case to rear case. Refer to

DLN-62, "Assembly"

.

Inspection

INFOID:0000000000957302

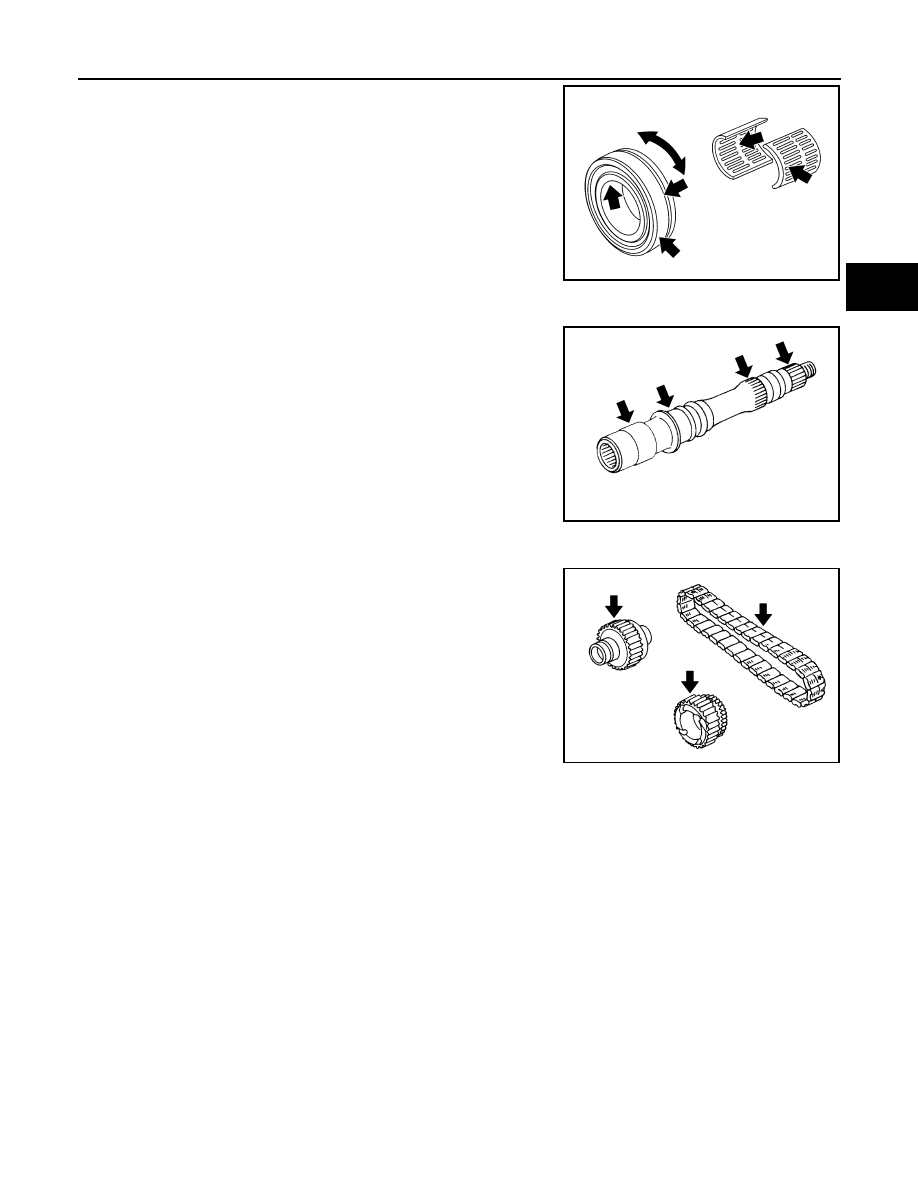

Check items below. If necessary, replace them with new ones.

CASES

• Contact surfaces of bearing for wear, damage, etc.
• Damage and cracks of case.

BEARING

PDIA0277E

PDIA0284E

PDIA0257E

PDIA0293E

FRONT DRIVE SHAFT AND DRIVE CHAIN

DLN-75

< DISASSEMBLY AND ASSEMBLY >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

• Damage and rough rotation of bearing.

SHAFT

• Damage, peeling, dent, uneven wear, bending, etc. of shaft.

GEARS AND CHAIN

• Excessive wear, damage, peeling, etc. of gear and chain.

PDIA0300E

PDIA0294E

SDIA2365E

DLN-76

< SERVICE DATA AND SPECIFICATIONS (SDS)

[TRANSFER: ETX13B]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000000957303

Applied model

AWD

VQ35HR

A/T

Transfer model

ETX13B

Fluid capacity (Approx.)

 (US pt, lmp pt)

1.25 (2-5/8, 2-1/4)
