[TRANSFER: ETX13B]

FRONT OIL SEAL

FRONT OIL SEAL

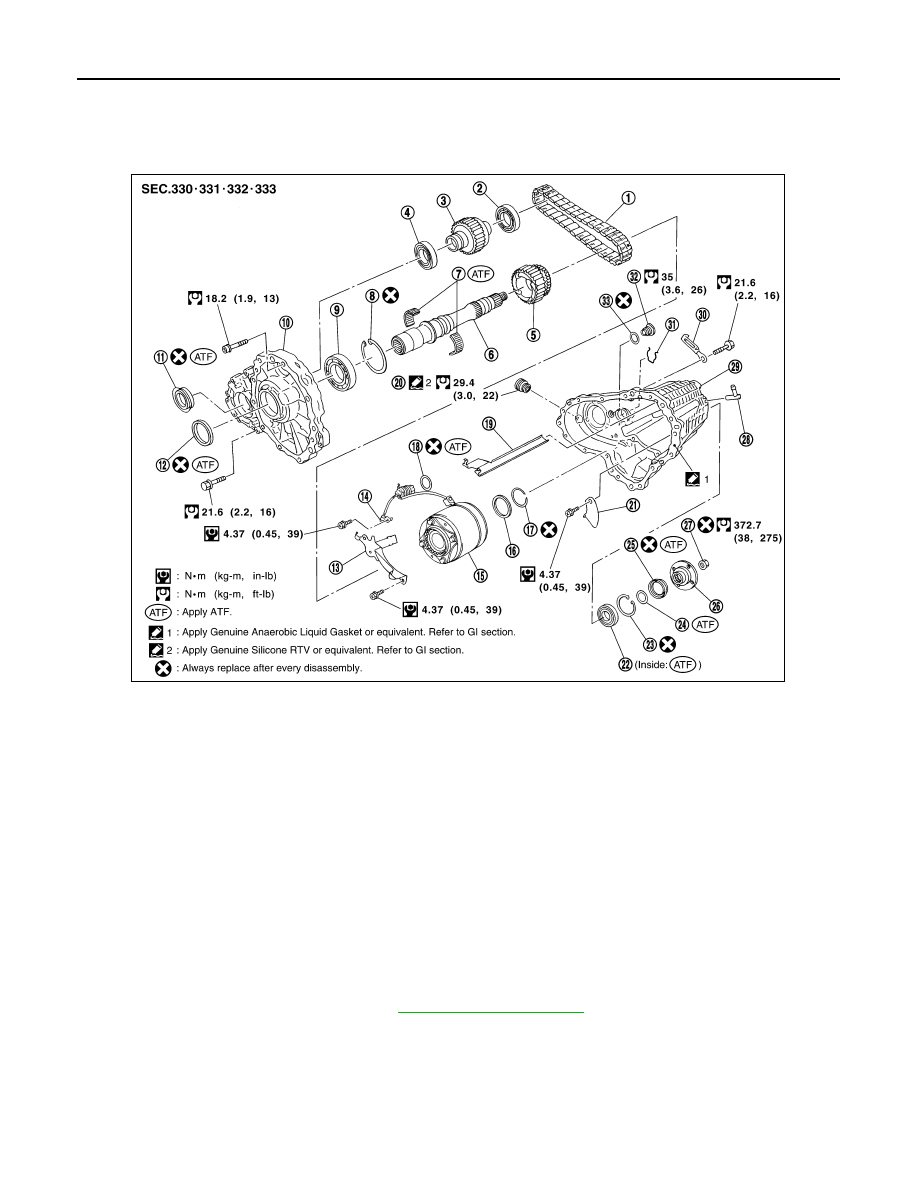

Exploded View

INFOID:0000000000957285

Removal and Installation

INFOID:0000000000957286

REMOVAL

1.

Remove the drain plug to drain the transfer fluid. Refer to

DLN-48, "Draining"

.

2.

Remove the front propeller shaft. Refer to

DLN-80, "Exploded View"

.

1.

Drive chain

2.

Front drive shaft rear bearing

3.

Front drive shaft

4.

Front drive shaft front bearing

5.

Sprocket

6.

Mainshaft

7.

Needle bearing

8.

Snap ring

9.

Mainshaft bearing

10. Front case

11.

Front oil seal

12. Mainshaft oil seal

13. Oil cover

14. Temperature sensor

15. Electric controlled coupling

16. Spacer

17. Snap ring

18. O-ring

19. Oil gutter

20. Drain plug

21. Baffle plate

22. Rear bearing

23. Snap ring

24. Spacer

25. Rear oil seal

26. Companion flange

27. Self-lock nut

28. Breather tube

29. Rear case

30. Harness bracket

31. Retainer

32. Filler plug

33. Gasket

PDIA0244E

FRONT OIL SEAL

DLN-51

< ON-VEHICLE REPAIR >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

3.

Remove front oil seal using a flat-bladed screwdriver.

CAUTION:

Never damage the front case and front drive shaft.

INSTALLATION

1.

Apply ATF to front oil seal, install it with a drift [SST:
ST27862000 (

—

)] until the end face of front case.

CAUTION:

• Never reuse front oil seal.
• When installing, never incline front oil seal.

2.

Install front propeller shaft. Refer to

DLN-80, "Exploded View"

.

3.

Install transfer fluid, check fluid level and for fluid leakage. Refer
to

DLN-48, "Inspection"

.

PDIA0537J
