Infiniti G35 (V35) Sedan. Manual - part 393





DLN-6

A/T ............................................................................

258

A/T : Exploded View  ..............................................

258

A/T : Disassembly ..................................................

259

A/T : Assembly  ......................................................

261

A/T : Adjustment  ....................................................

265

A/T : Inspection After Disassembly ........................

269

DRIVE PINION  .................................................

270

M/T ............................................................................

270

M/T : Exploded View ..............................................

270

M/T : Disassembly  .................................................

271

M/T : Assembly  ......................................................

272

M/T : Adjustment  ...................................................

274

M/T : Inspection After Disassembly  .......................

277

A/T ............................................................................

278

A/T : Exploded View  ..............................................

278

A/T : Disassembly  .................................................

279

A/T : Assembly ......................................................

280

A/T : Adjustment  ...................................................

282

A/T : Inspection After Disassembly  .......................

286

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

287

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

287

General Specification ............................................

287

Drive Gear Runout  ................................................

287

Differential Side Gear Clearance  ..........................

287

Preload Torque  .....................................................

287

Backlash ...............................................................

287

Companion flange Runout (M/T Models)  ..............

287

Drive Pinion Runout (A/T Models)  ........................

287

DIAGNOSIS AND REPAIR WORKFLOW

DLN-7

< BASIC INSPECTION >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000000957225

DETAILED FLOW

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

It is also important to clarify customer complaints before inspection. First of all, reproduce symptoms, and
understand them fully. Ask customer about his/her complaints carefully. In some cases, it will be necessary to
check symptoms by driving vehicle with customer.

CAUTION:

Customers are not professional. It is dangerous to make an easy guess like “maybe the customer
means that...,” or “maybe the customer mentions this symptom”.

>> GO TO 2.

2.

CHECK AWD WARNING LAMP STATUS

Start engine and drive at 30 km/h (19 MPH) or more for approx. 1 minute.
Is AWD warning lamp illuminated?

YES

>> GO TO 3.

NO

>> GO TO 6.

3.

PERFORM THE SELF-DIAGNOSIS

 With CONSULT-III

1.

Perform self-diagnosis of AWD control unit.

2.

Perform malfunction detected by self-diagnosis.

3.

Erase AWD control unit self-diagnosis results.

>> GO TO 4.

4.

CHECK TERMINALS AND HARNESS CONNECTORS

Check pin terminals for damage or loose connection with harness connector.

>> GO TO 5.

5.

RECHECK THE SYMPTOM

 With CONSULT-III

Perform DTC confirmation procedure.

Is any malfunction detected by self-diagnosis?

YES

>> GO TO 2.

NO

>> GO TO 6.

6.

DIAGNOSIS CHART BY SYMPTOM

Perform diagnosis by symptom.
Is any malfunction present?

YES

>> GO TO 2.

NO

>> GO TO 7.

7.

FINAL CHECK

 With CONSULT-III

Check AWD control unit input/output standard values.

Are AWD control unit input/output values within standard ranges respectively?

YES

>> INSPECTION END

NO

>> GO TO 2.

DLN-8

< FUNCTION DIAGNOSIS >

[TRANSFER: ETX13B]

AWD SYSTEM

FUNCTION DIAGNOSIS

AWD SYSTEM

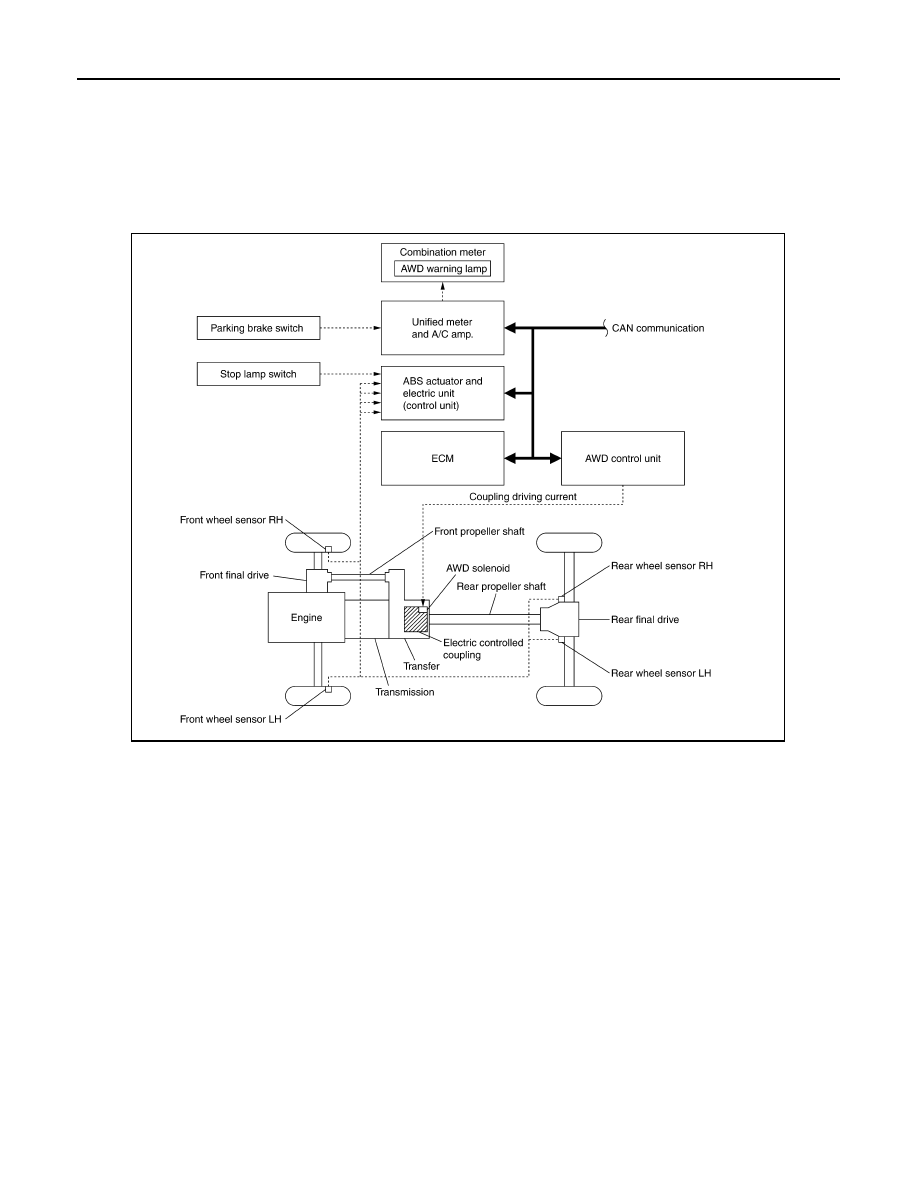

System Diagram

INFOID:0000000000957226

CONTROL DIAGRAM

 CROSS-SECTIONAL VIEW

SDIA3134E

AWD SYSTEM

DLN-9

< FUNCTION DIAGNOSIS >

[TRANSFER: ETX13B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

System Description

INFOID:0000000000957227

DESCRIPTION

• Electronic control allows optimal distribution of torque to front/rear wheels to match road conditions.
• Makes possible stable driving, with no wheel spin, on snowy roads or other slippery surfaces.
• On roads which do not require AWD, it contributes to improved fuel economy by driving in conditions close to

rear-wheel drive.

• Sensor inputs determine the vehicle's turning condition, and in response tight cornering/braking are con-

trolled by distributing optimum torque to front wheels.

• It transmits/receives each signal from the following control unit via CAN communication line.

NOTE:
• When driving, if there is a large difference between front and rear wheel speed which continues for a long

time, fluid temperature of drive system parts becomes too high and AWD warning lamp blinks quickly. (When
AWD warning lamp blinks, vehicle changes to rear-wheel drive conditions.) Also, optional distribution of
torque sometimes becomes rigid before lamp blinks quickly, but it is not malfunction.

• If AWD warning lamp is blinking quickly, stop vehicle and allow it to idle for some time. Blinking will stop and

AWD system will be restored.

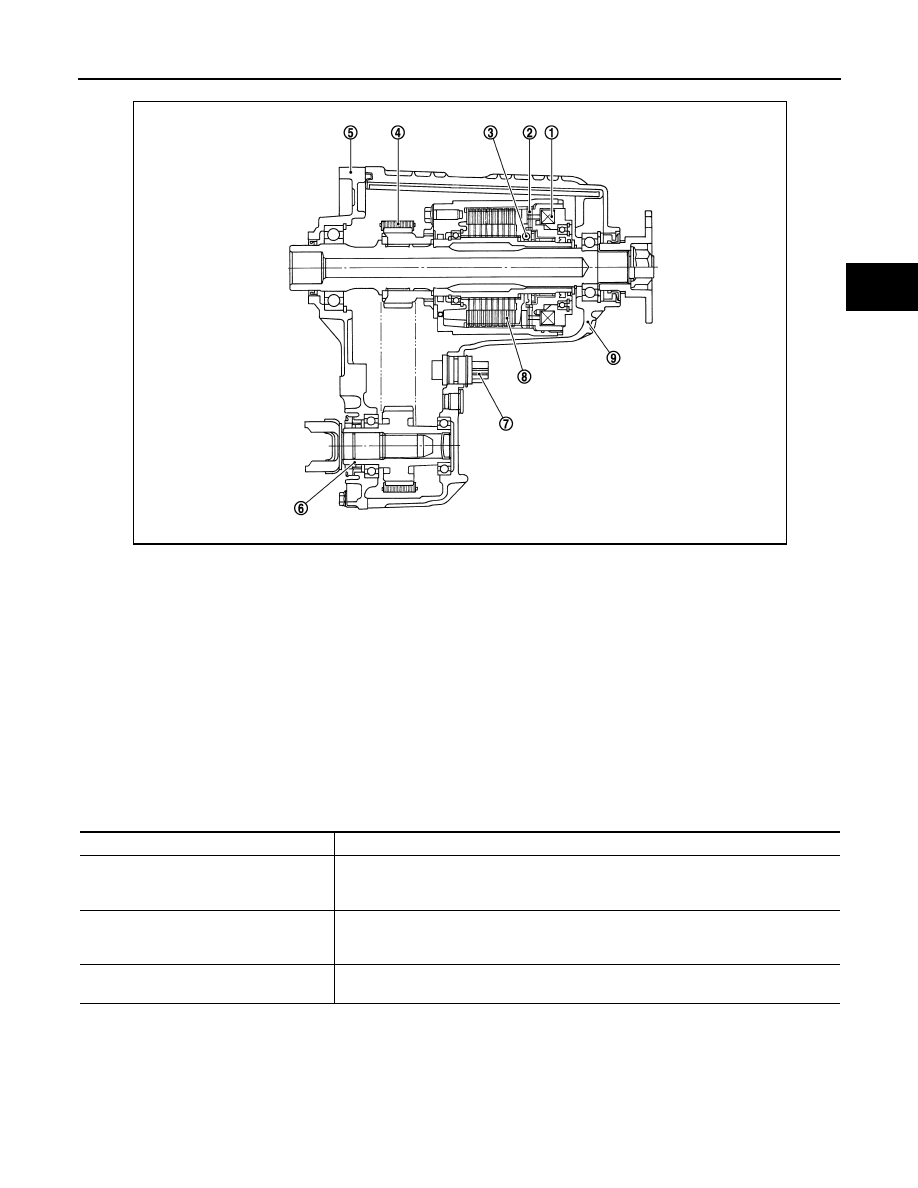

1.

Electromagnet

2.

Control clutch

3.

Cam

4.

Drive chain

5.

Front case

6.

Front drive shaft

7.

AWD solenoid connector

8.

Main clutch

9.

Rear case

JSDIA0048ZZ

Component parts

Function

ABS actuator and electric unit (control unit)

Transmits the following signals via CAN communication to AWD control unit.
• Vehicle speed signal
• Stop lamp switch signal (brake signal)

ECM

Transmits the following signals via CAN communication to AWD control unit.
• Accelerator pedal position signal
• Engine speed signal

Unified meter and A/C amp.

Transmits conditions of parking brake switch via CAN communication to AWD control
unit.
