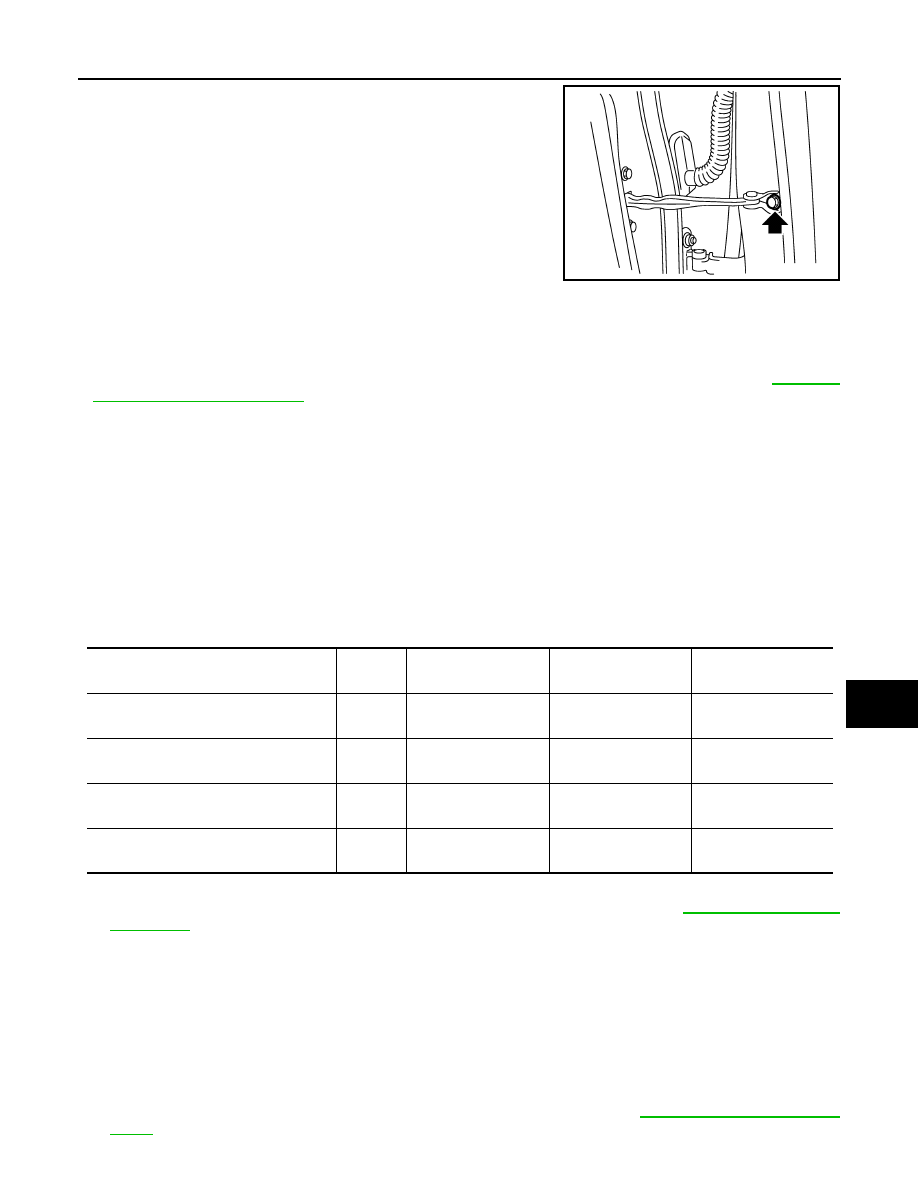

Remove the mounting bolts of the check link on the vehicle.

3.

Remove the door side hinge mounting nuts and remove the door assembly.

CAUTION:

• When removing and installing the rear door assembly, support the door with a jack and cloth to pro-

tect the door and body.

• When removing and installing rear door assembly, perform the fitting adjustment. Refer to

DLK-205,

"REAR DOOR : Adjustment"

.

• Check the hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installing, apply touch-up paint (the body color) onto the head of the hinge mounting nuts.
• Operate with two workers, because of its heavy weight.
• Check rear door open/close operation after installation.

INSTALLATION

Install in the reverse order of removal.

REAR DOOR : Adjustment

INFOID:0000000000961276

CLEARANCE, SURFACE HEIGHT AND SURFACE MISMATCH ADJUSTMENT

1.

Check the clearance and surface height and surface mismatch between the rear door and each part visu-
ally and by touching.(Fitting standard dimension in the table below should be satisfied.)

2.

In case out of specification, adjust them according to the procedures shown below.

3.

Remove the center pillar upper garnish and center pillar lower garnish. Refer to

INT-13, "Removal and

Installation"

.

4.

Loosen the hinge mounting nuts on door side.

5.

Adjust the surface height and surface mismatch of the rear door according to the fitting standard dimen-
sion.

6.

Temporarily tighten the hinge mounting nuts on door side.

7.

Loosen the hinge mounting nuts and bolts on body side.

8.

Raise the rear door at rear end to adjust clearance of the rear door according to the fitting standard dimen-
sion.

9.

After adjustment tighten bolts and nuts to the specified torque.

10. Install the center pillar upper garnish and center pillar lower garnish. Refer to

INT-13, "Removal and Instal-

lation"

.

JMKIA0016ZZ

Parts

Portion

Clearance

Surface height

Surface

mismatch

Front door – rear door

B – B

2.5 – 4.5

(0.098 – 0.177)

−

1.0 – 1.0

(–0.039 – 0.039)

—

Rear door – rear fender

C – C

2.5 – 4.5

(0.098 – 0.177)

−

1.0 – 1.0

(

−

0.039 – 0.039)

—

Front door sash molding –

rear door weather-strip

G

—

−

1.5 – 1.5

(

−

0.059 – 0.059)

—

Front door outside molding –

rear door outside molding

H

—

−

1.5 – 1.5

(

−

0.059 – 0.059)

−

1.5 – 1.5

(

−

0.059 – 0.059)

DLK-206

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR

STRIKER ADJUSTMENT

Adjust the striker so that it becomes parallel with the lock insertion
direction.

PIIB2804J

DOOR LOCK

DLK-207

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK

FRONT DOOR LOCK

FRONT DOOR LOCK : Exploded View

INFOID:0000000000961277

FRONT DOOR LOCK : Removal and Installation

INFOID:0000000000961278

REMOVAL

1.

Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

.

2.

Disconnect the inside handle knob cable and lock knob cable
from the back side of the front door finisher.

1.

Inside handle cap

2.

Inside handle

3.

Door key cylinder assembly (Driver
side)
Outside handle escutcheon (Pas-
senger side)

4.

Outside handle

5.

Rear gasket

6.

Front gasket

7.

Key cylinder rod (Driver side only)

8.

Door lock assembly

9.

Striker

10. Grommet

11.

Lock knob cable

12. Inside handle knob cable

13. Outside handle cable

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0018GB

JMKIA0019ZZ

DLK-208

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

DOOR LOCK

3.

Remove the front door glass and front door module assembly. Refer to

GW-14, "Removal and Installa-

tion"

,

GW-16, "Removal and Installation"

.

4.

Remove door side grommet, and remove door key cylinder assembly (driver side) and outside handle
escutcheon (passenger side) bolts (TORX T30) from grommet hole.

CAUTION:

Do not forcibly remove the TORX bolts (T30).

5.

Disconnect door antenna and door request switch connector
and remove harness clamp. (Models with Intelligent Key sys-
tem)

6.

Reach in to separate the key cylinder rod connection (on the handle).

7.

Disconnect door key cylinder switch harness connector.

8.

While pulling the outside handle, remove door key cylinder
assembly.

9.

Disconnect front door request switch harness connector (with Intelligent Key system).

10. While pulling outside handle, slide toward rear of vehicle to

remove outside handle.

JMKIA0020ZZ

JMKIA0021ZZ

PIIB5809E

PIIB5810E
