Infiniti G35 (V35) Sedan. Manual - part 383





HOOD

DLK-193

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK CONTROL : Removal and Installation

INFOID:0000000000961265

REMOVAL

1.

Remove the washer tank. Refer to refer to

WW-79, "Removal and Installation"

.

2.

Remove the radiator core support ornament.
• Remove the radiator core support ornament mounting bolts

and clips.

NOTE:
To remove the mounting bolts on both sides of radiator core sup-
port ornament, first remove the mounting bolts of front bumper
(shown by arrows in the figure) and pull up the bumper edge
slightly to get working clearance.

CAUTION:

Do not apply excessive force while pulling front bumper to
prevent front bumper and front fender from being damaged.

• Hold both sides of radiator core support ornament, pull it upwards and slide it rearwards of the vehicle.

1.

Hood lock switch harness connector 2.

Hood lock (RH)

3.

Hood lock (LH)

4.

Hood lock control cable (Front)

5.

Hood lock control cable protector
cover

6.

Hood lock control cable protector

7.

Hood lock control cable (Rear)

8.

Hood lock opener

9.

Hood lock cover

10. Striker

11.

Secondary latch

Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0040GB

JMKIA0140ZZ

DLK-194

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

HOOD

• Disconnect the harness clip and hood lock control cable clip

on radiator core support.

3.

Remove the fender protector (LH). Refer to

EXT-22, "Removal and Installation"

.

4.

Disconnect hood lock switch harness connector (RH side).

5.

Remove the hood lock bracket mounting bolts, and remove the hood lock bracket assembly. Refer to

DLK-196, "Removal and Installation"

.

6.

Remove the hood lock mounting bolts, and disassemble the hood lock from the hood lock bracket.

7.

Disconnect the hood lock control cable from the hood lock and
clip it to the hood-ledge.

8.

Remove the hood lock control cable protector (1) from the head-
lamp assembly (2).

9.

Remove the hood lock control cable cover from hood lock control cable protector.

10. Disconnect the hood lock control cable from hood lock control

cable protector.

11. Remove the mounting screws and then remove the hood lock opener.
12. Remove the grommet on the dashboard, and pull the hood lock control cable toward the passenger com-

partment.

CAUTION:

: Clip

JMKIA0141ZZ

JMKIA0041ZZ

: Pawl

JMKIA0202ZZ

JMKIA0203ZZ

HOOD

DLK-195

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

While pulling, do not to damage (peeling) the outside of the hood lock control cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Do not to bend the cable too much, keeping the radius 100 mm (3.94 in) or more.
• Check that the hood lock control cable is properly engaged with the hood lock.
• After installing, perform hood fitting adjustment. Refer to

DLK-192, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installing, perform the hood lock control inspection. Refer to

DLK-195, "HOOD LOCK CON-

TROL : Inspection"

.

HOOD LOCK CONTROL : Inspection

INFOID:0000000000961266

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that the secondary latch is properly engaged with the secondary striker (6.8 mm (0.268 in) shown
in the figure) by hood weight.

2.

While operating the hood opener, carefully check that the front end of the hood is raised by approximately
20 mm (0.79 in). Also check that the hood opener returns to the original position.

3.

Check that the hood opener operating is 49 N (5.0 kg) or below.

4.

Install so that static closing face of hood is 94 – 490 N·m (9.6 – 50.0 kg-m).
NOTE:
• Exercise vertical force on right side and left side of hood lock.
• Do not press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to the hood lock.

DLK-196

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

RADIATOR CORE SUPPORT

RADIATOR CORE SUPPORT

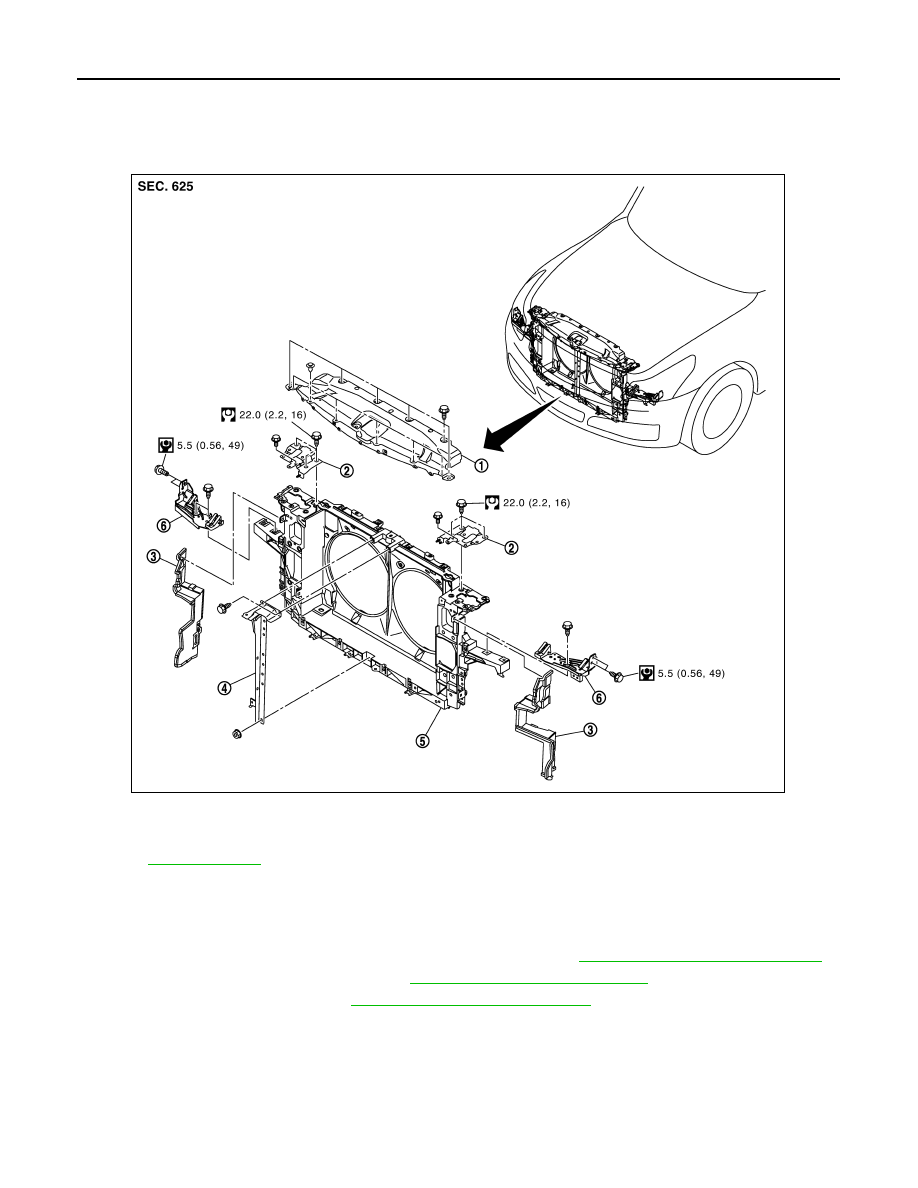

Exploded View

INFOID:0000000000961267

Removal and Installation

INFOID:0000000000961268

REMOVAL

1.

Remove the front bumper and front bumper reinforcement. Refer to

EXT-11, "Removal and Installation"

.

2.

Remove the radiator reserve tank. Refer to

CO-14, "Removal and Installation"

.

3.

Remove horn (High/Low). Refer to

HRN-6, "Removal and Installation"

.

4.

Remove the radiator core support ornament.
• Remove the radiator core support ornament mounting bolts and clips.

NOTE:

1.

Radiator core support ornament

2.

Hood lock bracket

3.

Air guide

4.

Hood lock stay

5.

Radiator core support assembly

6.

Head-lamp bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0072GB
