TRUNK OPEN FUNCTION

DLK-29

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

 With CONSULT-III

Refer to

DLK-51, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

TRUNK REQUEST SWITCH : Component Parts Location

INFOID:0000000000961105

Trunk open function

In

tel

lig

en

t Ke

y

Ke

y sl

ot

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Do

or sw

itch

T

run

k roo

m

 l

a

m

p

 swit

ch

T

run

k

op

en

er re

qu

es

t s

w

itc

h

T

run

k lid

 op

en

er ac

tua

to

r

In

sid

e

 ke

y ant

en

na

Out

s

id

e k

e

y a

n

te

n

na

(T

run

k

)

In

tel

lig

en

t Ke

y

warni

n

g

 b

u

zze

r

CAN co

mm

un

ic

ati

o

n

 sys

tem

BCM

Hazard warning lamp

T

run

k lid

 op

en

er ca

nc

el

 swi

tch

Trunk open function by the trunk opener request switch

×

×

×

×

×

×

×

×

×

×

×

Hazard and buzzer reminder function for door lock/unlock
operation

×

×

×

×

Buzzer reminder for trunk open operation

×

×

×

Key reminder function

×

×

×

×

×

×

×

×

×

×

DLK-30

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

TRUNK OPEN FUNCTION

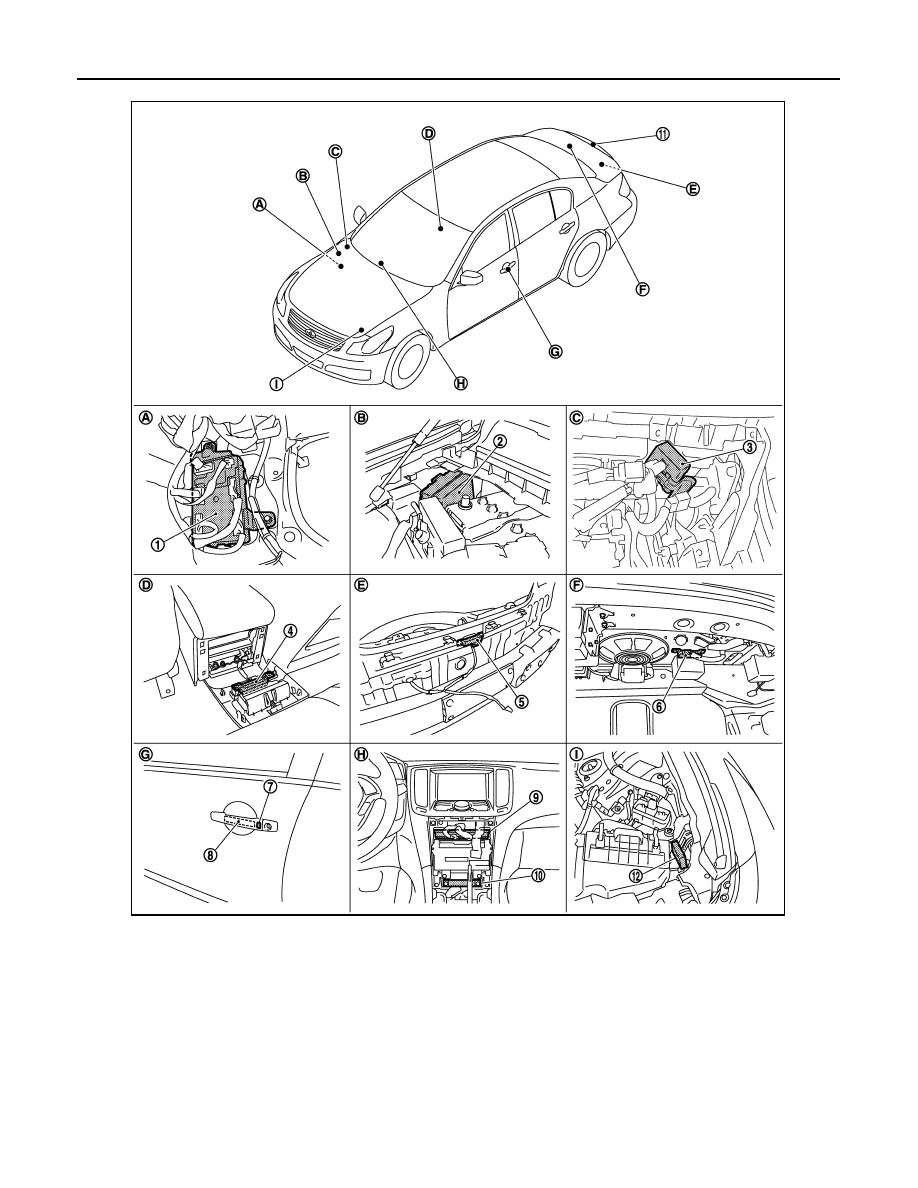

1.

BCM
M118,M119,M120,M121,M122,M123

2.

IPDM E/R E5,E6

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Front outside handle LH (request switch)
D13

8.

Front outside handle LH (outside key
antenna) D14

9.

Unified meter and A/C AMP
M66,M67

10. Inside key antenna (instrument center)

M131

11.

Trunk lid request switch B304

12.

Intelligent Key warning buzzer (en-
gine room) E57

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

JMKIA0142GB

TRUNK OPEN FUNCTION

DLK-31

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk rear finisher (up-
per) removed.

G.

View of front door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

JMKIA0143GB

1.

A/T device (detention switch)

2.

Key slot M22

3.

Trunk lid opener switch M20

4.

Combination meter (Key warning lamp)
M53

5.

Trunk opener cancel switch M105

6.

Trunk lid lock assembly (trunk lid
opener actuator) B303

7.

Fuel lid opener actuator B242

8.

Front door lock assembly (driver side) D15 9.

Rear door lock assembly D55

10. Power window main switch (door lock un-

lock switch) D8,D9

11. Front door switch B16

DLK-32

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

TRUNK OPEN FUNCTION

TRUNK REQUEST SWITCH : Component Description

INFOID:0000000000961106

INTELLIGENT KEY

INTELLIGENT KEY : System Diagram

INFOID:0000000000961107

INTELLIGENT KEY : System Description

INFOID:0000000000961108

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the trunk open button.

OPERATION DESCRIPTION/TRUNK OPEN FUNCTION

• When trunk button of the Intelligent Key is pressed, the trunk open signal is transmitted from the Intelligent

Key to the BCM via remote keyless entry receiver.

• When BCM receives the trunk open request signal, it operates the trunk lid opener actuator and opens the

trunk.

OPERATION CONDITION

OPERATION AREA

• Operating Range
• To ensure the Intelligent Key works effectively, use within 80 cm range of each door, however the operable

range may differ according to surroundings.

HAZARD AND HORN REMINDER FUNCTION

A.

View with center console assembly re-
moved.

B.

View with trunk lid finisher removed.

C.  View with trunk side finisher re-

moved.

D

View with front door finisher removed.

E

View with rear door finisher removed.

Item

Function

BCM

Controls trunk open function.

Trunk lid opener actuator

Transmits trunk open operation to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Trunk request switch

Transmits trunk open operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

JMKIA0055GB

Remote controller operation

Operation condition

Operation

Trunk open

• Press and hold the trunk open button for 0.5 second or more

Trunk open
