DOOR LOCK FUNCTION

DLK-13

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000000961090

DOOR REQUEST SWITCH

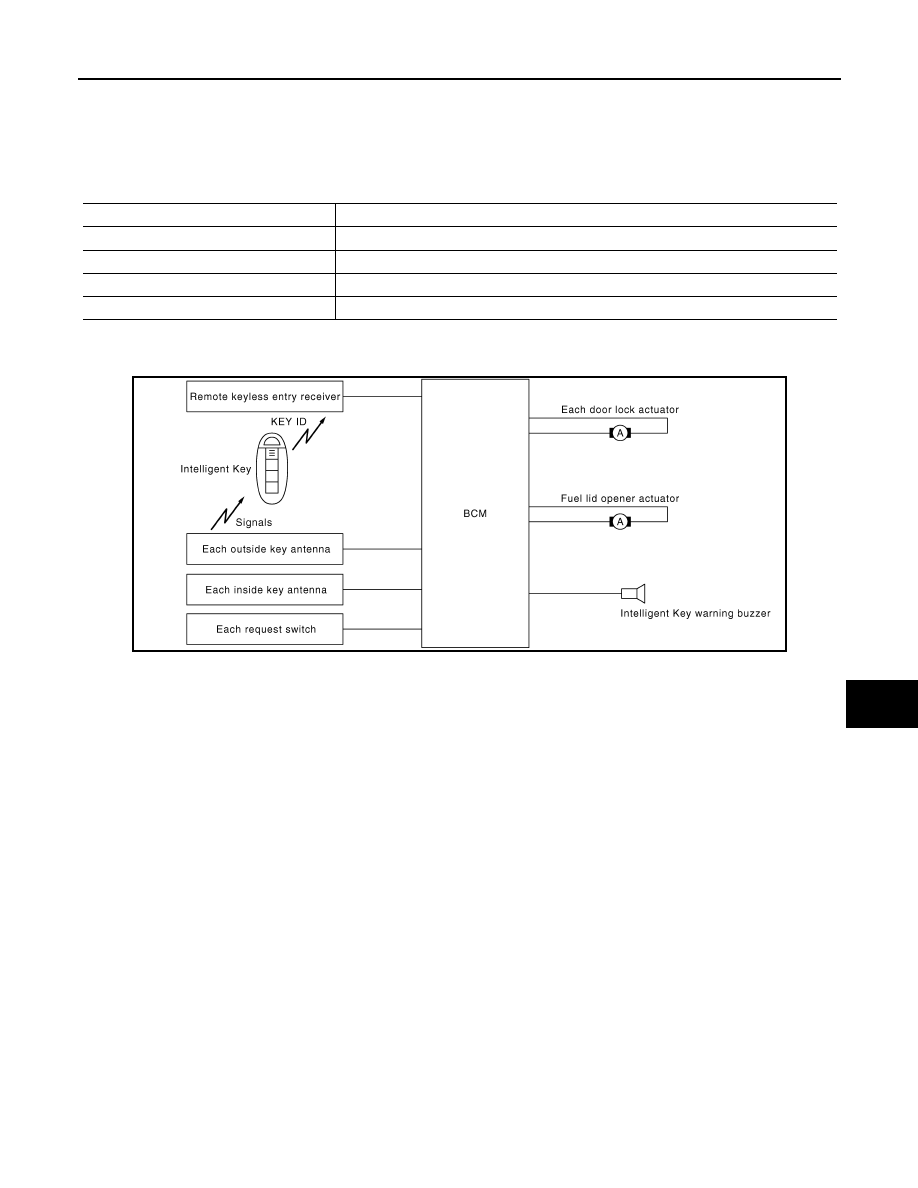

DOOR REQUEST SWITCH : System Diagram

INFOID:0000000000961091

DOOR REQUEST SWITCH : System Description

INFOID:0000000000961092

Only when pressing the request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.
• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communications between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• If an action that does not meet the operating conditions of the Intelligent Key system is taken, the buzzer

goes off to inform the driver (Warning chime function).

• When a door lock is locked, unlocked or trunk open with request switch or remote controller button opera-

tion, the hazard lamps flash and the Intelligent Key warning buzzer or horn sounds (Hazard and buzzer/horn
reminder function).

• The settings for each function can be changed with the CONSULT-III.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with the CONSULT-III.

OPERATION DESCRIPTION/DOOR LOCK/UNLOCK

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-
gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.

A.

View with center console assembly re-
moved.

B.

View with trunk lid finisher removed.

C.  View with trunk side finisher re-

moved.

D

View with front door finisher removed.

E

View with rear door finisher removed.

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

JMKIA0051GB

DLK-14

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

• BCM sends the door lock/unlock signal and sounds Intelligent Key buzzer warning (lock: 2 time, unlock: 1

times) at the same time as a reminder.

OPERATION CONDITION

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the request
switch is operated.

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver and passenger door handles (1).

SELECTIVE UNLOCK FUNCTION

When an LOCK signal is sent from door request switch (driver side or passenger side), all doors will be locked.
When an UNLOCK signal is sent from door request switch (driver side or passenger side) once, driver's door
will be unlocked.
Then, if an UNLOCK signal is sent from door request switch (driver side and passenger side) again within 5
seconds, all other door will be unlocked.

HAZARD AND BUZZER REMINDER FUNCTION

During lock, unlock, or trunk opening operation by each request switch, the hazard warning lamps and Intelli-
gent Key warning buzzer will blink or honk as a reminder.
When doors are locked, unlocked by each request switch, IPDM E/R honks Intelligent Key warning buzzer as
a reminder and transmits hazard request signal to BCM via CAN communication line.
BCM flashes hazard warning lamps as a reminder.

Operating function of hazard and buzzer reminder

How to change hazard and buzzer reminder mode
Refer to

DLK-51, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

AUTO DOOR LOCK FUNCTION

When all doors are locked, ignition switch is in OFF position and key switch is OFF (Intelligent Key is not
inserted in key slot), doors are unlocked with door request switch
When BCM does not receive the following signals within 60 seconds, all doors are locked.
• Door switch is ON (door is opened)
• Door is locked
• Ignition switch is ON (ignition switch is pressed)
• Key switch is ON (Intelligent Key is inserted in key slot)

Each request switch operation

Operation condition

Lock operation

• All doors are closed
• Ignition switch is in OFF position
• Intelligent Key is out of key slot
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock Operation

• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA0103GB

Operation

Hazard warning lamp flash

Intelligent Key warning buzzer honk

Unlock

Once

Once

Lock

Twice

Twice

Trunk open

—

Fourth times

DOOR LOCK FUNCTION

DLK-15

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Auto door lock mode can be changed by “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-51,

"INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

ROOM LAMP OPERATION

When the following conditions are met:
• Condition of interior lamp switch is in DOOR position
• Door switch OFF (all the doors are closed)
Intelligent Key system turns on interior lamp (for 15 seconds) by receiving UNLOCK signal from door request
switch. For detailed description, refer to

INL-9, "System Description"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

DOOR REQUEST SWITCH : Component Parts Location

INFOID:0000000000961093

Door lock function

In

te

lli

ge

nt Key

Key sl

ot

Re

mo

te ke

yl

es

s ent

ry rec

e

iv

er

Doo

r swi

tch

Do

or re

qu

es

t s

w

itc

h

 (Driv

e

r,

 Pas

s

eng

er)

Do

or l

o

c

k

 ac

tua

to

r

In

si

d

e

 ke

y a

n

ten

n

a

Ou

ts

id

e

 k

e

y

 an

te

nna

 (Driv

e

r,

 Pa

ss

en

ge

r)

In

te

lli

ge

nt Key

 warn

in

g buz

z

e

r

CAN co

mm

un

ic

ati

o

n

 sy

s

tem

BCM

Hazard warning lamp

Pu

sh-bu

tto

n ign

iti

on

 switch

Door lock/unlock function by request switch

×

×

×

×

×

×

×

×

×

×

Hazard and buzzer reminder function for door lock/unlock
operation

×

×

×

×

Key reminder function

×

×

×

×

×

×

×

×

×

×

×

×

Selective unlock function by request switch
(Driver side)

×

×

×

×

×

×

×

Selective unlock function by request switch
(Passenger side)

×

×

×

×

×

×

×

Auto door lock function

×

×

×

×

×

×

×

×

DLK-16

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

1.

BCM
M118,M119,M120,M121,M122,M123

2.

IPDM E/R E5,E6

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Front outside handle LH (request switch)
D13

8.

Front outside handle LH (outside key
antenna) D14

9.

Unified meter and A/C AMP
M66,M67

10. Inside key antenna (instrument center)

M131

11.

Trunk lid request switch B304

12.

Intelligent Key warning buzzer (en-
gine room) E57

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

JMKIA0142GB
