Infiniti G35 (V35) Sedan. Manual - part 337





INSPECTION AND ADJUSTMENT

DLK-9

< BASIC INSPECTION >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000000961085

Perform the system initialization when replacing BCM, replacing Intelligent Key or registering an additional
Intelligent Key.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000000961086

Refer to the CONSULT-III operation manual for the initialization procedure.

DLK-10

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

FUNCTION DIAGNOSIS

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

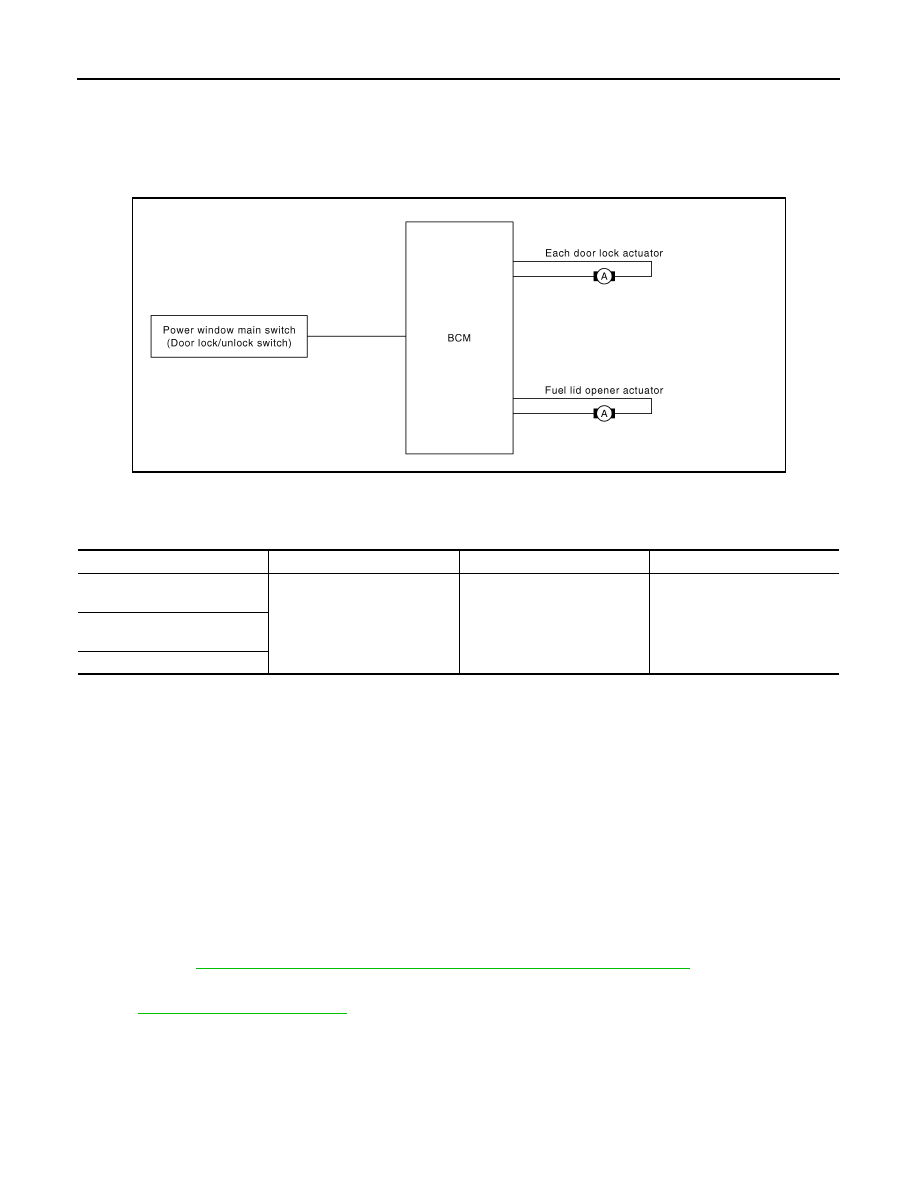

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000000961087

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000000961088

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors and

fuel lid lock actuator are locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors and

fuel lid lock actuator are unlocked.

Functions Available by Operating the Key Cylinder Switch on Driver Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all doors and fuel lid lock

actuator are locked.

Selective Unlock Operation

• When door key cylinder is unlocked, door lock actuator driver side and fuel lid lock actuator are unlocked.
• When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door lock

actuators on all doors are unlocked.

Select unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT”. Refer to

DLK-50, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Key Reminder System

Refer to

DLK-45, "System Description"

.

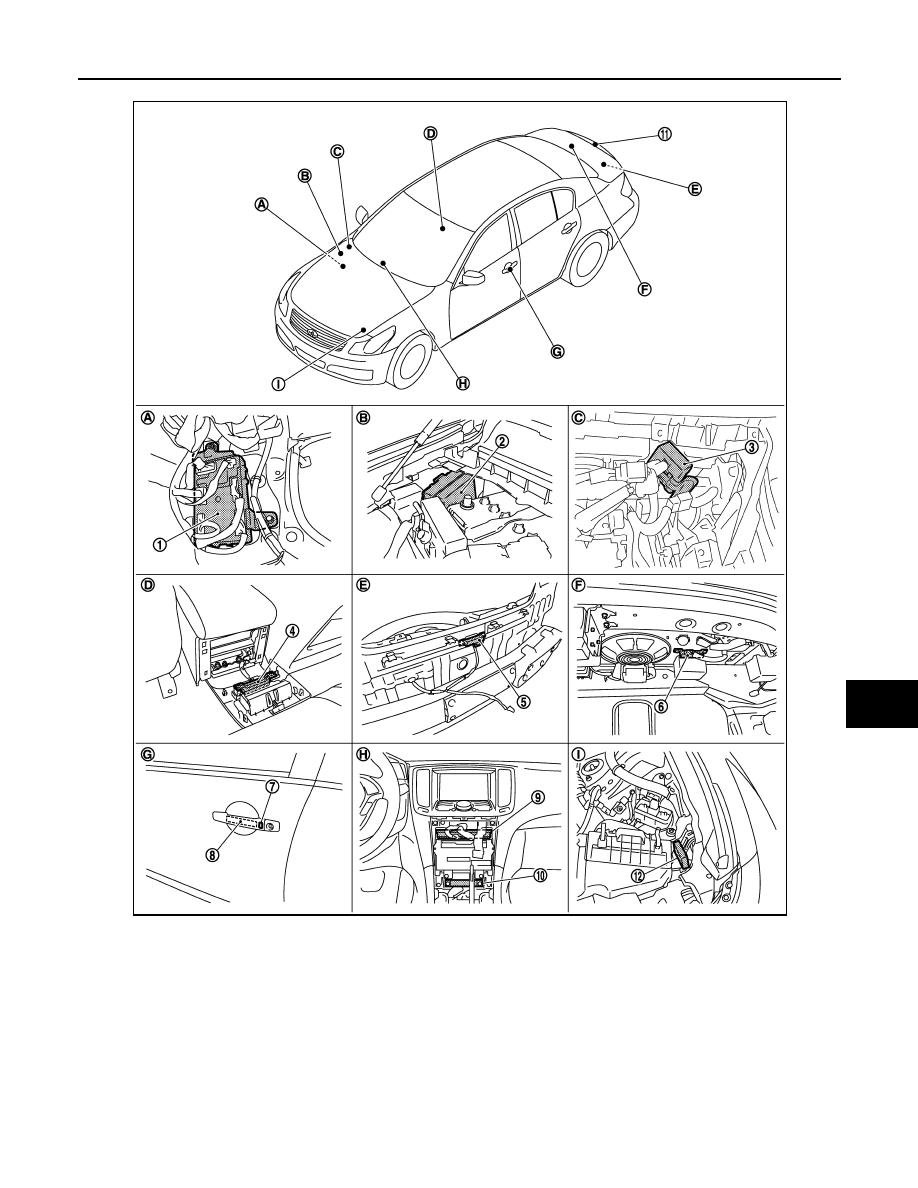

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000000961089

JMKIA0050GB

Switch

Input/output signal to BCM

BCM function

Actuator

Door lock and unlock switch
(Driver side)

Door lock/unlock signal

Door lock /unlock control

Door lock actuator

Door lock and unlock switch
(Passenger side)

Door key cylinder switch

DOOR LOCK FUNCTION

DLK-11

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

BCM
M118,M119,M120,M121,M122,M123

2.

IPDM E/R E5,E6

3.

Remote keyless entry receiver
M104

4.

Inside key antenna (console) M146

5.

Outside key antenna (rear bumper)
B63

6.

Inside key antenna (trunk room)
B49

7.

Front outside handle LH (request switch)
D13

8.

Front outside handle LH (outside key
antenna) D14

9.

Unified meter and A/C AMP
M66,M67

10. Inside key antenna (instrument center)

M131

11.

Trunk lid request switch B304

12.

Intelligent Key warning buzzer (en-
gine room) E57

A.

Dash side lower (Passenger side).

B.

Engine room dash panel (RH).

C.

 View with instrument assist lower
panel removed.

JMKIA0142GB

DLK-12

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

D.

View with console rear finisher removed. E.

View with rear bumper removed.

F.

View with trunk rear finisher (up-
per) removed.

G.

View of front door LH.

H.

Behind cluster lid C.

I.

View with hood seal assembly re-
moved.

JMKIA0143GB

1.

A/T device (detention switch)

2.

Key slot M22

3.

Trunk lid opener switch M20

4.

Combination meter (Key warning lamp)
M53

5.

Trunk opener cancel switch M105

6.

Trunk lid lock assembly (trunk lid
opener actuator) B303

7.

Fuel lid opener actuator B242

8.

Front door lock assembly (driver side) D15 9.

Rear door lock assembly D55

10. Power window main switch (door lock un-

lock switch) D8,D9

11. Front door switch B16
