Infiniti G35 (V35) Sedan. Manual - part 309





CL-6

< ON-VEHICLE MAINTENANCE >

CLUTCH FLUID

CLUTCH FLUID

Air Bleeding Procedure

INFOID:0000000000956924

CAUTION:

• Monitor clutch fluid level in reservoir tank to make sure it does not empty.
• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

NOTE:
Do not use a vacuum assist or any other type of power bleeder on this system. Use of vacuum assist or power
bleeder will not purge all the air from the system.

1.

Fill master cylinder reservoir tank with new clutch fluid.

2.

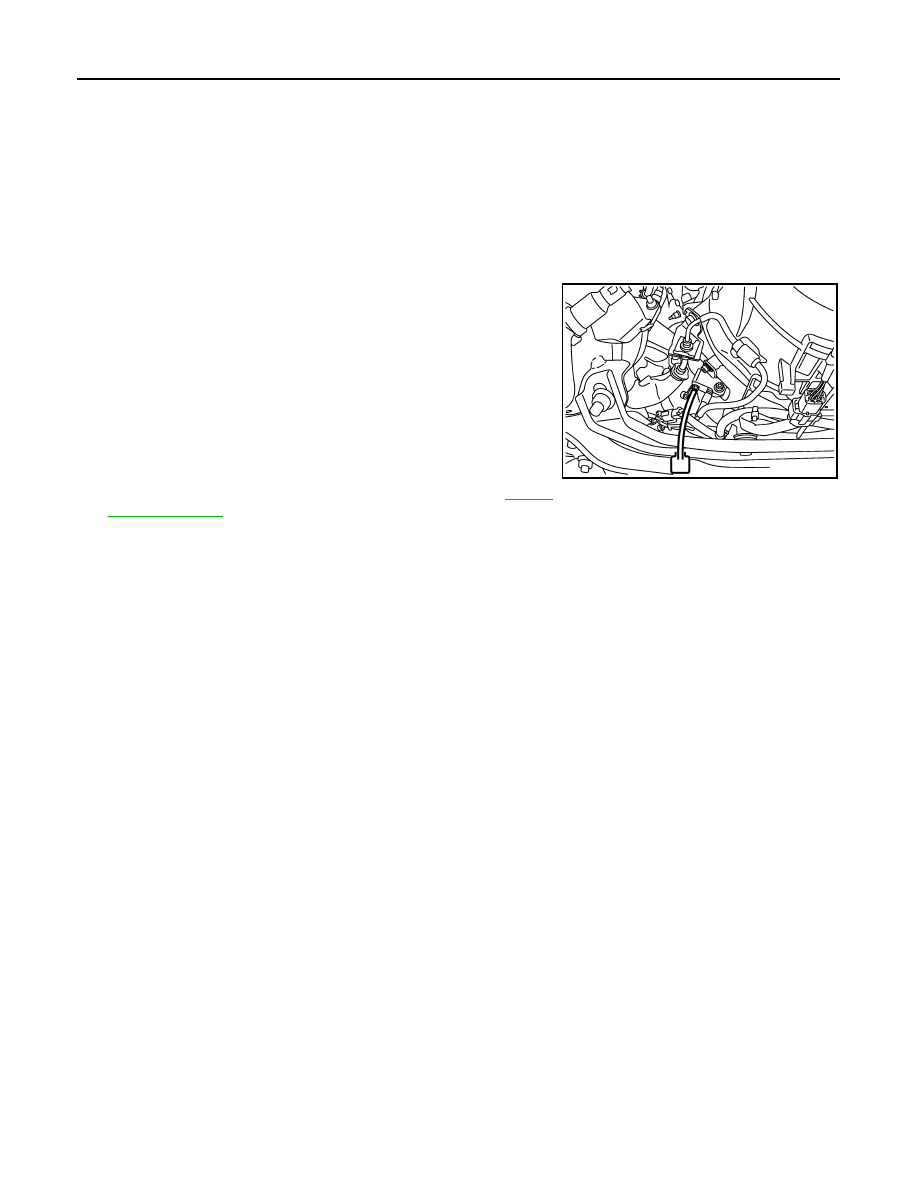

Connect a transparent vinyl hose to air bleeder valve.

3.

Depress clutch pedal slowly and fully several times at an interval
of 2 to 3 seconds and hold it.

4.

With clutch pedal depressed, open air bleeder valve to release
air.

5.

Close air bleeder valve.

6.

Release clutch pedal and wait for 5 seconds.

7.

Repeat steps 3 to 6 until no bubbles can be observed in clutch
fluid.

8.

Tighten air bleeder valve to the specified torque. Refer to

CL-15,

"Exploded View"

.

JPDIB0006ZZ

CLUTCH PEDAL

CL-7

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

ON-VEHICLE REPAIR

CLUTCH PEDAL

Exploded View

INFOID:0000000000956925

Removal and Installation

INFOID:0000000000956926

REMOVAL

1.

Remove front kicking plate inner and dash side finisher. Refer to

INT-13, "Removal and Installation"

.

2.

Remove instrument driver lower panel. Refer to

IP-12, "Removal and Installation"

.

3.

Remove bracket (1) and harness bracket (2).

4.

Disconnect ASCD clutch switch and clutch interlock switch har-
ness connectors and then disconnect clip of harness from clutch
pedal assembly.

5.

Remove snap pin and clevis pin.

6.

Remove clutch pedal assembly.

INSTALLATION

1.

ASCD clutch switch

2.

Clevis pin

3.

Bushing

4.

Stopper rubber

5.

Pedal pad

6.

Pedal stopper rubber

7.

Snap pin

8.

Clutch interlock switch

9.

Clutch pedal assembly

: Apply lithium-based grease including molybdenum disulphide.

: Refer to

CL-9, "Exploded View"

 for the tightening torque.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIB0004GB

JPDIB0005ZZ

CL-8

< ON-VEHICLE REPAIR >

CLUTCH PEDAL

Note the following, and install in the reverse order of removal.
• After installing clutch interlock switch, adjust the switch position. Refer to

CL-5, "Inspection and Adjustment"

.

• Tighten lock nut of ASCD clutch switch to the specified torque after installing clutch pedal assembly and

adjusting the pedal free play. Refer to

CL-5, "Inspection and Adjustment"

.

Inspection

INFOID:0000000000956927

INSPECTION AFTER REMOVAL

Check clutch pedal for bend, damage, or a cracked weld. If bend, damage, or a cracked weld is found, replace
clutch pedal assembly.

CLUTCH MASTER CYLINDER

CL-9

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CLUTCH MASTER CYLINDER

Exploded View

INFOID:0000000000956928

Removal and Installation

INFOID:0000000000956929

REMOVAL

CAUTION:

Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately
and wash the affected area with water.

1.

Remove front kicking plate inner and dash side finisher. Refer to

INT-13, "Removal and Installation"

.

2.

Remove instrument driver lower panel. Refer to

IP-12, "Removal and Installation"

.

3.

Remove snap pin and clevis pin from clevis and then separate it from clutch pedal assembly.

4.

Remove brake master cylinder cover. Refer to

EXT-18, "Removal and Installation"

.

5.

Drain clutch fluid in reservoir tank and then remove hose and clips.

1.

Reservoir tank assembly

2.

Hose

3.

Cylinder body

4.

Packing

5.

Clutch pedal assembly

6.

Return spring

7.

Piston assembly

8.

Push rod

9.

Stopper ring

10.

Boot

11.

Clevis

12. Snap pin

13.

Clevis pin

1: Apply rubber lubricant.

2: Apply silicone grease.

3: Apply lithium-based grease including molybdenum disulphide.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIB0007GB
