Infiniti G35 (V35) Sedan. Manual - part 293





CCS

PARK/NEUTRAL POSITION SWITCH (M/T)

CCS-83

< COMPONENT DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace park/neutral position switch.

terminals

Condition

Continuity

1

2

When shift knob is neutral position

Existed

When shift knob is except neutral position

Not existed

CCS-84

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

ICC SENSOR INTEGRATED UNIT

ECU DIAGNOSIS

ICC SENSOR INTEGRATED UNIT

Reference Value

INFOID:0000000000965472

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

MAIN SW

Ignition switch ON

When MAIN switch is pressed

On

When MAIN switch is not pressed

Off

SET/COAST SW

Ignition switch ON

When SET/COAST switch is pressed

On

When SET/COAST switch is not pressed

Off

CANCEL SW

Ignition switch ON

When CANCEL switch is pressed

On

When CANCEL switch is not pressed

Off

RESUME/ACC SW

Ignition switch ON

When RESUME/ACCELERATE switch is pressed

On

When RESUME/ACCELERATE switch is not pressed

Off

DISTANCE SW

Ignition switch ON

When DISTANCE switch is pressed

On

When DISTANCE switch is not pressed

Off

CRUISE OPE

Drive the vehicle and activate the
ICC system

ICC system control active

On

ICC system control inactive

Off

BRAKE SW

Ignition switch ON

Brake pedal depressed

Off

Brake pedal not depressed

On

STOP LAMP SW

Ignition switch ON

Brake pedal depressed

On

Brake pedal not depressed

Off

IDLE SW

Engine running

Idling

On

Except idling (depress acceleration pedal)

Off

SET DISTANCE

• Start the engine and activate

the vehicle-to-vehicle distance
control mode

• Press the DISTANCE switch to

change the vehicle-to-vehicle
distance setting

When set to “LONG”

LONG

When set to “MIDDLE”

MID

When set to “SHORT”

SHOR

CRUISE LAMP

Start the engine and press the
MAIN switch

ICC system ON (CRUISE indicator turned on)

On

ICC system OFF (CRUISE indicator turned off)

Off

OWN VHCL

Start the engine and press the
MAIN switch

ICC system ON (Own vehicle indicator turned on)

On

ICC system OFF (Own vehicle indicator turned off)

Off

VHCL AHEAD

• Start the engine and press the

MAIN switch

• Drive the vehicle in the vehi-

cle-to-vehicle distance control
mode

Vehicle ahead detected (Vehicle ahead indicator
turned on)

On

Vehicle ahead not detected (Vehicle ahead indicator
turned off)

Off

ICC WARNING

Engine running

ICC system malfunctioning (CRUISE warning lamp
turned on)

On

ICC system operating normally (CRUISE warning
lamp turned off)

Off

VHCL SPEED SE

While driving

Value of vehicle
speed signal
(wheel speed)

SET VHCL SPD

While driving

When vehicle speed is set

Displays the set
vehicle speed

CCS

ICC SENSOR INTEGRATED UNIT

CCS-85

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

BUZZER O/P

Engine running

When ICC warning buzzer signal is outputted

On

When ICC warning buzzer signal is not outputted

Off

THRTL SENSOR

This item is displayed, but cannot monitor

0.0

ENGINE RPM

While driving

Equivalent to ta-
chometer reading

WIPER SW

Ignition switch ON

Wiper switch at OFF

Off

Wiper switch at LOW

Low

Wiper switch at HIGH

High

YAW RATE

This item is displayed, but cannot monitor

0.0

STP LMP DRIVE

While driving

ICC brake hold relay activated

On

ICC brake hold relay deactivated

Off

D RANGE SW

Ignition switch ON

When “D”, “DS” or “M” range is selected

On

When any position other than “D”, “DS” or “M” range is
selected

Off

NP RANGE SW

Ignition switch ON

When “N” or “P” range is selected

On

When any position other than “N” or “P” range is select-
ed

Off

PWR SUP MONI

Engine running

Power supply volt-
age of control unit

VHCL SPD AT

While driving

Value of A/T vehi-
cle speed sensor
signal

THRTL OPENING

Engine running

Depress accelerator pedal

Displays the throt-
tle position

GEAR

While driving

Displays the shift
position

CLUTCH SW SIG

Ignition switch ON

When clutch pedal is depressed

On

When clutch pedal is not depressed

Off

NP SW SIG

Ignition switch ON

• When any position other than “N” or “P” range is se-

lected (A/T)

• When neutral position is selected (M/T)

On

• When any position other than “N” or “P” range is se-

lected (A/T)

• When any position other than neutral is selected (M/

T)

Off

MODE SIG

Start the engine and press the
MAIN switch

When ICC system is deactivated

Off

When vehicle-to-vehicle distance control mode is acti-
vated

ICC

When conventional (fixed speed) cruise control mode
is activated

ASCD

SET DISP IND

• Start the engine and activate

the conventional (fixed speed)
cruise control mode

• Press SET/COAST switch

When SET indicator is turned on

On

When SET indicator is turned off

Off

DISTANCE

Drive the vehicle in the vehicle-
to-vehicle distance control mode

When a vehicle ahead is detected

Displays the dis-

tance from the pre-

ceding vehicle

When no vehicle ahead is detected

0.0

RELATIVE SPD

Drive the vehicle in the vehicle-
to-vehicle distance control mode

When a vehicle ahead is detected

Displays the rela-

tive speed

When no vehicle ahead is detected

0.0

Monitor Item

Condition

Value/Status

CCS-86

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

ICC SENSOR INTEGRATED UNIT

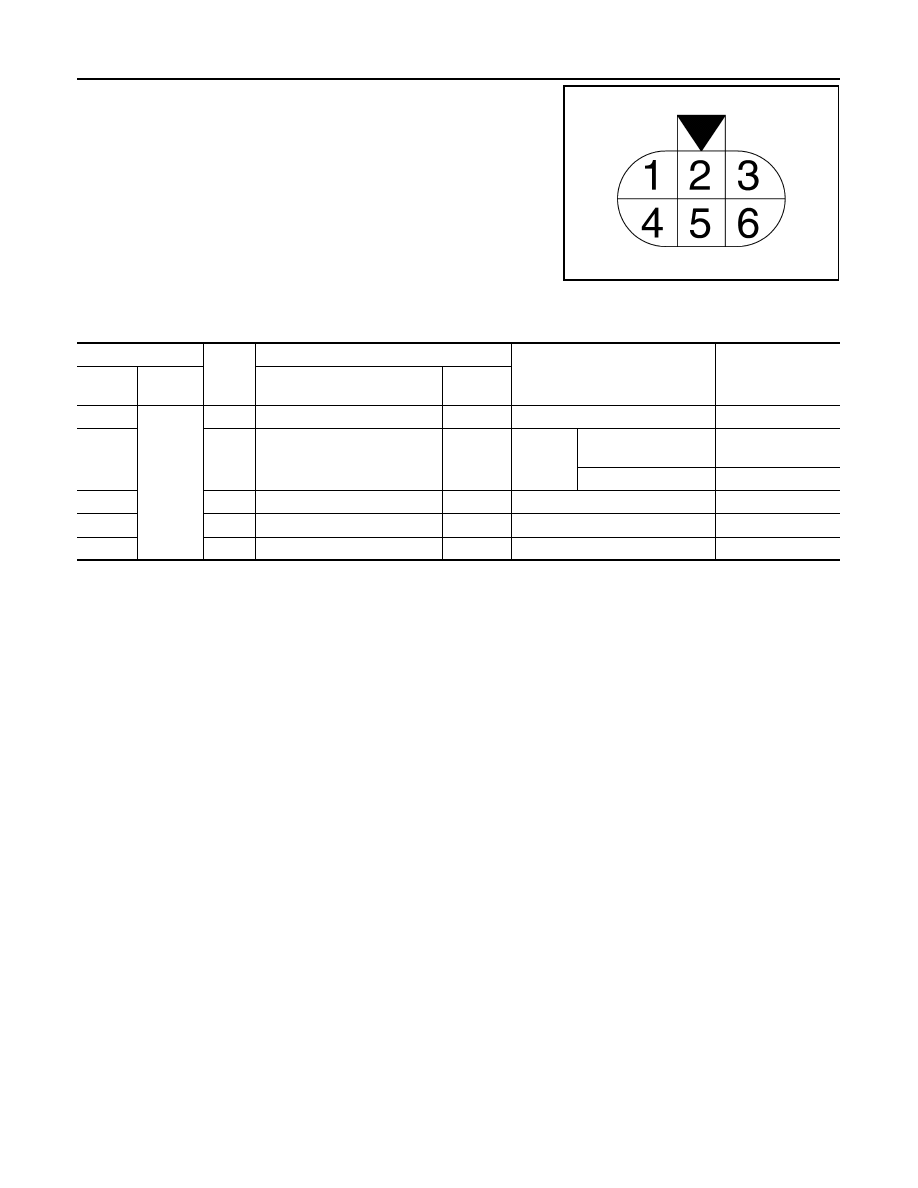

TERMINAL LAYOUT

PHYSICAL VALUES

JSOIA0028ZZ

Terminal No.

Wire

color

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

1

Ground

R

Ignition power supply

Ignition switch ON

Battery voltage

2

V

Stop lamp drive output signal

Output

Ignition

switch

ON

At “STOP LAMP” test
on “ACTIVE TEST”

12 V

0  V

3

L

CAN

H

4

B

Ground

Ignition switch ON

0 V

6

P

CAN

L —
