REAR DISC BRAKE

BR-17

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR DISC BRAKE

BRAKE PAD

BRAKE PAD : Exploded View

INFOID:0000000000958416

Refer to

BR-52, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER 1 PISTON TYPE) : Exploded View"

 (front

caliper 1 piston type),

BR-56, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER 2 PISTON TYPE) : Exploded

View"

 (front caliper 2 piston type).

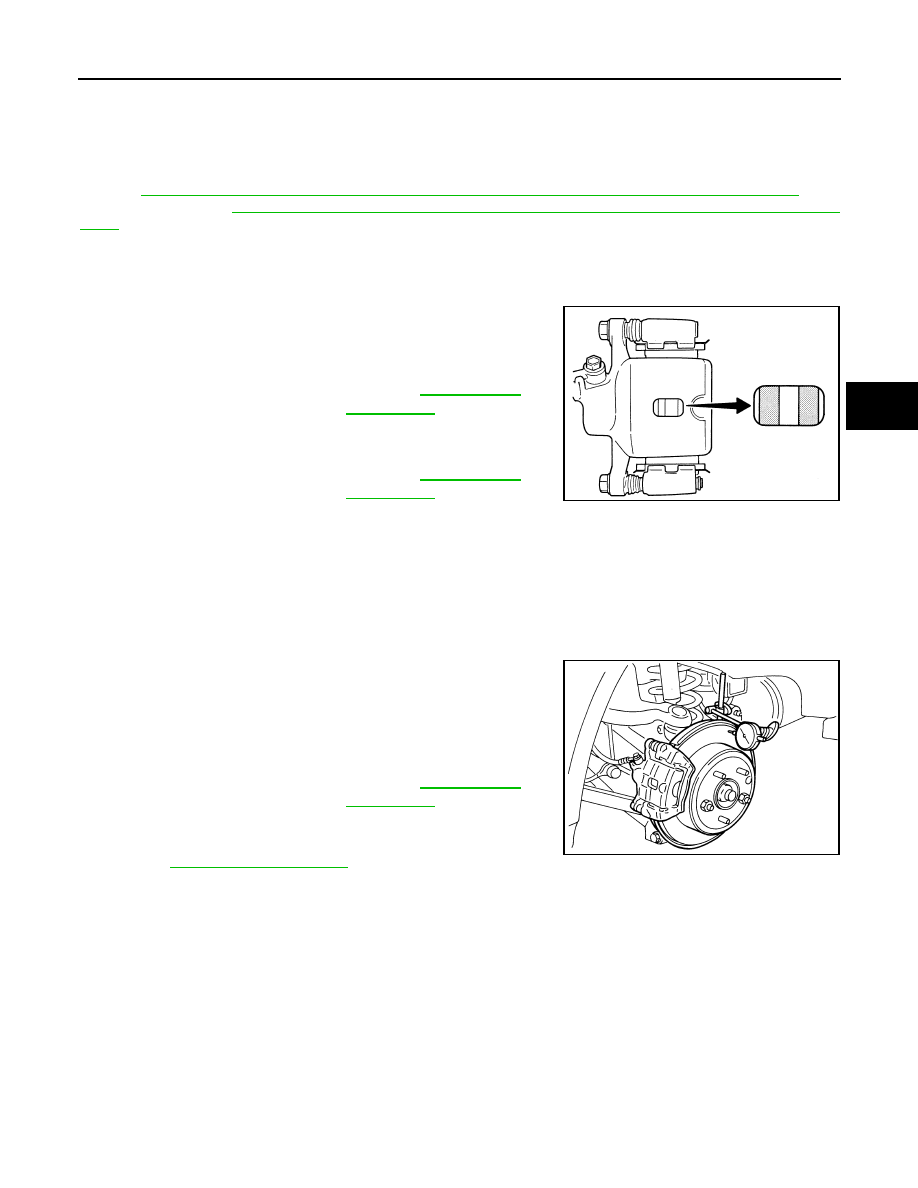

BRAKE PAD : Inspection

INFOID:0000000000958417

PAD WEAR

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

DISC ROTOR

DISC ROTOR : Inspection

INFOID:0000000000958418

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

1.

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

2.

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

RAX-15, "Wheel Bearing"

.

3.

Find the installation position that has a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

4.

Replace the disc rotor if the runout is outside the limit even after performing the above operation.

THICKNESS

Standard

Standard thickness

: Refer to

BR-63, "Rear

Disc Brake"

Limit

Wear limit thickness

: Refer to

BR-63, "Rear

Disc Brake"

BRA0010D

Limit

Runout limit

: Refer to

BR-63, "Rear

Disc Brake"

BRA0697D

BR-18

< ON-VEHICLE MAINTENANCE >

REAR DISC BRAKE

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

Limit

Wear limit thickness

: Refer to

BR-63, "Rear

Disc Brake"

SFIA2284E

BRAKE PEDAL

BR-19

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

ON-VEHICLE REPAIR

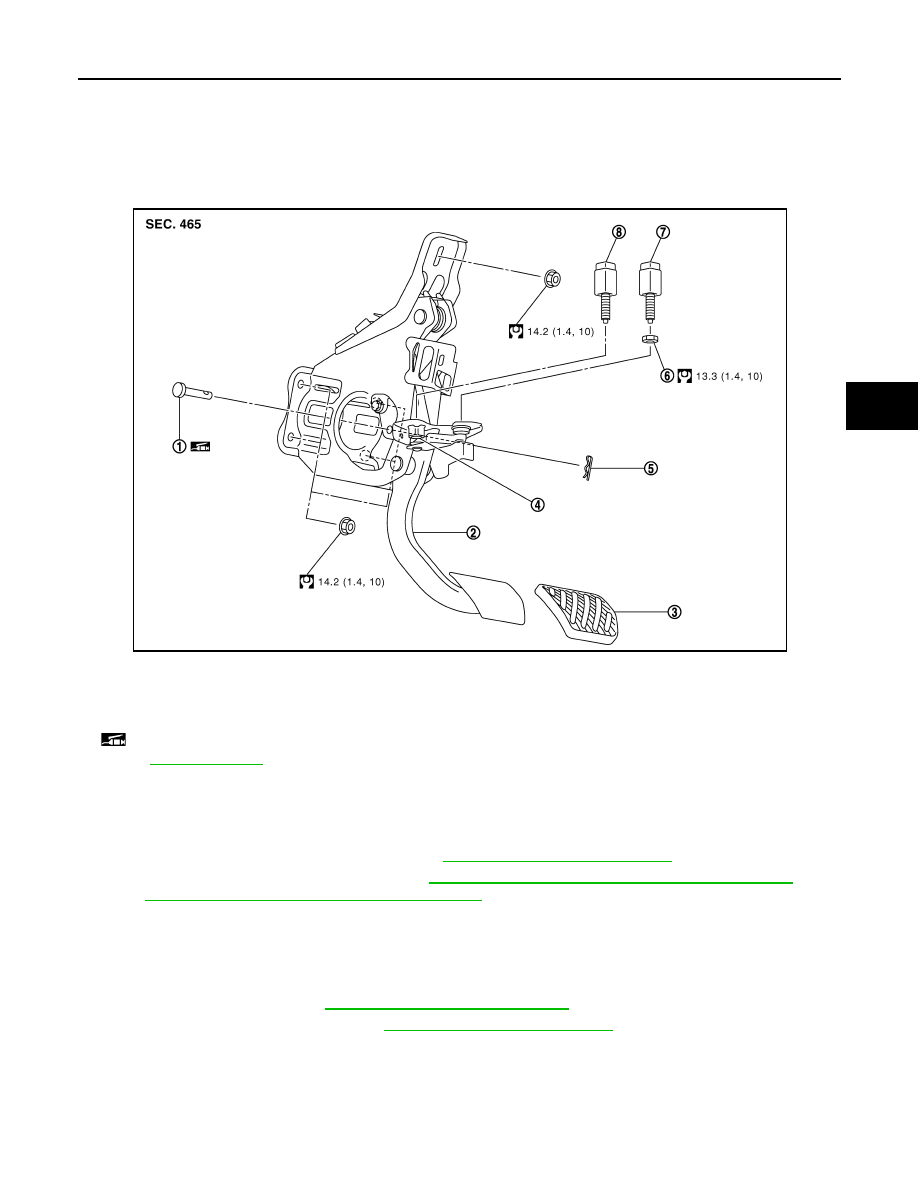

BRAKE PEDAL

Exploded View

INFOID:0000000000958419

Removal and Installation

INFOID:0000000000958420

REMOVAL

1.

Remove instrument driver lower panel. Refer to

IP-12, "Removal and Installation"

.

2.

Remove steering column assembly. Refer to

ST-16, "MANUAL TYPE : Removal and Installation"

 (man-

ual),

ST-18, "AUTOMATIC : Removal and Installation"

 (automatic).

3.

Disconnect the stop lamp switch and ASCD cancel switch harness connectors.

4.

Turn the stop lamp switch counterclockwise to remove the stop lamp switch.

5.

Loosen the lock nut for the ASCD cancel switch and remove the ASCD cancel switch.

6.

Remove snap pin and clevis pin from clevis of brake booster.

7.

Remove the cowl top. Refer to

EXT-18, "Removal and Installation"

.

8.

Remove the instrument panel. Refer to

IP-12, "Removal and Installation"

.

9.

Slide the steering member rearward.

10. Remove the brake pedal assembly.

INSTALLATION

Note the following, and installation in the reverse order of removal.

1.

Clevis pin

2.

Brake pedal assembly

3.

Brake pedal pad

4.

Clip

5.

Snap pin

6.

Lock nut

7.

ASCD cancel switch

8.

Stop lamp switch

: Apply multi-purpose grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0005GB

BR-20

< ON-VEHICLE REPAIR >

BRAKE PEDAL

• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied)

NOTE:
The clevis pin may be inserted in either direction.

Inspection and Adjustment

INFOID:0000000000958421

INSPECTION AFTER REMOVAL

• Check for the following items and replace the brake pedal assem-

bly if necessary.

- Check the brake pedal upper rivet (A) for deformation.
- Check the brake pedal for bend, damage, and cracks on the

welded parts.

• Check clevis pin and plastic stopper (A) for damage and deforma-

tion. If any is found, replace clevis pin.

ADJUSTMENT AFTER INSTALLATION

Perform the brake pedal adjustment after installing the brake pedal assembly. Refer to

BR-7, "Inspection and

Adjustment"

.

: Vehicle front

JPFIA0006ZZ
