PRECAUTIONS

BR-5

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

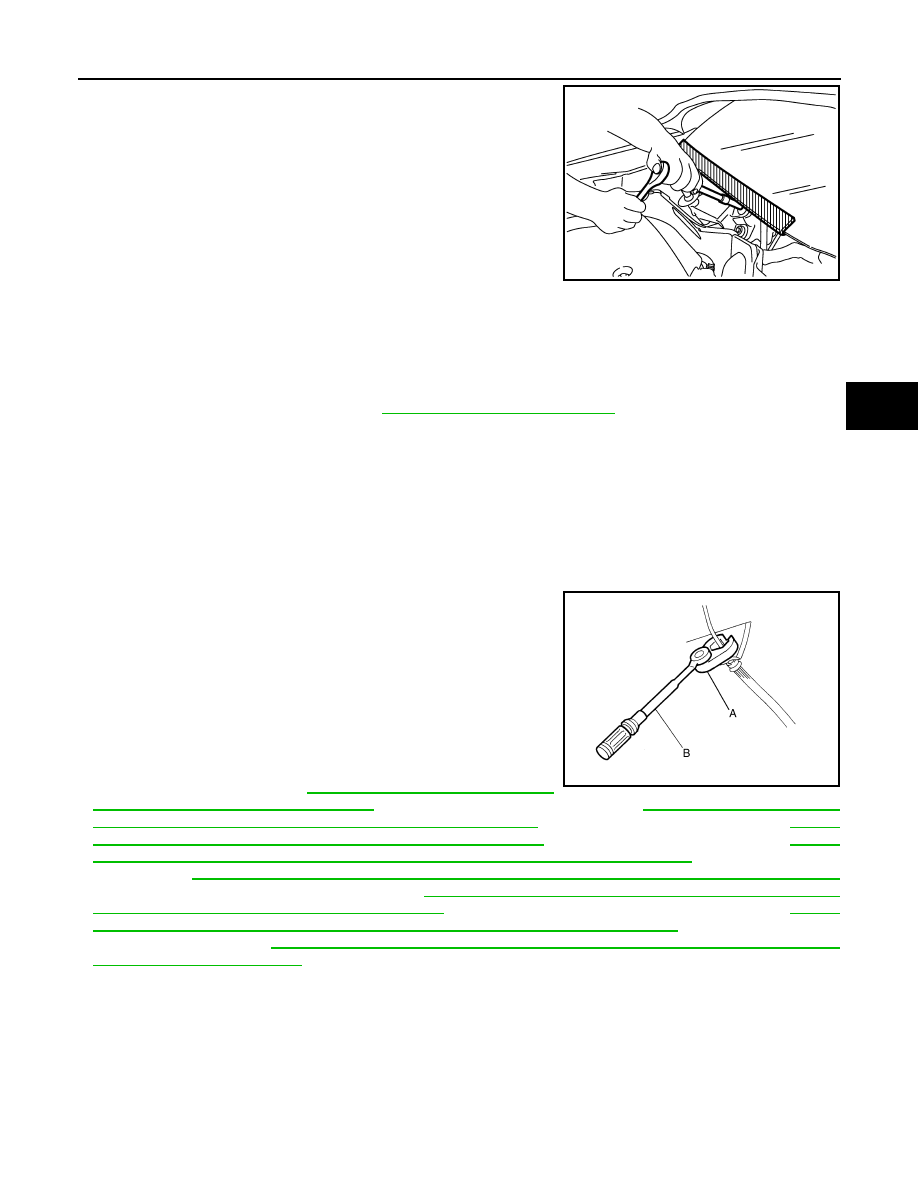

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution for Brake System

INFOID:0000000000958401

WARNING:

Clean any dust from the front brake and rear brake with a vacuum dust collector. Never blow with com-
pressed air.

CAUTION:

• Only use “DOT 3” brake fluid. Refer to

MA-10, "Fluids and Lubricants"

.

• Never reuse drained brake fluid.
• Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it

off immediately and wash with water if it gets on a painted surface.

• After pressing the brake pedal more deeply or harder than normal driving, such as air bleeding,

check each item of brake pedal. Adjust brake pedal if it is outside the standard value.

• Always clean with new brake fluid when cleaning the master cylinder, brake caliper and other com-

ponents.

• Never use mineral oils such as gasoline or light oil to clean. They may damage rubber parts and

cause improper operation.

• Always loosen the brake tube flare nut with a flare nut wrench.
• Tighten the brake tube flare nut to the specified torque with a

crowfoot (A) and torque wrench (B).

• Always confirm the specified tightening torque when install-

ing the brake pipes.

• Turn the ignition switch OFF and disconnect the ABS actuator

and electric unit (control unit) connector or the battery nega-
tive terminal before performing the work.

• Check that no brake fluid leakage is present after replacing

the parts.

• Burnish the brake contact surfaces after refinishing or replac-

ing rotors, after replacing pads, or if a soft pedal occurs at
very low mileage. Refer to

BR-40, "BRAKE PAD (1 PISTON

TYPE) : Inspection and Adjustment"

 [front brake pad (1 piston type)],

BR-44, "BRAKE CALIPER

ASSEMBLY (1 PISTON TYPE) : Inspection and Adjustment"

 [front disc rotor (1 piston type)],

BR-41,

"BRAKE PAD (2 PISTON TYPE) : Inspection and Adjustment"

 [front brake pad (2 piston type)],

BR-48,

"BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Inspection and Adjustment"

 [front disc rotor (2

piston type),

BR-50, "BRAKE PAD (FRONT CALIPER 1 PISTON TYPE) : Inspection and Adjustment"

[rear brake pad (front caliper 1 piston type)],

BR-55, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER

1 PISTON TYPE) : Inspection and Adjustment"

 [rear disc rotor (front caliper 1 piston type)],

BR-52,

"BRAKE PAD (FRONT CALIPER 2 PISTON TYPE) : Inspection and Adjustment"

 [rear brake pad (front

caliper 2 piston type)],

BR-60, "BRAKE CALIPER ASSEMBLY (FRONT CALIPER 2 PISTON TYPE) :

Inspection and Adjustment"

 [rear disc rotor (front caliper 2 piston type)].

PIIB3706J

JPFIA0001ZZ

BR-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

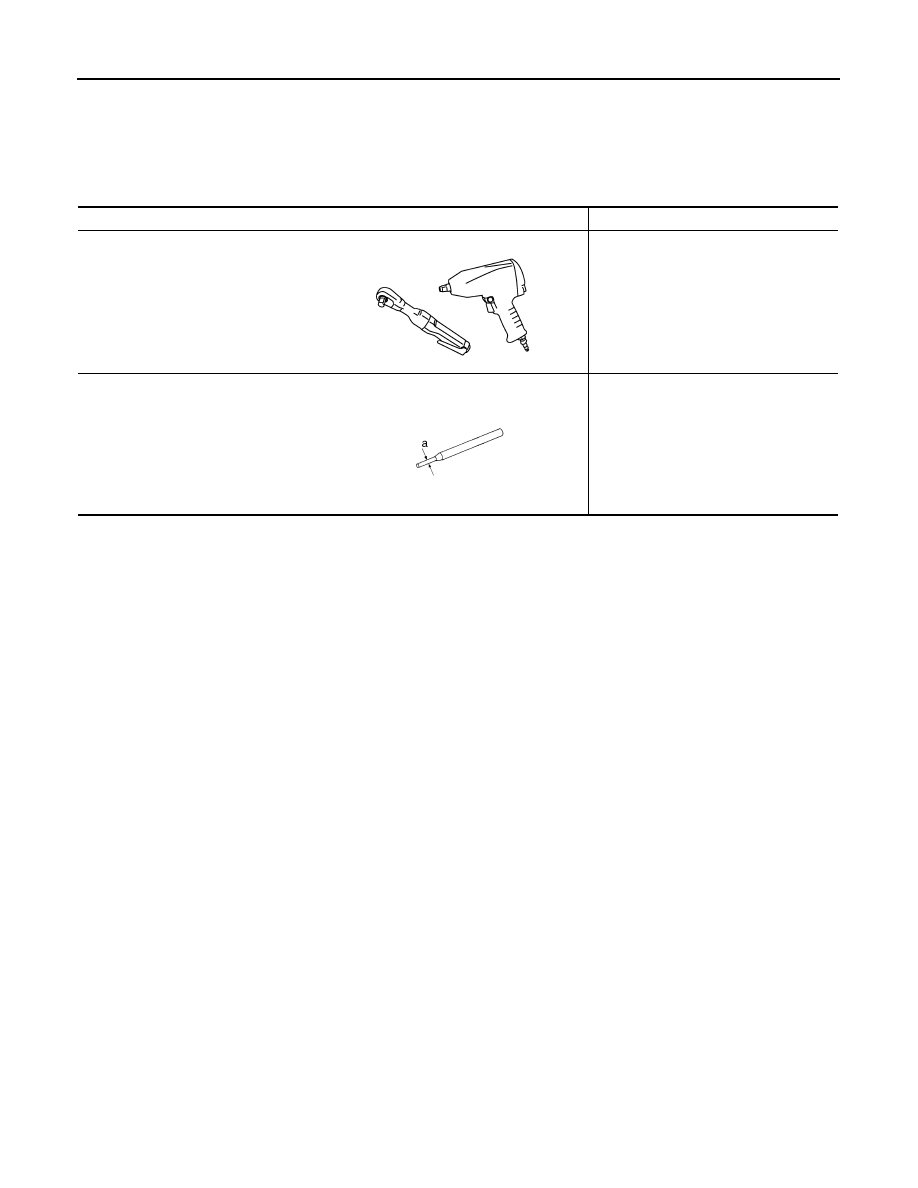

Commercial Service Tool

INFOID:0000000000958402

Tool name

Description

Power tool

Loosening bolts and nuts

Pin punch
a: 4 mm (0.16 in) dia.

Removing and installing reservoir tank
pin

PBIC0190E

NT410

BRAKE PEDAL

BR-7

< ON-VEHICLE MAINTENANCE >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

ON-VEHICLE MAINTENANCE

BRAKE PEDAL

Exploded View

INFOID:0000000000958403

Refer to

BR-19, "Exploded View"

.

Inspection and Adjustment

INFOID:0000000000958404

INSPECTION

Brake Pedal Height

Check the height (H

1

) between the dash lower panel (1) and the

brake pedal upper surface.

CAUTION:

Remove the floor trim.

ASCD Cancel Switch and Stop Lamp Switch

Check the clearance (C

1

 and C

2

) among ASCD cancel switch (1)

threaded end, stop lamp switch (2) threaded end and the stopper
rubber (3).

CAUTION:

The stop lamp must turn off when the brake pedal is released.
NOTE:
Pull the brake pedal pad to make the clearance between the stop lamp switch threaded end and the stopper
rubber. (The stopper rubber hits ASCD cancel switch threaded end.)

Brake Pedal Play

Press the brake pedal. Check the brake pedal play (A) (stroke until
fluid pressure occurs).

Brake Pedal Shaky Fitting

Standard

Brake pedal height (H

1

)

: Refer to

BR-62, "Brake

Pedal"

JPFIA0065ZZ

Standard

Clearance (C

1

) between

ASCD cancel switch thread-
ed end and the stopper rub-
ber

: Refer to

BR-62, "Brake

Pedal"

Clearance (C

2

) between the

stop lamp switch threaded
end and the stopper rubber

: Refer to

BR-62, "Brake

Pedal"

JPFIA0004ZZ

Standard

Pedal play (A)

: Refer to

BR-62, "Brake

Pedal"

JPFIA0066ZZ

BR-8

< ON-VEHICLE MAINTENANCE >

BRAKE PEDAL

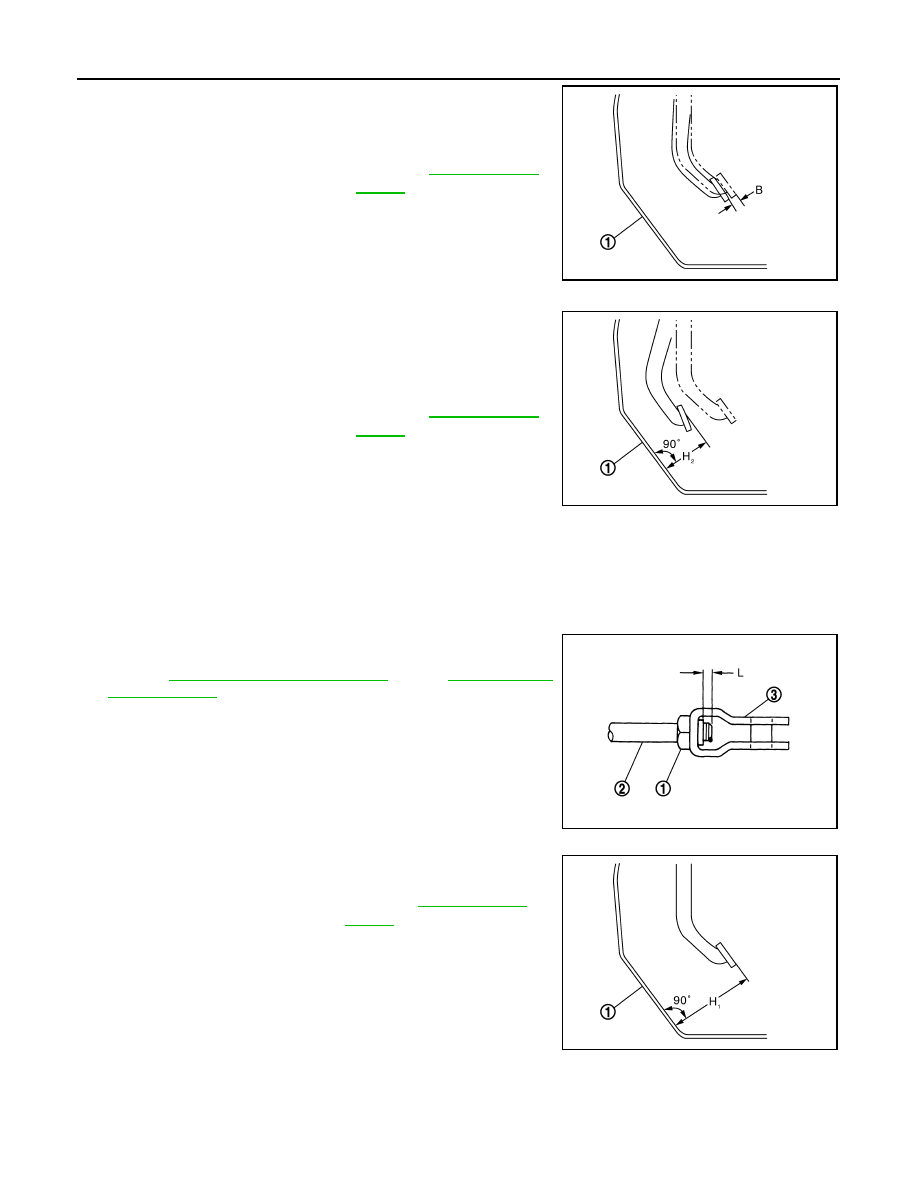

Check the brake pedal shaky fitting (B) (the stroke when pulling the
brake pedal pad slightly from the free play).

Depressed Brake Pedal Height

Check the height between the dash lower panel (1) and the brake
pedal upper surface (H

2

) when depressing the brake pedal at 490 N

(50 kg, 110 lb) while turning engine ON.

CAUTION:

Remove the floor trim.

ADJUSTMENT

Brake Pedal Height

1.

Disconnect the harness connector from ASCD cancel switch and stop lamp switch.

2.

Turn the stop lamp switch 45

°

 counterclockwise.

3.

Loosen ASCD cancel switch lock nut. Turn ASCD cancel switch counterclockwise.

4.

Loosen the input rod lock nut (1). Adjust the brake pedal to the
specification. Tighten the input lock nut to the specification.
Refer to

BR-32, "2WD : Exploded View"

 (2WD),

BR-34, "AWD :

Exploded View"

 (AWD).

CAUTION:

The threaded end of the input rod must project to the inner
side (L) of the clevis (3).

ASCD Cancel Switch and Stop Lamp Switch

1.

Disconnect the harness connector from ASCD cancel switch and stop lamp switch.

2.

Turn the stop lamp switch 45

°

 counterclockwise.

3.

Loosen ASCD cancel switch lock nut. Turn ASCD cancel switch counterclockwise.

Standard

Brake pedal shaky fitting (B)

: Refer to

BR-62, "Brake

Pedal"

JPFIA0067ZZ

Standard

Depressed brake pedal
height (H

2

)

: Refer to

BR-62, "Brake

Pedal"

JPFIA0068ZZ

JPFIA0003ZZ

Standard

Brake pedal height (H

1

)

: Refer to

BR-62, "Brake

Pedal"

JPFIA0065ZZ
