Infiniti G35 (V35) Sedan. Manual - part 192





AV-540

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000000964927

Removal and Installation

INFOID:0000000000964928

REMOVAL

1.

Remove head lining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

22, "Exploded View"

.

2.

Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof
panel may be deformed, when roof antenna mounting nut tightening torque is loose.

JSNIA0124ZZ

1.

Satellite radio antenna

Roof antenna mounting nut

 : 6.5 N·m (0.66 kg-m, 58 in-lb)

AV

MULTIFUNCTION SWITCH

AV-541

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

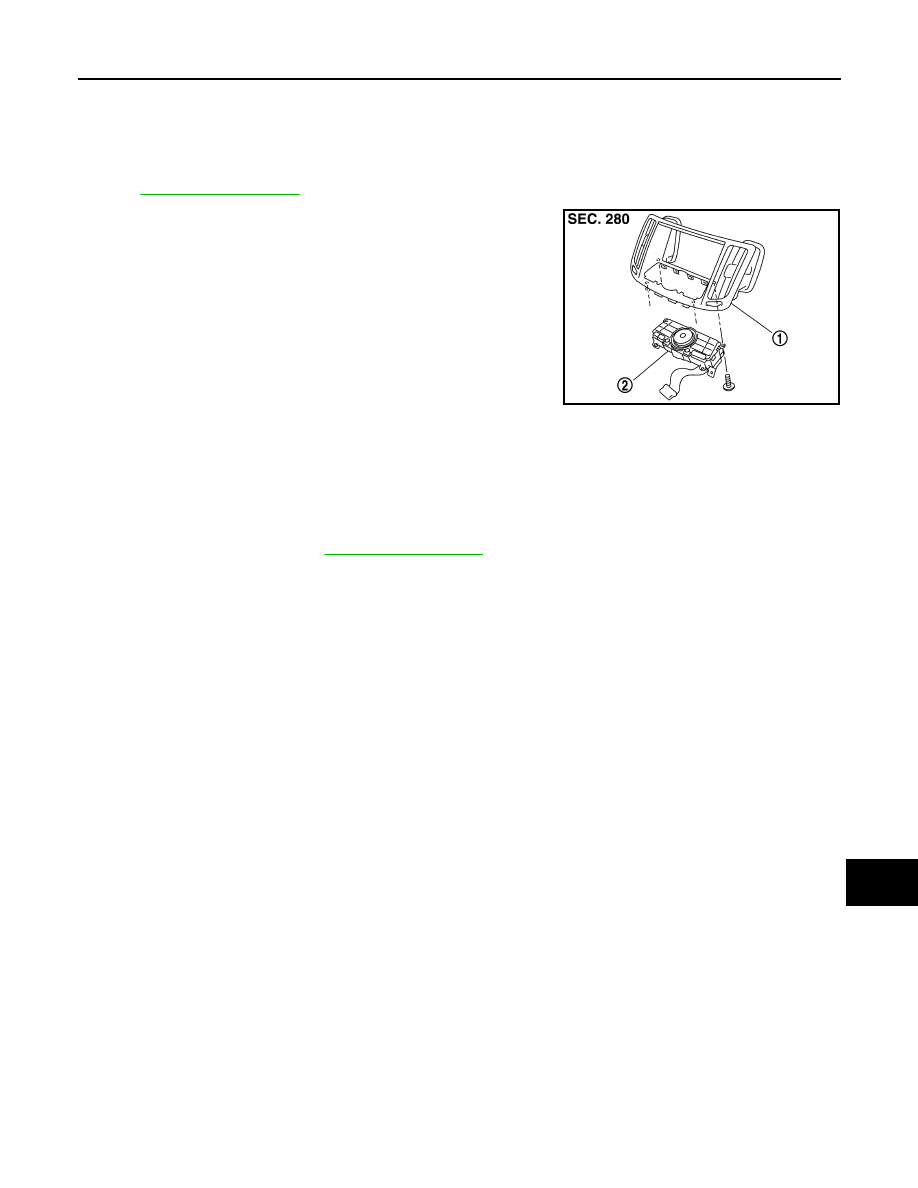

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000000964929

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964930

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove multi function switch with center ventilator grille as a single unit.

3.

Remove multi function switch from center ventilator.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0126ZZ

1.

Center ventilator grille

2.

Multifunction switch

AV-542

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

PRESET SWITCH

PRESET SWITCH

Exploded View

INFOID:0000000000964931

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964932

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove preset switch (2) from cluster lid C.

INSTALLATION

Installation is the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.

1.

Clock

2.

Cluster lid C

3.

Preset switch

JSNIA0107ZZ

1.

Clock

A.

Screw

B.

Screw

C.

Screw

JSNIA0127ZZ

AV

STEERING SWITCH

AV-543

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

STEERING SWITCH

Exploded View

INFOID:0000000000964933

Refer to

ST-15, "Exploded View"

.

Removal and Installation

INFOID:0000000000964934

REMOVAL

Refer to

ST-15, "Removal and Installation"

.

INSTALLATION

Installation is the reverse order of removal.
