AV-428

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

JCNWA0064GB

AV

AV CONTROL UNIT

AV-429

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

DTC Index

INFOID:0000000000964892

Self-diagnosis results display item

JCNWA0065GB

AV-430

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

AV CONTROL UNIT

Error item

Refer to

CAN COMM CIRCUIT [U1000]

LAN-18, "Trouble Diagnosis Flow
Chart"

CONTROL UNIT (CAN) [U1010]

LAN-18, "Trouble Diagnosis Flow
Chart"

CONTROL UNIT (AV) [U1310]

AV-353, "DTC Logic"

Control Unit FLASH-ROM [U1200]

AV-354, "DTC Logic"

Gyro NO CONN [U1201]

AV-355, "DTC Logic"

CAN CONT [U1216]

AV-356, "DTC Logic"

BLUETOOTH CONN [U1217]

AV-357, "DTC Logic"

HDD CONN [U1218]

AV-358, "DTC Logic"

HDD READ [U1219]

AV-359, "DTC Logic"

XM SERIAL COMM [U1220]

AV-360, "DTC Logic"

HDD WRITE [U121A]

AV-361, "DTC Logic"

HDD COMM [U121B]

AV-362, "DTC Logic"

HDD ACCESS [U121C]

AV-363, "DTC Logic"

DSP CONN [U121D]

AV-364, "DTC Logic"

DSP COMM [U121E]

AV-365, "DTC Logic"

INTERNAL COMM [U121F]

AV-366, "DTC Logic"

GPS COMM [U1204]

AV-367, "Diagnosis Procedure"

GPS ROM [U1205]

AV-368, "Diagnosis Procedure"

GPS RAM [U1206]

AV-369, "Diagnosis Procedure"

GPS RTC [U1207]

AV-370, "Diagnosis Procedure"

FRONT DISP CONN [U1243]

AV-371, "Diagnosis Procedure"

GPS ANTENNA CONN [U1244]

AV-373, "Diagnosis Procedure"

CD CHANGER [N-BUS] [U124C]

AV-374, "Diagnosis Procedure"

CAMERA CONT. CONN [U1250]

AV-376, "Diagnosis Procedure"

XM ANTENNA CONN [U1258]

AV-377, "Diagnosis Procedure"

• AV COMM CIRCUIT [U1300]
• SWITCHE CONN [U1240]

AV-378, "Description"

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN

[U1252]

AV-378, "Description"

• AV COMM CIRCUIT [U1300]
• CAMERA CONT. CONN [U1250]
• REAR CAMERA LAN CONN

[U1252]

AV-378, "Description"

AV

DISPLAY UNIT

AV-431

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

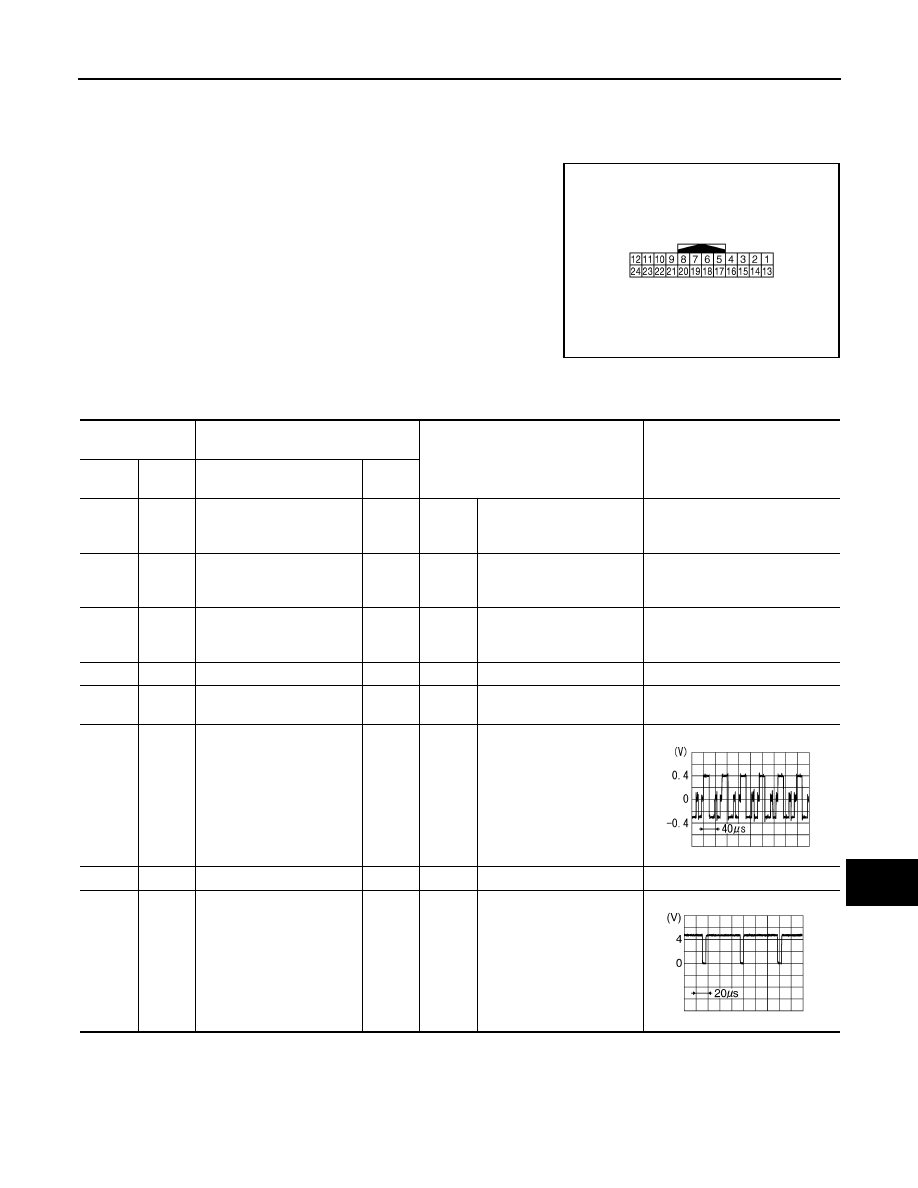

DISPLAY UNIT

Reference Value

INFOID:0000000000964893

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0006ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

2

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

3

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

4

—

Shield

—

—

—

—

5

(R)

—

AUX image GND

—

—

—

—

6

(O)

Ground

RGB signal (G: green)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

7

—

Shield

—

—

—

—

8

(R)

Ground

Horizontal synchronizing
(HP) signal

Output

Ignition

switch

ON

—

SKIB2236J

SKIB3601E
