WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000000962667

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-79,

"Removal and Installation"

.

WW-82

< ON-VEHICLE REPAIR >

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000000962668

Removal and Installation

INFOID:0000000000962669

REMOVAL

1.

Open the hood.

2.

Use the stop point of washer nozzle (1) as the support point and
rotate nozzle to remove it from body, while pushing nozzle spray
point side along the hood.

CAUTION:

• Be careful not to brake the seal rubber bonded to the

washer nozzle.

3.

Remove the seal rubber from the washer nozzle.

4.

Remove the washer tube (2) from the washer nozzle.

INSTALLATION

1.

Install washer tube in nozzle.

2.

Install the seal rubber.
NOTE:
When the washer nozzle is removed, bond the seal rubber to the washer nozzle using commercially avail-
able instantaneous adhesive

3.

Install the washer nozzle to the hood.

4.

Adjust the washer nozzle spray position.Refer to

WW-82, "Inspection and Adjustment"

.

CAUTION:

The spray positions differ, check that left and right nozzles are installed correctly.

Inspection and Adjustment

INFOID:0000000000962670

INSPECTION

1.

Seal rubber

2.

Washer nozzle

3.

Washer tube

4.

Washer tank

: Clip

JPLIA0074ZZ

JPLIA0075ZZ

FRONT WASHER NOZZLE AND TUBE

WW-83

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

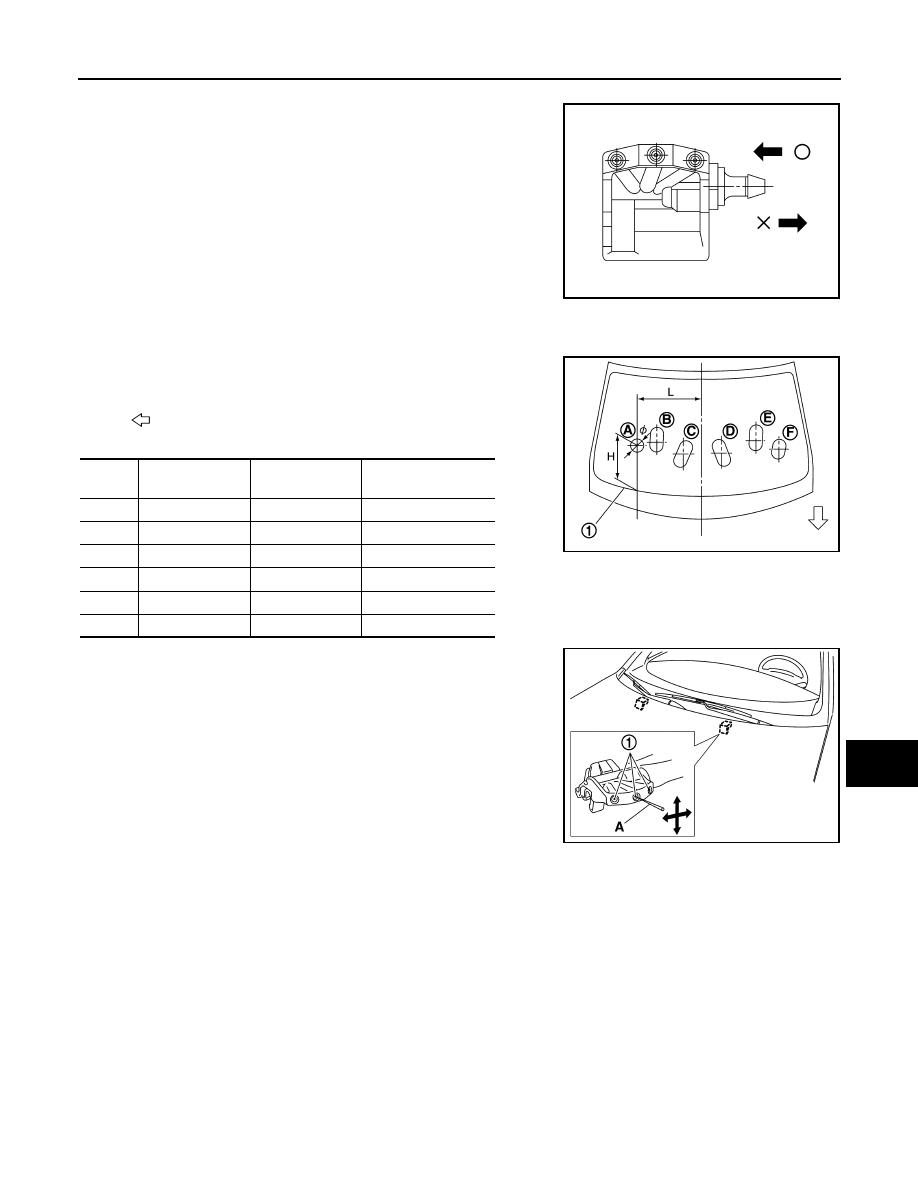

Washer Nozzle Inspection

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown in the figure.

Unit: mm (in.)

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

JPLIA0084ZZ

1

: Black printed frame line

: Vehicle front

Spray

position

H (Height)

L (Width)

φ

 (Spray point area)

A

280 (11.02)

396 (15.59)

80 (3.15)

B

320 (12.6)

277 (10.91)

80

×

 153 (3.15

×

 6.02)

C

261 (10.28)

114 (4.49)

80

×

 175 (3.15

×

 6.89)

D

267 (10.51)

123 (4.84)

80

×

 177 (3.15

×

 6.97)

E

321 (12.64)

336 (13.23)

80

×

 160 (3.15

×

 6.30)

F

239 (9.41)

477 (18.78)

80

×

126 (3.15

×

 4.96)

JPLIA0073ZZ

JPLIA0083ZZ

WW-84

< ON-VEHICLE REPAIR >

FRONT WIPER ARM

FRONT WIPER ARM

Exploded View

INFOID:0000000000962671

Removal and Installation

INFOID:0000000000962672

REMOVAL

1.

Operate the front wiper to move it to the auto stop position.

2.

Open the hood.

3.

Remove wiper arm cap.

4.

Remove the wiper arm mounting nut.

5.

Raise wiper arm, and remove wiper arm from the vehicle.

INSTALLATION

1.

Clean wiper arm mount as shown in the figure to prevent nuts
from being loosened.

2.

Operate the front wiper motor to move the wiper to the auto stop position.

3.

Adjust the wiper blade position. Refer to

WW-85, "Adjustment"

.

4.

Install the wiper arm by tightening the mounting nut.

5.

Inject the washer fluid.

6.

Operate the front wiper to move it to the auto stop position.

7.

Check that the wiper blades stop at the specified position.

8.

Attach wiper arm cap.

1.

Wiper blade (RH)

2.

Wiper arm (RH)

3.

Wiper arm cap

4.

Wiper arm (LH)

5.

Wiper blade (LH)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA0085GB
