WT-92

< ON-VEHICLE REPAIR >

ROAD WHEEL TIRE ASSEMBLY

• Perform the ID registration, after tire rotation. Refer to

WT-5, "ID REGISTRATION PROCEDURE : Special

Repair Requirement"

.

TIRE ROTATION (for 18 inch wheel models)

• Tire cannot be rotated in vehicle, as front tire are different size from rear tire and the direction of wheel rota-

tion is fixed in each tire.

CAUTION:

Do not include the T-type spare tire when rotating the tires.

Safety Device Preventing from Being Incorrectly installed

FRONT BRAKE DISC ROTOR AND FRONT WHEEL

• Front and rear wheel size for this model differs, therefore special pin (1) has been installed on the front brake

disc rotor (2). To accommodate this pin a hole (3) has been provided on the front wheel (4) (the rear wheel
does not have this hole.) and in some case the rear wheel is being mistakenly installed on the front.

T-TYPE SPARE TIRE WHEEL

• Regarding spare tire (for emergency) wheel, wrong assembly pro-

tection pin through hole (1) has been set in addition to regular bolt
holes (2) in order to enable installation to front wheel.

Wheel nuts tighting torque

: Refer to

WT-95, "Road

Wheel"

.

JPEIC0015ZZ

JPEIC0016ZZ

TRANSMITTER

WT-93

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

REMOVAL AND INSTALLATION

TRANSMITTER

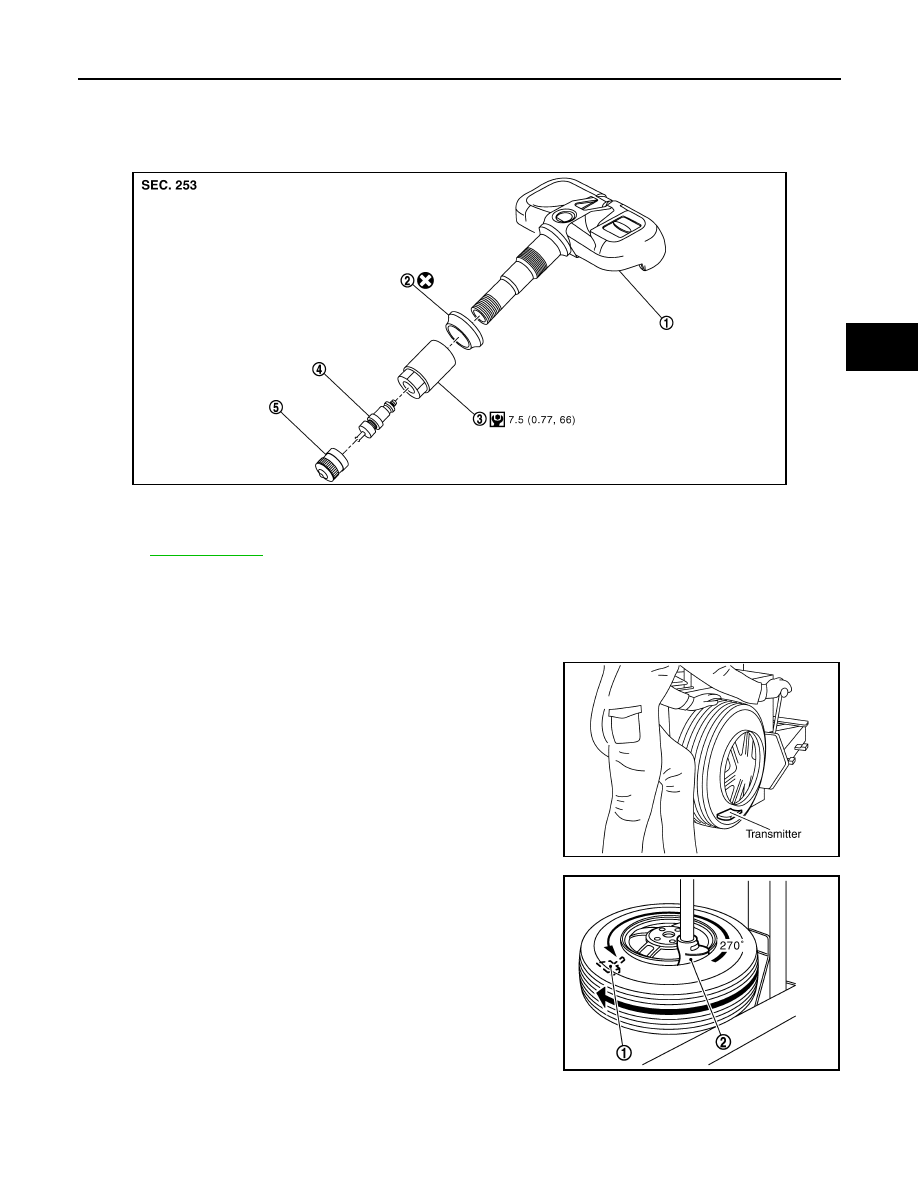

Exploded View

INFOID:0000000000957931

Removal and Installation

INFOID:0000000000957932

REMOVAL

1.

Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.

2.

Gently bounce tire so that transmitter falls to bottom of tire.
Place on tire changing machine and break both tire beads
ensuring that the transmitter remains at the bottom of the tire.

3.

Turn tire so that valve hole is at bottom and bounce so that
transmitter (1) is near valve hole. Carefully lift tire onto turntable
and position valve hole (and transmitter) 270 degree from
mounting/dismounting head (2).

4.

Lubricate tire well and remove first side of the tire. Reach inside
the tire and remove the transmitter.

INSTALLATION

JPEIC0006GB

1.

Transmitter

2.

Grommet seal

3.

Valve nut

4.

Valve core

5.

Cap

Refer to

GI-4, "Components"

 for symbols in figure.

SEIA0047E

JPEIC0014GB

WT-94

< REMOVAL AND INSTALLATION >

TRANSMITTER

1.

Put first side of tire onto rim.

2.

Mount transmitter on rim and tighten nut.

CAUTION:

Speed for tightening nut should be less than 15 rpm.

3.

Place wheel on turntable of tire machine. Ensure that transmitter
(1) is 270 degree from mounting head (2) when second side of
tire is fitted.
NOTE:
Do not touch transmitter at mounting head.

4.

Lubricate tire well and fit second side of tire as normal. Ensure
that tire does not rotate relative to rim.

5.

Inflate tire and fit to appropriate wheel position.

SEIA0049E

JPEIC0014GB

SERVICE DATA AND SPECIFICATIONS (SDS)

WT-95

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000000957933

Tire

INFOID:0000000000957934

Unit: kPa (kg/cm

2

, psi)

Kind of wheel

Aluminum

Maximum radial runout limit

Lateral deflection

Less than 0.3 mm (0.012 in)

Vertical deflection

Maximum allowable unbalance limit

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)

Wheel nuts tighting torque

108 N·m (11 kg-m, 80 ft-lb)

Tire size

Air pressure

Front

Rear

P225/55R17 95V

230 (2.3, 33)

230 (2.3, 33)

225/50R18 95W

230 (2.3, 33)

245/45R18 96W

230 (2.3, 33)

T145/80D17 107M

420 (4.2, 60)

420 (4.2, 60)
