WT-8

< FUNCTION DIAGNOSIS >

TPMS

The BCM (1) reads the air pressure signal received by the tire pres-
sure receiver, and controls the low tire pressure warning lamp and
the buzzer operations. It also has a judgment function to detect a
system malfunction.

LOW TIRE PRESSURE WARNING LAMP

The combination meter receives tire pressure status from the BCM
using CAN communication. When a low tire pressure condition is
sensed by the BCM, the combination meter low tire pressure warn-
ing lamp is activated.

Low tire pressure warning lamp indication

NOTE: Standard air pressure is for 230 kPa (2.3 kg/cm

2

, 33 psi) vehicles.

TIRE PRESSURE WARNING CHECK SWITCH

The following item can be checked by grounding the tire pressure
warning check switch (1) harness connector terminal.
• The low tire pressure warning lamp in the combination meter will

flicker according to the self-diagnostic results.

Component Parts Location

INFOID:0000000000957861

JPEIC0002ZZ

SEIA0434E

Condition

Low tire pressure warning lamp

Less than 181 kPa (1.8 kg/cm

2

, 26 psi) [NOTE]

ON

Low tire pressure warning system malfunction [Other diagnostic item]

Warning lamp flashes 1 min, then turns ON.

JPEIC0003ZZ

TPMS

WT-9

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

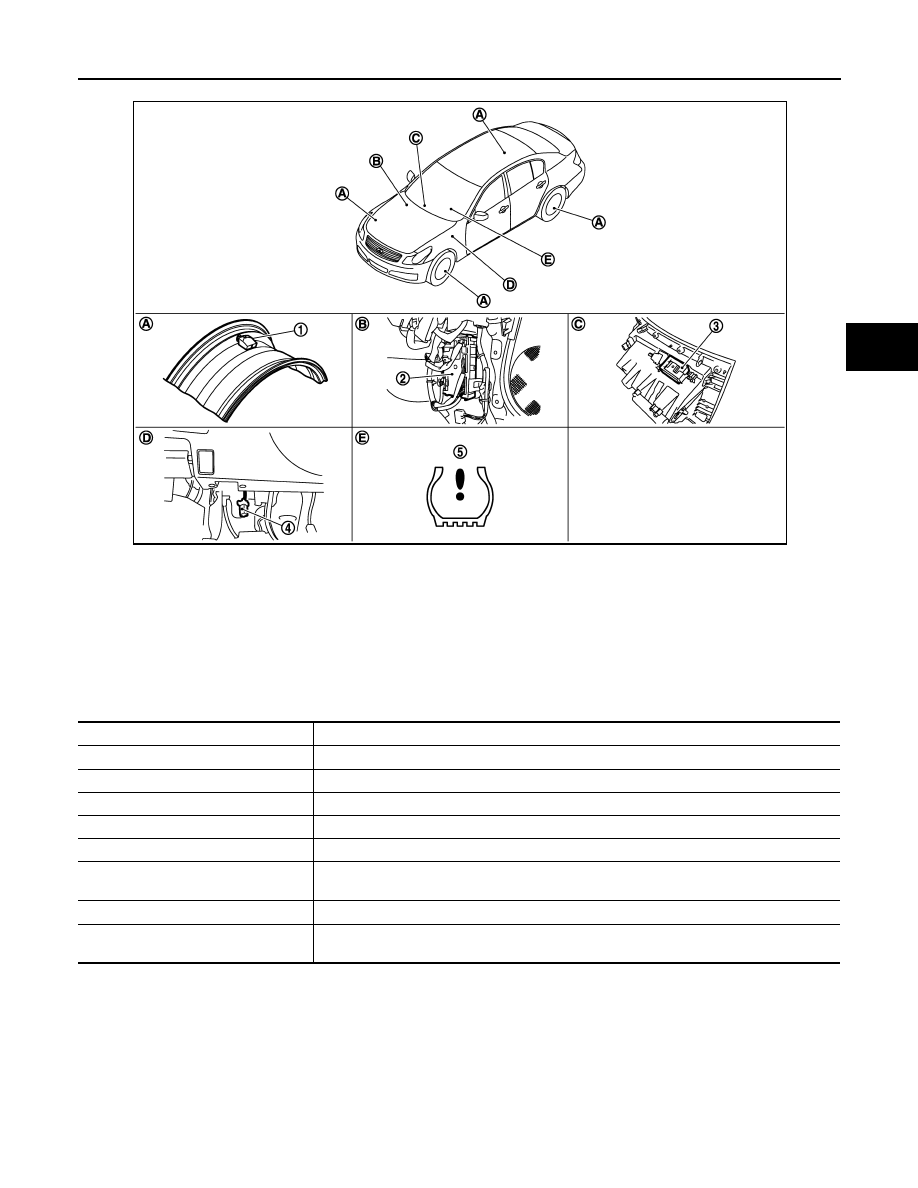

Component Description

INFOID:0000000000957862

1.

Transmitter

2.

BCM

3.

Tire pressure receiver

4.

Tire pressure warning check switch

5.

Low tire pressure warning lamp

A.

Wheel

B.

Dash side lower (passenger side)

C.

Upper glove box body

D.

Behind instrument lower panel
(driver side)

E.

Inside combination meter

JPEIC0009ZZ

Component parts

Function

BCM (Body Control Module)

A tire pressure monitoring system is built in to the BCM, and the BCM monitors tire pressure.

Transmitter

Converts tire pressure signals to radio wave signals.

Tire pressure receiver

Receives radio wave signals converted from tire pressure signals.

Tire pressure warning check switch

Allows a mode to be switched to a diagnosis mode.

Turn signal lamp

ID registration of each wheel has been completed, turn signal lamp flashes.

Combination meter

Controls a low tire pressure warning lamp, turn signal lamp, and buzzer by signals from the
unified meter and A/C amp.

Low tire pressure warning lamp

Illuminates if malfunction is detected in electrical system of TPMS.

Unified meter and A/C amp.

Transmits the vehicle speed signal via CAN communication to BCM.
Receives the tire pressure signal via CAN communication to BCM.

WT-10

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000000957863

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

*: This item is displayed, but is not used.

AIR PRESSURE MONITOR

AIR PRESSURE MONITOR : Diagnosis Description

INFOID:0000000000957864

DESCRIPTION

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-74, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Air conditioner*

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

IVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONI-
TOR)

×

×

×

DIAGNOSIS SYSTEM (BCM)

WT-11

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

During driving, the TPMS receives the signal transmitted from the transmitter installed in each wheel, when
the tire pressure becomes low. The control unit (BCM) of this system has pressure judgment and trouble diag-
nosis functions.
When the TPMS detects low inflation pressure or another unusual symptom, the warning lamps in the combi-
nation meter comes on.

SELF DIAGNOSTIC PROCEDURE (WITH CONSULT-III)

 With CONSULT-III

• Touch “SELF-DIAG RESULT” display shows malfunction experienced since the last erasing operation. Refer

to

WT-74, "DTC Index"

.

SELF DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-III)

 Without CONSULT-III

To start the self-diagnostic results mode, ground terminal of the tire pressure warning check connector. The
malfunction location is indicated by the warning lamp flashing.

NOTE:
When the low tire warning lamp flashes 5 Hz and continues repeating it, the system is normal.

SEIA0745E

Flickering

pattern

Items

Diagnostic items detected when···

Check item

15

Tire pressure value (Front LH)

Front LH tire pressure drops to 181 kPa (1.8 kg/cm

2

, 26 psi) or less.

–

16

Tire pressure value (Front RH)

Front RH tire pressure drops to 181 kPa (1.8 kg/cm

2

, 26 psi) or less.

17

Tire pressure value (Rear RH)

Rear RH tire pressure drops to 181 kPa (1.8 kg/cm

2

, 26 psi) or less.

18

Tire pressure value (Rear LH)

Rear LH tire pressure drops to 181 kPa (1.8 kg/cm

2

, 26 psi) or less.

21

Transmitter no data (Front LH)

Data from front LH transmitter can not be received.

WT-16

22

Transmitter no data (Front RH)

Data from front RH transmitter can not be received.

23

Transmitter no data (Rear RH)

Data from Rear RH transmitter can not be received.

24

Transmitter no data (Rear LH)

Data from Rear LH transmitter can not be received.

31

Transmitter checksum error
(Front LH)

Checksum data from front LH transmitter is malfunctioning.

WT-19

32

Transmitter checksum error
(Front RH)

Checksum data from front RH transmitter is malfunctioning.

33

Transmitter checksum error
(Rear RH)

Checksum data from rear RH transmitter is malfunctioning.

34

Transmitter checksum error
(Rear LH)

Checksum data from rear RH transmitter is malfunctioning.

35

Transmitter pressure data error
(Front LH)

Air pressure data from front LH transmitter is malfunction.

WT-22

36

Transmitter pressure data error
(Front RH)

Air pressure data from front RH transmitter is malfunction.

37

Transmitter pressure data error
(Rear RH)

Air pressure data from rear RH transmitter is malfunction.

38

Transmitter pressure data error
(Rear LH)

Air pressure data from rear LH transmitter is malfunction.
