WT-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

Is the malfunction corrected?

YES

>> INSPECTION END

NO

>> GO TO 4.

INSPECTION AND ADJUSTMENT

WT-5

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

INSPECTION AND ADJUSTMENT

TRANSMITTER WAKE UP OPERATION

TRANSMITTER WAKE UP OPERATION : Description

INFOID:0000000000957855

This procedure must be done after replacement of a transmitter, BCM, or rotating wheels.

TRANSMITTER WAKE UP OPERATION : Special Repair Requirement

INFOID:0000000000957856

1.

TRANSMITTER WAKE UP OPERATION

1.

With the activation tool (J-45295) pushed against the front-left
transmitter, press and hold the button 5 seconds.

2.

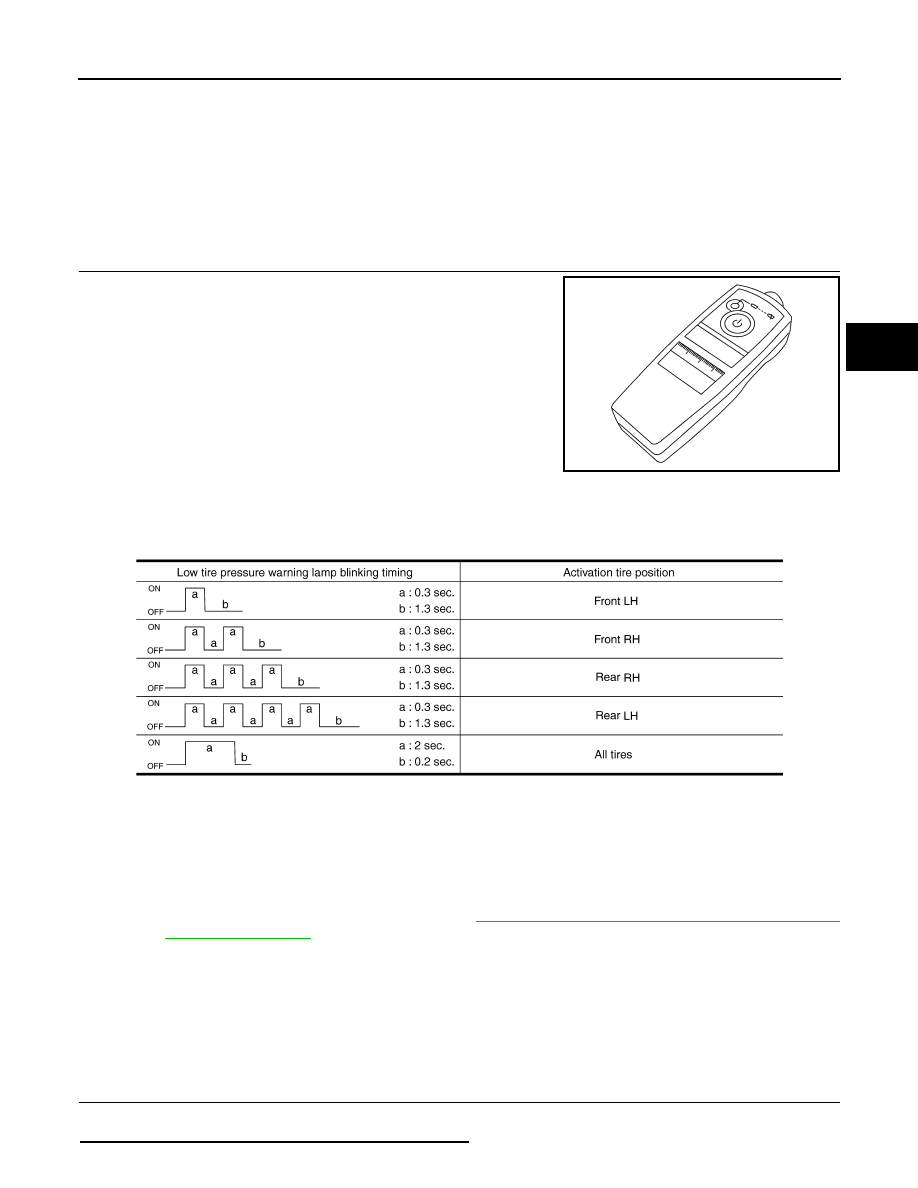

When ignition switch ON, as the low tire pressure warning lamp blinks per the follow diagram, the respec-
tive transmitter then must be woken up.

3.

Register the ID of wheel that warning lamp flashes. When wake up of registered wheel has been com-
pleted, turn signal lamp flashes two times.

4.

After completing wake up all transmitters, make sure low tire pressure warning lamp goes out.

>> Perform ID registration procedure. Refer to

WT-5, "ID REGISTRATION PROCEDURE : Special

Repair Requirement"

.

ID REGISTRATION PROCEDURE

ID REGISTRATION PROCEDURE : Description

INFOID:0000000000957857

This procedure must be done after replacing or rotating wheels, replacing transmitter or BCM.

ID REGISTRATION PROCEDURE : Special Repair Requirement

INFOID:0000000000957858

1.

ID REGISTRATION PREPARATION

1.

Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.

Is the transmitter activation tool used for ID registration?

SEIA0460E

SEIA0762E

WT-6

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

ID REGISTRATION (WITH TRANSMITTER ACTIVATION TOOL)

1.

With the transmitter activation tool (J-45295) pushed against the front-left transmitter position of the air
valve, press and hold the button for 5 seconds.

2.

Register the IDs in order from FR LH, FR RH, RR RH, to RR LH.
When ID registration of each wheel has been completed, turn signal lamp blinks.

3.

After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results
display will not function properly.

Can ID registration of all transmitters be completed?

YES

>> ID registration END

NO

>> Inspect the tire pressure monitoring system. Refer to

WT-16, "Diagnosis Procedure"

.

3.

ID REGISTRATION (WITHOUT TRANSMITTER ACTIVATION TOOL)

1.

Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
40 km/h (25 MPH) or more for several minutes.
NOTE:
If ID registration is unable, buzzer beeps.

2.

After completing all ID registrations, press “END” to complete procedure.

3.

Inflate all tires to proper pressure. Refer to

WT-95, "Tire"

.

Can ID registration of all transmitters be completed?

>> ID registration END
>> Inspect the tire pressure monitoring system. Refer to

WT-16, "Diagnosis Procedure"

.

Activation tire position

Turn signal lamp

CONSULT-III

1

Front LH

2 times flashing

“Red”

“Green”

2

Front  RH

3

Rear  RH

4

Rear LH

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

240 (2.4, 34)

Front RH

220 (2.2, 31)

Rear RH

200 (2.0, 29)

Rear LH

180 (1.8, 26)

Activation tire position

CONSULT-III

Front LH

“Red”

“Green”

Front RH

Rear RH

Rear LH

TPMS

WT-7

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

FUNCTION DIAGNOSIS

TPMS

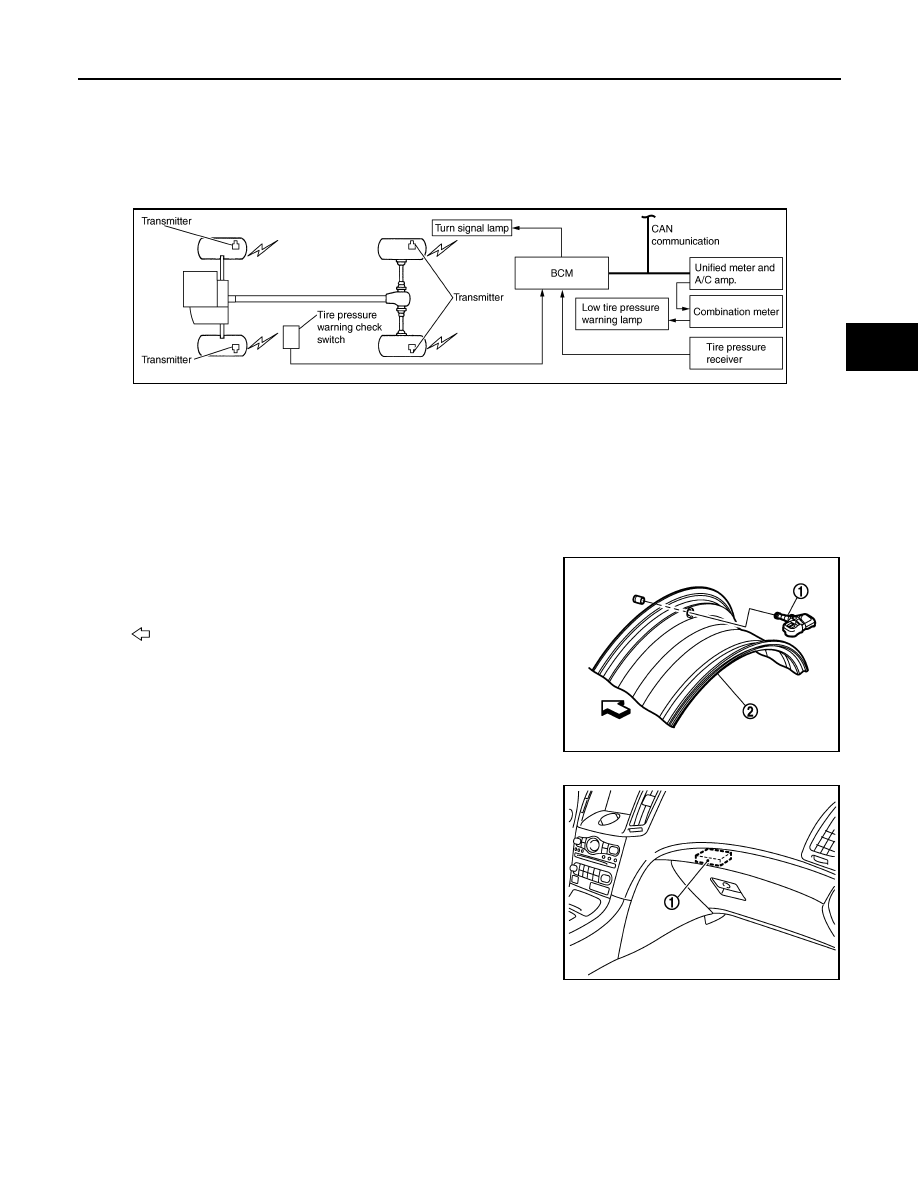

System Diagram

INFOID:0000000000957859

System Description

INFOID:0000000000957860

DISCRIPTION

During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from transmitter
installed in each wheel, when the tire pressure becomes low. The BCM (Body Control Module) of this system
has pressure judgment and trouble diagnosis functions. When the tire pressure monitoring system detects low
inflation pressure or another unusual symptom, the warning lamps in the combination meter comes on.

TRANSMITTER

A sensor-transmitter (1) integrated with a valve is installed on a
wheel (2), and transmits a detected air pressure signal in the from of
a radio wave.

TIRE PRESSURE RECEIVER

The tire pressure receiver (1) receives the air pressure signal trans-
mitted by the transmitter in each wheel.

BCM (BODY CONTROL MODULE)

JPEIC0007GB

: Outside

JPEIC0013ZZ

JPEIC0001ZZ
