WCS-24

< COMPONENT DIAGNOSIS >

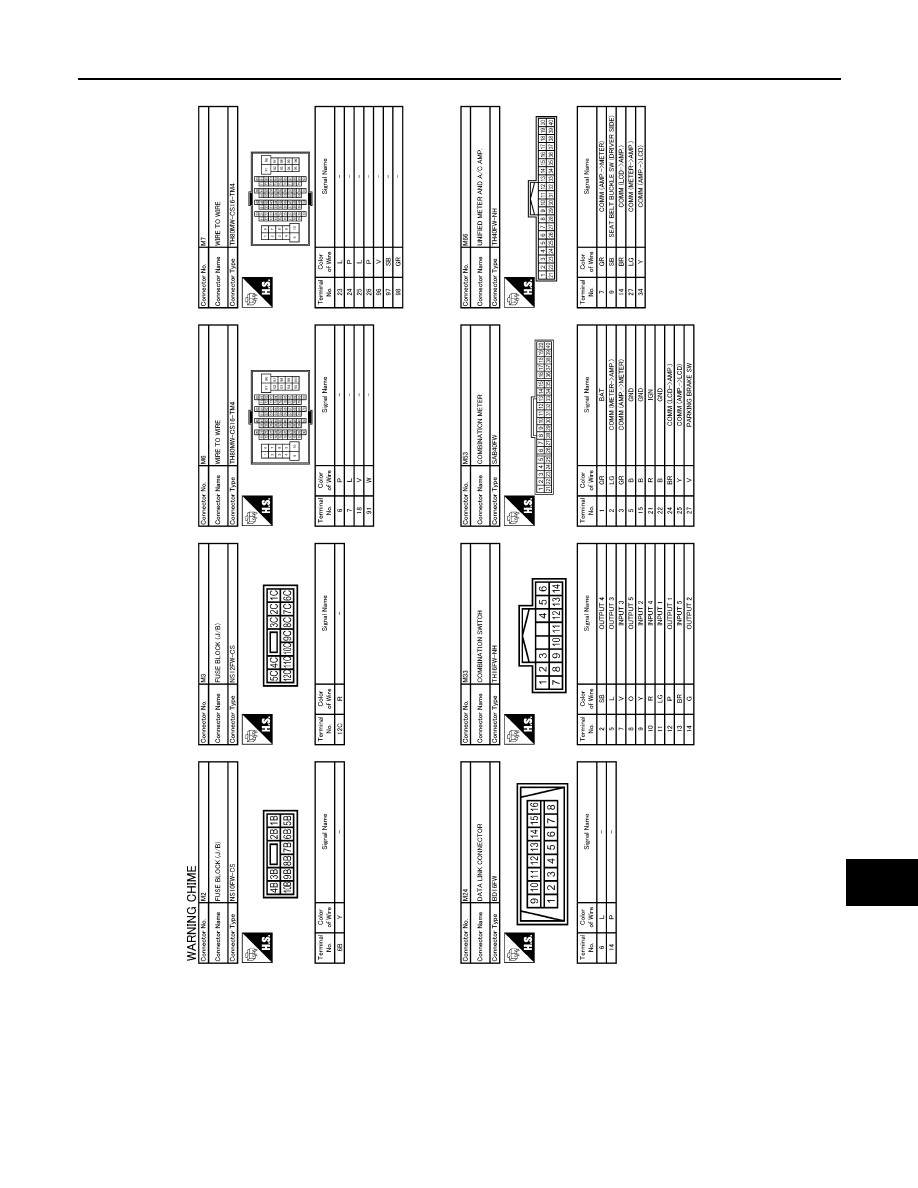

WARNING CHIME SYSTEM

JCNWA0017GB

WCS

WARNING CHIME SYSTEM

WCS-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

JCNWA0018GB

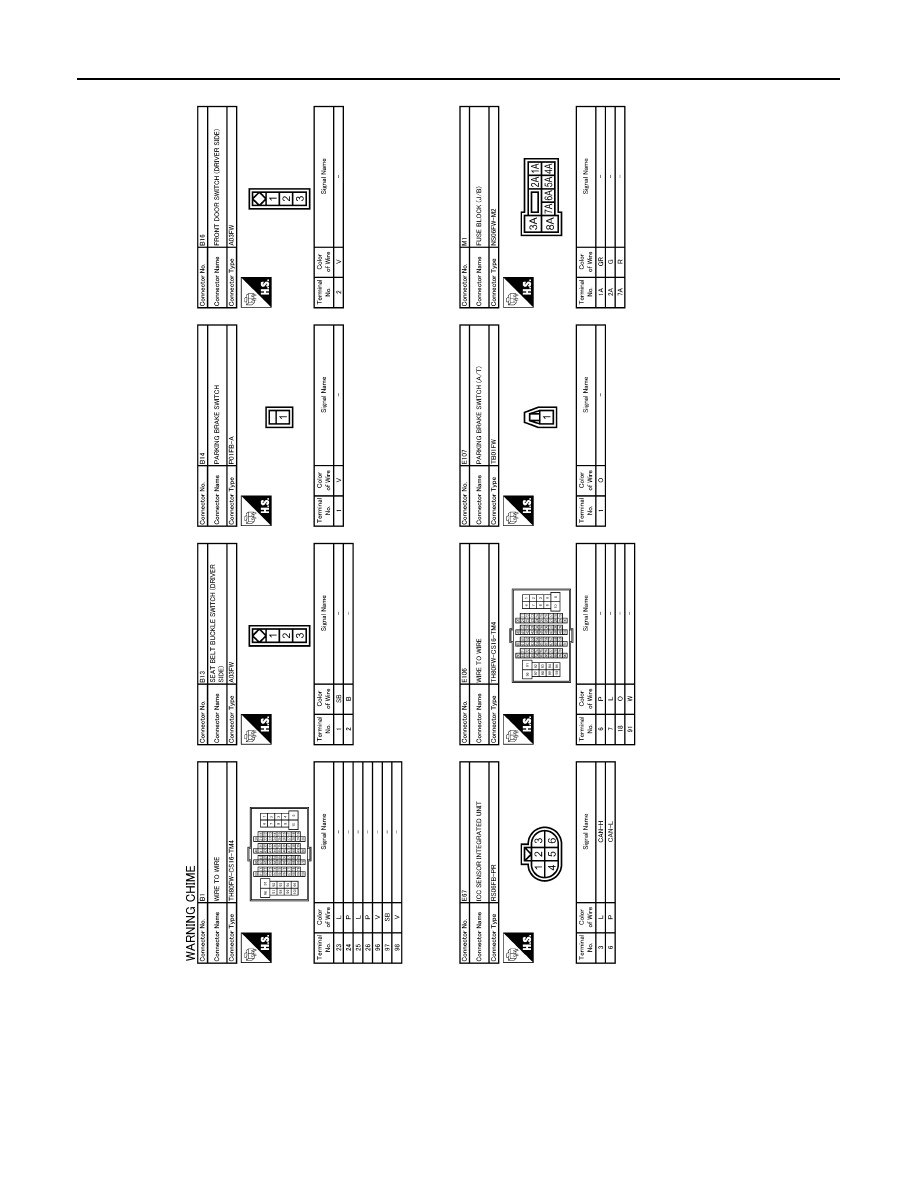

WCS-26

< COMPONENT DIAGNOSIS >

WARNING CHIME SYSTEM

JCNWA0019GB

WCS

COMBINATION METER

WCS-27

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

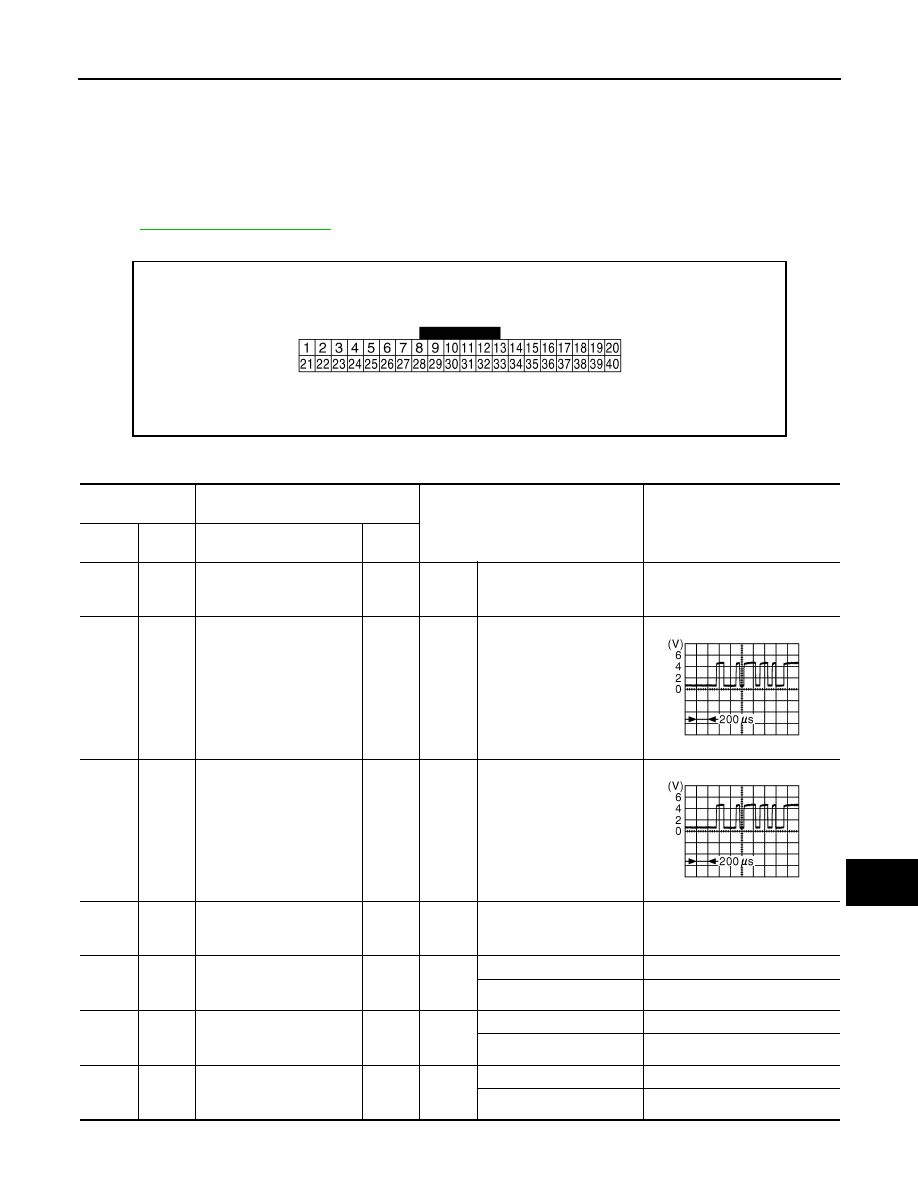

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000000964499

VALUES ON THE DAIAGNOSIS TOOL

Refer to

MWI-80, "Reference Value"

.

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0096ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(GR)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

2

(LG)

Ground

Communication signal
(METER

→

 AMP.)

Output

Ignition
switch
ON

—

3

(GR)

Ground

Communication signal
(AMP.

→

 METER)

Input

Ignition
switch
ON

—

5

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

6

(W)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

0 V

Charge warning lamp OFF

12 V

7

(LG)

Ground

Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp ON

4 V

Air bag warning lamp OFF

0 V

10

(G)

Ground

Security signal

Input

Ignition
switch
OFF

Security warning lamp ON

0 V

Security warning lamp OFF

12 V
