TM-352

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DIRECT CLUTCH

2.

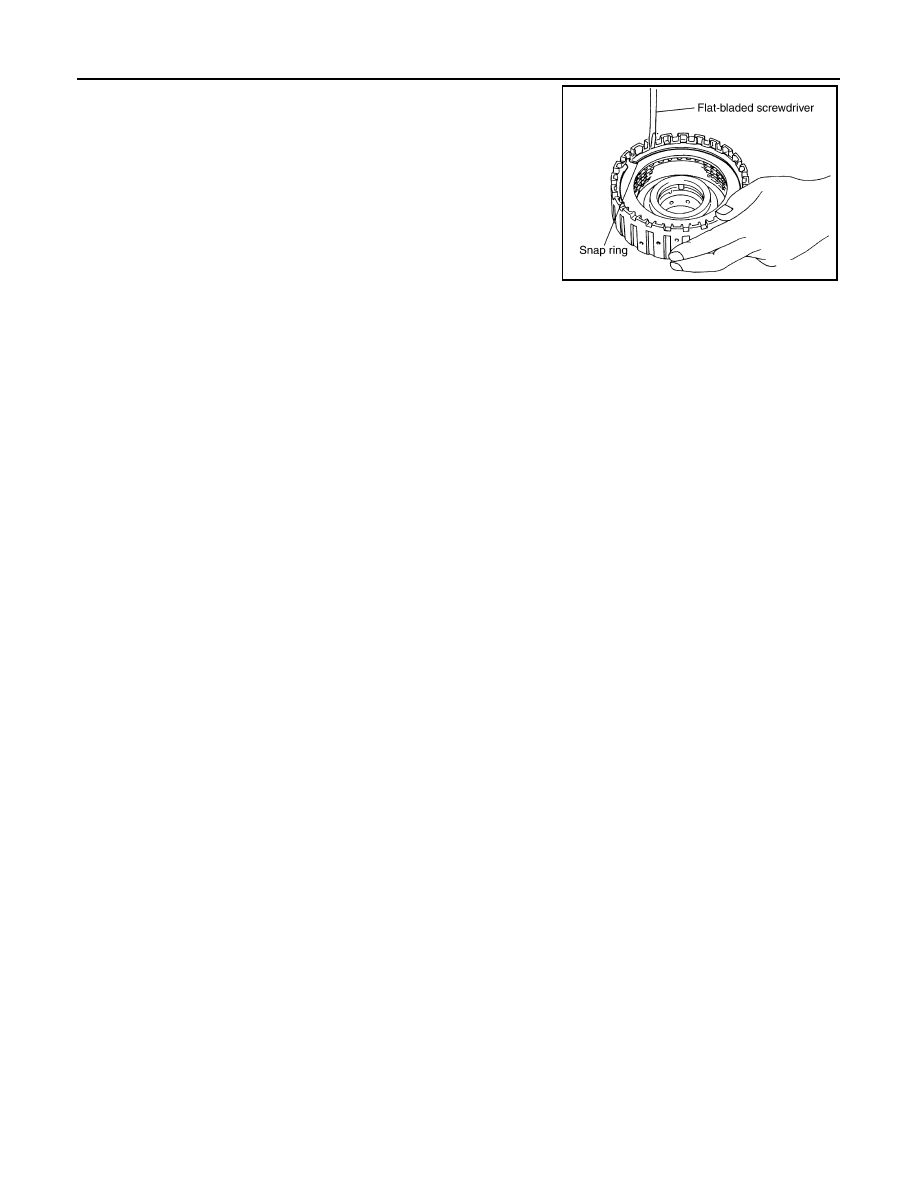

Using a flat-bladed screwdriver, install snap ring in direct clutch
drum.

Inspection

INFOID:0000000000957214

Check the following, and replace direct clutch assembly if necessary.
• Direct Clutch Snap Ring

Check for deformation, fatigue or damage.

• Direct Clutch Drive Plates and Driven Plates

Check facing for burns, cracks or damage.

• Direct Clutch Dish Plate and Retaining Plates

Check facing for burns, cracks or damage.

SCIA2868E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-353

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000000957215

• *1: Refer to

MA-10, "Fluids and Lubricants"

.

• *2: The fluid capacity is the reference value. Check the fluid level with A/T fluid level gauge.

Vehicle Speed at Which Gear Shifting Occurs

INFOID:0000000000957216

• At half throttle, the accelerator opening is 4/8 of the full opening.

Vehicle Speed at Which Lock-up Occurs/Releases

INFOID:0000000000957217

• At closed throttle, the accelerator opening is less than 1/8 condition. (Closed throttle position signal OFF)

• At half throttle, the accelerator opening is 4/8 of the full opening.

Stall Speed

INFOID:0000000000957218

Line Pressure

INFOID:0000000000957219

Applied model

VQ35HR engine

2WD

AWD

Automatic transmission model

RE5R05A

Transmission model code number

97X2E

97X3A

Stall torque ratio

1.74 : 1

Transmission gear ratio

1st

3.842

2nd

2.353

3rd

1.529

4th

1.000

5th

0.839

Reverse

2.765

Recommended fluid

Genuine NISSAN Matic J ATF

*1

Fluid capacity

10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)

*2

CAUTION:

• Use only Genuine NISSAN Matic J ATF. Do not mix with other fluid.
• Using ATF other than Genuine NISSAN Matic J ATF will cause deterioration driveability and A/T durability, and may damage

the A/T, which is not covered by the NISSAN new vehicle limited warranty.

Throttle position

Vehicle speed

km/h (MPH)

D

1

→

D

2

D

2

→

D

3

D

3

→

D

4

D

4

→

D

5

D

5

→

D

4

D

4

→

D

3

D

3

→

D

2

D

2

→

D

1

Full throttle

57 – 61

(35 – 38)

93 – 101

(58 – 63)

140 – 150

(87 – 93)

202 – 212

(126 – 132)

198 – 208

(123 – 129)

130 – 140

(81 – 87)

79 – 87

(49 – 54)

31 – 35

(19 – 22)

Half throttle

39 – 43

(24 – 27)

71 – 77

(44 – 48)

108 – 116

(67 – 72)

139 – 147

(86 – 91)

105 – 113

(65 – 70)

47 – 55

(29 – 34)

30 – 36

(19 – 22)

9 – 13

(6 – 8)

Throttle position

Vehicle speed

km/h (MPH)

Lock-up ON

Lock-up OFF

Closed throttle

50 – 58 (31 – 36)

47 – 55 (29 – 34)

Half throttle

139 – 147 (86 – 91)

105 – 113 (65 – 70)

Stall speed

2,700 – 3,000 rpm

TM-354

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5AT: RE5R05A]

SERVICE DATA AND SPECIFICATIONS (SDS)

Turbine Revolution Sensor

INFOID:0000000000957220

Vehicle Speed Sensor A/T (Revolution Sensor)

INFOID:0000000000957221

Reverse Brake

INFOID:0000000000957222

Total End Play

INFOID:0000000000957223

BEARING RACE FOR ADJUSTING TOTAL END PLAY

Torque Converter

INFOID:0000000000957224

Engine speed

Line pressure

kPa (kg/cm

2

, psi)

“R” position

“D” and “M” positions

At idle speed

425 – 465 (4.3 – 4.7, 62 – 67)

379 – 428 (3.9 – 4.4, 55 – 62)

At stall speed

1,605 – 1,950 (16.4 – 19.9, 233 – 283)

1,310 – 1,500 (13.4 – 15.3, 190 – 218)

Name

Condition

Data (Approx.)

Turbine revolution sensor 1

When running at 50 km/h (31 MPH) in 4th speed witch the closed throttle position
signal OFF.

1.3 kHz

Turbine revolution sensor 2

When running at 20 km/h (12 MPH) in 1st speed witch the closed throttle position
signal OFF.

Name

Condition

Data (Approx.)

Revolution sensor

When running at 20 km/h (12 MPH).

185 Hz

Model code number

97X2E, 97X3A

Number of drive plates

6

Number of driven plates

6

Clearance

mm (in)

Standard

0.7 – 1.1 (0.028 – 0.043)

Thickness of retaining plates

Thickness

mm (in)

4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

Total end play

mm (in)

0.25 – 0.55 (0.0098 – 0.0217)

Thickness

mm (in)

0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.4 (0.055)
1.6 (0.063)
1.8 (0.071)

Distance between end of converter housing and torque
converter

mm (in)

25.0 (0.98) or more

VTL-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

VTL

A

B

VTL

N

O

P

CONTENTS

VENTILATION SYSTEM

FUNCTION DIAGNOSIS ...............................

3

SWITCHES AND THEIR CONTROL FUNC-
TION ....................................................................

3

WITHOUT LEFT AND RIGHT VENTILATION TEM-
PERATURE SEPARATELY CONTROL SYSTEM ......

3

WITHOUT LEFT AND RIGHT VENTILATION
TEMPERATURE SEPARATELY CONTROL
SYSTEM : System Description  .................................

3

WITH LEFT AND RIGHT VENTILATION TEMPER-
ATURE SEPARATELY CONTROL SYSTEM  .............

3

WITH LEFT AND RIGHT VENTILATION TEM-
PERATURE SEPARATELY CONTROL SYSTEM
: System Description  .................................................

3

AIR DISTRIBUTION  ............................................

5

System Description  ...................................................

5

PRECAUTION ...............................................

6

PRECAUTIONS ...................................................

6

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

6

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  .....................................

6

Precaution for Procedure without Cowl Top Cover

......

6

Precautions For Xenon Headlamp Service  ...............

7

Working with HFC-134a (R-134a)  .............................

7

General Refrigerant Precaution  ................................

8

Refrigerant Connection  .............................................

8

Service Equipment  ..................................................

12

COMPRESSOR  ..................................................

15

General Precautions  ...............................................

15

FLUORESCENT LEAK DETECTOR  .................

16

General Precautions  ...............................................

16

PREPARATION ...........................................

17

PREPARATION .................................................

17

Special Service Tool ................................................

17

Commercial Service Tool  ........................................

19

Sealant or/and Lubricant  .........................................

20

ON-VEHICLE MAINTENANCE ....................

21

IN-CABIN MICROFILTER  .................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

Replacement ...........................................................

21

ON-VEHICLE REPAIR .................................

23

PRESET SWITCH  .............................................

23

Exploded View .........................................................

23

Removal and Installation  .........................................

23

AUTO AMP. .......................................................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

24

AMBIENT SENSOR  ..........................................

25

Exploded View .........................................................

25

Removal and Installation  .........................................

25

IN-VEHICLE SENSOR  ......................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

SUNLOAD SENSOR .........................................

27

Exploded View .........................................................

27

Removal and Installation  .........................................

27

INTAKE SENSOR  .............................................

28

Exploded View .........................................................

28

Removal and Installation  .........................................

29

BLOWER UNIT  .................................................

30

Exploded View .........................................................

30

Removal and Installation  .........................................

30

BLOWER MOTOR  ............................................

32
