Infiniti G35 (V35) Sedan. Manual - part 1411





TM-336

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

OIL PUMP

3.

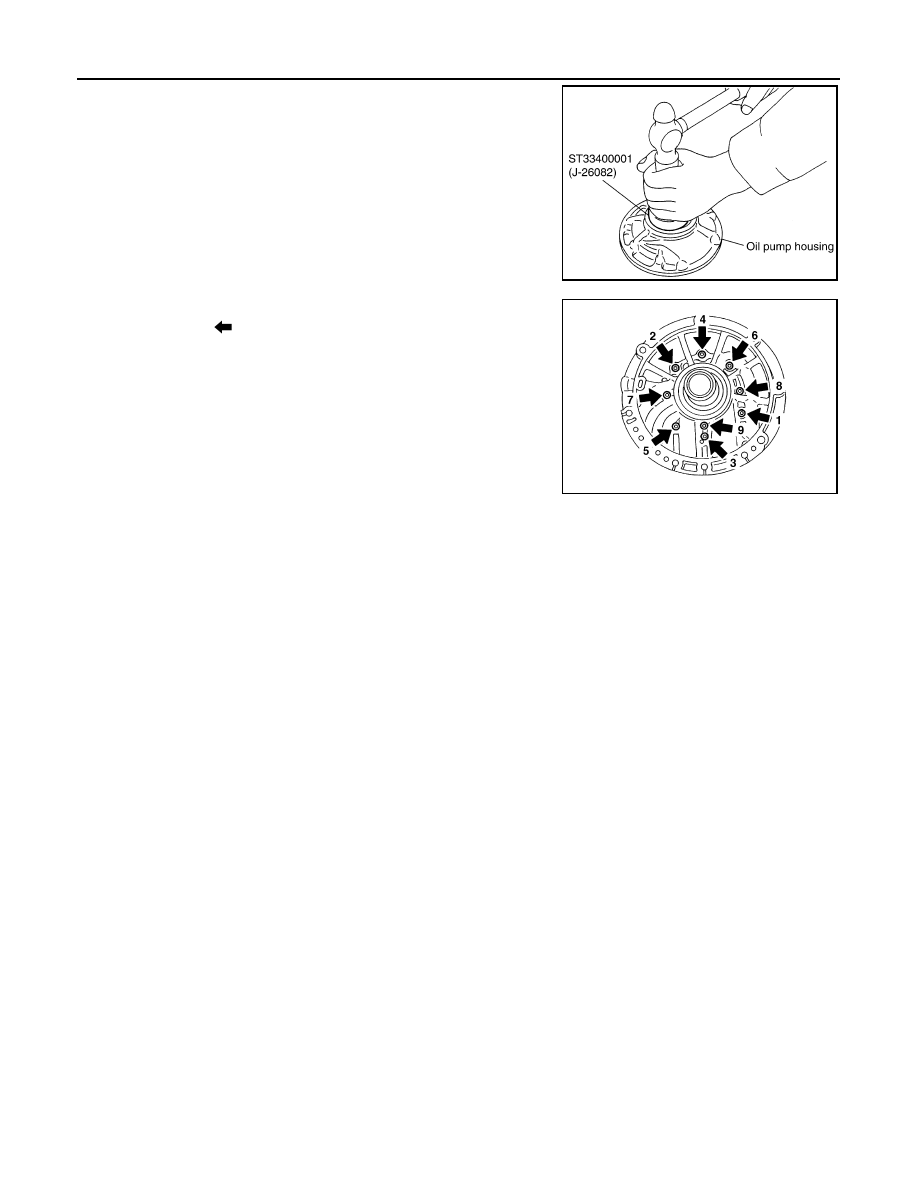

Using the drift, install oil pump housing oil seal to the oil pump
housing until it is flush.

CAUTION:

• Do not reuse oil seal.
• Apply ATF to oil seal.

4.

Install oil pump housing to oil pump cover.

5.

Tighten bolts (

) to the specified torque in numerical order

shown in the figure after temporarily tightening them.

SCIA5313E

JSDIA0133ZZ

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

TM-337

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

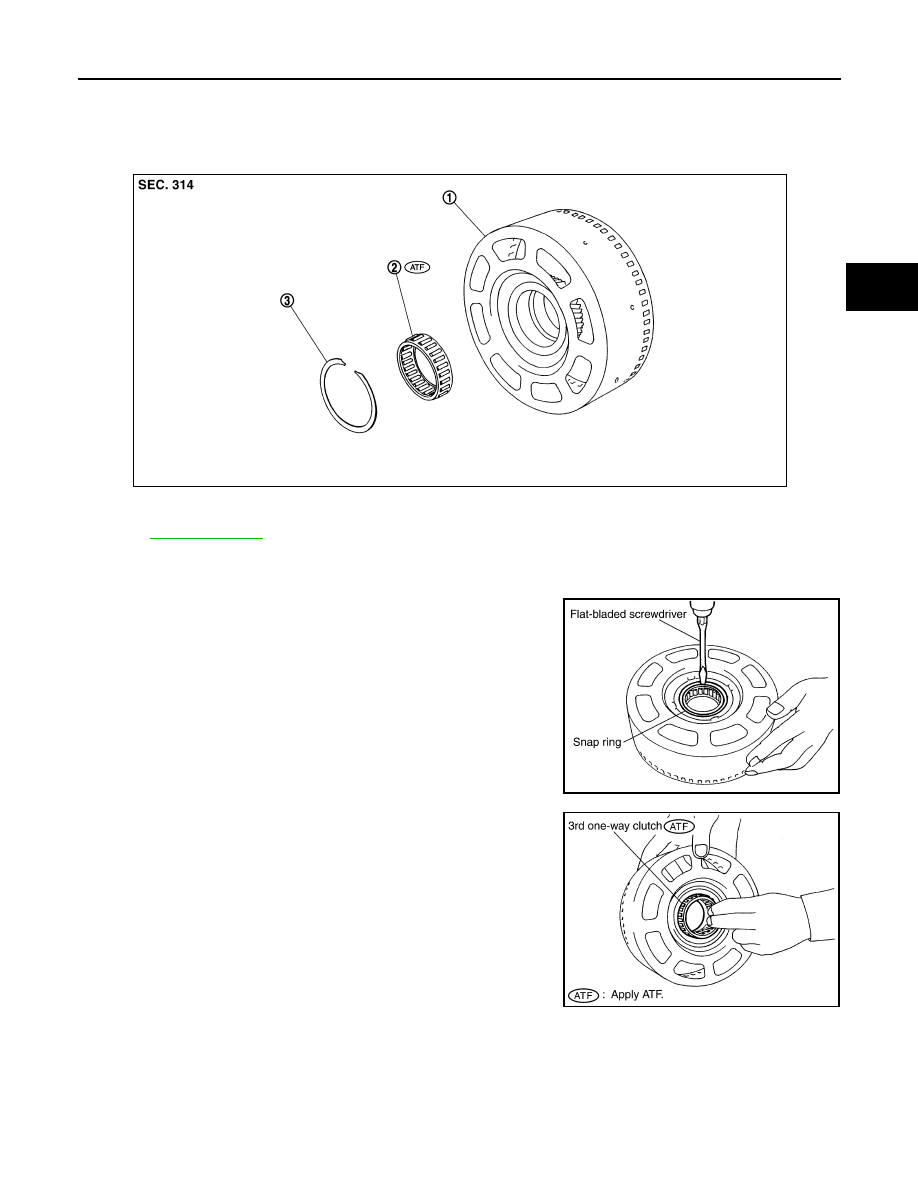

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

Exploded View

INFOID:0000000000957195

Disassembly

INFOID:0000000000957196

1.

Using a flat-bladed screwdriver, remove snap ring from front sun
gear.

2.

Remove 3rd one-way clutch from front sun gear.

Assembly

INFOID:0000000000957197

1.

Front sun gear

2.

3rd one-way clutch

3.

Snap ring

Refer to

GI-4, "Components"

 for symbols in the figure.

SCIA8368E

SCIA3110E

SCIA3111E

TM-338

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

FRONT SUN GEAR, 3RD ONE-WAY CLUTCH

1.

Install 3rd one-way clutch in front sun gear.

2.

Using a flat-bladed screwdriver, install snap ring in front sun
gear.

3.

Check operation of 3rd one-way clutch.

a.

Hold oil pump assembly and turn front sun gear.

b.

Check 3rd one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown in figure, check installation direction of 3rd
one-way clutch.

Inspection

INFOID:0000000000957198

• 3rd One-way Clutch

Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 3rd one-way clutch.

• Front Sun Gear Snap Ring

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

• Front Sun Gear

Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front sun gear.

SCIA3111E

SCIA3110E

SCIA3131E

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

TM-339

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FRONT CARRIER, INPUT CLUTCH, REAR INTERNAL GEAR

Exploded View

INFOID:0000000000957199

Disassembly

INFOID:0000000000957200

1.

Seal ring

2.

O-ring

3.

Needle bearing

4.

Bearing race

5.

Front carrier assembly

6.

Needle bearing

7.

Snap ring

8.

Snap ring

9.

Retaining plate

10.

Driven plate

11.

Input clutch drum

12. Drive plate

13.

Rear internal gear

Refer to

GI-4, "Components"

 for symbols in the figure.

SCIA6734E
