TRANSMISSION ASSEMBLY

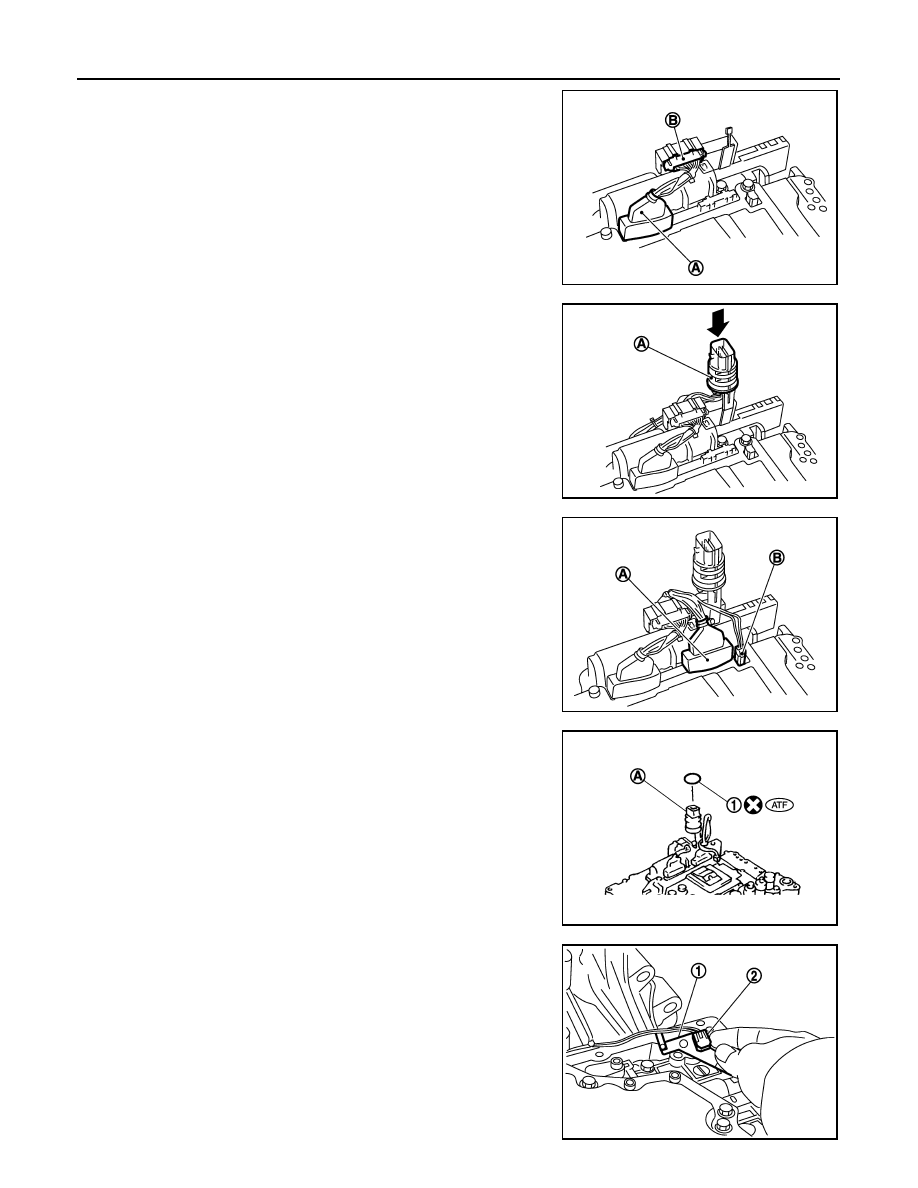

59. Connect TCM connector (A) and park/neutral position switch

connector (B).

60. Install A/T assembly harness connector (A) to control valve with

TCM.

61. Connect TCM connectors (A) and (B).

62. Install O-ring (1) to A/T assembly harness connector (A).

63. Install bracket (1) to A/T fluid temperature sensor 2 (2).

JPDIA0018ZZ

JPDIA0019ZZ

JPDIA0016ZZ

JPDIA0015ZZ

JPDIA0014ZZ

TRANSMISSION ASSEMBLY

TM-329

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

64. Install A/T fluid temperature sensor 2 (1) [with bracket (2)] in

control valve with TCM. Tighten A/T fluid temperature sensor 2
bolt to the specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

65. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that turbine revolution sensor securely installs

turbine revolution sensor hole (B).

• Hang down revolution sensor harness toward outside so

as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

66. Install bolts A, B and C to control valve with TCM.

JPDIA0013ZZ

A

: Brake band

JPDIA0020ZZ

SCIA5035E

: Front

Bolt symbol

Length

mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

TM-330

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

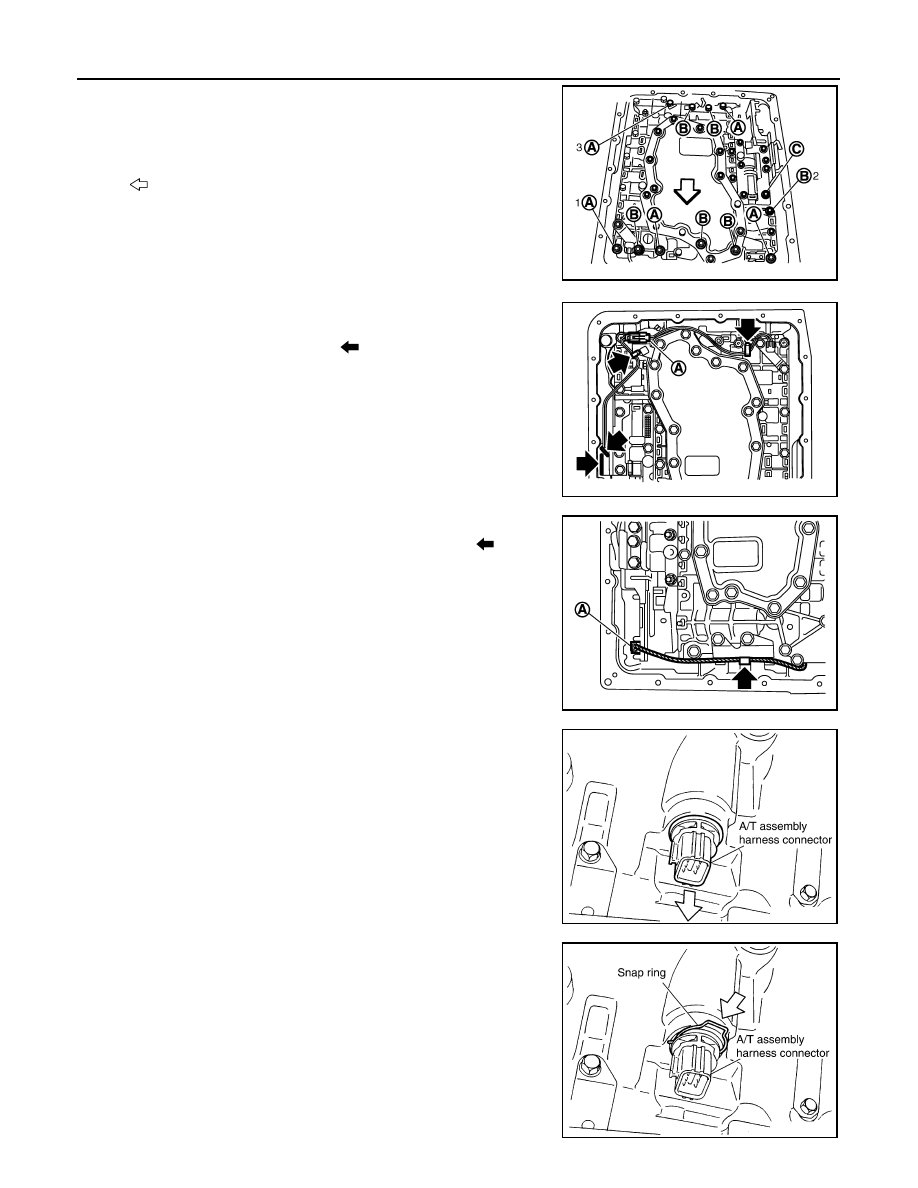

67. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After

that tighten them in order (1

→

 2

→

 3), and then tighten other

bolts. Tighten control valve bolts to the TCM with specified
torque.

68. Connect A/T fluid temperature sensor 2 connector (A).
69. Engage terminal cord assembly and A/T fluid temperature sen-

sor 2 harness with terminal clips (

).

70. Connect revolution sensor connector (A).

71. Engage revolution sensor harness with terminal clip (

).

72. Pull down A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

73. Install snap ring to A/T assembly harness connector.

: Front

SCIA8078E

SCIA8124E

JPDIA0011ZZ

SCIA5299E

SCIA5300E

TRANSMISSION ASSEMBLY

TM-331

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

74. Install magnets (1) in oil pan.

75. Install oil pan gasket to transmission case.

CAUTION:

• Do not reuse oil pan gasket.
• Install it in the direction to align hole positions.
• Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

76. Install oil pan (2) and clips (1) to transmission case.

CAUTION:

• Install it so that drain plug (3) comes to the position as

shown in the figure.

• Be careful not to pinch harnesses.
• Completely remove all moisture, oil and old gasket, etc.

from oil pan mounting surface.

77. Tighten oil pan mounting bolts to the specified torque in numeri-

cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque.

CAUTION:

Do not reuse oil pan mounting bolts.

78. Install drain plug to oil pan. Tighten drain plug to the specified

torque.

CAUTION:

Do not reuse drain plug gasket.

79. Pour ATF into torque converter.

• Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is

required for a new torque converter.

• When reusing old torque converter, add the same amount

of ATF as was drained.

JPDIA0009ZZ

: Front

: Oil pan mounting bolt

SCIA8117E

: Front

JPDIA0021ZZ

SAT428DA
