TM-320

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

31. Install needle bearing in drum support.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

32. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

33. Install high and low reverse clutch assembly in direct clutch.

34. Using a flat-bladed screwdriver, align the drive plate.

35. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5198E

SCIA5019E

SCIA2306E

SCIA3169E

SCIA5018E

TRANSMISSION ASSEMBLY

TM-321

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

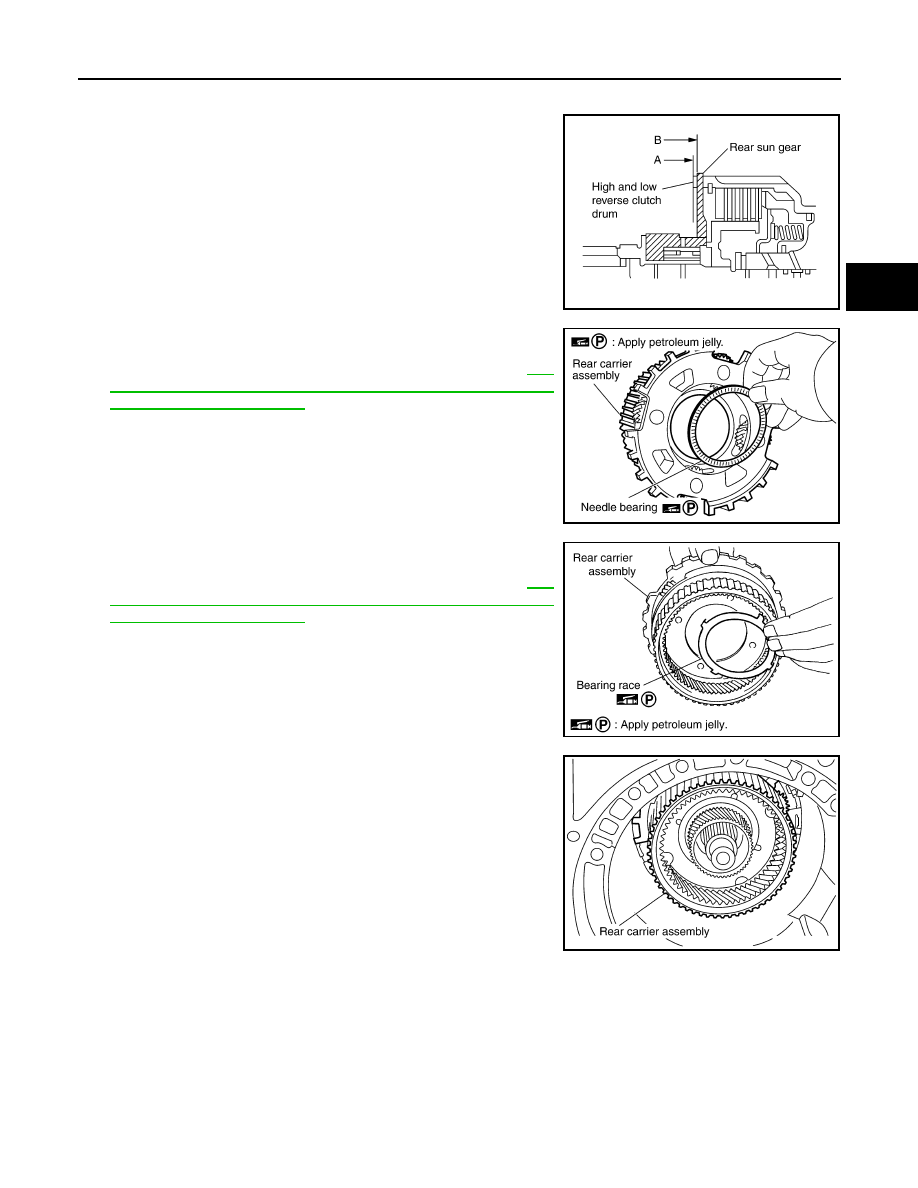

CAUTION:

Make sure that portion “A” of high and low reverse clutch
drum protrudes approximately 2 mm (0.08 in) beyond por-
tion “B” of rear sun gear.

36. Install needle bearing in rear carrier assembly.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

37. Install bearing race in rear carrier assembly.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

38. Install rear carrier assembly in direct clutch drum.

SCIA3130E

SCIA2803E

SCIA5175E

SCIA2462E

TM-322

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

39. Install needle bearing (rear side) to mid carrier assembly.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

40. Install needle bearing (front side) to mid carrier assembly.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

41. Install mid carrier assembly in rear carrier assembly.

42. Install front carrier assembly, input clutch assembly and rear

internal gear as a unit.

43. Install seal rings in input clutch assembly.

SCIA2804E

SCIA2805E

SCIA5017E

SCIA5015E

SCIA2470E

TRANSMISSION ASSEMBLY

TM-323

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

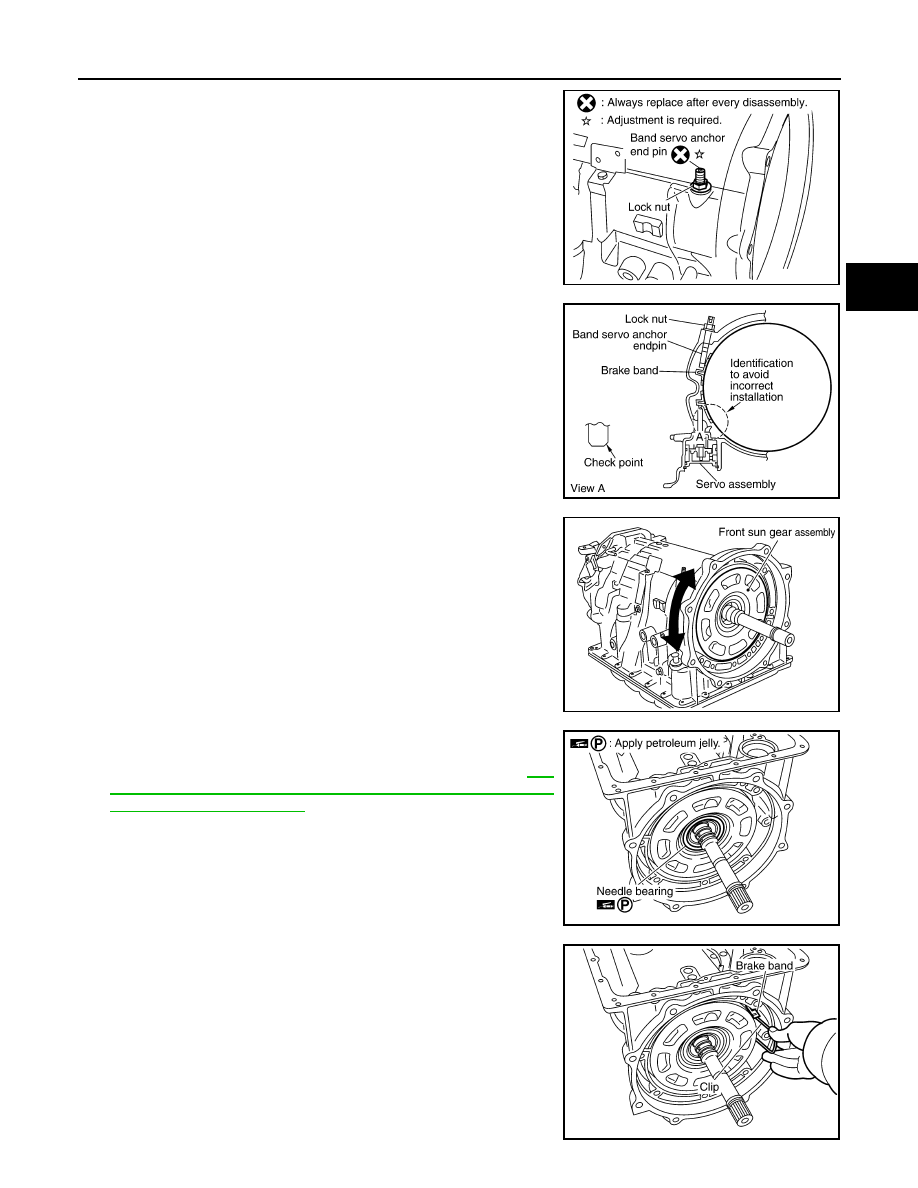

44. Install band servo anchor end pin and lock nut in transmission

case.

45. Install brake band in transmission case.

CAUTION:

Assemble it so that identification to avoid incorrect installa-
tion faces servo side.

46. Install front sun gear to front carrier assembly.

CAUTION:

Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.

47. Install needle bearing to front sun gear.

CAUTION:

Take care with the direction of needle bearing. Refer to

TM-

289, "Location of Adjusting Shims, Needle Bearings, Thrust
Washers and Snap Rings"

.

48. Adjust brake band tilting using a clip so that brake band contacts

front sun gear drum evenly.

SCIA6512E

SCIA5498E

SCIA5014E

SCIA2808E

SCIA5033E
