Infiniti G35 (V35) Sedan. Manual - part 1399

TM-288

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

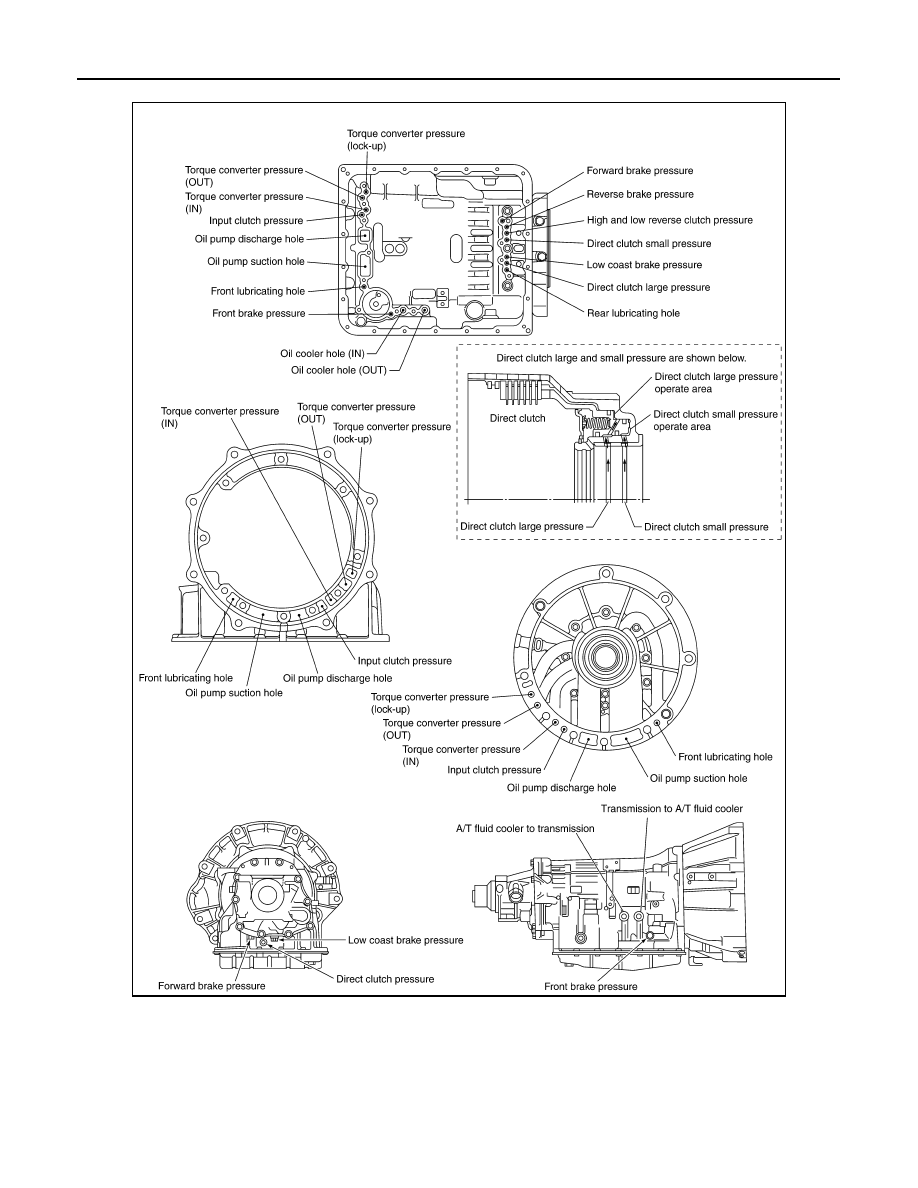

2WD

SCIA5185E

TRANSMISSION ASSEMBLY

TM-289

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

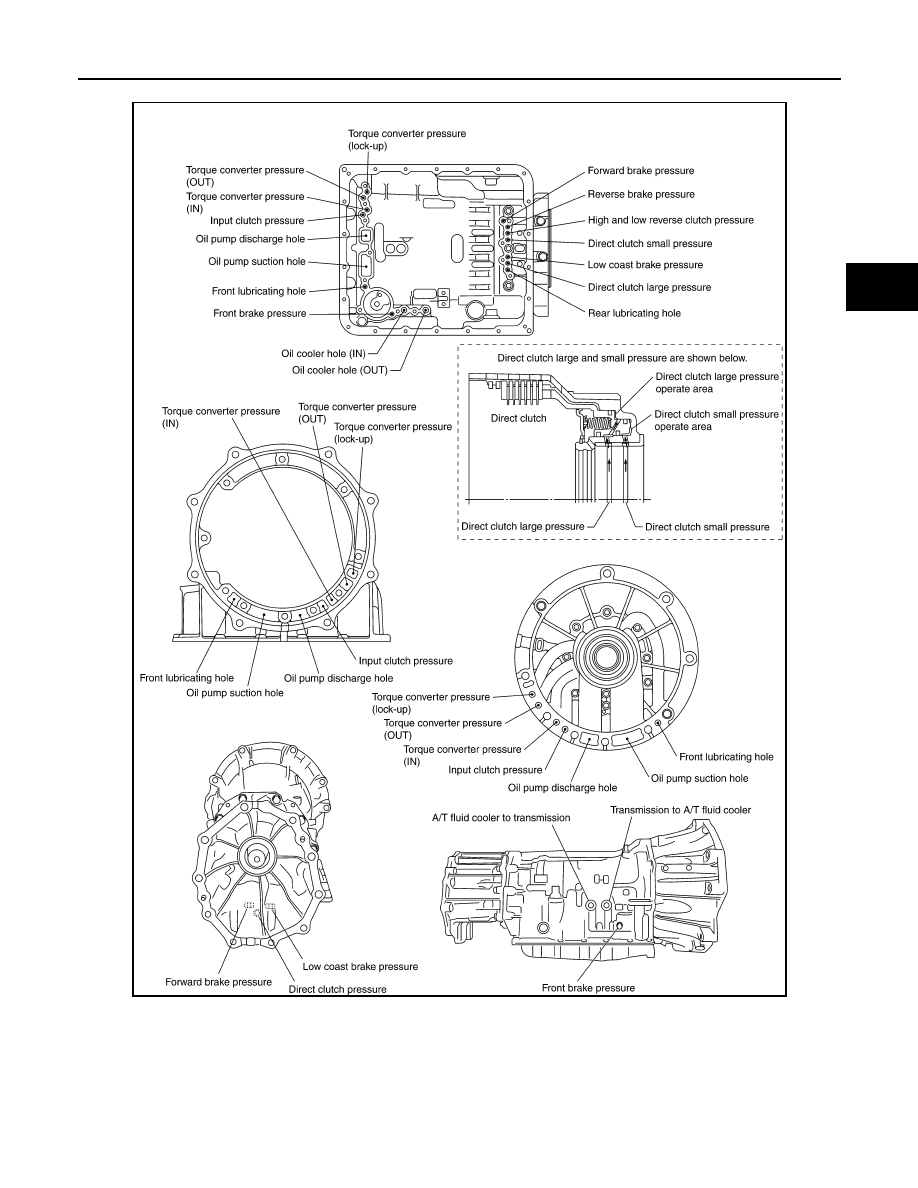

AWD

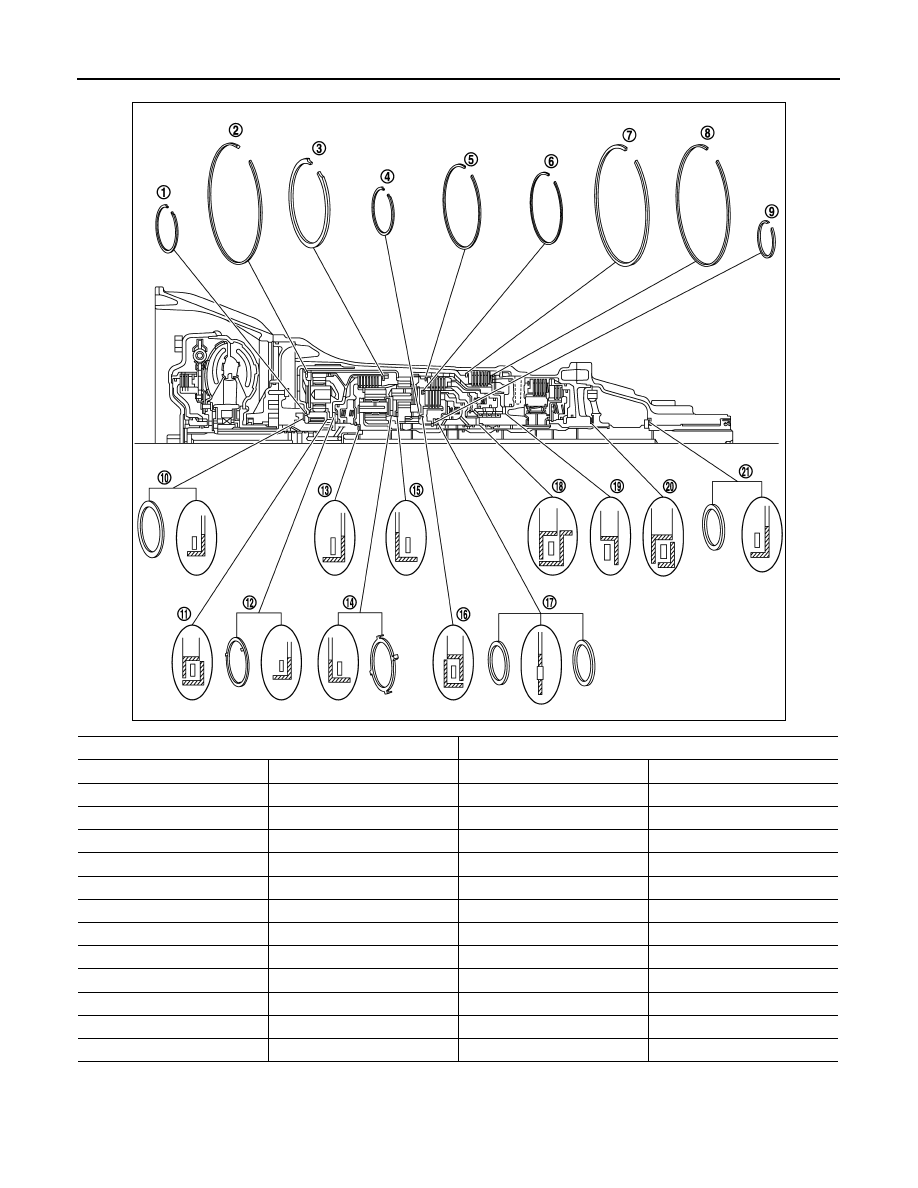

Location of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings

INFOID:0000000000957188

SCIA5189E

TM-290

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

TRANSMISSION ASSEMBLY

2WD

SCIA8291E

Snap ring

Needle bearing

Item number

Outer diameter

mm (in)

Item number

Outer diameter

mm (in)

1

67.5 (2.657)

10

80 (3.149)

2

182.4 (7.181)

11

77 (3.031)

3

171.5 (6.751)

12

77 (3.031)

4

70.5 (2.776)

13

47 (1.850)

5

169 (6.653)

14

84 (3.307)

6

134.3 (5.287)

15

84 (3.307)

7

180.5 (7.106)

16

92 (3.622)

8

181 (7.125)

17

60 (2.362)

9

48.4 (1.906)

18

63 (2.480)

—

—

19

92 (3.622)

—

—

20

65 (2.559)

—

—

21

60 (2.362)

TRANSMISSION ASSEMBLY

TM-291

< DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AWD

Disassembly

INFOID:0000000000957189

CAUTION:

Do not disassemble parts behind Drum Support. Refer to

TM-92, "Cross-Sectional View"

.

JPDIA0105ZZ

Snap ring

Needle bearing

Item number

Outer diameter

mm (in)

Item number

Outer diameter

mm (in)

1

67.5 (2.657)

10

80 (3.149)

2

182.4 (7.181)

11

77 (3.031)

3

171.5 (6.751)

12

77 (3.031)

4

70.5 (2.776)

13

47 (1.850)

5

169 (6.653)

14

84 (3.307)

6

134.3 (5.287)

15

84 (3.307)

7

180.5 (7.106)

16

92 (3.622)

8

181 (7.125)

17

60 (2.362)

9

48.4 (1.906)

18

63 (2.480)

—

—

19

92 (3.622)

—

—

20

65 (2.559)

—

—

21

60 (2.362)
