CONTROL ROD

CONTROL ROD

2WD

2WD : Exploded View

INFOID:0000000000957144

2WD : Removal and Installation

INFOID:0000000000957145

REMOVAL

1.

Disconnect control device and control rod. Refer to

TM-232, "2WD : Exploded View"

.

2.

Remove manual lever from A/T assembly.

3.

Remove control rod from manual lever.

INSTALLATION

Install in the reverse order of removal.

2WD : Inspection and Adjustment

INFOID:0000000000957146

ADJUSTMENT AFTER INSTALLATION

Adjust A/T positions after installing control rod. Refer to

TM-230, "2WD : Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check A/T positions after adjusting A/T positions. Refer to

TM-230, "2WD : Inspection and Adjustment"

.

AWD

AWD : Exploded View

INFOID:0000000000957147

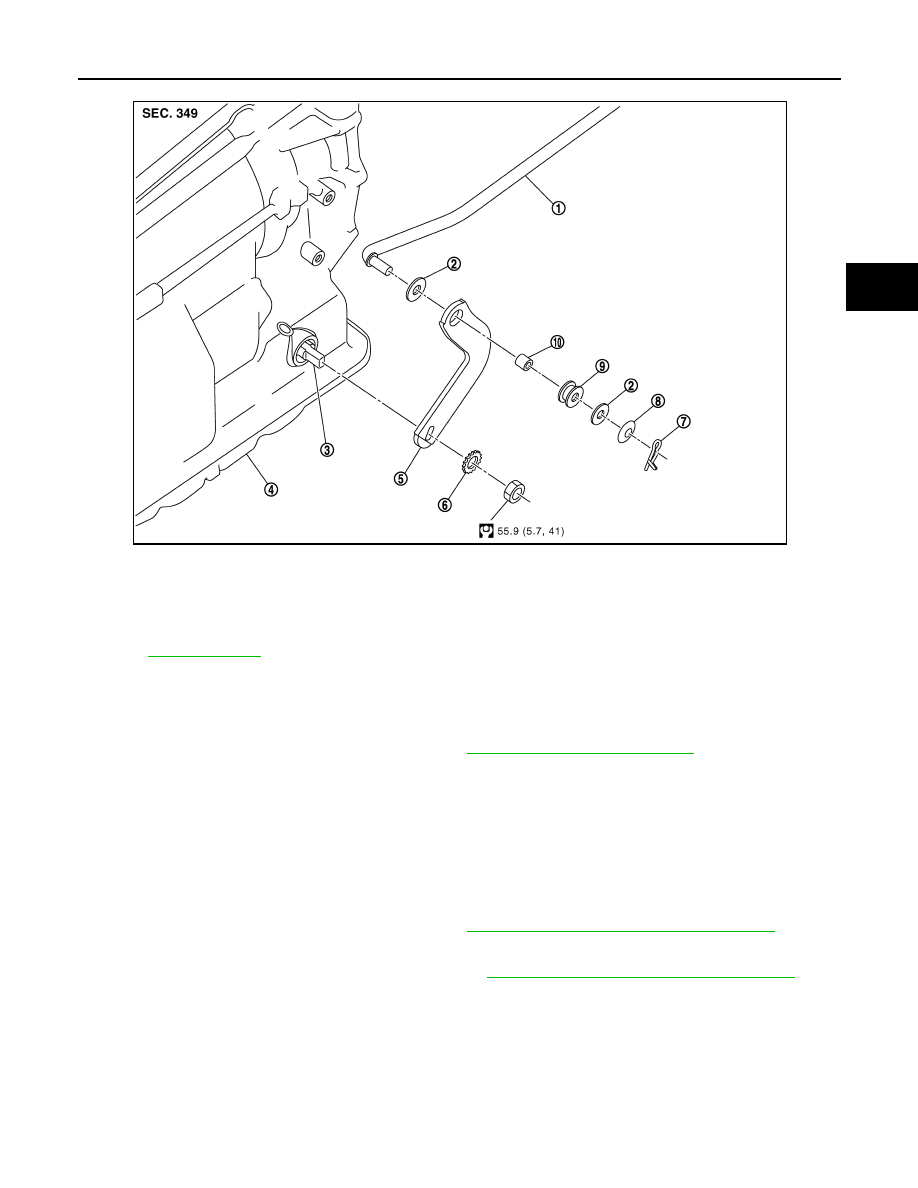

1.

Control rod

2.

Plain washer

3.

Manual shaft

4.

A/T assembly

5.

Manual lever

6.

Washer

7.

Snap pin

8.

Conical washer

9.

Insulator

10.

Collar

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0004GB

CONTROL ROD

TM-237

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AWD : Removal and Installation

INFOID:0000000000957148

REMOVAL

1.

Disconnect control device and control rod. Refer to

TM-233, "AWD : Exploded View"

.

2.

Remove manual lever from A/T assembly.

3.

Remove control rod from manual lever.

INSTALLATION

Install in the reverse order of removal.

AWD : Inspection and Adjustment

INFOID:0000000000957149

ADJUSTMENT AFTER INSTALLATION

Adjust A/T positions after installing control rod. Refer to

TM-230, "AWD : Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check A/T positions after adjusting A/T positions. Refer to

TM-230, "AWD : Inspection and Adjustment"

.

1.

Control rod

2.

Plain washer

3.

Manual shaft

4.

A/T assembly

5.

Manual lever

6.

Washer

7.

Snap pin

8.

Conical washer

9.

Insulator

10.

Collar

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0004GB

TM-238

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

PADDLE SHIFTER

PADDLE SHIFTER

Exploded View

INFOID:0000000000957150

Removal and Installation

INFOID:0000000000957151

REMOVAL

1.

Park the vehicle on a level surface.

2.

Remove the driver air bag module. Refer to

SR-4, "Exploded View"

.

3.

Remove the steering wheel. Refer to

ST-15, "Exploded View"

.

4.

Remove the column cover. Refer to

IP-11, "Exploded View"

.

1.

Steering column assembly

2.

Paddle shifter (shift-down)

3.

Paddle shifter (shift-up)

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0051GB

PADDLE SHIFTER

TM-239

< ON-VEHICLE REPAIR >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

Remove the vehicle harness connector (C) and (D) from paddle
shifter.

6.

Remove the paddle shifter mounting bolts (E) and nuts (F).

7.

Remove the paddle shifter from the steering column assembly.

INSTALLATION

Install in the reverse order of removal.

A

: Side of paddle shifter (shift-down)

B

: Side of paddle shifter (shift-up)

JPDIA0052ZZ
