A/T FLUID COOLER

A/T FLUID COOLER

Cleaning

INFOID:0000000000957126

Whenever an A/T is replaced, the A/T fluid cooler mounted in the radiator must be inspected and cleaned.
Metal debris and friction material, if present, can become trapped in the A/T fluid cooler. This debris can con-
taminate the newly serviced A/T or, in severe cases, can block or restrict the flow of ATF. In either case, mal-
function of the newly serviced A/T may result.
Debris, if present, may build up as ATF enters the cooler inlet. It will be necessary to back flush the cooler
through the cooler outlet in order to flush out any built up debris.

CLEANING PROCEDURE

1.

Position an oil pan under the A/T inlet and outlet cooler hoses.

2.

Identify the inlet and outlet fluid cooler hoses.

3.

Disconnect the A/T fluid cooler inlet and outlet rubber hoses
from the steel cooler tubes or bypass valve.
NOTE:
Replace the cooler hoses if rubber material from the hose
remains on the tube fitting.

4.

Allow any ATF that remains in the cooler hoses to drain into the
oil pan.

5.

Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.

CAUTION:

• Wear safety glasses and rubber gloves when spraying the

Transmission Cooler Cleaner.

• Spray Transmission Cooler Cleaner only with adequate

ventilation.

• Avoid contact with eyes and skin.
• Do not breath vapors or spray mist.

6.

Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet
hose until ATF flows out of the cooler inlet hose for 5 seconds.

7.

Insert the tip of an air gun into the end of the cooler outlet hose.

8.

Wrap a shop rag around the air gun tip and of the cooler outlet
hose.

9.

Blow compressed air regulated to 5 to 9 kg/cm

2

 (70 to 130 psi)

through the cooler outlet hose for 10 seconds to force out any
remaining ATF.

10. Repeat steps 5 through 9 three additional times.

11. Position an oil pan under the banjo bolts that connect the A/T

fluid cooler steel lines to the A/T.

12. Remove the banjo bolts.

13. Flush each steel line from the cooler side back toward the A/T

by spraying Transmission Cooler Cleaner in a continuous stream for 5 seconds.

14. Blow compressed air regulated to 5 to 9 kg/cm

2

 (70 to 130 psi) through each steel line from the cooler

side back toward the A/T for 10 seconds to force out any remaining ATF.

15. Ensure all debris is removed from the steel cooler lines.

16. Ensure all debris is removed from the banjo bolts and fittings.

17. Perform “DIAGNOSIS PROCEDURE”.

SCIA3830E

SCIA3831E

SCIA3832E

A/T FLUID COOLER

TM-221

< ON-VEHICLE MAINTENANCE >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DIAGNOSIS PROCEDURE

NOTE:
Insufficient cleaning of the cooler inlet hose exterior may lead to inaccurate debris identification.

1.

Position an oil pan under the A/T inlet and outlet cooler hoses.

2.

Clean the exterior and tip of the cooler inlet hose.

3.

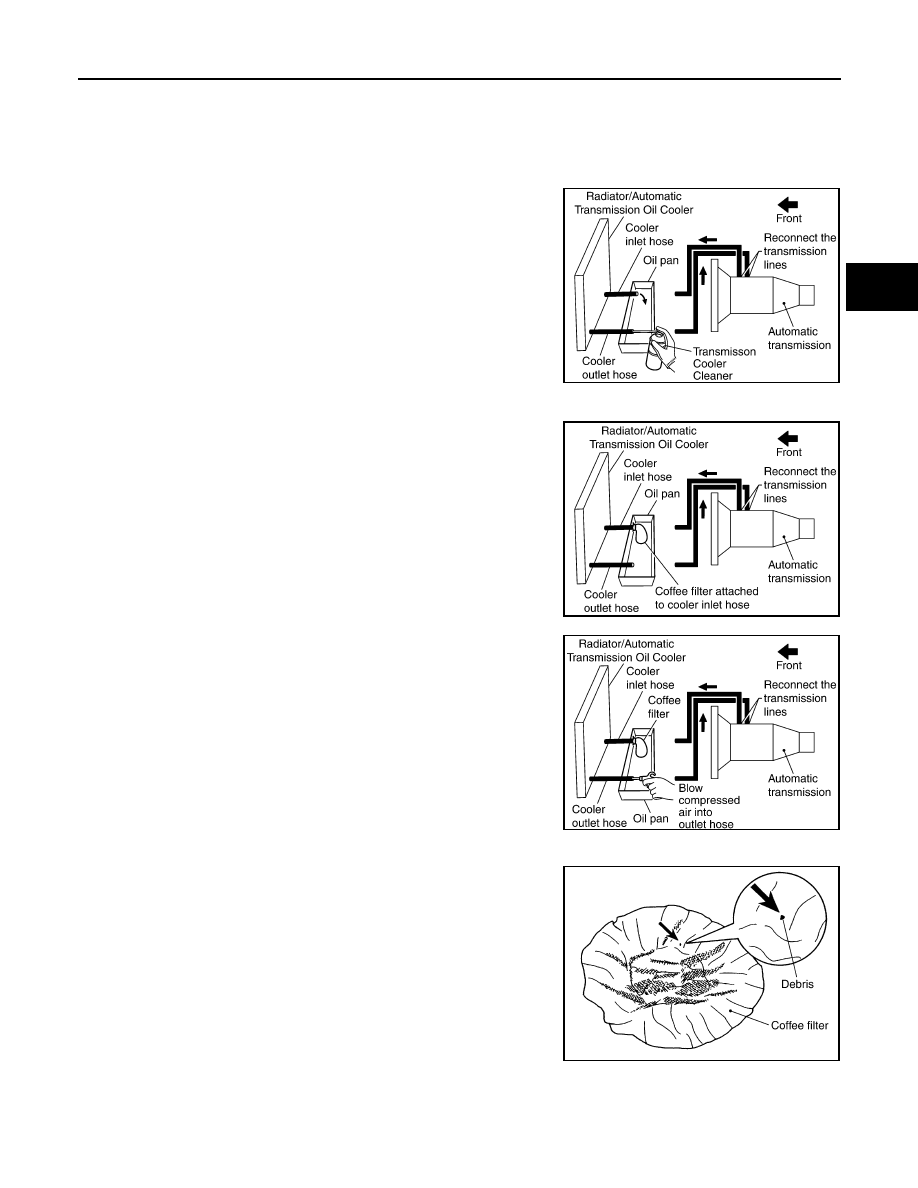

Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.

CAUTION:

• Wear safety glasses and rubber gloves when spraying the

Transmission Cooler Cleaner.

• Spray Transmission Cooler Cleaner only with adequate

ventilation.

• Avoid contact with eyes and skin.
• Do not breath vapors or spray mist.

4.

Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet
hose until ATF flows out of the cooler inlet hose for 5 seconds.

5.

Tie a common white, basket-type coffee filter to the end of the
cooler inlet hose.

6.

Insert the tip of an air gun into the end of the cooler outlet hose.

7.

Wrap a shop rag around the air gun tip and end of cooler outlet
hose.

8.

Blow compressed air regulated to 5 to 9 kg/cm

2

 (70 to130 psi)

through the cooler outlet hose to force any remaining ATF into
the coffee filter.

9.

Remove the coffee filter from the end of the cooler inlet hose.

10. Perform “INSPECTION PROCEDURE”.

INSPECTION PROCEDURE

1.

Inspect the coffee filter for debris.

a.

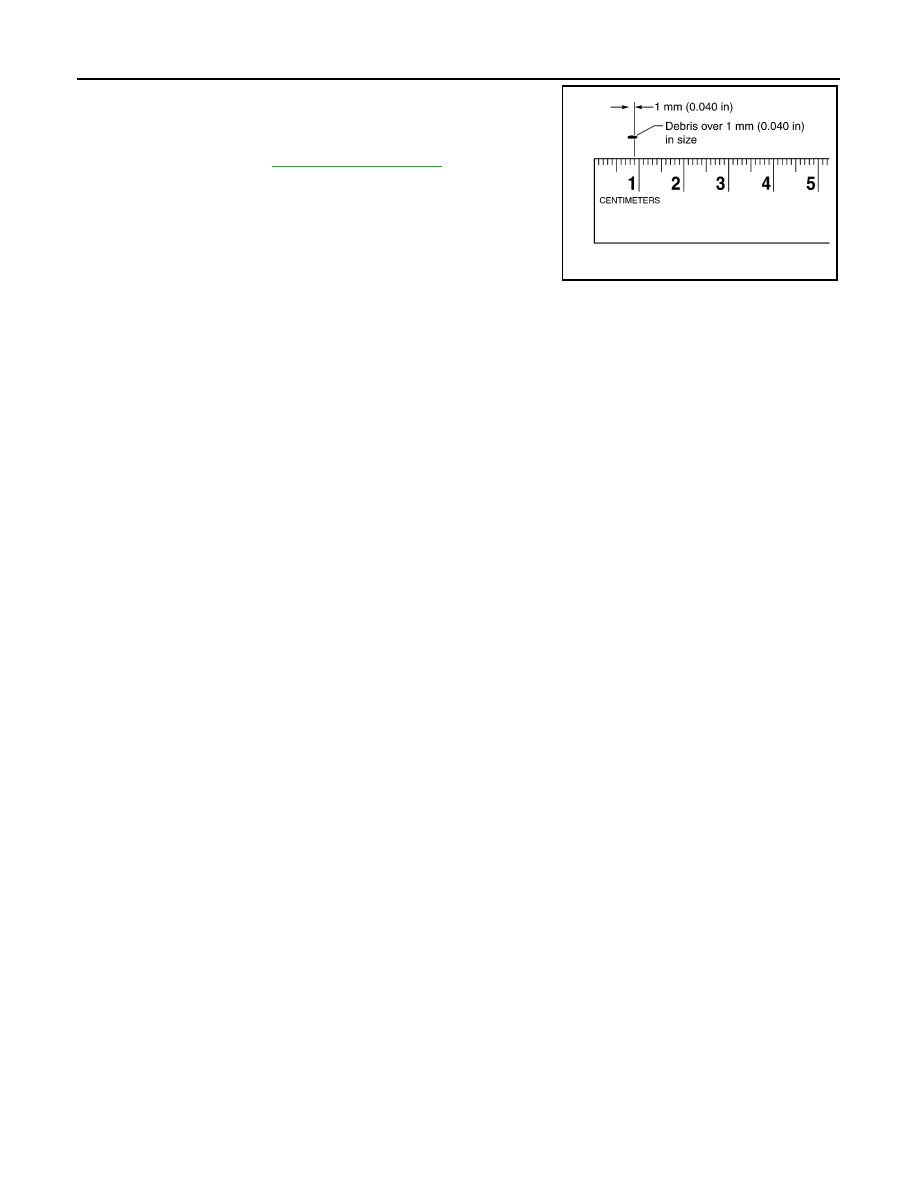

If small metal debris less than 1 mm (0.040 in) in size or metal
powder is found in the coffee filter, this is normal. If normal
debris is found, the A/T fluid cooler/radiator can be re-used and
the procedure is ended.

SCIA3831E

SCIA3833E

SCIA3834E

SCIA2967E

TM-222

< ON-VEHICLE MAINTENANCE >

[5AT: RE5R05A]

A/T FLUID COOLER

b.

If one or more pieces of debris are found that are over 1 mm
(0.040 in) in size and/or peeled clutch facing material is found in
the coffee filter, the A/T fluid cooler is not serviceable. The A/T
fluid cooler/radiator must be replaced and the inspection proce-
dure is ended. Refer to

CO-14, "Exploded View"

.

Inspection

INFOID:0000000000957127

After performing all procedures, ensure that all remaining oil is cleaned from all components.

SCIA7031E

STALL TEST

TM-223

< ON-VEHICLE MAINTENANCE >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

STALL TEST

Inspection and Judgment

INFOID:0000000000957128

INSPECTION

1.

Inspect the amount of engine oil. Replenish the engine oil if necessary.

2.

Drive for about 10 minutes to warm up the vehicle so that the A/T fluid temperature is 50 to 80

°

C (122 to

176

°

F). Inspect the amount of ATF. Replenish if necessary.

3.

Securely engage the parking brake so that the tires do not turn.

4.

Start the engine, apply foot brake, and place selector lever in “D” position.

5.

While holding down the foot brake, gradually press down the accelerator pedal.

6.

Quickly read off the stall speed, then quickly remove your foot from the accelerator pedal.

CAUTION:

Do not hold down the accelerator pedal for more than 5 seconds during this test.

7.

Move the selector lever to the “N” position.

8.

Cool down the ATF.

CAUTION:

Run the engine at idle for at least 1 minute.

9.

Repeat steps 5 through 8 with selector lever in “R” position.

JUDGMENT OF STALL TEST

O: Stall speed within standard value position

H: Stall speed higher than standard value

L: Stall speed lower than standard value

Stall test standard value position

Stall speed

: Refer to

TM-353, "Stall Speed"

.

Selector lever position

Possible location of malfunction

“D”, “M”

“R”

Stall speed

H

O

• Forward brake
• Forward one-way clutch
• 1st one-way clutch
• 3rd one-way clutch

O

H

• Reverse brake

L

L

• Engine and torque converter one-way clutch

H

H

• Line pressure low

Does not shift-up “D” or “M” position 1

→

 2

Slipping in 2nd, 3rd or 4th gear

Direct clutch slippage

Does not shift-up “D” or “M” position 2

→

 3

Slipping in 3rd, 4th or 5th gear

High and low reverse clutch slippage

Does not shift-up “D” or “M” position 3

→

 4

Slipping in 4th or 5th gear

Input clutch slippage

Does not shift-up “D” or “M” position 4

→

 5

Slipping in 5th gear

Front brake slippage
