TM-72

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

COUNTER SHAFT AND GEAR

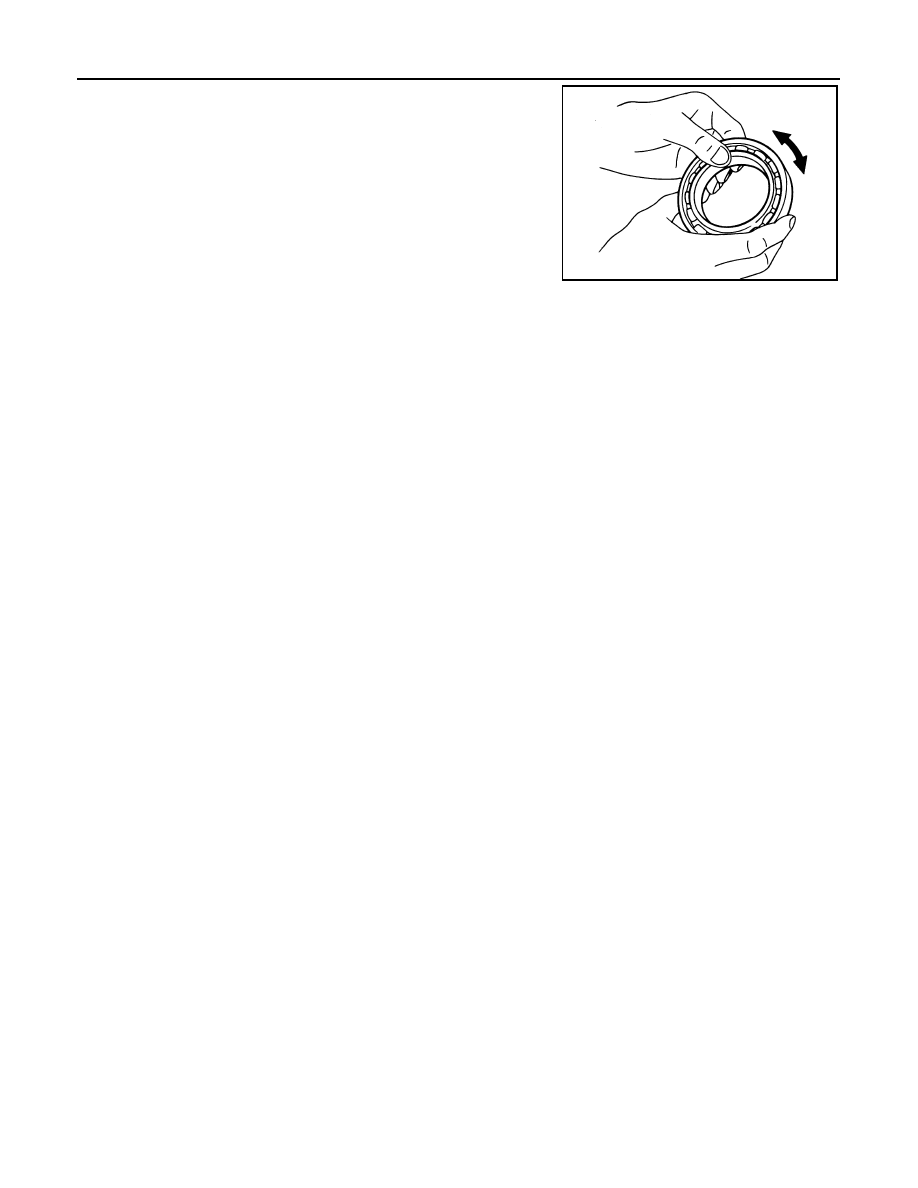

If the bearing does not rotate smoothly or the contact surface on ball
or race is damaged or peeled, replace with new ones.

SMT418A

REVERSE IDLER SHAFT AND GEAR

TM-73

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REVERSE IDLER SHAFT AND GEAR

Exploded View

INFOID:0000000000956983

Refer to

TM-30, "Exploded View"

.

Disassembly

INFOID:0000000000956984

Remove reverse idler thrust washer, reverse idler gear and reverse idler needle bearing from reverse idler
shaft.

Assembly

INFOID:0000000000956985

Assembly in the reverse order of disassembly.

CAUTION:

Apply recommended grease to reverse idler needle bearing.

Inspection

INFOID:0000000000956986

REVERSE IDLER SHAFT AND GEAR

If the contact surface on reverse idler gear and reverse idler shaft has damage, peeling, abrasion, dent, bent,
or any other damage, replace the components.

BEARING

If the bearing does not rotate smoothly or the contact surface on roller or race is damaged or peeled, replace
with new ones.

TM-74

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

SHIFT FORK AND FORK ROD

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000000956987

Refer to

TM-30, "Exploded View"

.

Disassembly

INFOID:0000000000956988

Refer to

TM-35, "Disassembly"

 for disassembly procedure.

Assembly

INFOID:0000000000956989

Refer to

TM-44, "Assembly"

 for assembly procedure.

Inspection

INFOID:0000000000956990

If the contact surface on striking lever, fork rod, shift fork, etc. has
excessive wear, abrasion, bend, or any other damage, replace the
components.

SCIA1681E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-75

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000000956991

End Play

INFOID:0000000000956992

Engine type

VQ35HR

Transmission

FS6R31A

Model code number

JK400

Number of speed

6

Shift pattern

Synchromesh type

Warner

Gear ratio

1st

3.794

2nd

2.324

3rd

1.624

4th

1.271

5th

1.000

6th

0.794

Reverse

3.446

Main gear
(Number of teeth)

Drive

26

1st

37

2nd

34

3rd

33

4th

31

6th

31

Reverse

42

Counter shaft gear
(Number of teeth)

Drive

32

1st

12

2nd

18

3rd

25

4th

30

6th

48

Reverse

15

Reverse idler gear (Number of teeth)

26

Oil capacity

 (US pt, Imp pt)

Approx. 2.93 (6-1/4, 5-1/8)

Remarks

Reverse synchronizer

Installed

Double cone synchronizer

4th

Triple cone synchronizer

1st, 2nd, and 3rd

SCIA0955E
