TM-68

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

COUNTER SHAFT AND GEAR

3.

Install 3rd-4th spread springs in 3rd-4th shifting inserts.

CAUTION:

• Do not install 3rd-4th spread spring hook onto the same

3rd-4th shifting insert.

• Be careful with the shape of reverse shifting insert to

avoid misassembly.

4.

Apply recommended grease to 3rd needle bearing.

5.

Apply gear oil to the hole spline press fitting side of 3rd-4th syn-
chronizer hub.

6.

Install 3rd needle bearing, 3rd counter gear, 3rd inner baulk ring,
3rd synchronizer cone and 3rd outer baulk ring on counter shaft
and then using the inserter [SST: ST30911000 (

—

)] and a

press to press fit 3rd-4th synchronizer assembly.

CAUTION:

Replace 3rd inner baulk ring, 3rd synchronizer cone and
3rd outer baulk ring as a set.

NOTE:
4th baulk ring has three spaces that one gear tooth is missing
but 3rd baulk ring doesn't.

SCIA1600E

PCIB0608E

PCIB0615E

PCIB0451E

COUNTER SHAFT AND GEAR

TM-69

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

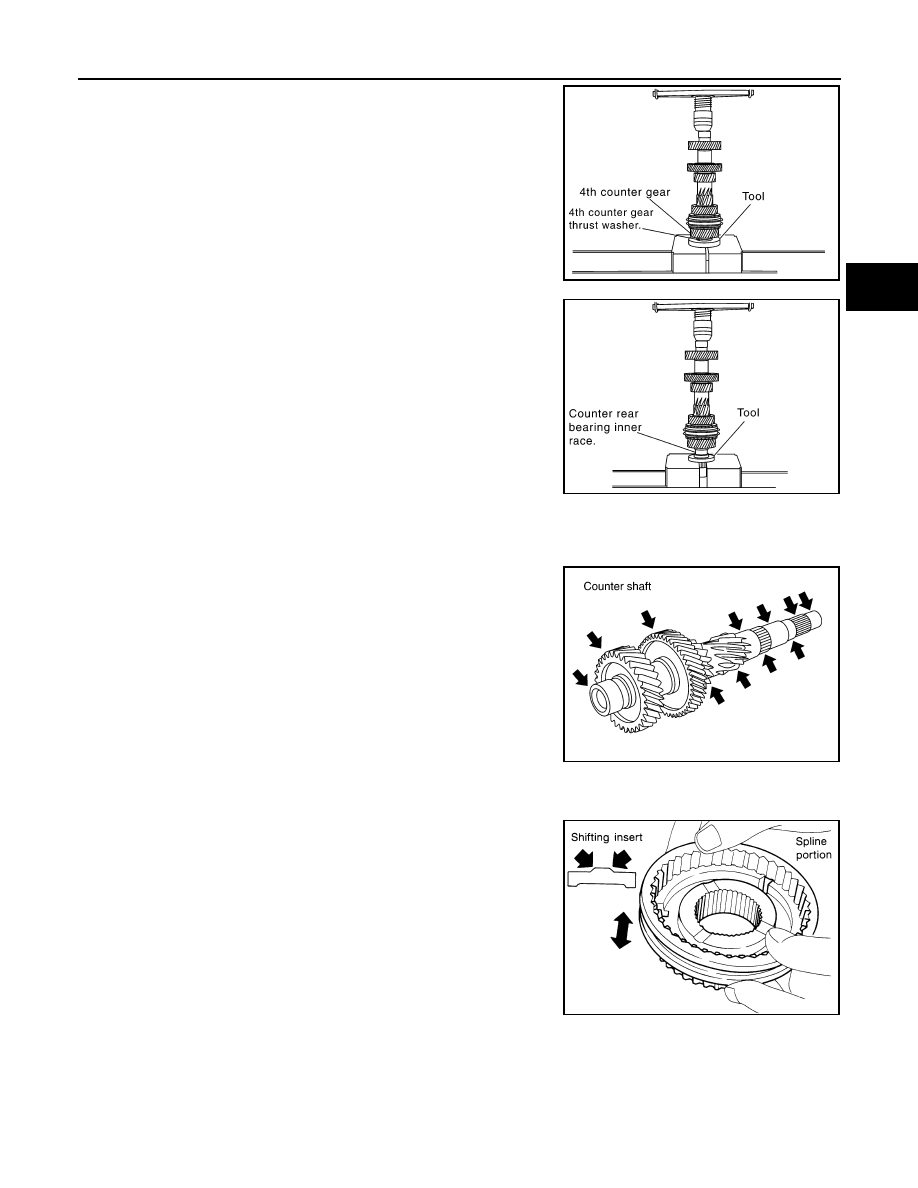

7.

Apply recommended grease to 4th needle bearing.

8.

Install 4th outer baulk ring, 4th synchronizer cone, 4th inner
baulk ring, 4th needle bearing and 4th counter gear onto counter
shaft and then using the inserter [SST: KV40100630 (J-26092)]
and a press to press fit 4th gear bushing and 4th counter gear
thrust washer.

CAUTION:

Replace 4th outer baulk ring, 4th synchronizer cone and 4th
inner baulk ring as a set.

9.

Using the inserter [SST: ST30032000 (J-26010-01)] and a press
to press fit counter rear bearing inner race onto counter shaft.

CAUTION:

Replace counter rear bearing inner race, counter rear bear-
ing and counter rear bearing spacer as a set.

Inspection

INFOID:0000000000956982

COUNTER SHAFT AND GEAR

If the contact surface on each gear and counter shaft, etc. has dam-
age, peeling, abrasion, dent, bent, or any other damage, replace the
components.

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

• If the contact surface on coupling sleeve, synchronizer hub, and

shifting insert has damage or abrasion, replace the components.

• Coupling sleeve and synchronizer hub shall move smoothly.

Baulk Ring and Spread Spring

PCIB0209E

PCIB0210E

PCIB0438E

SMT387A

TM-70

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

COUNTER SHAFT AND GEAR

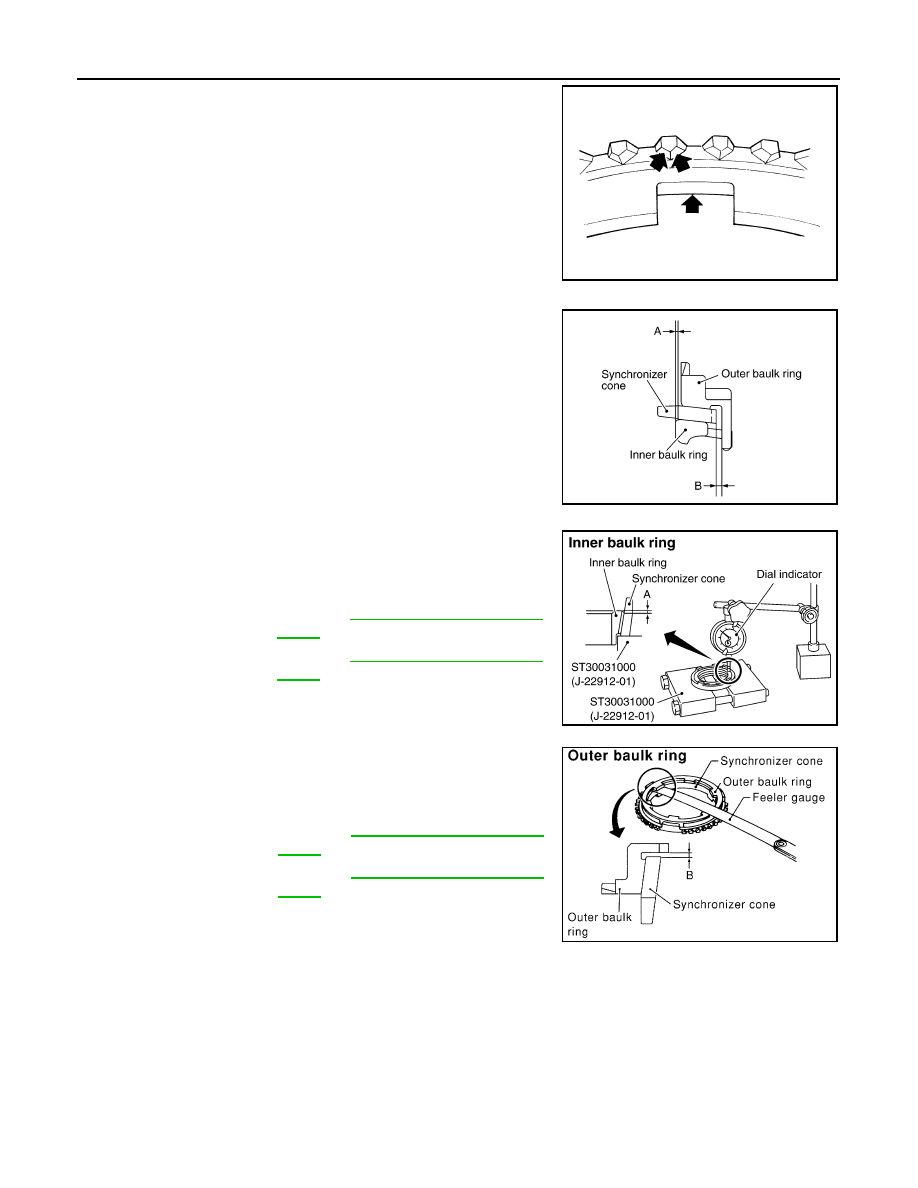

• If the cam surface on baulk ring or contact surface on insert has

damage or excessive wear, replace with a new one.

• If spread spring is damaged, replace with a new one.

Baulk Ring Clearance for Double Cone Synchronizer (4th)

• Check the clearance between outer baulk ring, synchronizer cone,

and inner baulk ring as follows.

CAUTION:

The clearances “A” and “B” are controlled with outer baulk
ring, synchronizer cone, and inner baulk ring as a set.
Replace them as a set if the clearances are outside the limit
value.

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a dial indicator. And then calculate mean value.

2.

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

Baulk Ring Clearance for Triple Cone Synchronizer (3rd)

SCIA0608J

SCIA1679E

Clearance “A”

Standard value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

PCIB0945E

Clearance “B”

Standard value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

SCIA1084E

COUNTER SHAFT AND GEAR

TM-71

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

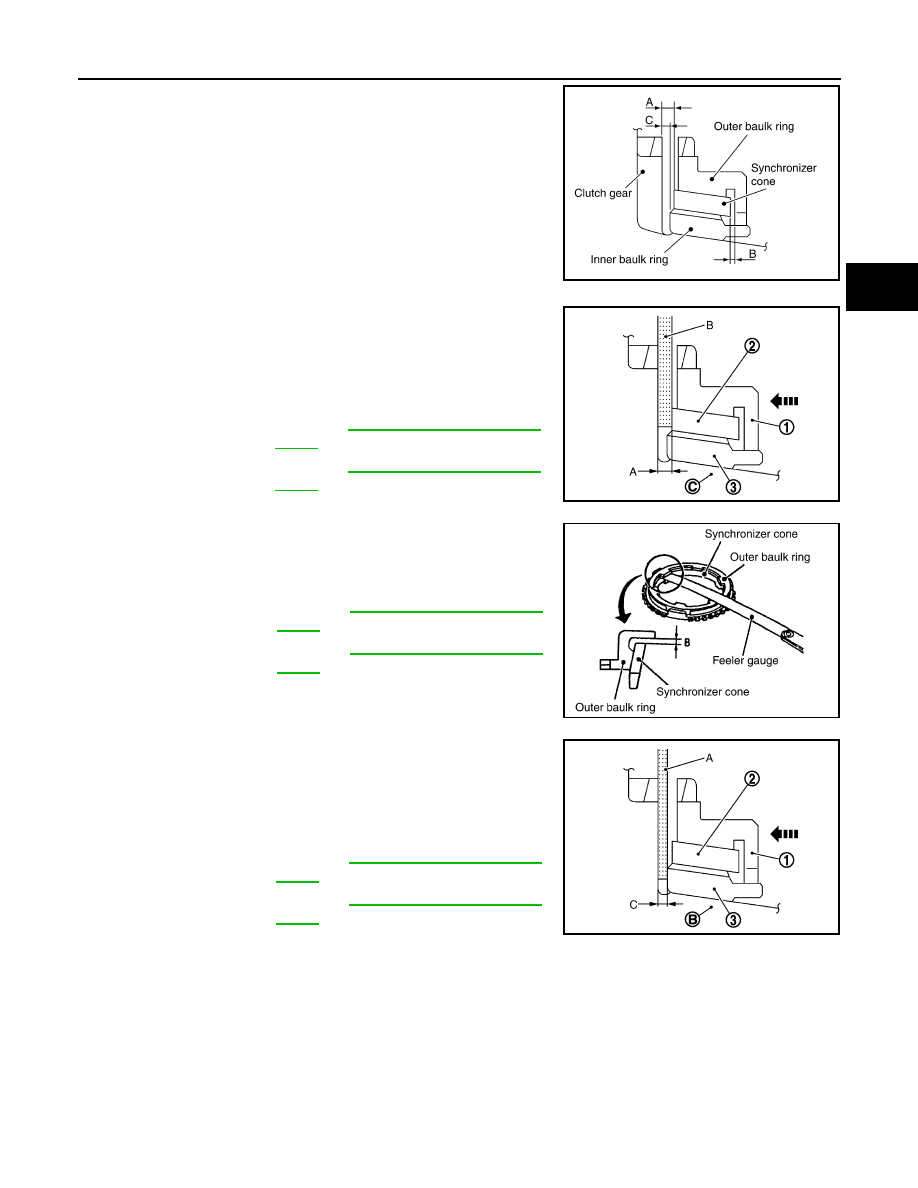

• Check the clearance between outer baulk ring, synchronizer cone

and inner baulk ring as follows.

CAUTION:

The clearances “A”, “B” and “C” are controlled with outer
baulk ring, synchronizer cone, and inner baulk ring as a set.
Replace them as a set if the clearances are outside the limit
value.

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a feeler gauge (B) when pressing outer baulk ring (1),
synchronizer cone (2), and inner baulk ring (3) toward gear taper
cone (C). And then calculate mean value.

2.

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

3.

Measure the clearance “C” at 2 points or more diagonally oppo-
site using a feeler gauge (A) when pressing outer baulk ring (1),
synchronizer cone (2), and inner baulk ring (3) toward gear taper
cone (B). And then calculate mean value.

BEARING

PCIB1358E

Clearance “A”

Standard value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

JPDIC0034ZZ

Clearance “B”

Standard value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

PCIB1360E

Clearance “C”

Standard value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-76, "Baulk Ring Clear-

ance"

.
