Infiniti G35 (V35) Sedan. Manual - part 134

AV-308

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000000964749

REMOVAL

Refer to

INL-96, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964750

REMOVAL

1.

Remove map lamp. Refer to

INL-96, "Exploded View"

.

2.

Remove microphone from map lamp.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0132ZZ

1.

Microphone

A.

Pawl

AV

TEL ANTENNA

AV-309

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

TEL ANTENNA

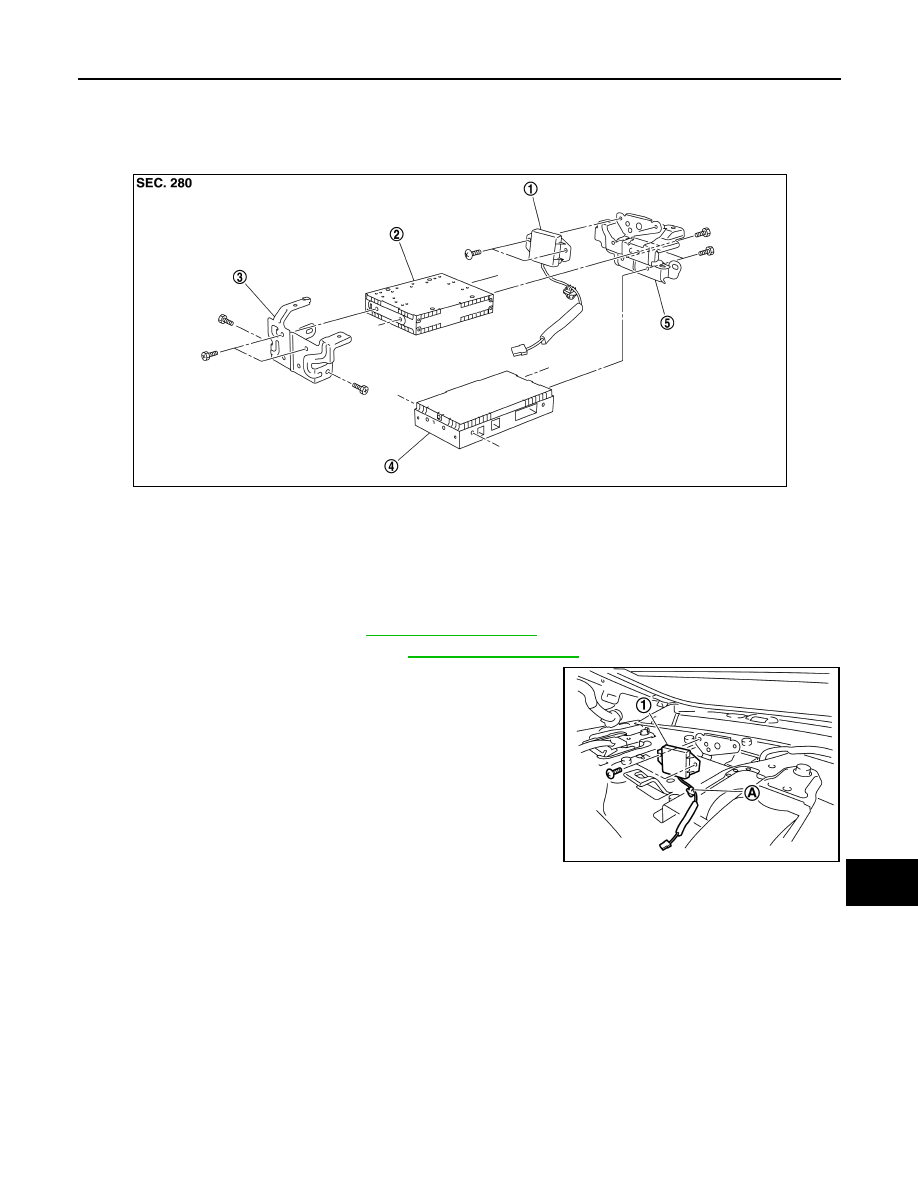

Exploded View

INFOID:0000000000964751

Removal and Installation

INFOID:0000000000964752

REMOVAL

1.

Remove trunk front finisher. Refer to

INT-26, "Exploded View"

.

2.

Remove rear parcel shelf finisher. Refer to

INT-18, "Exploded View"

.

3.

Remove screws and clip (A) from inside the cabin and remove
TEL antenna (1) connector from trunk room side.

INSTALLATION

Installation is the reverse order of removal.

1.

TEL antenna

2.

Satellite radio tuner

3.

Bracket (front)

4.

TEL adapter unit

5.

Bracket (rear)

JSNIA0156ZZ

JSNIA0159ZZ

AV-310

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

TEL ADAPTER UNIT

TEL ADAPTER UNIT

Exploded View

INFOID:0000000000964753

Removal and Installation

INFOID:0000000000964754

REMOVAL

1.

Remove trunk front finisher. Refer to

INT-26, "Exploded View"

.

2.

Remove rear parcel shelf finisher. Refer to

INT-18, "Exploded View"

.

3.

Remove screw (A) from inside the cabin, and remove TEL
adapter unit and TEL antenna as a single unit from trunk room
side.

4.

Remove bracket screws and remove TEL adapter unit and sat-
ellite radio tuner.

INSTALLATION

Installation is the reverse order of removal.

1.

TEL antenna

2.

Satellite radio tuner

3.

Bracket (front)

4.

TEL adapter unit

5.

Bracket (rear)

JSNIA0156ZZ

JSNIA0157ZZ

AV

ANTENNA FEEDER (RADIO)

AV-311

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

ANTENNA FEEDER (RADIO)

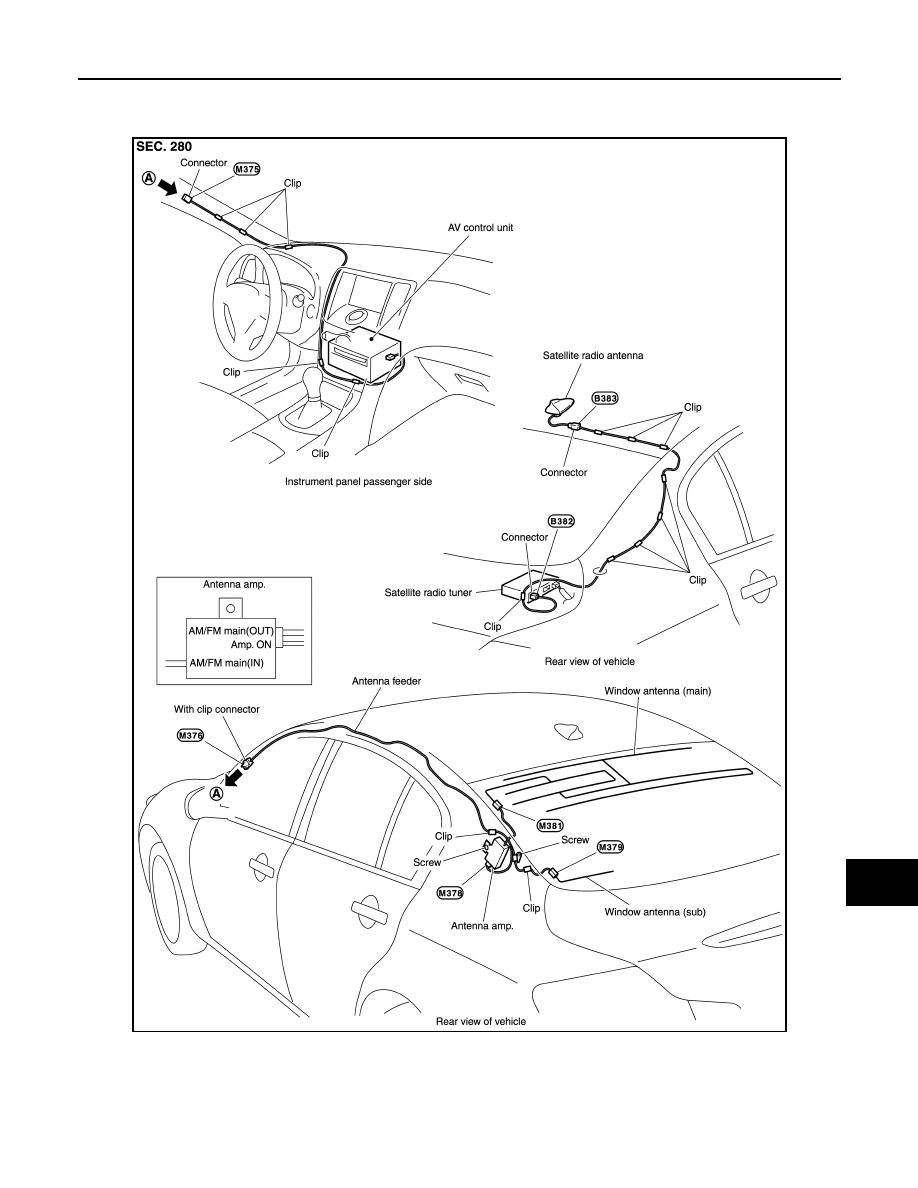

Harness Layout

INFOID:0000000000964755

JSNIA0161GB
