TRANSMISSION ASSEMBLY

6.

Remove check ball plug and then remove check ball spring and
check ball from adapter plate.

7.

Remove retaining pin using a pin punch and then remove 3rd-
4th fork rod bracket and 3rd-4th fork rod.

8.

Remove retaining pin using a pin punch and then remove 3rd-
4th shift fork and 3rd-4th fork rod (reversal side).

9.

Remove check balls and interlock pin from adapter plate.

10. Remove retaining pin using a pin punch and then remove 1st-

2nd shift fork and 1st-2nd fork rod.

PCIB0144E

PCIB0145E

PCIB0601E

PCIB0146E

PCIB0602E

TRANSMISSION ASSEMBLY

TM-41

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

11. Remove interlock plunger and interlock pin from adapter plate.

12. Remove retaining pin using a pin punch and then remove

reverse shift fork and reverse fork rod.

13. Remove check balls from adapter plate.

14. Remove 5th-6th control lever mounting bolts and then remove

5th-6th control lever from adapter plate.

15. Remove retaining pin using a pin punch and then remove 5th-

6th fork rod bracket and 5th-6th fork rod.

PCIB0147E

SCIA1447E

PCIB0148E

PCIB0238E

PCIB0239E

TM-42

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

16. Remove retaining pin using a pin punch and then remove 5th-

6th fork rod (reversal side) and 5th-6th shift fork.

SHAFT AND GEAR

1.

Before disassembly, measure end play for each position. If the end play is outside the specifications, dis-
assemble and inspect.
• Mainshaft

• Counter shaft

2.

After removing snap ring and reverse coupling snap ring, using
a puller to remove reverse main gear and reverse synchronizer
assembly.

3.

Remove reverse main needle bearing.

PCIB0412E

End play standard value

: Refer to

TM-75, "End Play"

.

PCIB0722E

End play standard value

: Refer to

TM-75, "End Play"

.

PCIB0723E

SCIA1683E

TRANSMISSION ASSEMBLY

TM-43

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

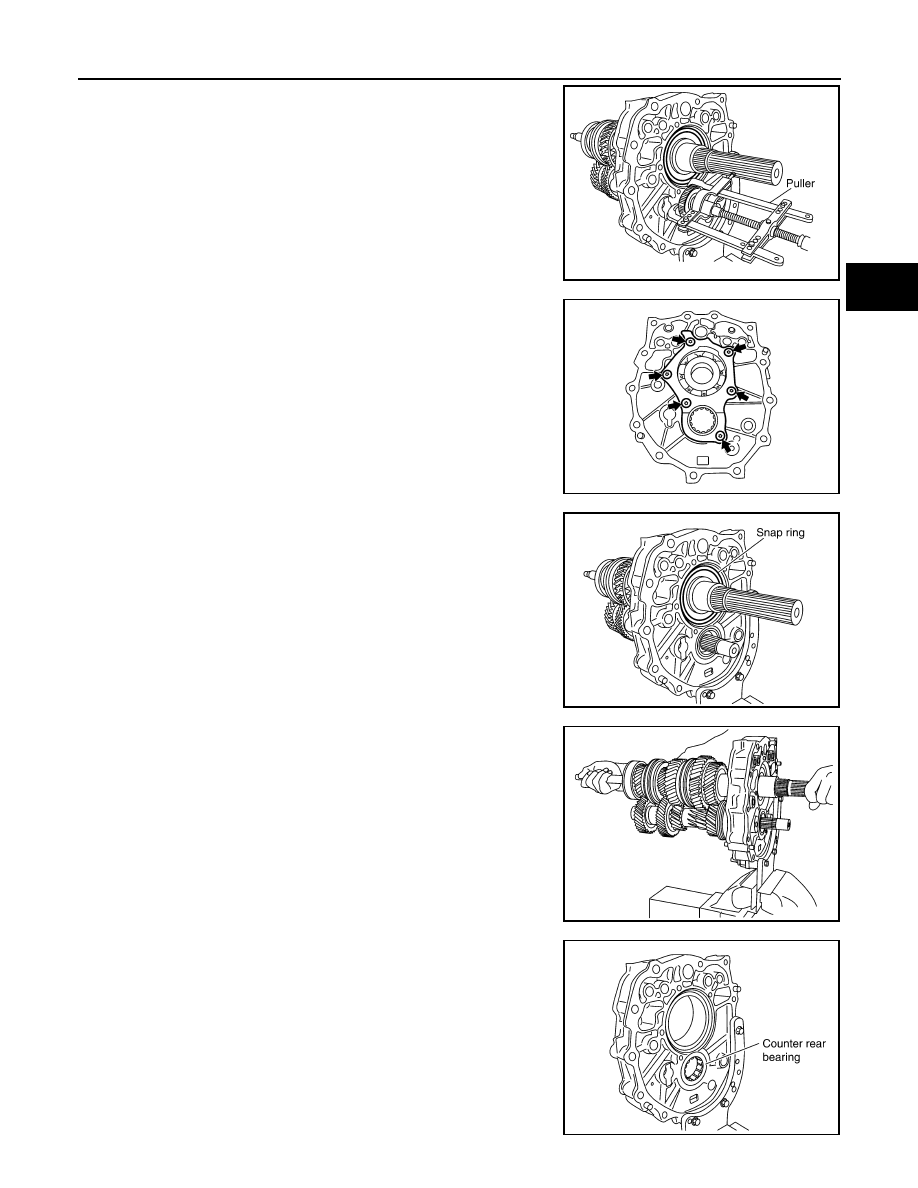

4.

After removing snap ring, using the puller to remove reverse
counter gear and counter rear bearing spacer.

5.

Remove mainshaft bearing retainer mounting bolts and then
remove mainshaft bearing retainer.

6.

Remove snap ring from mainshaft bearing.

7.

Carefully tap mainshaft with a plastic hammer and then remove
mainshaft assembly, main drive gear assembly and counter
shaft assembly from adapter plate.

8.

Remove main pilot bearing, pilot bearing spacer and 5th baulk
ring.

9.

Remove counter rear bearing from adapter plate.

10. Remove magnet from adapter plate.

SCIA1682E

PCIB1238E

SCIA1691E

SCIA1456E

PCIB0244E
