TRANSMISSION ASSEMBLY

1.

Snap ring

2.

Snap ring

3.

Main drive gear bearing

4.

Main drive gear

5.

Main pilot bearing

6.

Pilot bearing spacer

7.

Snap ring

8.

5th baulk ring

9.

5th-6th spread spring

10. 5th-6th shifting insert

11.

5th-6th synchronizer hub

12. 5th-6th coupling sleeve

13. 6th baulk ring

14. 6th main gear

15. 6th needle bearing

16. Mainshaft

17. 2nd main gear

18. 2nd needle bearing

19. 2nd inner baulk ring

20. 2nd synchronizer cone

21. 2nd outer baulk ring

22. 1st-2nd spread spring

23. 1st-2nd synchronizer hub

24. 1st-2nd shifting insert

25. 1st-2nd coupling sleeve

26. 1st outer baulk ring

27. 1st synchronizer cone

28. 1st inner baulk ring

29. 1st main gear

30. 1st needle bearing

31. 1st gear bushing

32. 3rd main gear

33. 3rd-4th main spacer

34. 4th main gear

35. Mainshaft bearing

36. Snap ring

37. Reverse main gear

38. Reverse main needle bearing

39. Reverse main gear bushing

40. Reverse baulk ring

41. Reverse spread spring

42. Reverse synchronizer hub

43. Reverse shifting insert

44. Reverse coupling sleeve

45. Snap ring

46. Snap ring

PCIB1354E

TRANSMISSION ASSEMBLY

TM-33

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

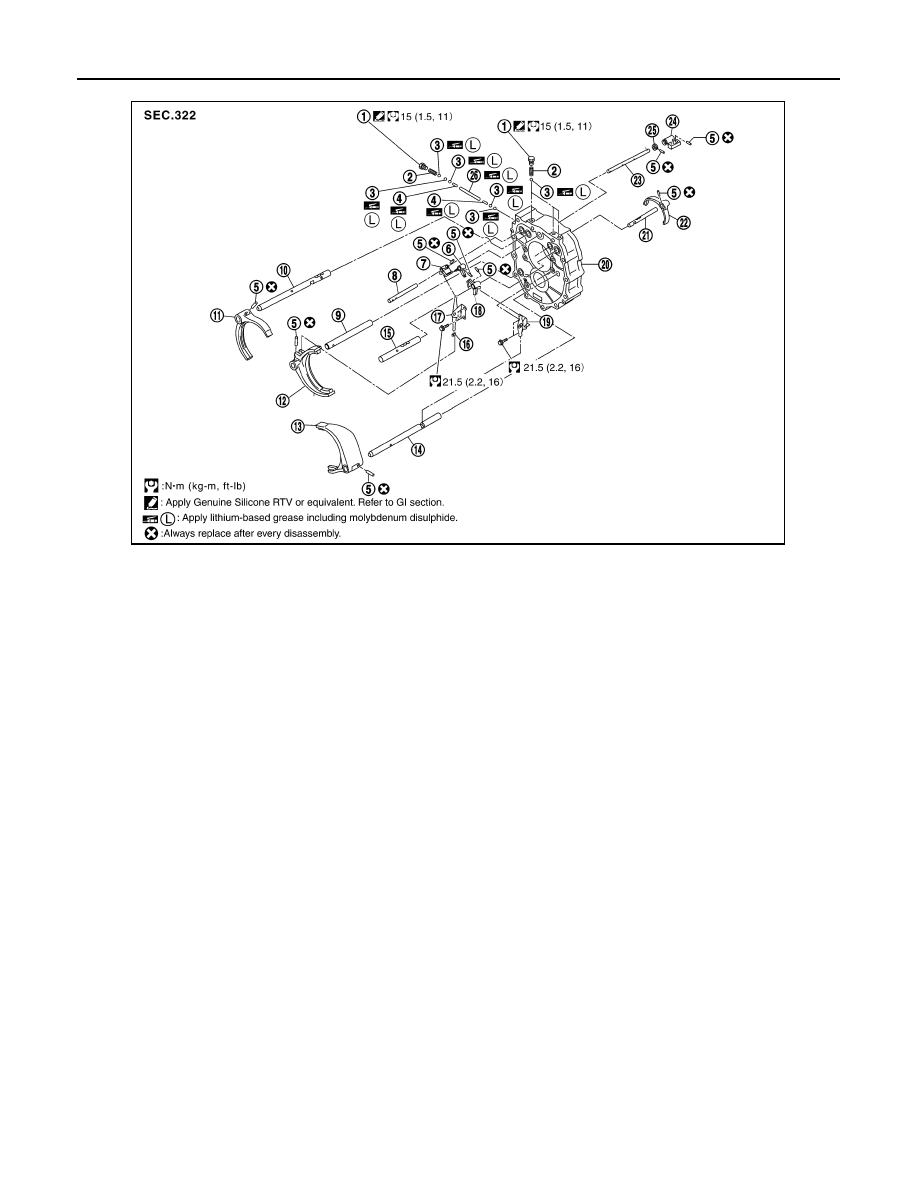

SHIFT FORK AND FORK ROD

1.

Snap ring

2.

Reverse counter gear

3.

Counter rear bearing spacer

4.

Counter rear bearing

5.

Counter rear bearing inner race

6.

4th counter gear thrust washer

7.

4th gear bushing

8.

4th needle bearing

9.

Counter front bearing

10. Counter shaft

11.

3rd gear bushing

12. 3rd needle bearing

13. 3rd counter gear

14. 3rd inner baulk ring

15. 3rd synchronizer cone

16. 3rd outer baulk ring

17. 3rd-4th spread spring

18. 3rd-4th synchronizer hub

19. 3rd-4th shifting insert

20. 3rd-4th coupling sleeve

21. 4th outer baulk ring

22. 4th synchronizer cone

23. 4th inner baulk ring

24. Reverse idler shaft

25. Reverse idler needle bearing

26. Reverse idler gear

27. Reverse idler thrust washer

28. 4th counter gear

29. Counter end bearing

PCIB1355E

TM-34

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

TRANSMISSION ASSEMBLY

1.

Check ball plug

2.

Check ball spring

3.

Check ball

4.

Interlock pin

5.

Retaining pin

6.

Striking lever

7.

3rd-4th fork rod bracket

8.

3rd-4th fork rod

9.

3rd-4th fork rod (reversal side)

10. 1st-2nd fork rod

11.

1st-2nd shift fork

12. 3rd-4th shift fork

13. 5th-6th shift fork

14. 5th-6th fork rod (reversal side)

15. 5th-6th fork rod

16. Shifter cap

17. 3rd-4th control lever

18. 5th-6th fork rod bracket

19. 5th-6th control lever

20. Adapter plate

21. Reverse fork rod

22. Reverse shift fork

23. Striking rod

24. Low/high control lever

25. Stopper ring

26. Interlock plunger

PCIB0902E

TRANSMISSION ASSEMBLY

TM-35

< DISASSEMBLY AND ASSEMBLY >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Disassembly

INFOID:0000000000956969

CASE AND EXTENSION

1.

Remove rear extension upper cover mounting bolts.

2.

Remove rear extension upper cover and rear extension upper
cover gasket from rear extension.

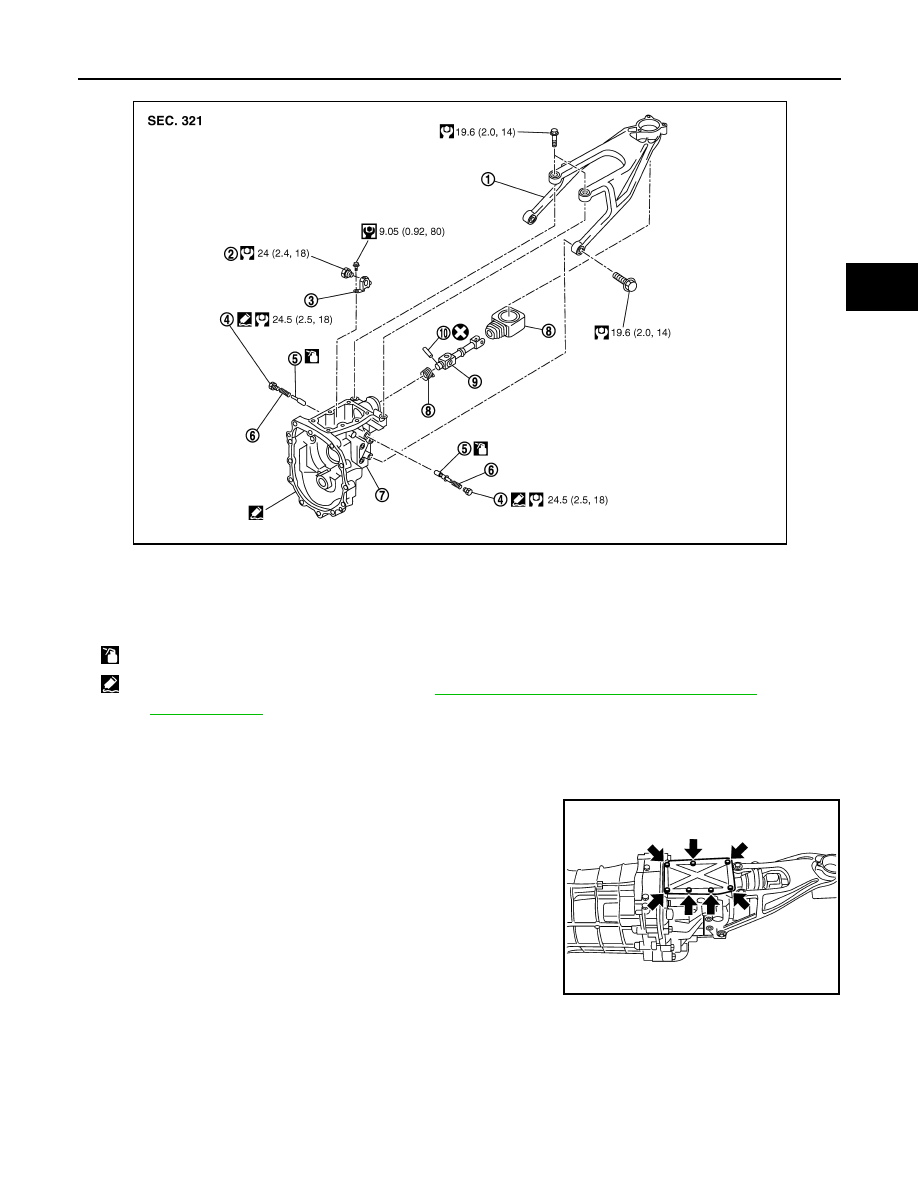

1.

Control lever housing

2.

Check shift pin

3.

Control bracket

4.

Return spring plug

5.

Return spring plunger

6.

Return spring

7.

Rear extension

8.

Boot

9.

Control rod

10. Retaining pin

: Apply gear oil.

: Apply Genuine Silicone RTV or an equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0016GB

PCIB1343E
