BACK-UP LAMP SWITCH

COMPONENT DIAGNOSIS

BACK-UP LAMP SWITCH

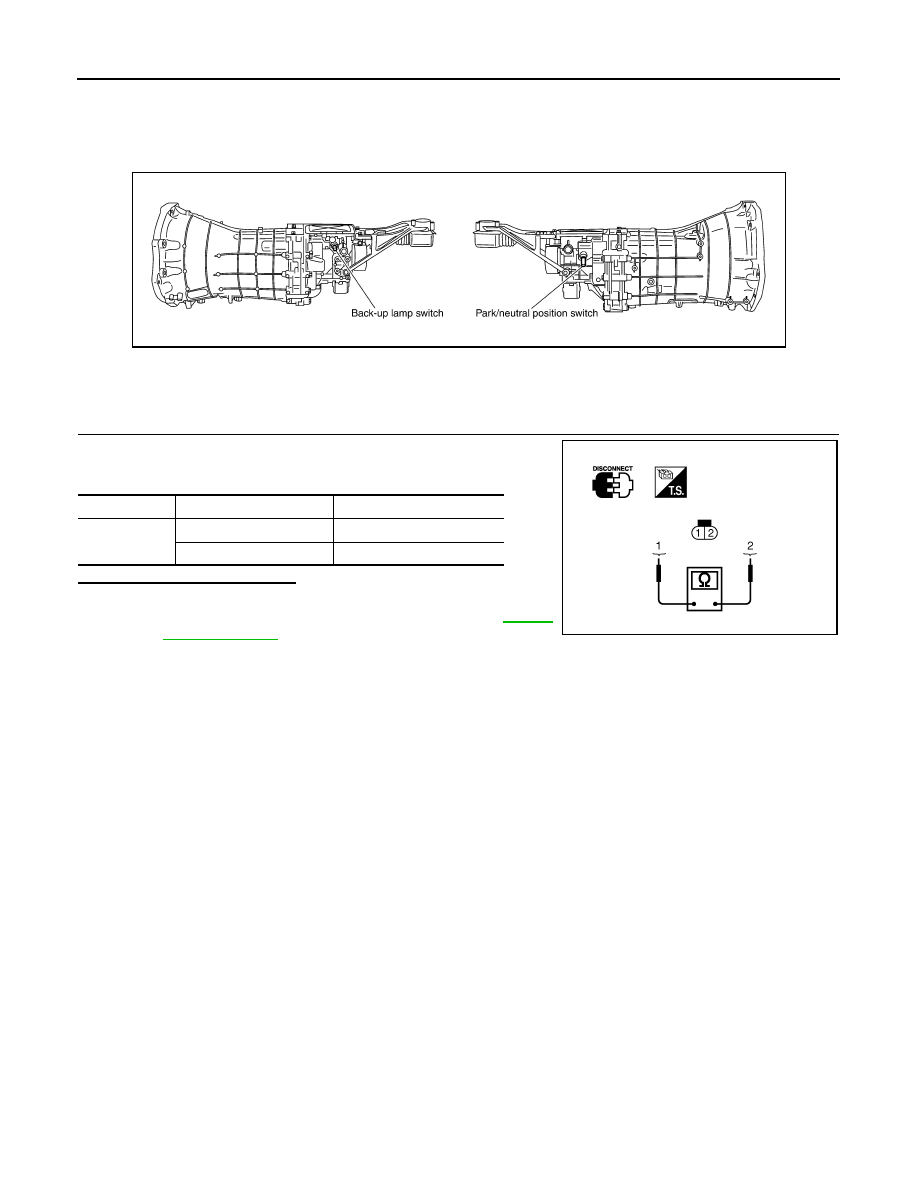

Component Parts Location

INFOID:0000000000956947

Component Inspection

INFOID:0000000000956948

1.

CHECK BACK-UP LAMP SWITCH

Check continuity between back-up lamp switch terminals with control
lever turned to 1st to 6th and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace back up lamp switch. Refer to

TM-30,

"Exploded View"

PCIB1384E

Terminals

Gear position

Continuity

1 – 2

Reverse

Existed

Except reverse

Not existed

SCIA0645E

PARK/NEUTRAL POSITION SWITCH

TM-9

< COMPONENT DIAGNOSIS >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PARK/NEUTRAL POSITION SWITCH

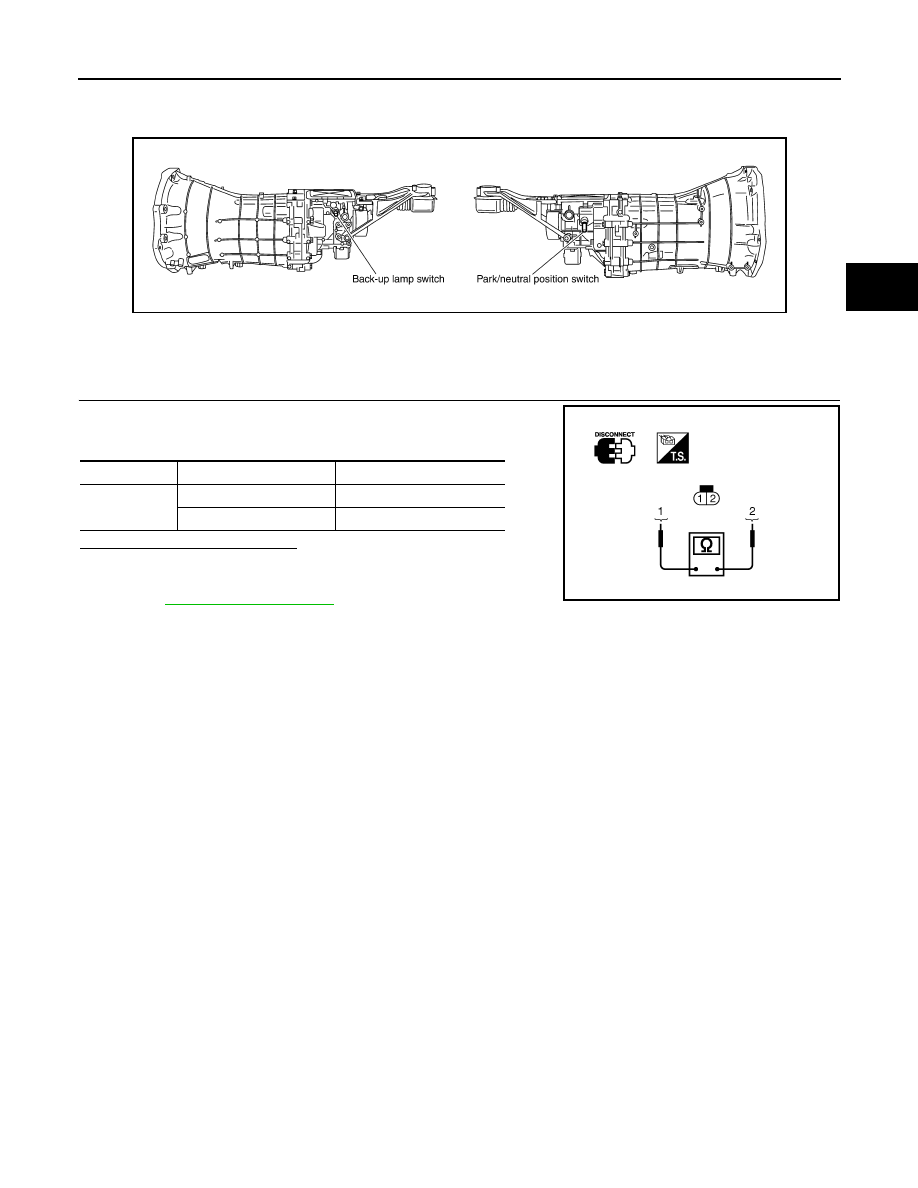

Component Parts Location

INFOID:0000000000956949

Component Inspection

INFOID:0000000000956950

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

Check continuity between park/neutral position (PNP) switch termi-
nals with control lever turned to 1st to 6th and reverse position.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace park/neutral position (PNP) switch. Refer to

TM-30, "Exploded View"

.

PCIB1384E

Terminals

Gear position

Continuity

1 – 2

Neutral

Existed

Except neutral

Not existed

SCIA0645E

TM-10

< SYMPTOM DIAGNOSIS >

[6MT: FS6R31A]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000000956951

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.

Reference

TM-1

6

TM-3

0

TM-1

8

TM-3

0

TM-3

0

SUSPECTED PARTS
(Possible cause)

OIL

 (Oil

lev

e

l is

 lo

w

.)

OIL (W

rong oil.

)

OIL

 (Oil

lev

e

l is

 h

igh

.)

GASKET

 (Damaged)

OIL SEAL (W

orn or

damaged)

SHIFT CONTROL LINKAGE

(W

orn)

CHECK PLUG RETURN SPRING

 AND

CHECK BALL

(W

orn or damaged)

SHIF

T FORK (W

o

rn)

GEAR (W

o

rn o

r da

ma

ge

d)

BEARI

N

G (W

orn or

damaged)

BAUL

K

 RING (W

orn

 o

r da

ma

ge

d)

INSER

T SP

RING (Dam

ag

ed

)

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

Hard to shift or will not shift

1

1

2

2

2

Jumps  out  of  gear

1

1

2

2

PRECAUTIONS

TM-11

< PRECAUTION >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PRECAUTION

PRECAUTIONS

Service Notice or Precautions for Manual Transmission

INFOID:0000000000956952

CAUTION:

• If transmission assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylin-

der) body and CSC tube. Return CSC body insert to original position to remove transmission assem-
bly. Dust on clutch disc sliding parts may damage seal of CSC body and may cause clutch fluid
leakage.

• Do not reuse transmission oil, once it has been drained.
• Check oil level or replace oil with vehicle on level ground.
• During removal or installation, keep inside of transmission clear of dust or dirt.
• Check for the correct installation status prior to removal or disassembly. If matching marks are

required, be certain they do not interfere with the function of the parts they are applied.

• In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to out-

side. If tightening sequence is specified, observe it.

• Be careful not to damage sliding surfaces and mating surfaces.
• Do not hold control lever housing to prevent bushing of control lever housing from deformation

when moving transmission assembly.
