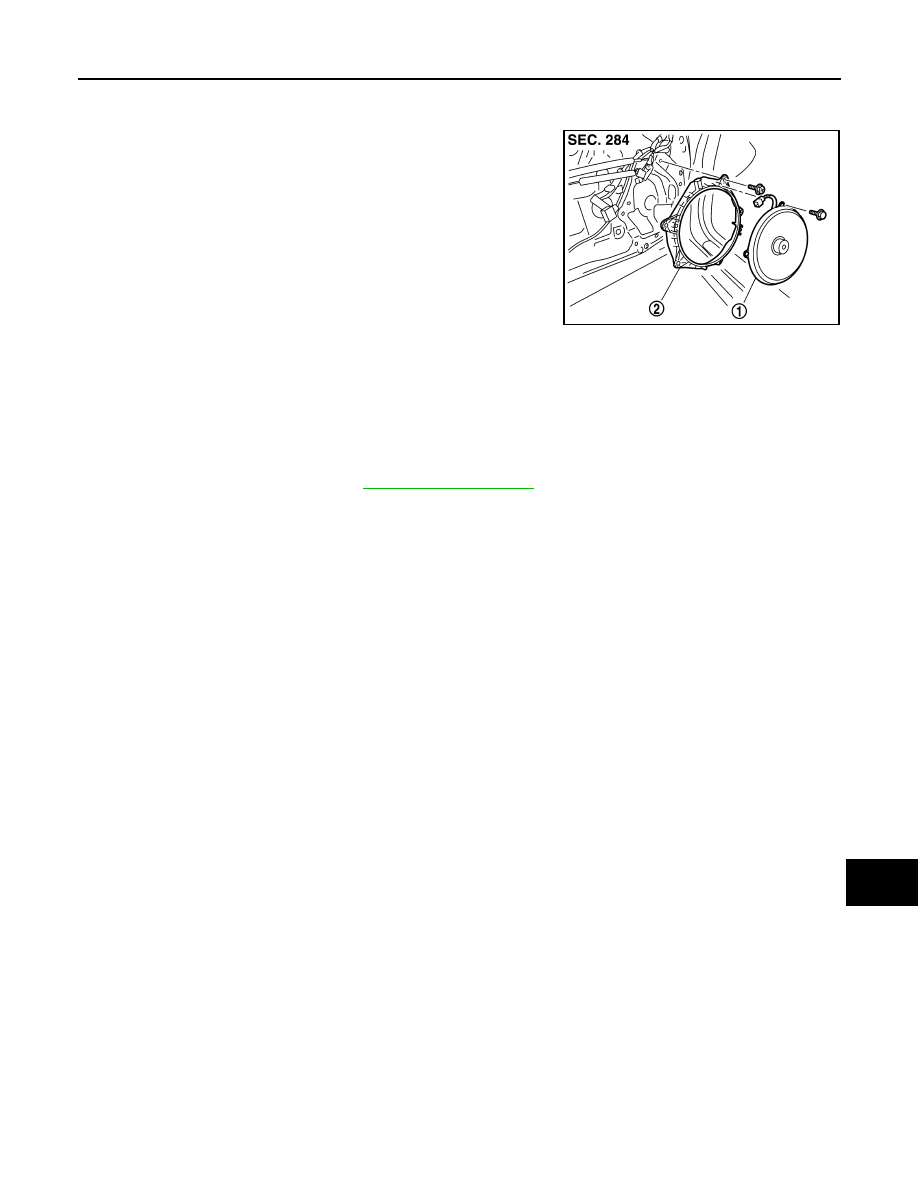

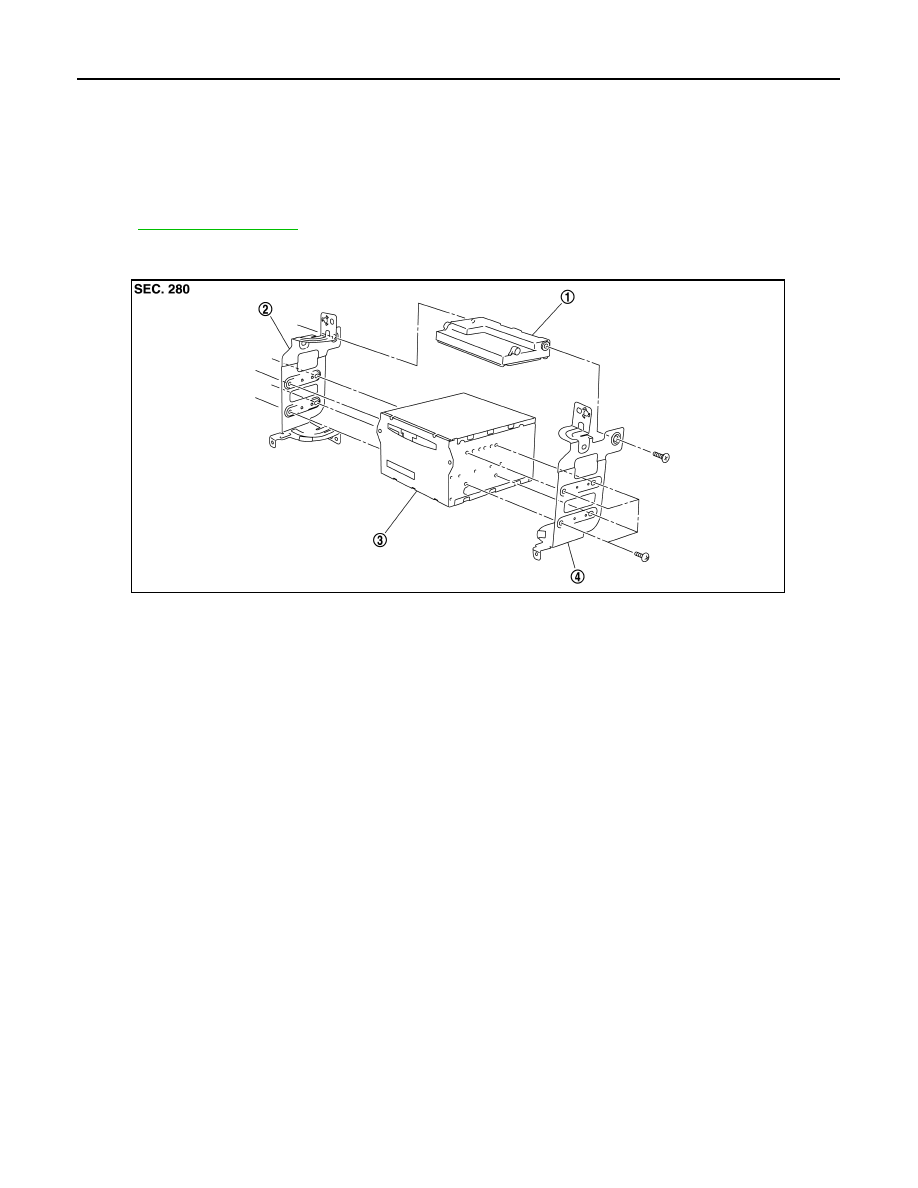

AV-292 < ON-VEHICLE REPAIR > [BOSE AUDIO WITHOUT NAVIGATION] AV CONTROL UNIT ON-VEHICLE REPAIR AV CONTROL UNIT Exploded View INFOID:0000000000964717 REMOVAL . DISASSEMBLY Removal and Installation INFOID:0000000000964718 REMOVAL 1. Remove Display unit. 2. Remove AV control unit with a unified meter and A/C amp. as a single unit from the body. 3. Remove bracket screws, and then remove AV control unit. INSTALLATION Installation is the reverse order of removal. 1. Unified meter and A/C amp. 2. Bracket LH 3. AV control unit 4. Bracket RH JSNIA0113ZZ |
