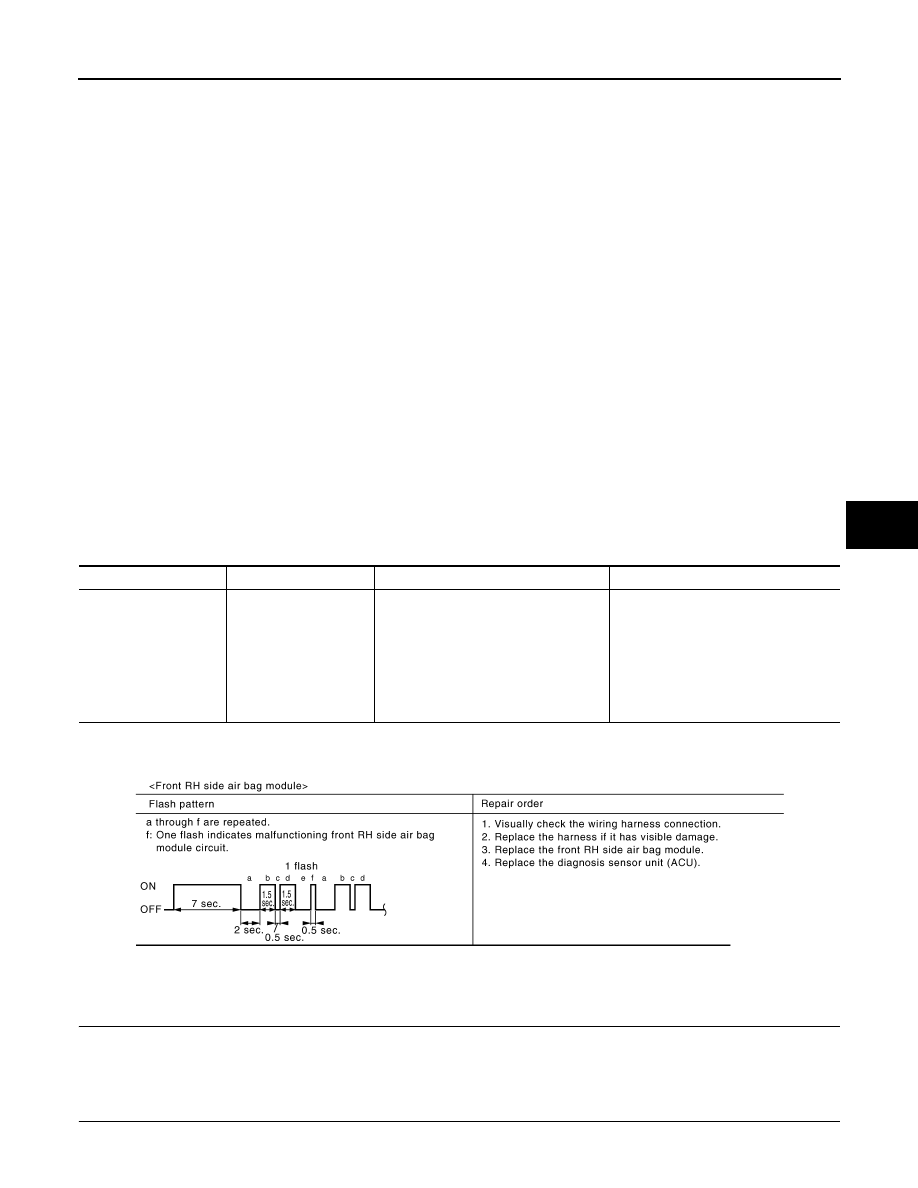

SRC-132 < COMPONENT DIAGNOSIS > B1131 SIDE MODULE RH With CONSULT-lll CAUTION: • Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least 3 min- utes. (To discharge backup capacitor.) • Do not use unspecified tester or other measuring device. DIAGNOSTIC PROCEDURE 1. CHECK HARNESS CONNECTOR Check the harness connectors. YES >> GO TO 2. NO >> Repair or replace harness connectors. 2. CHECK WIRING HARNESS Check the wiring harness. Is the outside of wiring harness normal, without any damage? YES >> GO TO 3. NO >> Replace wiring harness. 3. CHECK SIDE AIR BAG MODULE Check the displayed on CONSULT-lll? Is “AIR BAG” displayed on CONSULT-lll? YES >> Replace side air bag module. NO >> Replace diagnosis sensor unit (ACU). |
