AV-268

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

TEL ADAPTER UNIT

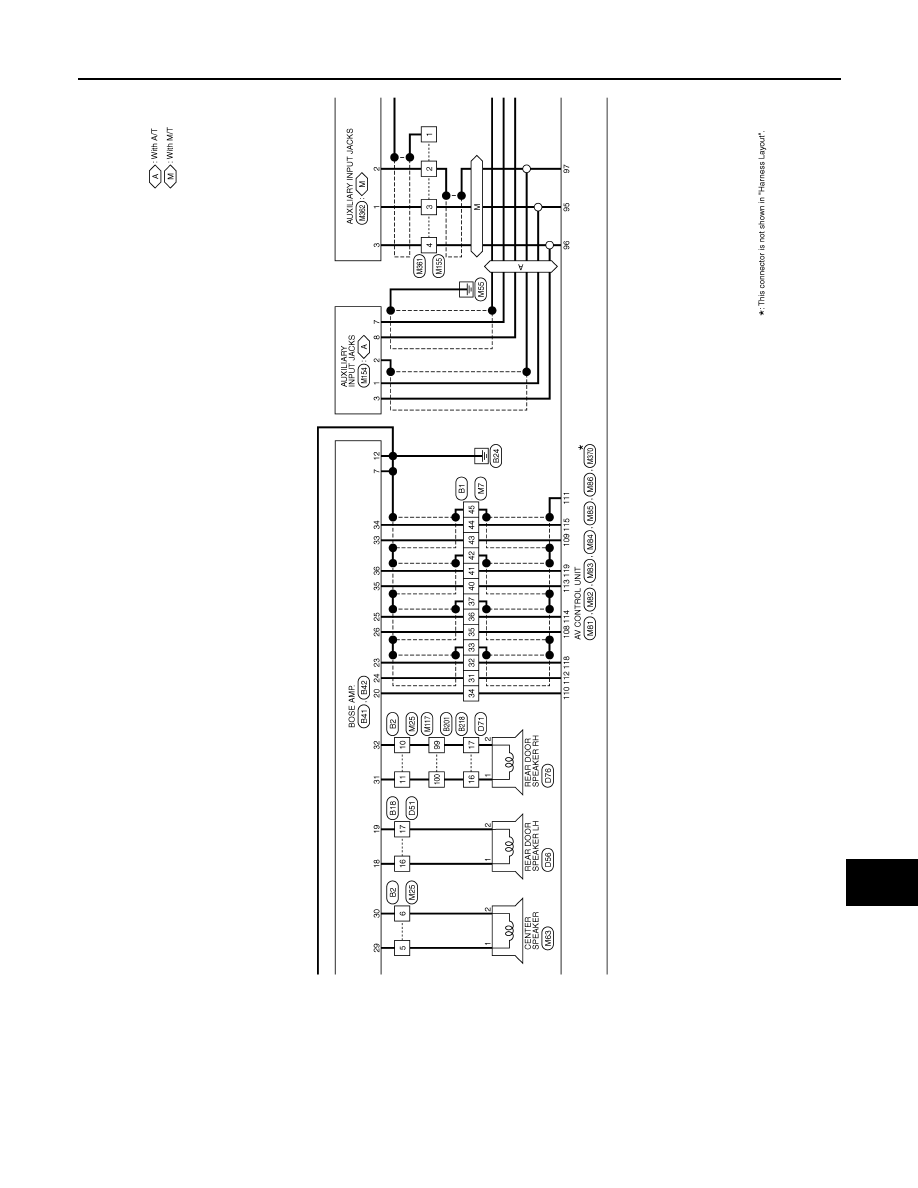

Wiring Diagram —  BOSE AUDIO WITHOUT NAVIGATON SYSTEM —

INFOID:0000000000964710

NOTE:

14

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

19

(B)

Ground

GND

—

Ignition

switch

ON

—

0  V

23

(B)

Ground

Control signal

Input

Ignition

switch

ON

—

0  V

24

(B)

Ground

Control signal

Input

Ignition

switch

ON

—

0  V

28

(P)

Ground

Vehicle speed signal
(8-pulse)

Input

Ignition

switch

ON

When vehicle speed is ap-
prox. 40 km/h (25MPH)

29

(Y)

8

(O)

Microphone VCC

Output

Ignition

switch

ON

—

5  V

33

—

TEL antenna

Input

—

—

—

34

—

Shield

—

—

—

—

35

(L)

—

AV communication signal
(H)

Input/

Output

—

—

—

36

(P)

—

AV communication signal
(L)

Input/

Output

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIA6649J

AV

TEL ADAPTER UNIT

AV-269

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JCNWA0032GB

AV-270

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

TEL ADAPTER UNIT

JCNWA0033GB

AV

TEL ADAPTER UNIT

AV-271

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

JCNWA0034GB
