VEHICLE SECURITY SYSTEM

SEC-27

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

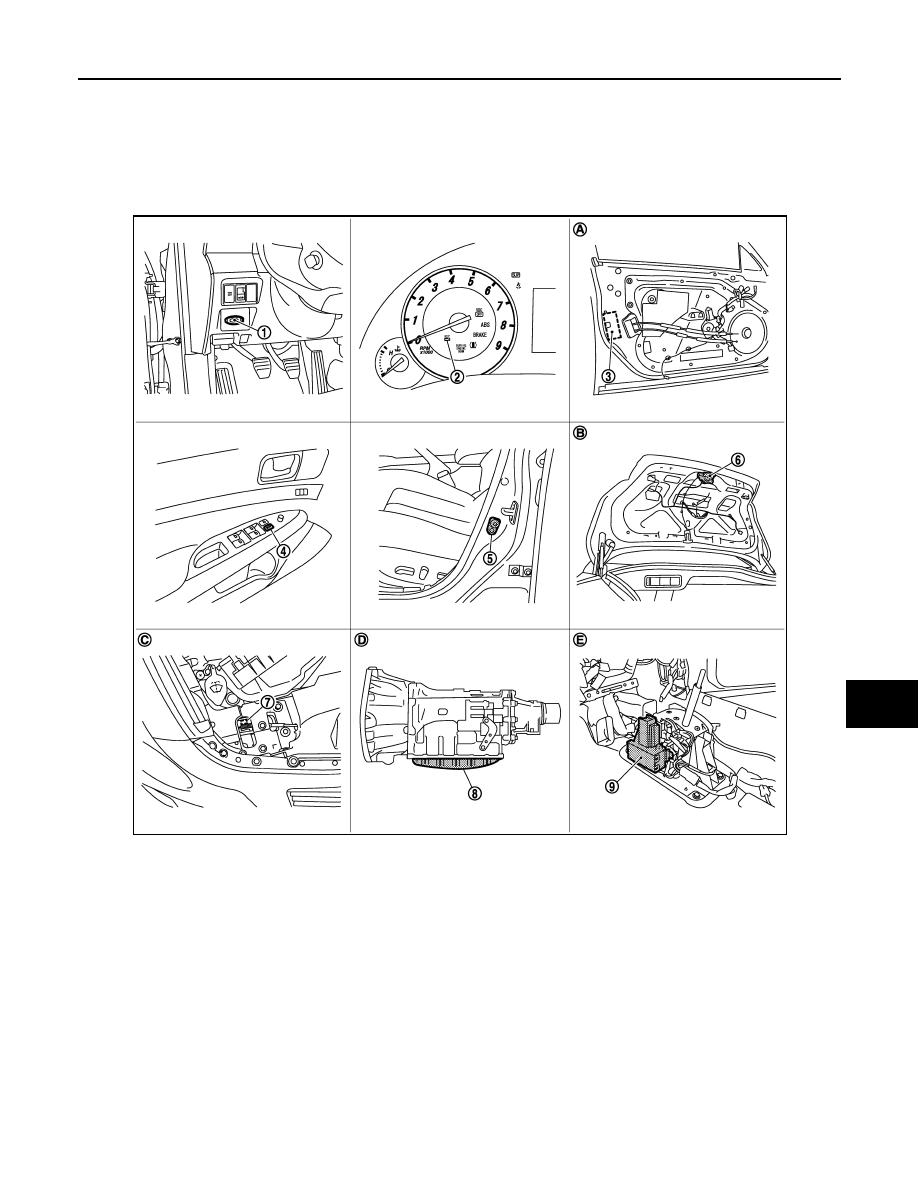

Component Description

INFOID:0000000000961327

A.

View with battery cover removed.

B.

View with instrument assist lower
panel removed.

C.

View with instrument driver lower
cover removed.

D.

View with instrument driver lower
cover removed.

E.

View with instrument driver lower
cover removed.

F.

Left view of engine room.

G.

View with front bumper removed.

1.

Key slot M22

2.

Combination meter (Key warning
lamp) M53

3.

Front door lock assembly (driver
side) (door key cylinder switch) D15

4.

Power window main switch D8, D9

5.

Front door switch (driver side) B16

6.

Trunk lid lock assembly (trunk room
lamp switch) B303

7.

Hood switch E30

8.

TCM F151

9.

A/T device (detention switch) M137

A.

View with front door finisher re-
moved.

B.

View with trunk lid finisher removed. C.

View with hood switch incorporated
into hood lock (RH).

D.

Inside of A/T (built into A/T).

E.

View with center console assembly
removed.

JMKIA0145GB

SEC-28

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

Component Reference

BCM

SEC-23

Horn relay 1

SEC-116

Horn relay 2

SEC-116

Hood switch

SEC-114

Security indicator

SEC-120

Door switch

DLK-65

Door lock actuator

DLK-92

Trunk lid lock assembly

DLK-96

Door key cylinder switch

SEC-112

Door lock and unlock switch

DLK-68

DIAGNOSIS SYSTEM (BCM)

SEC-29

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000000961328

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

*: This item is displayed, but is not used.

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)

INFOID:0000000000961329

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-74, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Air conditioner*

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

IVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONI-
TOR)

×

×

×

SEC-30

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

WORK SUPPORT

SELF-DIAG RESULT

Refer to

BCS-74, "DTC Index"

.

DATA MONITOR

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

Monitor item

Description

REMO CONT ID CONFIR

It can be checked whether Intelligent Key ID code is registered or not in this mode.

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch (driver side, passenger side and trunk) mode can
be changed to operate (ON) or not operate (OFF) in this mode.

ENGINE START BY I-KEY

Engine start function mode can be changed to operate (ON) or not operate (OFF) with this mode.

TRUNK/GLASS HATCH OPEN

Buzzer reminder function mode by trunk opener request switch can be changed to operate (ON)
or not operate (OFF) with this mode.

PANIC ALARM SET

Panic alarm button pressing time on Intelligent Key remote control button can be selected from the
following with this mode.
• 0.5 sec.
• 1.5 sec.
• OFF: Non-operation

PW DOWN SET

Unlock button pressing time on Intelligent Key button can be selected from the following with this
mode.
• 3 sec.
• 5 sec.
• OFF: Non-operation

TRUNK OPEN DELAY

Trunk button pressing time on Intelligent Key button can be selected from the following with this
mode.
• 0.5 sec.
• 1.5 sec.
• OFF: Non-operation

LO- BATT OF KEY FOB WARN

Intelligent Key low battery warning mode can be changed to operate (ON) or not operate (OFF)
with this mode.

ANTI KEY LOCK IN FUNCTI

Key reminder function mode can be changed to operate (ON) or not operate (OFF) with this mode.

HORN WITH KEYLESS LOCK

Horn reminder function mode by Intelligent Key button can be changed to operate (ON) or not op-
erate (OFF) with this mode.

HAZARD ANSWER BACK

Hazard reminder function mode can be selected from the following with this mode.
• LOCK ONLY: Door lock operation only
• UNLOCK ONLY: Door unlock operation only
• LOCK AND UNLOCK: Lock/unlock operation
• OFF: Non operation

ANS BACK I-KEY LOCK

Buzzer reminder function (lock operation) mode by door request switch (driver side and passenger
side) can be selected from the following with this mode.
• HORN CHIRP: Sound horn
• BUZZER: Sound Intelligent Key warning buzzer
• OFF: Non-operation

ANS BACK I-KEY UNLOCK

Buzzer reminder function (unlock operation) mode by door request switch can be changed to op-
erate (ON) or not operate (OFF) with this mode.

SHORT CRANKING OUTPUT

Starter motor can operate during the times below.
• 70 msec
• 100  msec
• 200  msec

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis.
