FRONT SEAT

SE-95

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000000960565

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the headrest.

2.

Remove the front slide cover.

a.

Front outer slide cover
• Slide the seat to the rearmost position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

b.

Front inner slide cover
• Slide the seat to the rearmost position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

3.

Remove the mounting bolts on the front side of the front seat.

4.

Remove the rear slide cover.

a.

Rear outer slide cover
• Slide the seat to the foremost position.
• Pull up the rear edge of the rear outer slide cover to release

the pawls.

• Open the front end of the rear outer slide cover to release the

pawls.

19. Seatback frame

20. Reclining device outer cover (front)

21. Reclining device outer cover (rear)

22. Reclining device inner cover (front)

23. Reclining device inner cover (rear)

24. Seat cushion front finisher

25. Thigh extension pad

26. Seat slide outer finisher (outside)

27. Seat slide outer finisher (inside)

28. Seat slide inner finisher

29. Seat cushion assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

:Pawl

JMJIA0003ZZ

:Pawl

JMJIA0004ZZ

:Pawl

JMJIA0005ZZ

SE-96

< ON-VEHICLE REPAIR >

FRONT SEAT

b.

Rear inner slide cover
• Slide the seat to the foremost position.
• Pull up the rear edge of the rear inner slide cover to release

the pawls.

• Slide the rear inner slide cover rearward to release the pawls.

5.

Remove the mounting bolts on the rear side of the front seat.

6.

Set seatback in a standing position.

7.

Disconnect harness connector under the seat and remove harness securing clips.

CAUTION:

Before removal, turn ignition switch OFF, disconnect both battery cables, and then wait for at least
3 minutes.

8.

Remove seat from the vehicle.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Before installation, turn ignition switch OFF, disconnect both battery cables, and then wait for at

least 3 minutes.

• Clamp the harness in position.
NOTE:
After installing the driver seat, perform additional service when removing battery negative terminal.(Automatic
drive positioner model only) Refer to

ADP-8, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGA-

TIVE TERMINAL : Description"

.

Disassembly and Assembly

INFOID:0000000000960566

SEATBACK

Disassembly

1.

Remove the seat cushion outer finisher.
• Remove the seat slide and lifter switch knob (1) and seat

reclining switch knob (2).Using a remover tool (A).

:Pawl

JMJIA0006ZZ

JMJIA0007ZZ

FRONT SEAT

SE-97

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

• Remove the metal clips, clips and pawls, and then pull out seat

cushion outer finisher.

• Disconnect the seat control switch, lumbar support switch and

side support switch harness connector.

• Remove the reclining device outer cover (front, rear).

2.

Remove the seat cushion inner finisher.
• Remove the reclining device inner covers (front, rear) by

releasing the metal clip and pull it up together with the cover.

• Remove the relining device inner covers (front, rear) from the

seat cushion inner finisher by releasing the pawls.

3.

Remove the back board.
• Remove the metal clips and clips, and then pull out seatback

board (1).

• Pull down the seatback board to release the upper pawls.

4.

Remove the lumbar support lever knob.(Manual lumbar support model only.)

: Metal clip

: Pawl

JMJIA0008ZZ

JMJIA0009ZZ

: Metal clip

JMJIA0010ZZ

: Clip

: Metal clip

: Pawl

JMJIA0011ZZ

SE-98

< ON-VEHICLE REPAIR >

FRONT SEAT

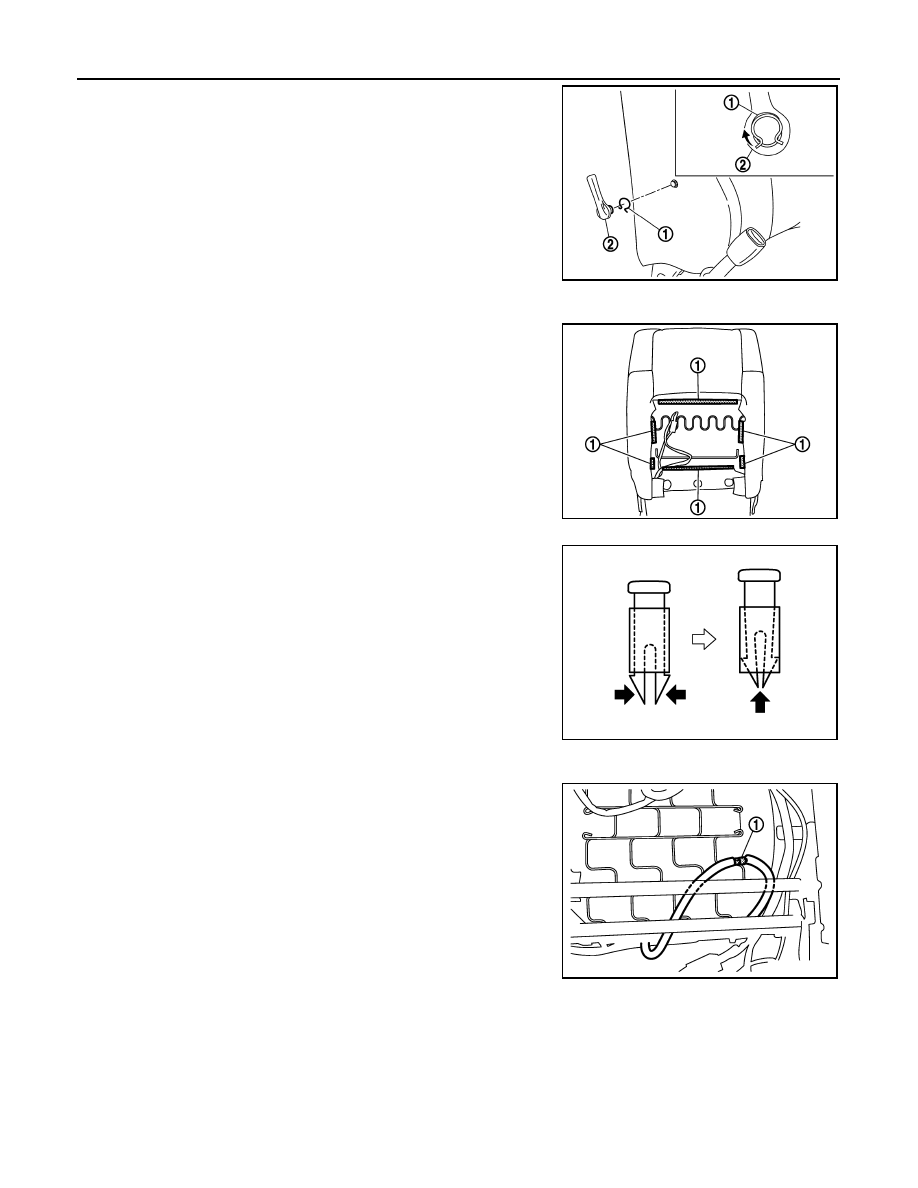

Pull snap ring (1) upward, and remove lumbar support lever
knob (2) from seatback frame.

5.

Remove the seatback pad and trim.
• Remove the seatback retainer (1) on the back side of the seat-

back.

• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

• Remove the side air bag module.
• Remove the side support hose joint (1) located under the seat

cushion.(Side support model only.)

• Disconnect the seatback heater unit harness connector.

JMJIA0252ZZ

JMJIA0012ZZ

PIIB4084J

JMJIA0013ZZ
