Infiniti G35 (V35) Sedan. Manual - part 1135





TILT&TELESCOPIC SYSTEM

SE-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

TILT&TELESCOPIC SYSTEM

System Description

INFOID:0000000000960463

Power from battery is supplied at all times to automatic driver positioner control unit, tilt and telescopic system
can operate regardless of the ignition switch position.

TILT OPERATION

• While operating the tilt and telescopic switch, tilt motor operates, and allows up or down position adjustment

of steering wheel.

• During tilt motor operation tilt sensor detects the position of steering wheel and automatically cuts the power

when the operation limit is reached.

TELESCOPIC OPERATION

• Operating the tilt and telescopic switch, telescopic motor operates and allows forward and backward position

regulation of steering wheel.

• During telescopic motor operation telescopic sensor detects the position of steering wheel and automatically

cuts the power when the operation limit is reached.

Component Parts Location

INFOID:0000000000960464

Component Description

INFOID:0000000000960465

JMJIA0188ZZ

1.

Automatic drive positioner control
unit M51, M52

2.

Tilt & telescopic switch M31

3.

Telescopic sensor M48

4.

Tilt sensor M48

5.

Telescopic motor M49

6.

Tilt motor M49

A.

View with instrument driver lower
panel is removed.

B.

Steering column cover

C.

View with steering column cover is re-
moved.

D.

View with steering column cover is
removed.

E.

View with instrument lower cover is
removed.

SE-8

< FUNCTION DIAGNOSIS >

TILT&TELESCOPIC SYSTEM

Item

Function

Automatic drive positioner control unit

Detects data input signal of tilt and telescopic switch and tilt and telescopic sensor, per-
forms tilt and telescopic motor control.

Tilt and telescopic switch

Tilt switch and telescopic switch, as a unit, transmit switch operation signal to automatic
drive positioner control unit.

Tilt and telescopic motor

Operates with the power received from automatic drive control unit.

Tilt and telescopic sensor

Detects the position of steering, send signal to automatic drive positioner control unit.

HEATED SEAT

SE-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

HEATED SEAT

System Description

INFOID:0000000000960466

Heated seat is a system that operates when ignition switch is in ON or START position.

HEATER OPERATION

• While operating the heated seat switch, seat cushion heater and seat back heater operate.
• Changing heated seat switch to LOW/HIGH position, depending on working heater number it is possible to

adjust the seat temperature.

Component Parts Location

INFOID:0000000000960467

Component Description

INFOID:0000000000960468

JMJIA0191ZZ

1.

Heated seat switch (driver side)
M138: with A/T, M172: with M/T

2.

Heated seat switch (passenger side)
M140: with A/T, M173: with M/T

3.

Heated seat relay M70

4.

Seat back heater B413

5.

Seat cushion heater B412

A.

View with cluster lid assembly is re-
moved.

Item

Function

Heated seat switch

 (driver side / passenger side)

• Power is supplied to each heater.
• Depending on LOW/HIGH position of switch, operating heater number is changeable.

Seat cushion heater

Built-in seat cushion, the heater operates with the power supplied by heater seat switch.

Seat back heater

Built-in seatback, the heater operates with the power supplied by heater seat switch.

SE-10

< FUNCTION DIAGNOSIS >

LUMBAR SUPPORT

LUMBAR SUPPORT

System Description

INFOID:0000000000960469

• Lumbar support can operate regardless of the ignition switch position because battery power is supplied to it

at all times.

• While operating the lumbar support switch, lumbar support motor operates which allows forward and back-

ward operation of seatback support.

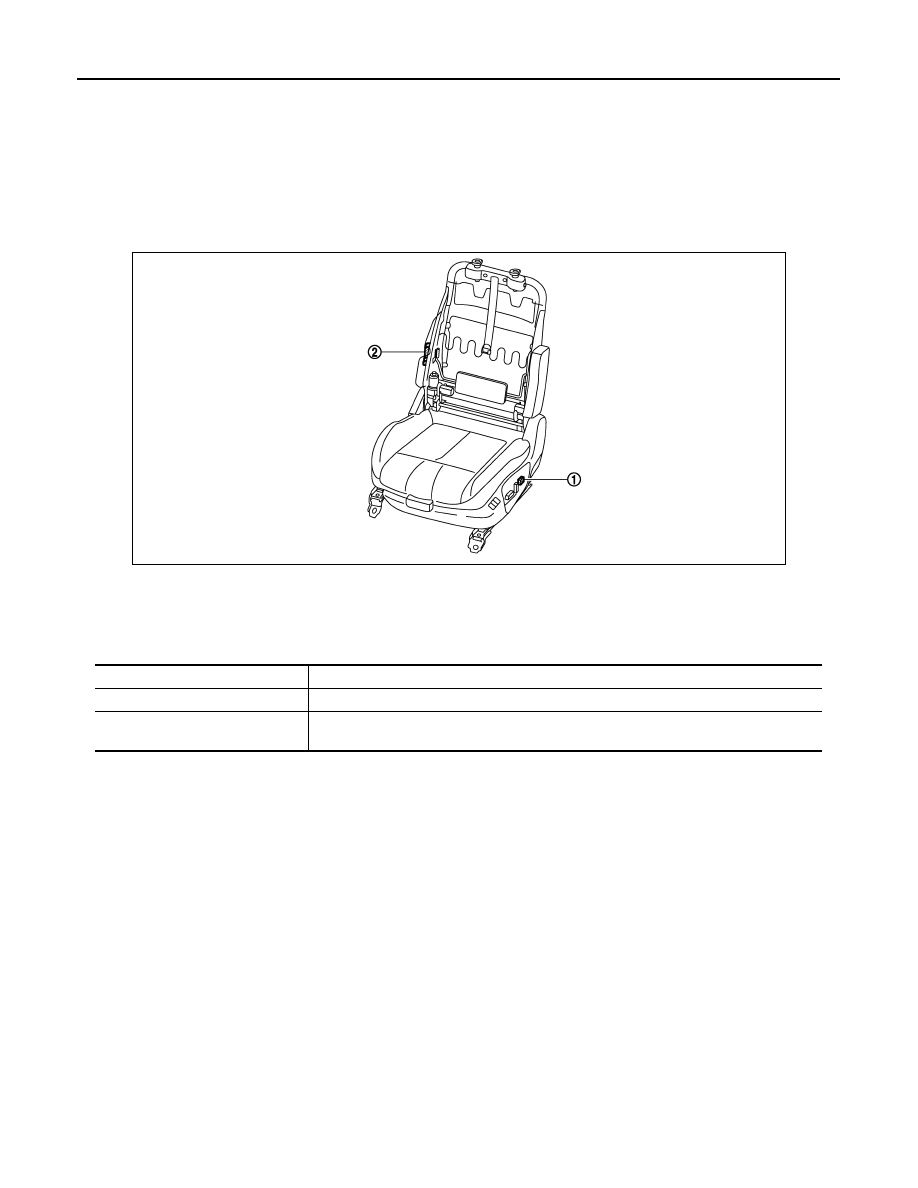

Component Parts Location

INFOID:0000000000960470

Component Description

INFOID:0000000000960471

JMJIA0189ZZ

1.

Lumbar support switch B457

2.

Lumbar support motor B458

Item

Function

Lumbar support switch

Controls the power supplied to lumbar support motor.

Lumbar support motor

With the power supplied to lumbar support switch, operates the forward and backward
movement of seatback support device.
