RSU-12

< ON-VEHICLE REPAIR >

SUSPENSION ARM

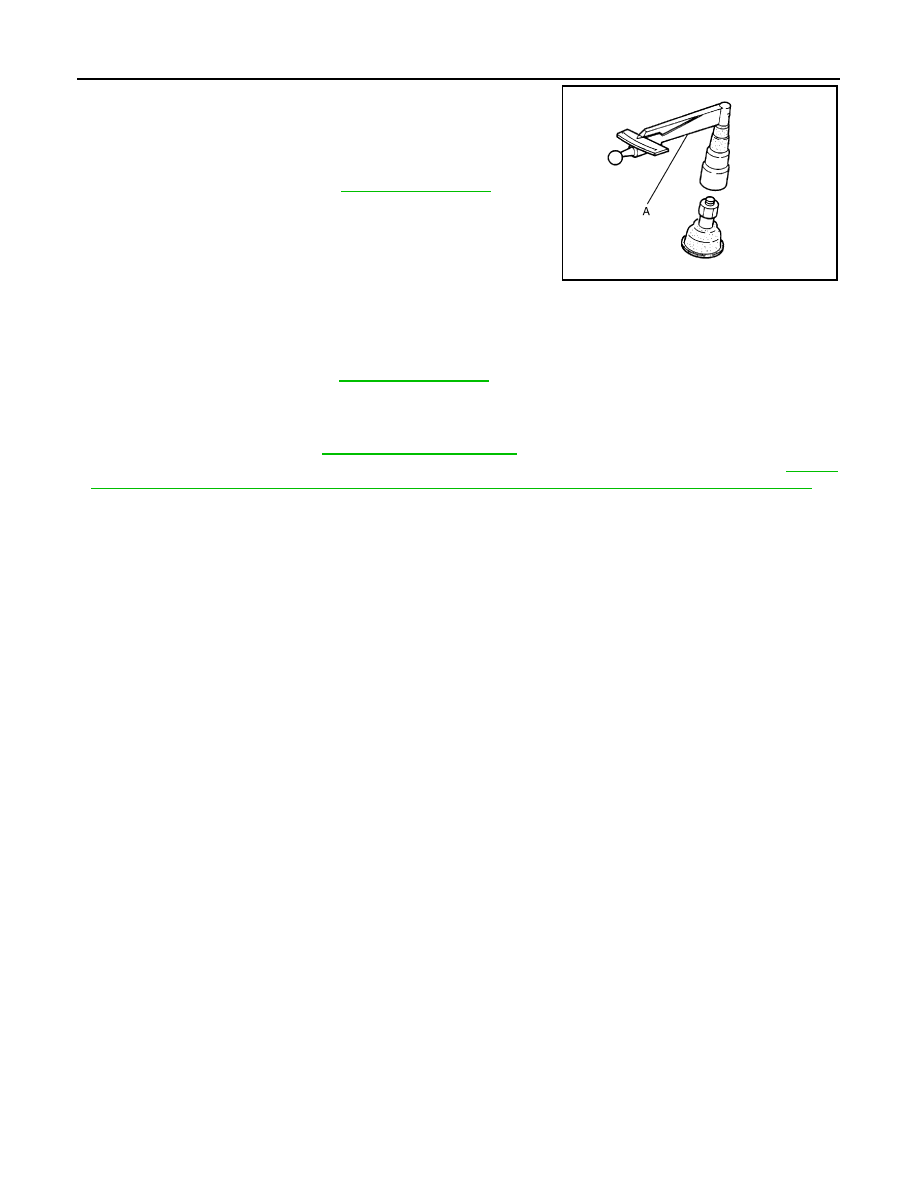

• Attach the mounting nut to ball stud. Make sure that rotating torque

is within the specifications with a preload gauge (A)
[SST:ST3127S000 (J-25765-A)].

- If it is outside the specified range, replace suspension arm assem-

bly.

Axial End Play Inspection

• Move tip of ball stud in axial direction to check for looseness.

- If it is outside the specified range, replace suspension arm assembly.

INSPECTION AFTRE INSTALLATION

• Check wheel alignment. Refer to

RSU-19, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

Standard

Rotating torque

: Refer to

RSU-19, "Ball Joint"

.

PDIA1258E

Standard

Axial end play

: Refer to

RSU-19, "Ball Joint"

.

RADIUS ROD

RSU-13

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

RADIUS ROD

Exploded View

INFOID:0000000000957836

Refer to

RSU-17, "Exploded View"

.

Removal and Installation

INFOID:0000000000957837

REMOVAL

1.

Remove tire with power tool.

2.

Set suitable jack under axle assembly.

3.

Remove mounting bolts and nuts in axle side of radius rod with power tool.

4.

Remove mounting bolt in rear suspension member side of radius rod with power tool, then remove radius
rod.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000000957838

INSPECTION AFTER REMOVAL

Check radius rod and bushing for any deformation, cracks, or damage. Replace if there are.

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

RSU-19, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

RSU-14

< ON-VEHICLE REPAIR >

FRONT LOWER LINK

FRONT LOWER LINK

Exploded View

INFOID:0000000000957839

Refer to

RSU-17, "Exploded View"

.

Removal and Installation

INFOID:0000000000957840

REMOVAL

1.

Remove tire with power tool.

2.

Set suitable jack under axle assembly to relieve the coil spring tension.

3.

Remove mounting bolts and nuts between front lower link and rear suspension member with power tool.

4.

Remove mounting bolts and nuts between front lower link and axle with power tool.

5.

Remove front lower link.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000000957841

INSPECTION AFTER REMOVAL

Check front lower link and bushing for any deformation, cracks, or damage. Replace if there are.

INSPECTION AFTER INSTALLATION

• Check wheel alignment. Refer to

RSU-19, "Wheel Alignment"

.

• Adjust neutral position of steering angle sensor after checking the wheel alignment. Refer to Refer to

BRC-8,

"ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

REAR STABILIZER

RSU-15

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REAR STABILIZER

Exploded View

INFOID:0000000000957842

Refer to

RSU-17, "Exploded View"

.

Removal and Installation

INFOID:0000000000957843

REMOVAL

1.

Remove mounting bracket of center muffler and remove mounting rubber of main muffler. Refer to

EX-5,

"Removal and Installation"

.

2.

Remove lower side mounting nuts on stabilizer connecting rod and remove stabilizer connecting rod from
stabilizer bar with power tool.

3.

Remove mounting nuts on stabilizer clamp and remove stabilizer bar with power tool.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000000957844

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if a malfunction is detected.
