AV-212

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

9

(B)

Ground

RGB area (YS) signal

Input

Ignition

switch

ON

At RGB image displayed

5 V

At rear view camera image
displayed

11

(Y)

Ground

Communication signal
(CONT

→

DISP)

Input

Ignition

switch

ON

When adjusting display-
brightness.

13

(BR)

Ground

Inverter GND

—

Ignition

switch

ON

—

0  V

14

(LG)

Ground

Signal GND

—

Ignition

switch

ON

—

0  V

15

(SB)

Ground

AUX image signal

Input

Ignition

switch

ON

When AUX mode is select-
ed

17

(G)

Ground

RGB signal (R: red)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

18

(P)

Ground

RGB signal (B: blue)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

PKIB4948J

PKIB5039J

SKIB2251J

SKIB2238J

SKIB2237J

AV

DISPLAY UNIT

AV-213

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

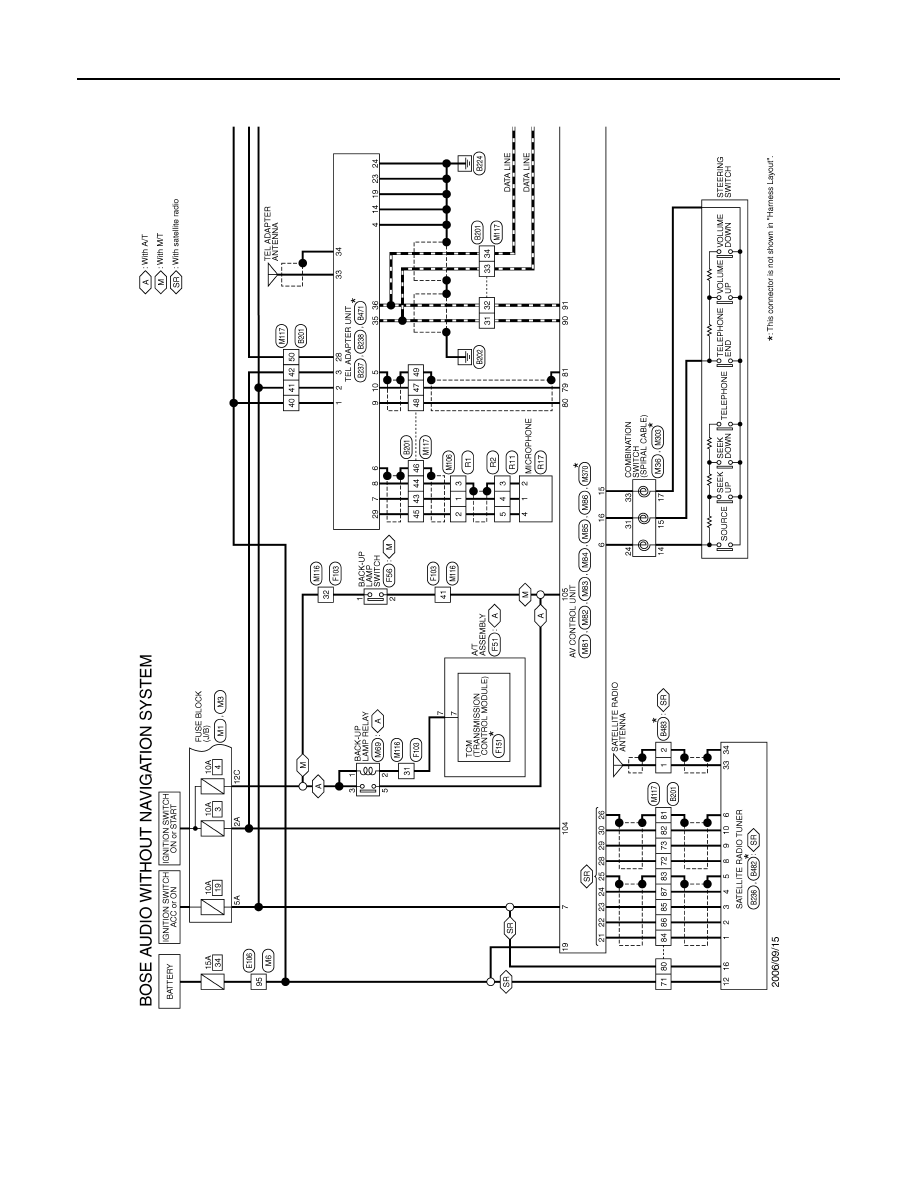

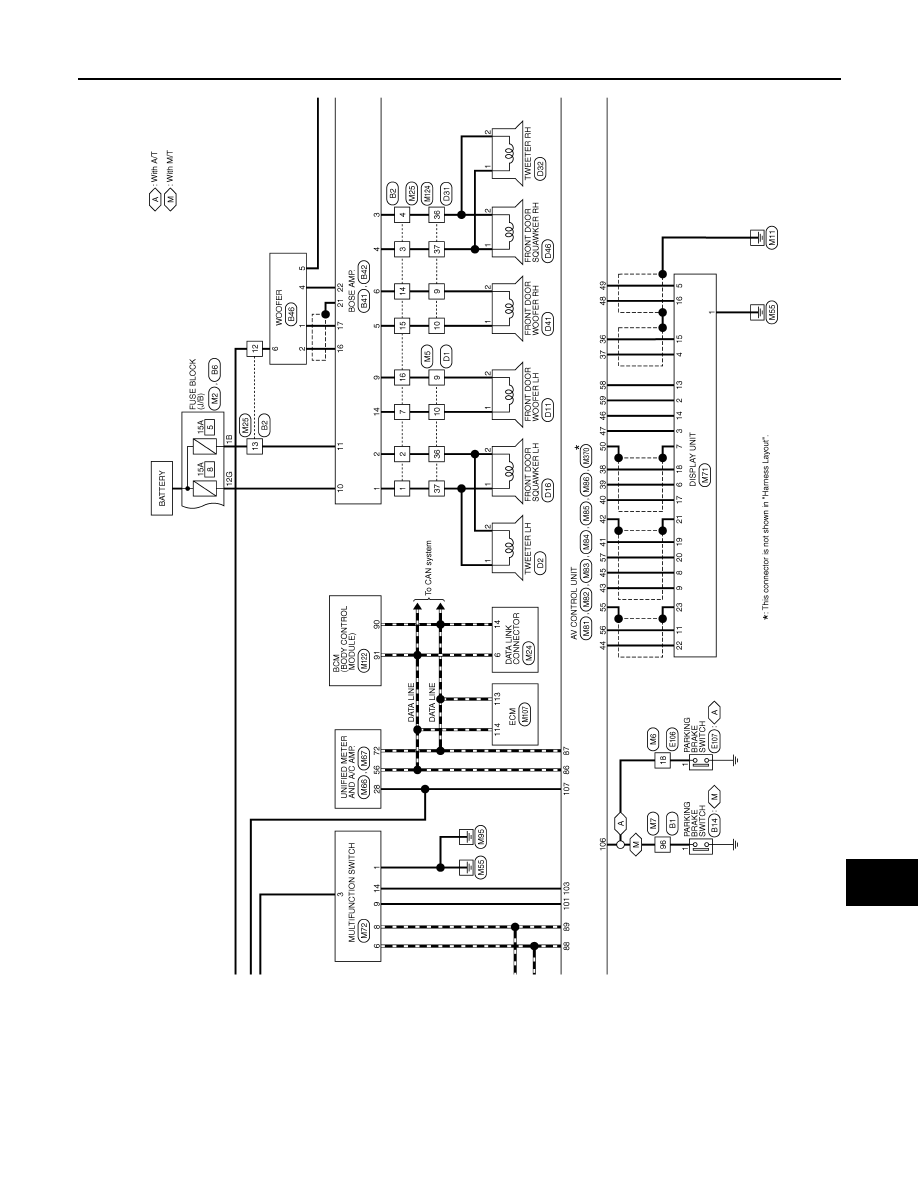

Wiring Diagram —  BOSE AUDIO WITHOUT NAVIGATON SYSTEM —

INFOID:0000000000964704

NOTE:

19

(W)

Ground

RGB synchronizing signal

Input

Ignition

switch

ON

—

20

(G)

Ground

Vertical synchronizing (VP)
signal

Output

Ignition

switch

On

—

21

—

Shield

—

—

—

—

22

(BR)

Ground

Communication signal
(DISP

→

CONT)

Output

Ignition

switch

ON

When adjusting display-
brightness.

23

—

Shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3603E

SKIB3598E

PKIB5039J

AV-214

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DISPLAY UNIT

The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JCNWA0032GB

AV

DISPLAY UNIT

AV-215

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

JCNWA0033GB
