Infiniti G35 (V35) Sedan. Manual - part 1041





PG-96

< PRECAUTION >

[POWER SUPPLY&GROUND CIRCUIT]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000000964318

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PG

PREPARATION

PG-97

< PREPARATION >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PREPARATION

PREPARATION

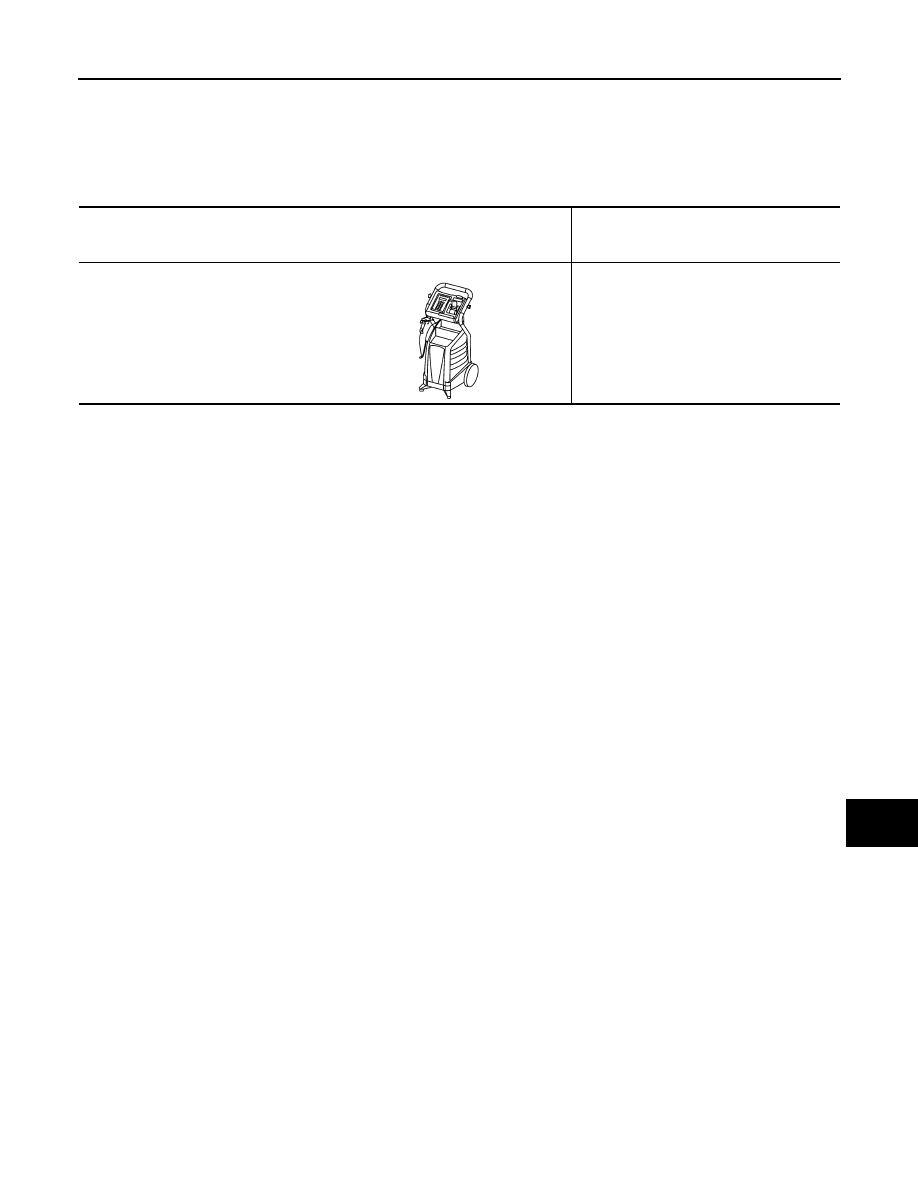

Special Service Tools

INFOID:0000000000964319

Tool number
(Kent-Moore No.)
Tool name

Description

(J-48087)
Battery Service Center

Tests battery.
For operating instructions, refer to Technical
Service Bulletin and Battery Service Center
User Guide.

WKIA5280E

PG-98

< ON-VEHICLE REPAIR >

[POWER SUPPLY&GROUND CIRCUIT]

BATTERY

ON-VEHICLE REPAIR

BATTERY

Exploded View

INFOID:0000000000964320

Removal and Installation

INFOID:0000000000964321

REMOVAL

1.

Remove battery cover.

2.

Remove relay box (2) from the bracket.

3.

Remove the clips (A), and remove hoodledge cover RH (1).

4.

Loosen battery terminal nuts (1), and disconnect both battery
cables from battery terminals.

CAUTION:

When disconnecting, disconnect the battery cable from the
negative terminal first.

5.

Remove battery fix frame mounting nuts (2) and battery fix
frame (3).

6.

Remove battery.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When connecting, connect the battery cable to the positive terminal first.

1

: Battery terminal (-)

2

: Battery fix frame mounting nuts

3

: Battery fix frame

4

: Battery terminal (+)

JPMIA0081ZZ

JPLIA0105ZZ

JPLIA0106ZZ

Battery fix frame mounting nut

: 3.9 N·m (0.40 kg-m, 35 in-lb)

Battery terminal nut

: 5.4 N·m (0.55 kg-m, 48 in-lb)

PG

BATTERY TERMINAL WITH FUSIBLE LINK

PG-99

< ON-VEHICLE REPAIR >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000000964322

Removal and Installation

INFOID:0000000000964323

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove cover of battery positive terminal.

3.

Remove harness mounting nuts (1) to disconnect harness con-
nector (3).

4.

Remove fusible link holder mounting nut (2) to disconnect bat-
tery terminal with fusible link (4).

INSTALLATION

Install in the reverse order of removal.

1

: Harness mounting nut

2

: Fusible link holder mounting nut

3

: Harness connector

4

: Battery terminal with fusible link

JPMIA0180ZZ

JPMIA0180ZZ

Harness mounting nut

: 13.2 N·m (1.3 kg-m, 10 ft-lb)

Fusible link holder mounting nut

: 13.2 N·m (1.3 kg-m, 10 ft-lb)
