HARNESS LAYOUT

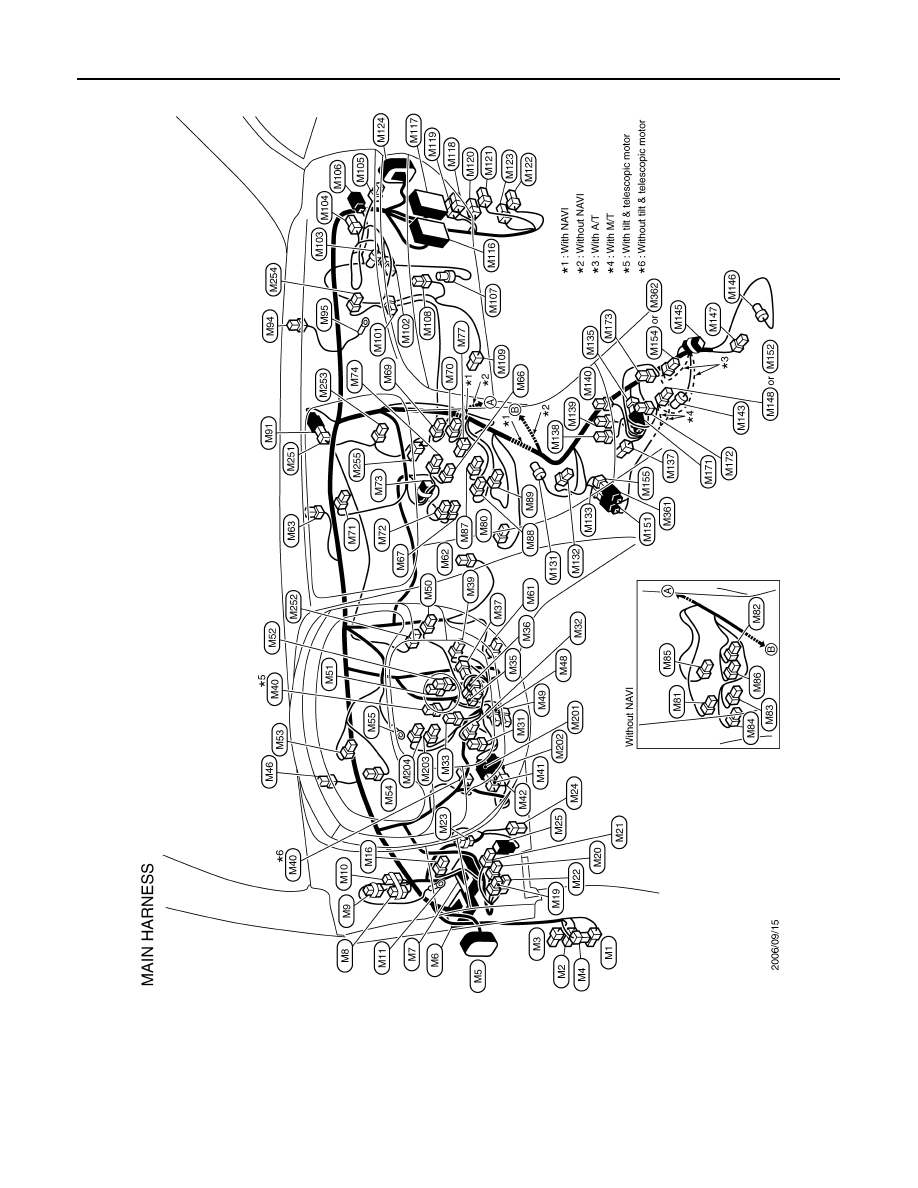

Main Harness

INFOID:0000000000964305

Engine Room Harness

INFOID:0000000000964306

JCMIA0002GB

PG

HARNESS LAYOUT

PG-77

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ENGINE COMPARTMENT

JCMIA0003GB

PG-78

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

PASSENGER COMPARTMENT

Engine Control Harness

INFOID:0000000000964307

JCMIA0004GB

PG

HARNESS LAYOUT

PG-79

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ENGINE COMPARTMENT

JCMIA0005GB
