DIAGNOSIS AND REPAIR WORKFLOW

AV-125

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000000964623

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-145, "CONSULT - III Function"

.

• Reference 2··· Refer to

AV-285, "Symptom Table"

.

DETAILED FLOW

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items.
• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2.

2.

SELF-DIAGNOSIS (CONSULT-III)

1.

Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”.
NOTE:

JSNIA0039GB

AV-126

< BASIC INSPECTION >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2.

Check that any DTC No. is displayed in the self-diagnosis results.

Is any DTC No. displayed?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK SELF-DIAGNOSIS RESULTS (CONSULT-III)

1.

Check the DTC No. indicated in the self-diagnosis results.

2.

Perform the relevant diagnosis referring to the DTC Index. Refer to

AV-209, "DTC Index"

.

NOTE:
Start with the diagnosis for the CAN communication system if “CAN COMM CIRCUIT [U1000] and CONTROL
UNIT CAN [U1010]” is displayed.

>> GO TO 5.

4.

PERFORM DIAGNOSIS BY SYMPTOM

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-285, "Symptom

Table"

.

>> GO TO 5.

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the identified malfunctioning parts.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC No. has
been indicated in the self-diagnosis results.

>> GO TO 6.

6.

CHECK AFTER REPAIR

1.

Perform a self-diagnosis for “MULTI AV” with CONSULT-III after repairing or replacing the malfunctioning
parts.

2.

Check that any DTC No. is displayed in the self-diagnosis results.

Is any DTC No. displayed?

YES

>> GO TO 3.

NO

>> GO TO 7.

7.

FINAL CHECK

Perform the operation check that the malfunction symptom is solved or any other symptoms are present.

No symptoms?

YES

>> INSPECTION END

NO

>> GO TO 4.

AV

MULTI AV SYSTEM

AV-127

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

FUNCTION DIAGNOSIS

MULTI AV SYSTEM

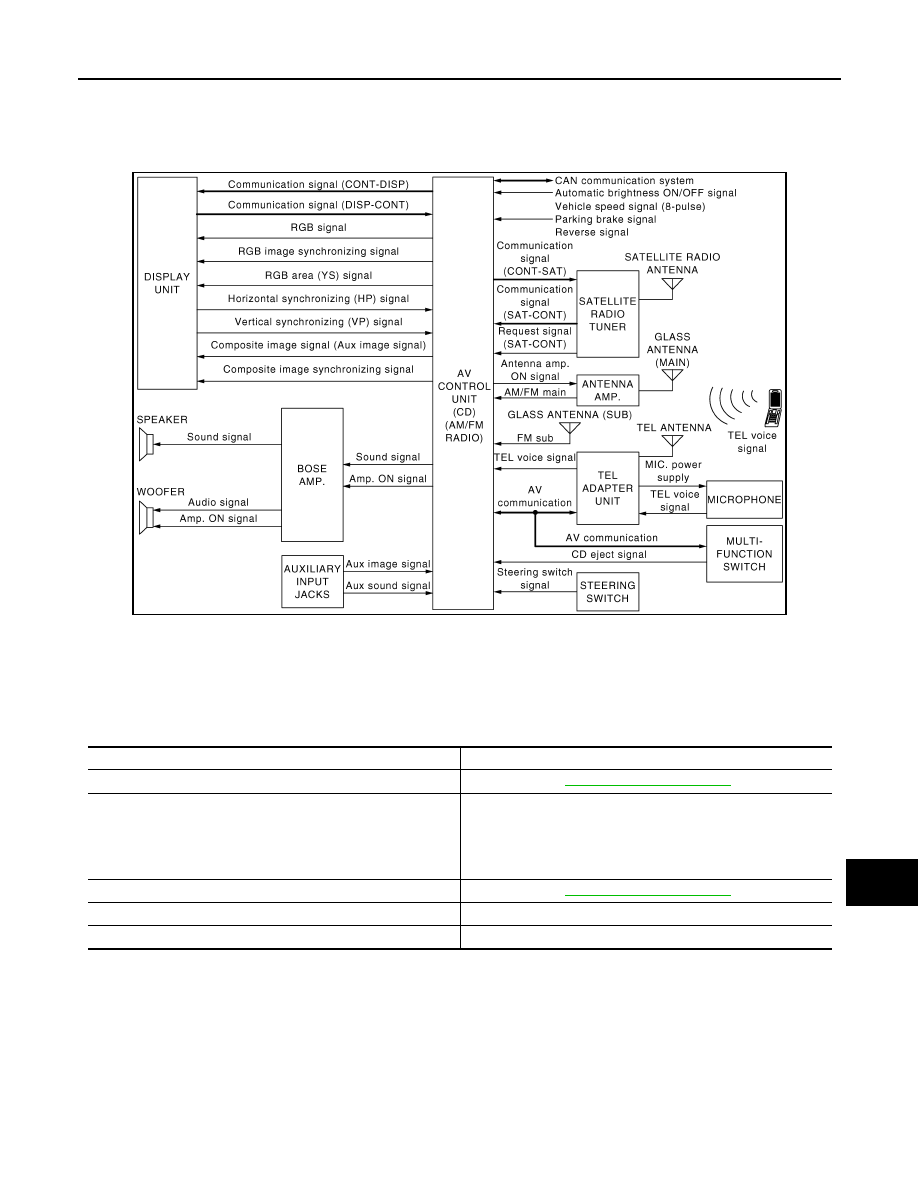

System Diagram

INFOID:0000000000964624

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

System Description

INFOID:0000000000964625

Multi AV system means that the following systems are integrated.

• AV control unit controls by sending/receiving data one by one with each unit (slave unit) that configures them

completely as a master unit by connecting between units that configure MULTI AV system with two AV com-
munication lines (H, L).

• Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.
• AV control unit is connected by CAN communication, and it receives data signal from ECM, unified meter

and A/C amp. It computes and displays fuel economy information value with the obtained information. Send-
ing/receiving of data signal is performed by BCM. Also, it sends the required signal of vehicle setting and
receives the response signal.

• AV control unit is connected with display and serial communication, and it sends the required signal of dis-

play and display control and receives the response signal from front display. Also, it is connected with satel-
lite radio by serial communication, and it sends the operating signal and receives the display signal.

JSNIA0128GB

System name

System explanation

AUDIO SYSTEM

AV-132, "System Description"

VEHICLE INFORMATION SYSTEM

• Indicates the status of audio, climate control system, fuel econ-

omy and maintenance.

• AV control unit displays the fuel consumption  status while re-

ceiving data signal through CAN communication from ECM,
unified meter and A/C amp and BCM.

HANDS-FREE PHONE SYSTEM

AV-135, "System Description"

SATELLITE RADIO SYSTEM

Refer to “SATELLITE RADIO SYSTEM” shown below.

AUXILIARY INPUT SYSTEM

Refer to “AUXILIARY INPUT SYSTEM” shown below.
