Infiniti G35 (V35) Sedan. Manual - part 86

AV-116

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

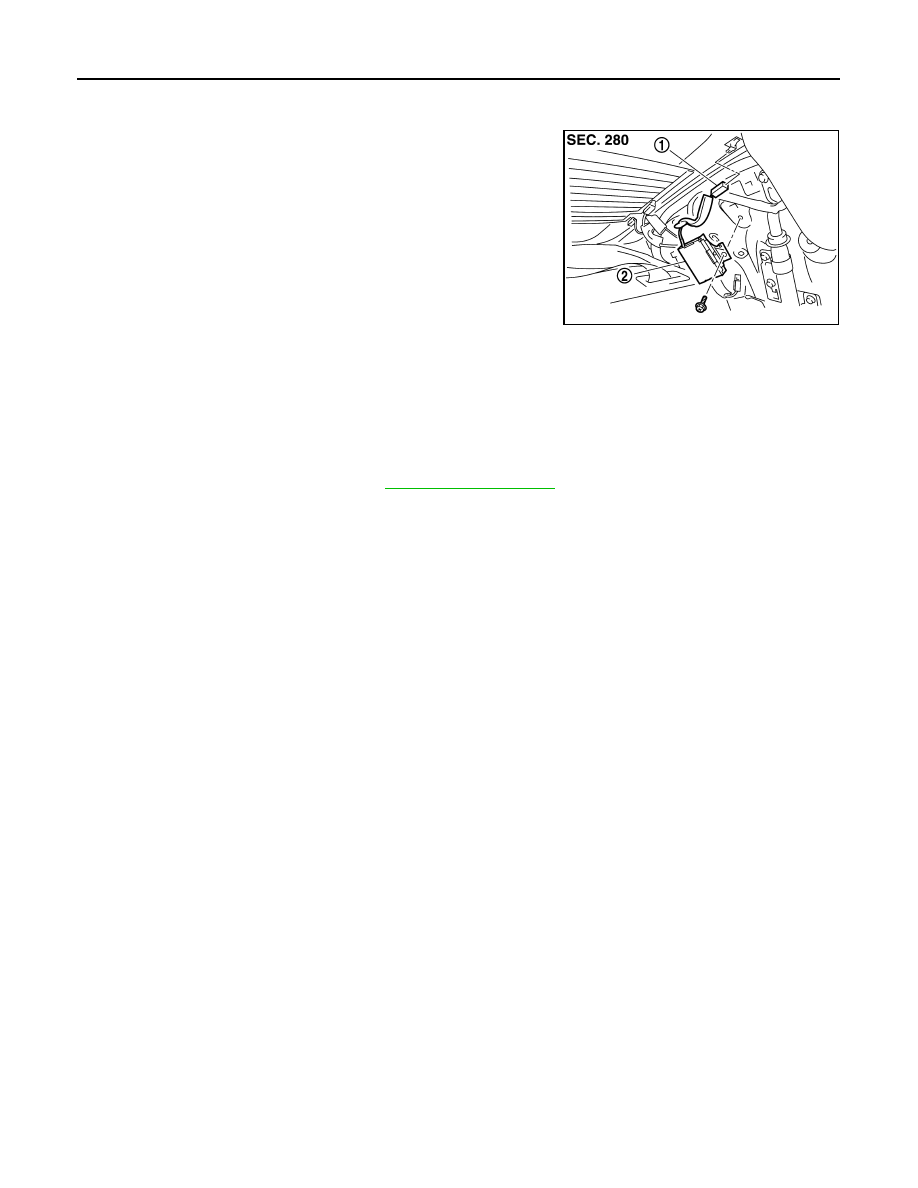

ANTENNA AMP.

ANTENNA AMP.

Exploded View

INFOID:0000000000964607

Removal and Installation

INFOID:0000000000964608

REMOVAL

1.

Remove rear pillar finisher LH. Refer to

INT-13, "Exploded View"

.

2.

Remove antenna amp. from rear pillar LH.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0123ZZ

1.

AM-FM main connector

2.

Antenna amp.

AV

SATELLITE RADIO TUNER

AV-117

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

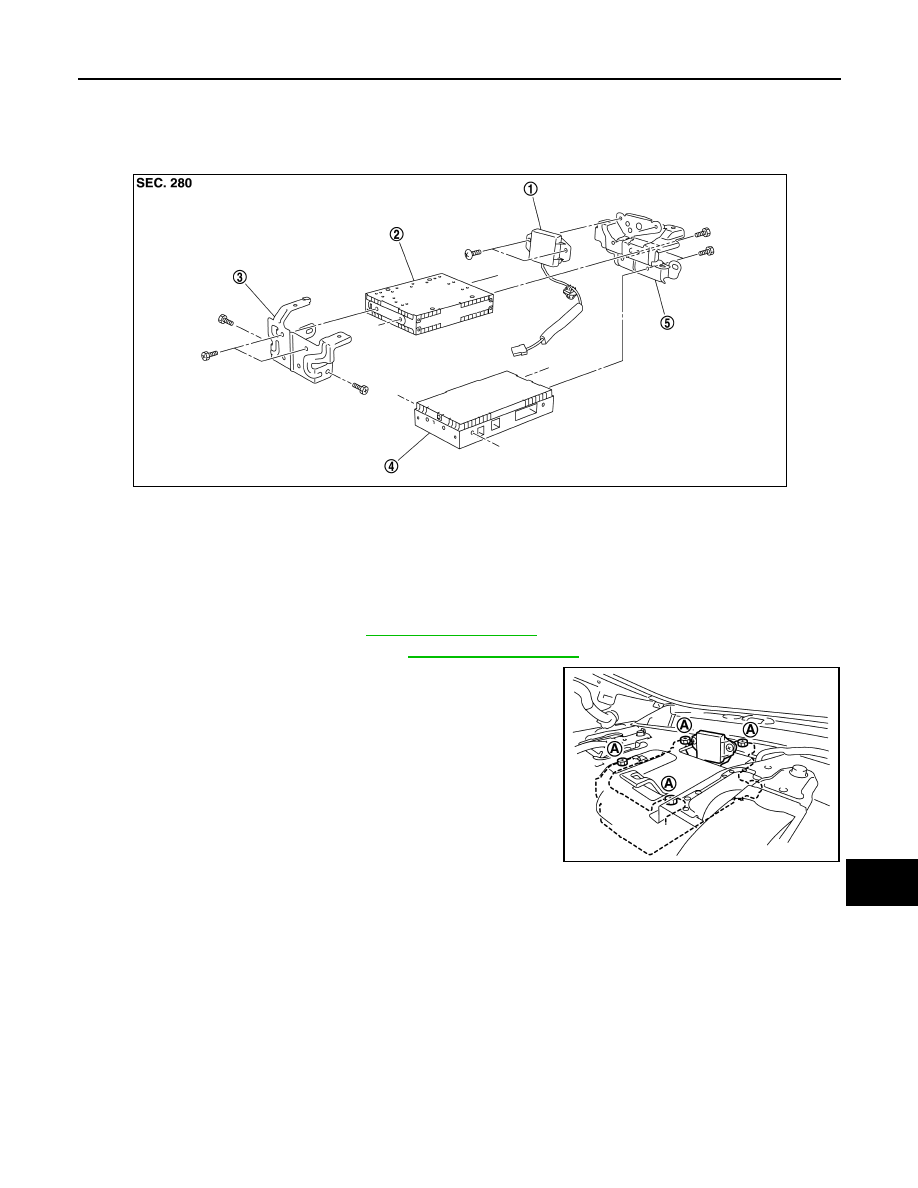

SATELLITE RADIO TUNER

Exploded View

INFOID:0000000000964609

Removal and Installation

INFOID:0000000000964610

REMOVAL

1.

Remove trunk front finisher. Refer to

INT-26, "Exploded View"

.

2.

Remove rear parcel shelf finisher. Refer to

INT-18, "Exploded View"

.

3.

Remove screw (A) from inside the cabin, and remove TEL
adapter unit and TEL antenna as a single unit from trunk room
side.

4.

Remove bracket screws and remove TEL adapter unit and sat-
ellite radio tuner.

INSTALLATION

Installation is the reverse order of removal.

1.

TEL antenna

2.

Satellite radio tuner

3.

Bracket (front)

4.

TEL adapter unit

5.

Bracket (rear)

JSNIA0156ZZ

JSNIA0157ZZ

AV-118

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO ANTENNA

SATELLITE RADIO ANTENNA

Exploded View

INFOID:0000000000964611

Removal and Installation

INFOID:0000000000964612

REMOVAL

1.

Remove head lining assembly (rear) to secure work space between vehicle and headlining. Refer to

INT-

22, "Exploded View"

.

2.

Remove nuts, and then remove satellite radio antenna from roof panel.

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

Be careful about tightening torque. Antenna sensitivity becomes poor, and when it is excessive, roof
panel may be deformed, when roof antenna mounting nut tightening torque is loose.

JSNIA0124ZZ

1.

Satellite radio antenna

Roof antenna mounting nut

 : 6.5 N·m (0.66 kg-m, 58 in-lb)

AV

MULTIFUNCTION SWITCH

AV-119

< ON-VEHICLE REPAIR >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

N

A

O

P

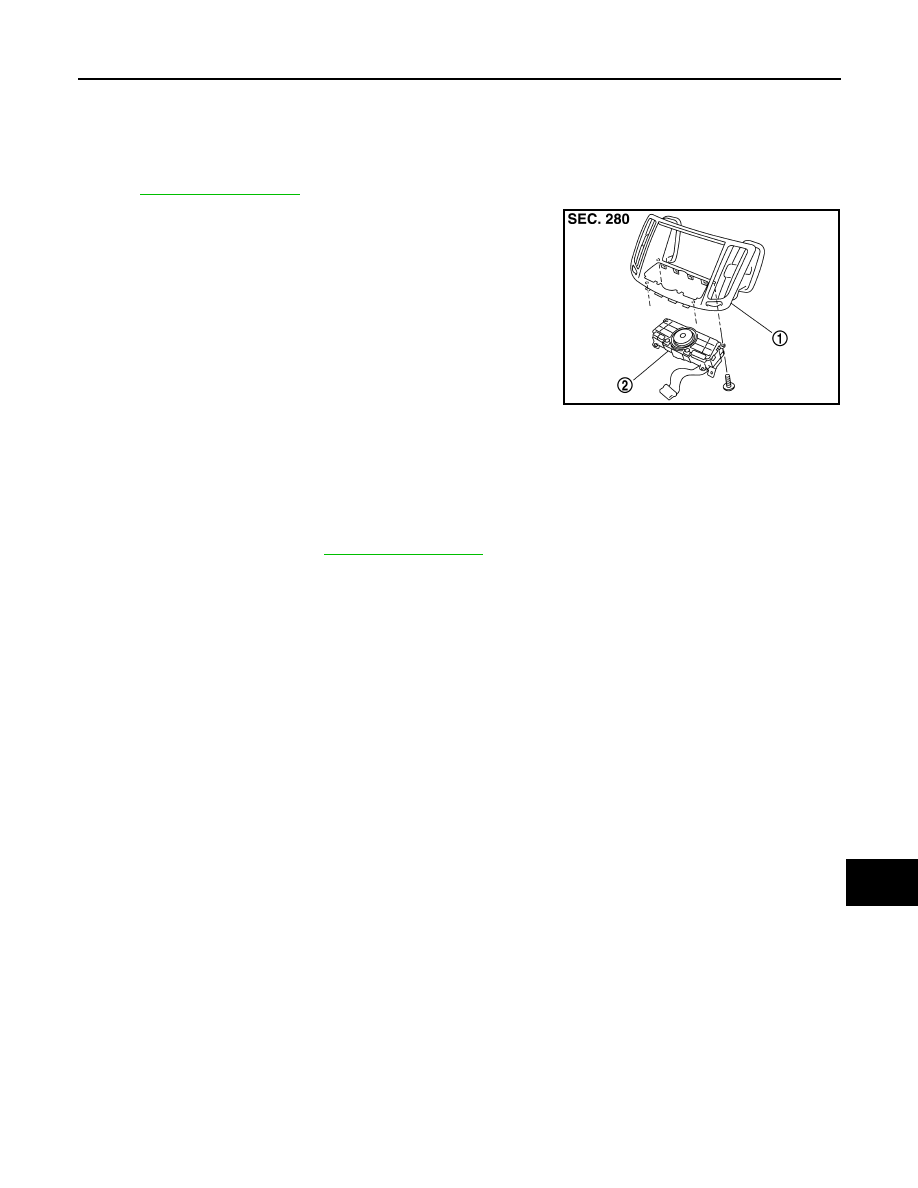

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000000964613

REMOVAL

Refer to

IP-11, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000000964614

REMOVAL

1.

Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2.

Remove multi function switch with center ventilator grille as a single unit.

3.

Remove multi function switch from center ventilator.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0126ZZ

1.

Center ventilator grille

2.

Multifunction switch
