Infiniti G20 (P11). Manual - part 530

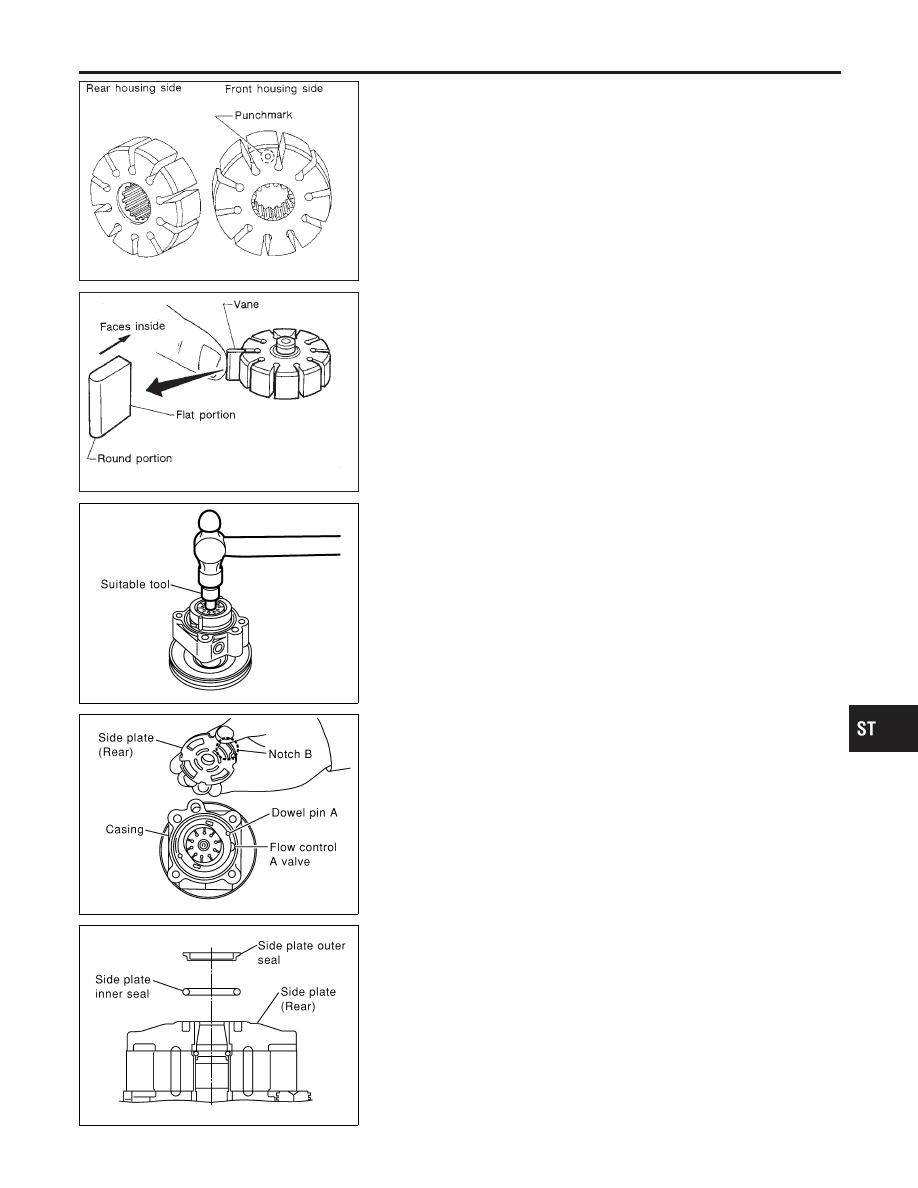

SST289A

7.

Face the side of the rotor with the punch mark towards the
casing, and attach the rotor to the pulley shaft.

SST843A

8.

Attach the vane to the rotor so that the vane’s arc touches the
cam ring.

SST931C

9.

Use a hammer or suitable tool to insert the rotor snap ring into
the pulley shaft channel.

CAUTION:

I

The rotor snap ring cannot be reused. Always replace after
every disassembly.

I

Insert with care so as not to damage the rotor or the pul-
ley shaft.

I

If the rotor is damaged, replace the power steering as an
assembly.

SST932C

10. Match the dowel pin A on the flow control A valve side with the

notch B of the side plate (rear), and attach the side plate (rear)
to the cam ring.

11. Apply Genuine Nissan PSF II or equivalent to O-ring and

attach to the casing.

CAUTION:

The O-ring cannot be reused. Always replace after every dis-
assembly.

SST933C

12. Attach a side plate inner seal and side plate outer seal with

Genuine Nissan PSF II or equivalent applied, to the side plate
(rear).

CAUTION:

The side plate inner seal and outer seal cannot be reused.
Always replace after every disassembly.
13. Set the power steering pump on the vice.

CAUTION:

When securing to the vice, use an aluminum plate or other
material to protect the installation surface of the power steer-
ing pump from damage.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

POWER STEERING OIL PUMP

Assembly (Cont’d)

ST-29

14. Attach the rear body to the casing, and secure the bolts (4

bolts) in a diagonal order to the specified torque.

15. Attach the front bracket to the casing, and secure the bolts (2

bolts) to the specified torque.

16. Attach the inlet collector seal to the grooves of the inlet

collector, and attach the inlet collector to the casing with
attachment bolts.

CAUTION:

The inlet collector seal cannot be reused. Always replace after
every disassembly.

POWER STEERING OIL PUMP

Assembly (Cont’d)

ST-30

General Specifications

NCST0032

Steering model

Power steering

Steering gear type

PR24AC

Steering overall gear ratio

17.7

Turns of steering wheel (Lock to lock)

2.84

Steering column type

Collapsible, tilt

Steering Wheel

NCST0033

Steering wheel axial play

mm (in)

0 (0)

Steering wheel play

mm (in)

35 (1.38) or less

Movement of gear housing

mm (in)

±

2 (

±

0.08) or less

Steering Column

NCST0034

Applied model

All

Steering column length “L”

mm (in)

535.9 - 538.1 (21.10 - 21.18)

SST334C

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

ST-31

Steering Gear and Linkage

NCST0035

Applied model

All

Steering gear type

PR24AC

Tie-rod outer ball joint

Swinging force at cotter pin hole: “A”

N (kg, lb)

6.9 - 65.7 (0.7 - 6.7, 1.5 - 14.8)

Rotating torque: “B”

N·m (kg-cm, in-lb)

0.29 - 2.94 (3.0 - 30.0, 2.6 - 26.0)

Axial end play: “C”

mm (in)

0.5 (0.020) or less

Tie-rod inner ball joint

Swinging force*: “A”

N (kg, lb)

5.9 - 46.1 (0.6 - 4.7, 1.3 - 10.4)

Axial end play: “C”

mm (in)

0.2 (0.004) or less

Tie-rod standard length “L”

mm (in)

164.6 (6.480)

*: Measuring point [



: 170 mm (6.69 in)]

SST488C

Retainer adjustment
Adjusting screw

Initial tightening torque

N·m (kg-cm, in-lb)

4.9 - 5.9 (50 - 60, 43 - 52)

Retightening torque after loosening

N·m (kg-cm,

in-lb)

0.2 (2, 1.7)

Tightening torque after gear has settled

N·m

(kg-cm, in-lb)

4.9 - 5.9 (50 - 60, 43 - 52)

Returning angle

degree

40° - 60°

Steering gear type

PR24AC

Rack stroke “S”

mm (in)

66.0 (2.60)

SST086BA

SERVICE DATA AND SPECIFICATIONS (SDS)

Steering Gear and Linkage

ST-32
