Infiniti G20 (P11). Manual - part 512





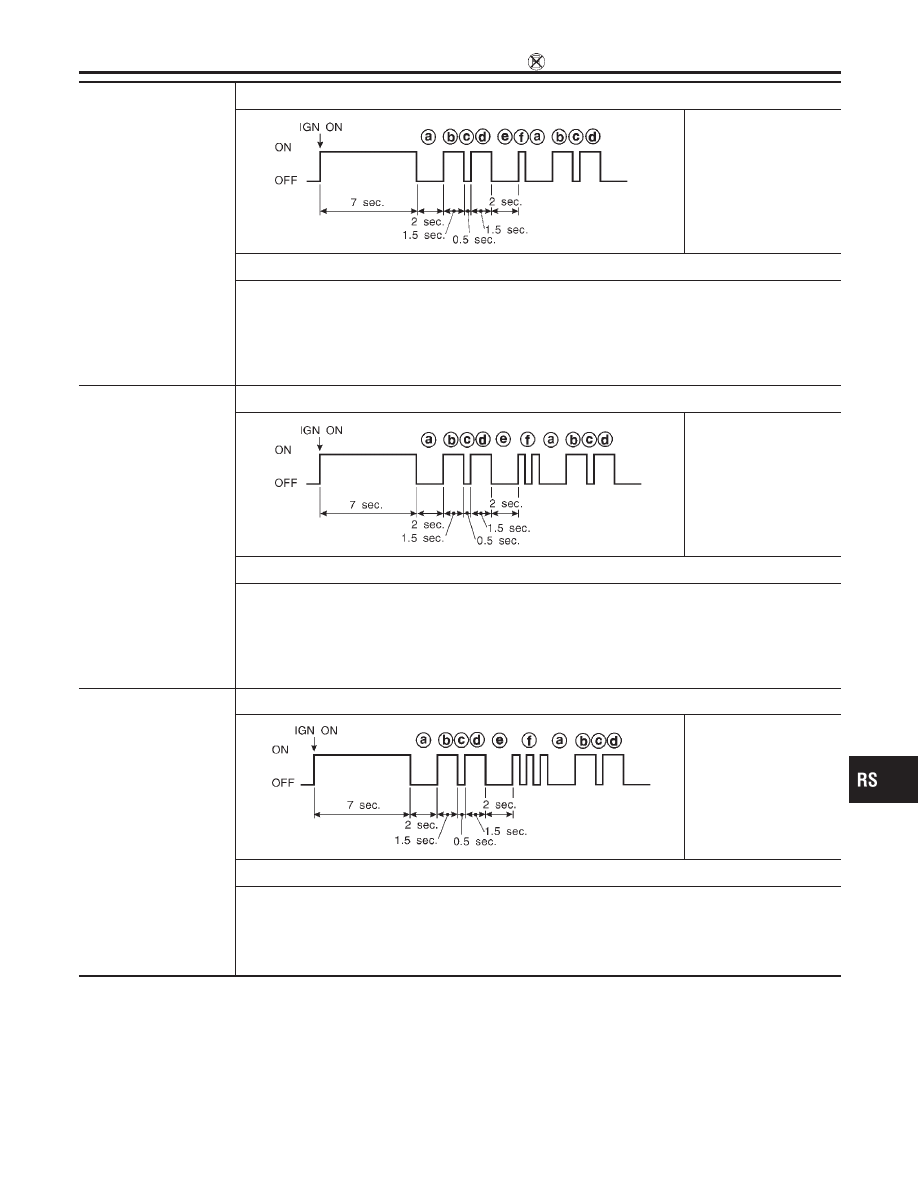

The side air bag module
(RH) circuit is malfunc-
tioning.
(f: 1 flash)

Flash pattern

SRS338

through are
repeated.
— One flash indicates
malfunctioning side air
bag module (RH) circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace side air bag module (RH).

(Before disposal, it must be deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

The side air bag module
(LH) circuit is malfunc-
tioning.
(f: 2 flashes)

Flash pattern

SRS337

through are
repeated.
— Two flashes indi-
cate malfunctioning side
air bag module (LH) cir-
cuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace side air bag module (LH).

(Before disposal, it must be deployed.)

4. Replace the diagnosis sensor unit.
5. Replace the related harness.

The satellite sensor
(RH) is malfunctioning.
(f: 3 flashes)

Flash pattern

SRS340

through are
repeated.
— Three flashes indi-
cate malfunctioning sat-
ellite sensor (RH) circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the satellite sensor (RH).
4. Replace the diagnosis sensor unit.
5. Replace the related harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-53

The satellite sensor (LH)
is malfunctioning.
(f: 4 flashes)

Flash pattern

SRS339-A

through are
repeated.
— Four flashes indi-
cate malfunctioning sat-
ellite sensor (LH) circuit.

Repair order (“Recheck SRS at each replacement.”)

1. Visually check the wiring harness connection.
2. Replace the harness if it has visible damage.
3. Replace the satellite sensor (LH).
4. Replace the diagnosis sensor unit.
5. Replace the related harness.

* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated
using the air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still observed, proceed to the next
step. When malfunction is eliminated, further repair work is not required.

SRS800

DIAGNOSTIC PROCEDURE 7

NCRS0029S02

Final checking after repairing SRS by using “AIR BAG” warn-
ing lamp — Diagnosis mode and User mode
1.

After repairing SRS connect both battery cables.

2.

Open driver’s door.

3.

Turn ignition switch from “OFF” to “ON”.

4.

“AIR BAG” warning lamp operates in Diagnosis mode as fol-
lows:

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-54

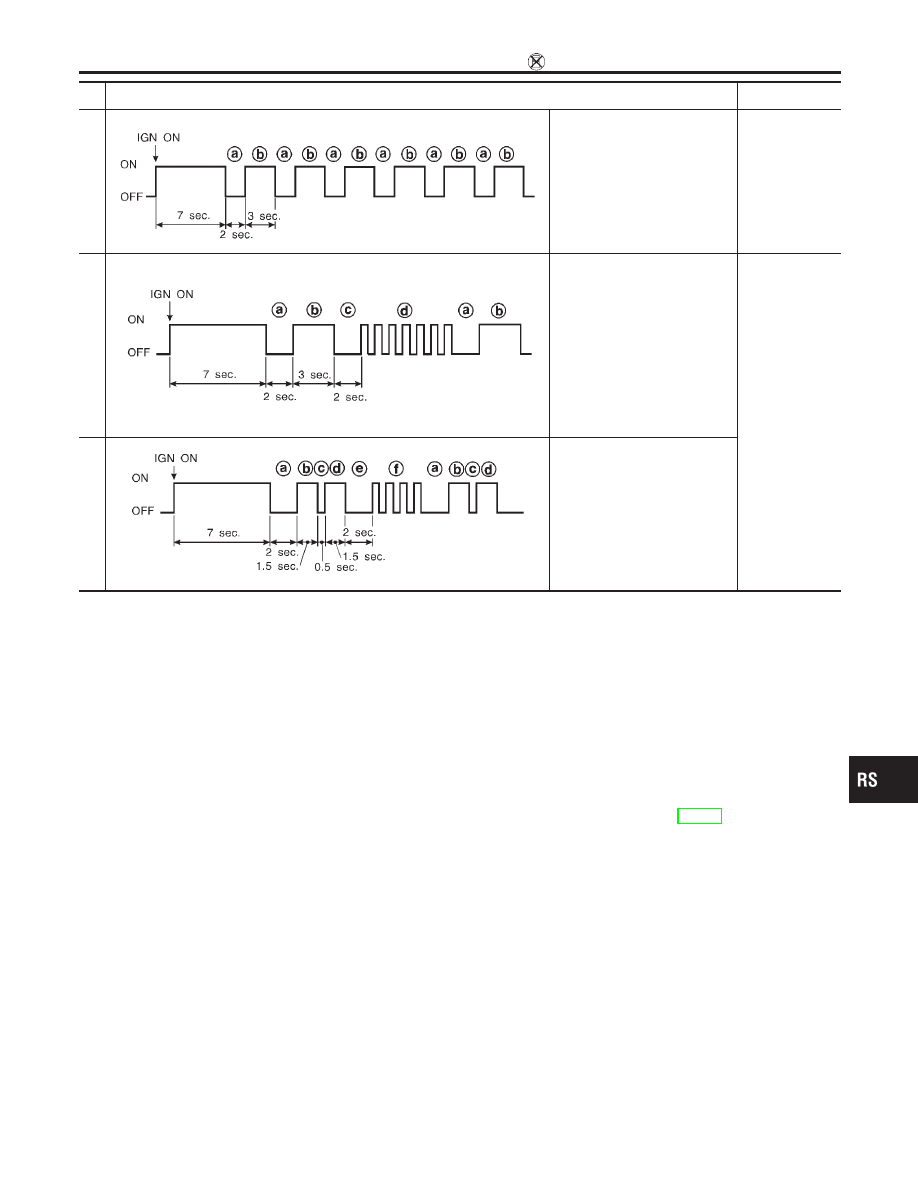

No.

“AIR BAG” warning lamp flash pattern — Diagnosis mode —

SRS condition

1

SRS333

through are repeated.

No malfunction
is detected or
repair is com-
pleted.
No further
action is nec-
essary.

2

SRS341

through are repeated.
— Driver and passenger air
bag marker (For identifying
driver, passenger air bag
and/or seat belt pre-tensioner
malfunctioning)
— Indicates malfunctioning
part. The number of flashes
varies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

The system is
malfunctioning
and needs to
be repaired.

3

SRS342-A

through are repeated.
bc— Side air bag marker
(For identifying side air bag
malfunctioning)
— Indicates malfunctioning
part. The number of flashes
varies with malfunctioning part
(0.5 sec. ON and 0.5 sec. OFF
is counted as one flash.)

NOTE:
When diagnosis sensor unit is replaced with new one, “AIR BAG”
warning lamp will operate in User mode. Checking “AIR BAG”
warning lamp operation in Diagnosis mode is not required. Go to
step 6.
5.

If “AIR BAG” warning lamp operates as shown in No. 1 in chart
above, turn ignition switch “OFF” to reset from Diagnosis mode
to User mode and to erase the memory of the malfunction.
Then go to step 6.
If “AIR BAG” warning lamp operates as shown in No. 2 or No.
3 in chart above, the malfunctioning part is not repaired
completely, or another malfunctioning part is detected. Go to
DIAGNOSTIC PROCEDURE 6, page RS-49, and repair mal-
functioning part completely.

6.

Turn ignition switch “ON”. “AIR BAG” warning lamp operates in
User mode. Compare “AIR BAG” warning lamp operation to
the chart below.

NOTE:
If switching Diagnosis mode to User mode is required while mal-
function is being detected, by turning ignition switch as follows:
1)

Turn ignition switch “ON”.

2)

After “AIR BAG” warning lamp lights for 7 seconds, turn igni-
tion switch “OFF” within 1 second.

3)

Wait more than 3 seconds.

4)

Repeat steps 1 to 3 three times.

5)

Turn ignition switch “ON”.

SRS is now in User mode.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-55

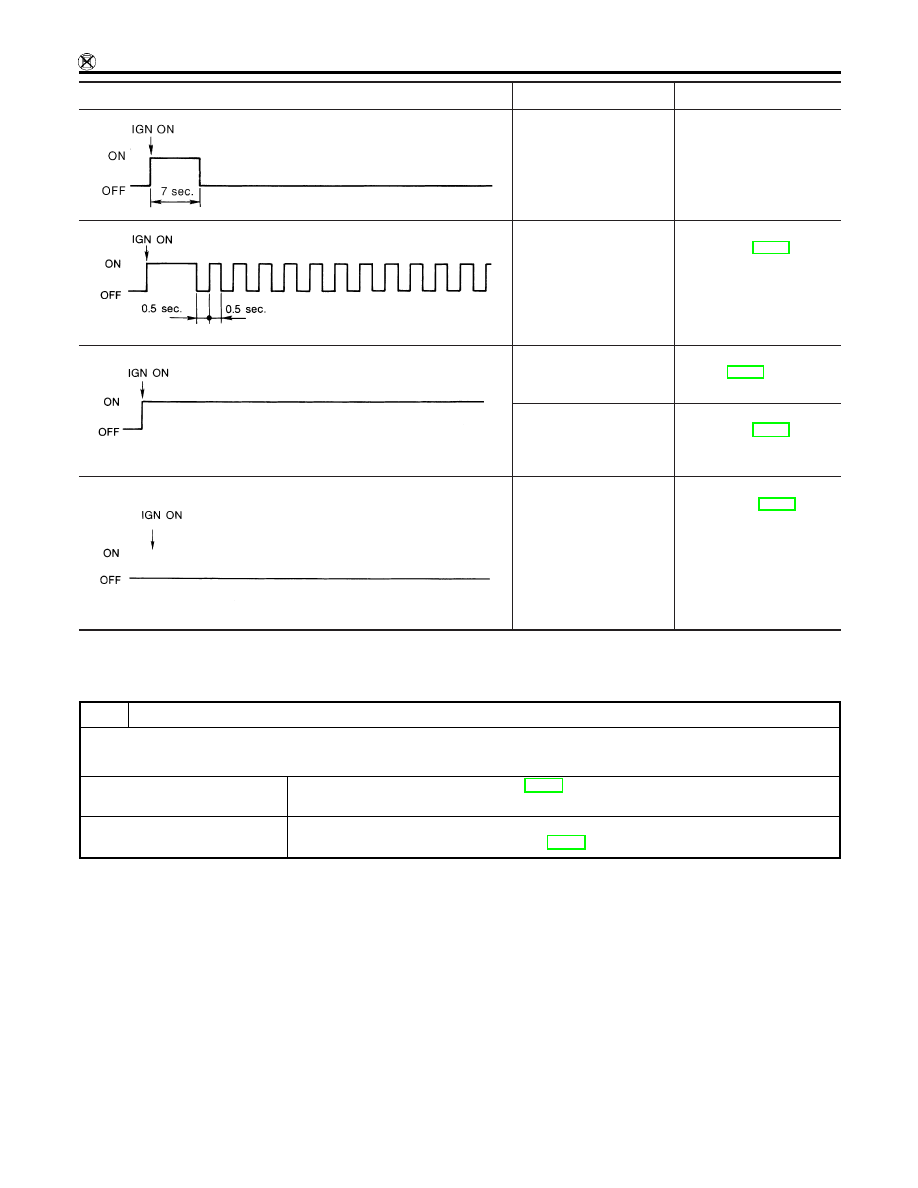

“AIR BAG” warning lamp operation — User mode —

SRS condition

Reference item

MRS095A

No malfunction is
detected.
No further action is neces-
sary.

MRS096A

The system is malfunc-
tioning and needs to be
repaired as indicated.

Go to DIAGNOSTIC PRO-
CEDURE 6 (RS-49).

MRS097A

Air bag is deployed.
Seat belt pre-tensioner is
deployed.

Go to COLLISION DIAG-
NOSIS (RS-60).

Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.

Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-57).

MRS098A

One of the following has
occurred and needs to be
repaired.

I

Meter fuse is blown.

I

“AIR BAG” warning
lamp circuit has open or
short.

I

Diagnosis sensor unit is
malfunctioning.

Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-59).

DIAGNOSTIC PROCEDURE 8 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 6)

NCRS0029S03

Inspecting SRS malfunctioning record

1

CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAIRING

Is it the first time for maintenance of SRS?

Yes or No

Yes

©

Go to DIAGNOSTIC PROCEDURE 5 (RS-45). (Further inspection cannot be performed
without CONSULT-II.)

No

©

Diagnosis results (previously stored in the memory) might not be erased after repair. Go
to DIAGNOSTIC PROCEDURE 7, step 5 (RS-54).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses without CONSULT-II (Cont’d)

RS-56
